◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#19328) — 12 parça

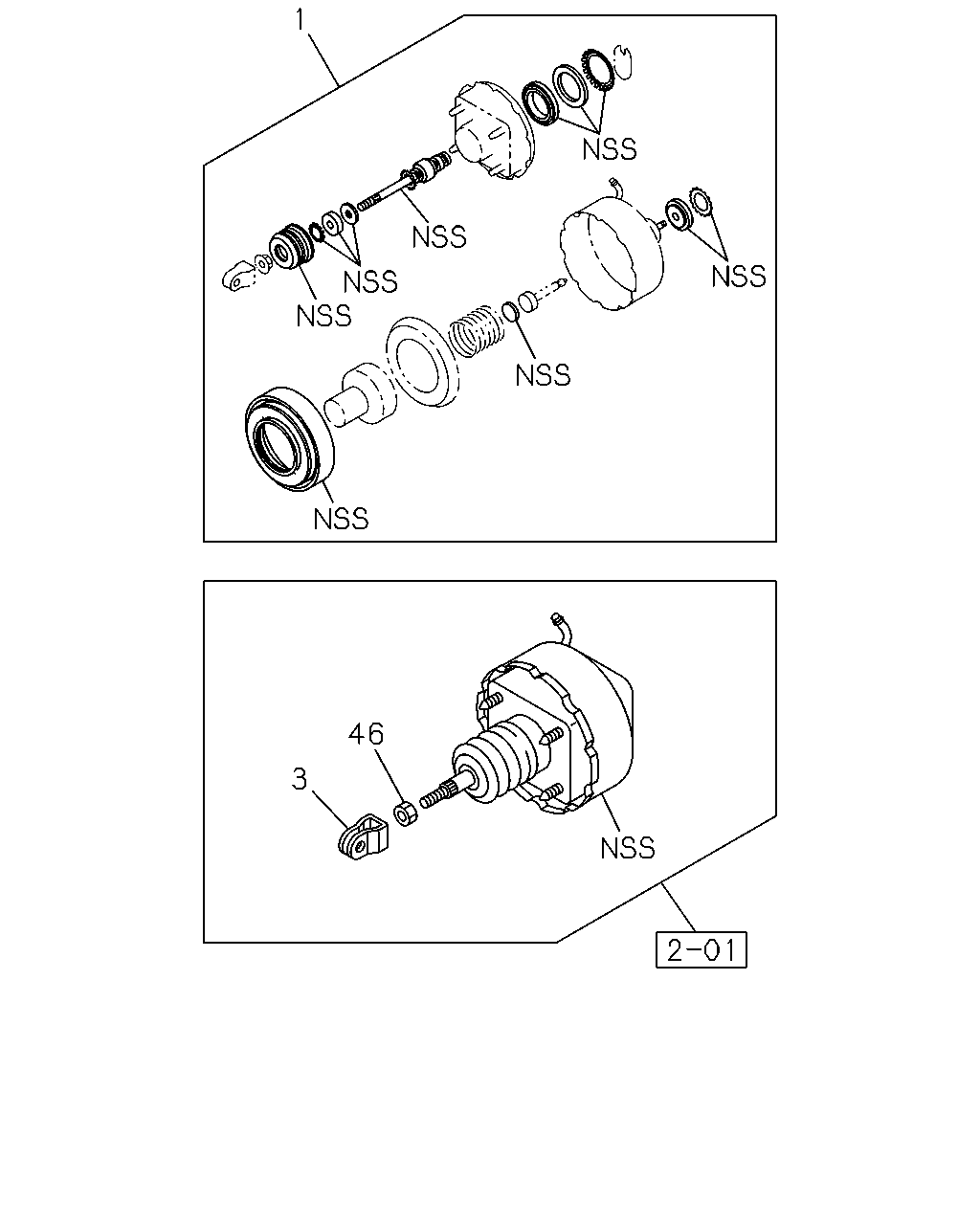

çizim 12169
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0201-0301 ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0302-0501 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0502- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0805- ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0201-0301 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0302-0501 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0502-0804 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0805- ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0201-0301 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0302-0501 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0502-0804 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0805- ● ●
