2-05 — CLUTCH PIPING (#19326) — 119 parça
çizim 48450
15 24 4 5 87 15 6 11 16 92 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0201-0301 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0302-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 0502-0804 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0805- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0201-0301 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0302-0610 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611-0804 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0805- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0201-0301 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0302-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-0804 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0805- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0201-0301 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 0302- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1 ENG(RJS) (A) WITH PROTECTOR 		8-98020-158-0 01 1 0805- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0301 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0804 ●
6 00.785 BOLT; BRKT,FLEX HOSE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0805- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0301 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0501 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0804 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0201-0301 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0302-0305 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0306-0501 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-94366-288-0 01 1 0502-0502 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-97365-305-0 01 1 0502-0804 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0805- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0201-0301 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0302-0804 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0805- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0201-0301 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0302-0804 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0805- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0201-0301 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0302-0501 ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 0502-0610 ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 04.681 		8-97365-304-0 01 1 0611-0804 ●
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0805- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0201-0301 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0302-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0502-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0201-0301 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0302-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0502-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 0805-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 1304- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1 ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 0805-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 1304- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0201-0301 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0302-0607 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0804 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0805- ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0201-0301 ●

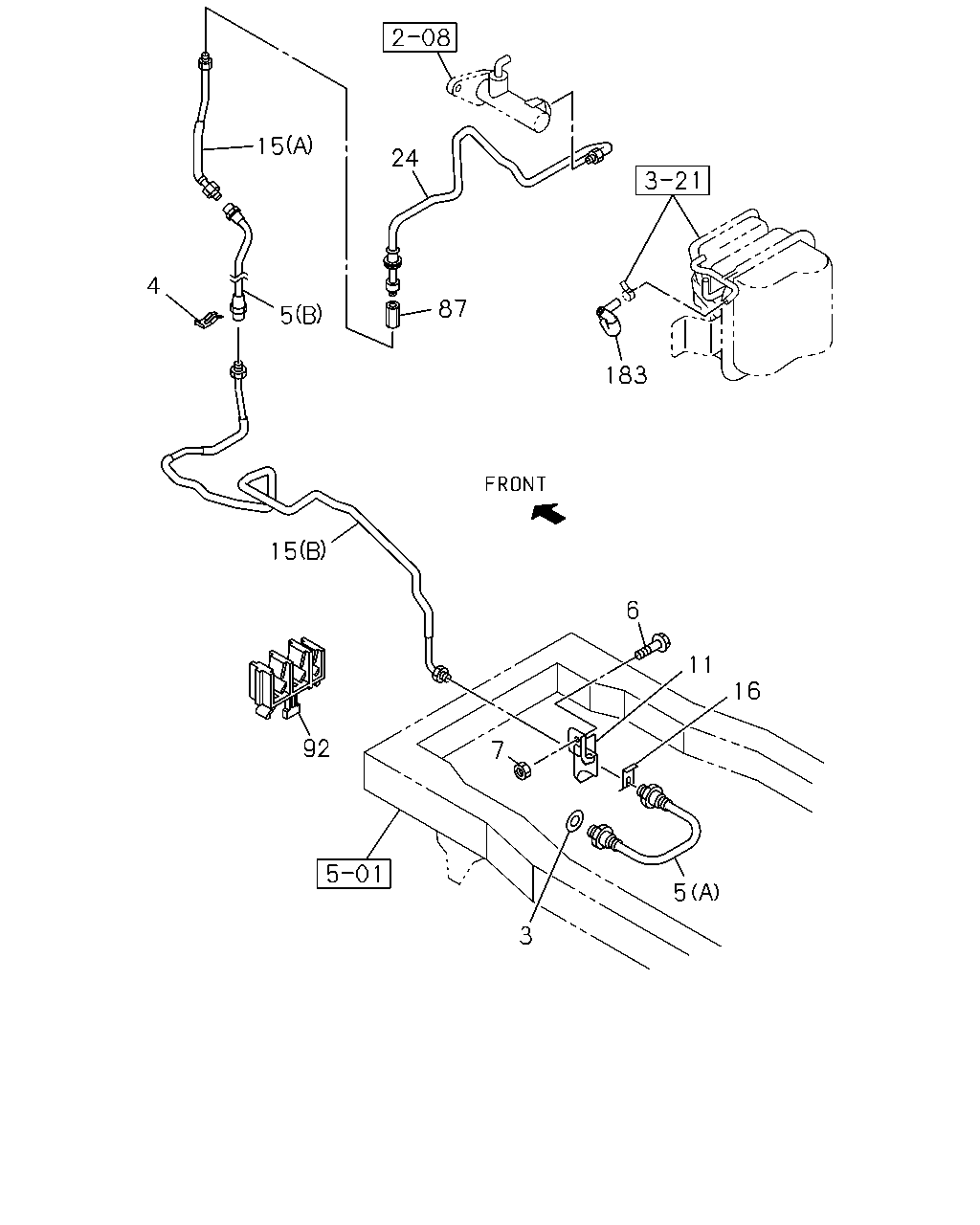

çizim 50445
15 24 4 87 5 183 15 6 11 16 7 92 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0201-0301 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0302-0501 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 0502-0804 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0805- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0201-0301 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0302-0610 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611-0804 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0805- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0201-0301 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0302-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-0804 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0805- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0201-0301 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 0302- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1 ENG(RJS) (A) WITH PROTECTOR 		8-98020-158-0 01 1 0805- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0301 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0804 ●
6 00.785 BOLT; BRKT,FLEX HOSE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0805- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0301 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0501 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0804 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0201-0301 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0302-0305 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0306-0501 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-94366-288-0 01 1 0502-0502 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-97365-305-0 01 1 0502-0804 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0805- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0201-0301 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0302-0804 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0805- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0201-0301 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0302-0804 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0805- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0201-0301 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0302-0501 ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 0502-0610 ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS) 04.681 		8-97365-304-0 01 1 0611-0804 ●
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0805- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0201-0301 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0302-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0502-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0201-0301 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0302-0501 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0502-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 0805-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 1304- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1 ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 0805-1303 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 1304- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0201-0301 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0302-0607 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0804 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0805- ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0201-0301 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0201-0301 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0302- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-874-0 01 1 0805- ●
