2-03 — CLUTCH PEDAL AND CONTROL (#19325) — 138 parça

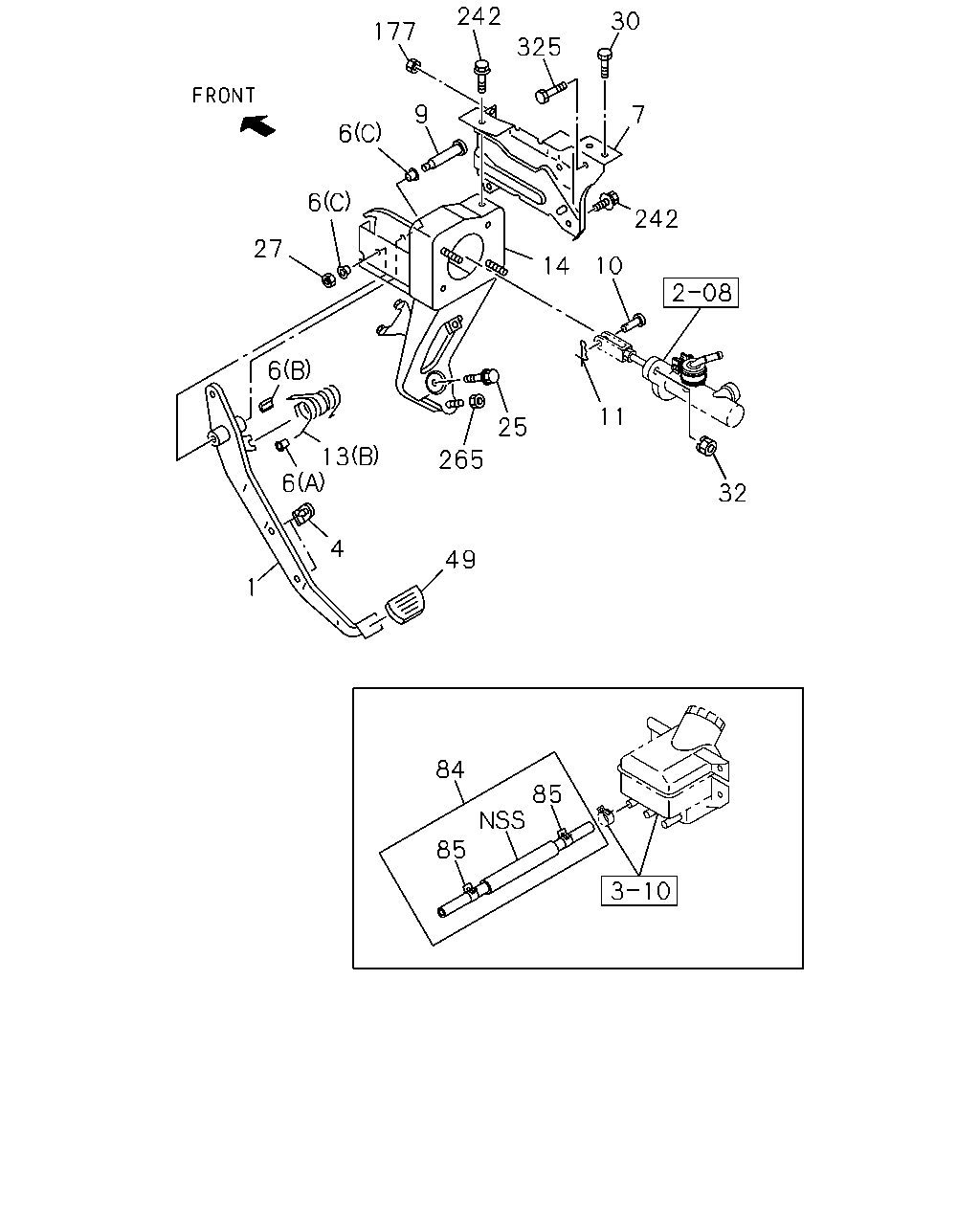

çizim 53114
242 30 177 325 9 7 6 6 242 27 10 14 6 11 25 13 265 6 32 4 49 1 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0201-0804 ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0805- ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0201-0501 ●
1 00.830 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0502-0804 ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0805- ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0201-0804 ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0201-0804 ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0201-0501 ●
6 00.831 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0502-0804 ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0201-0501 ●
6 00.831 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0502-0804 ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0805- ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0201-0804 ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0805- ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0201-0804 ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0805- ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0201-0804 ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0805-1406 ● ●
10 00.833 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0201-0804 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0805- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0201-0804 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0805- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0201-0501 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0502-0804 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0805- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0201-0804 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0805- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0201-0501 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0502-0804 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0805- ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0201-0804 ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0805- ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0201-0804 ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0805- ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0201-0512 ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601-0804 ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0805- ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0201-0804 ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0805- ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0201-0804 ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0805- ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0201-0501 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0502-0804 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0805-1405 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MZZ6U(RSF) 		8-97135-025-0 01 1 0805-1405 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-98193-435-0 01 1 1406- ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MZZ6U(RSF) 		8-98193-435-0 01 1 1406- ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0201-0501 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0502-0804 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0805-1405 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MZZ6U(RSF) 04.681 		8-97130-480-0 02 1 0805-1405 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 		8-98168-080-0 02 1 1406- ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MZZ6U(RSF) 		8-98168-080-0 02 1 1406- ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0201-0804 ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0805- ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0201-0512 ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601-0804 ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0805- ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0201-0610 ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611-0804 ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0805- ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0201-0512 ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0804 ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0805- ● ●

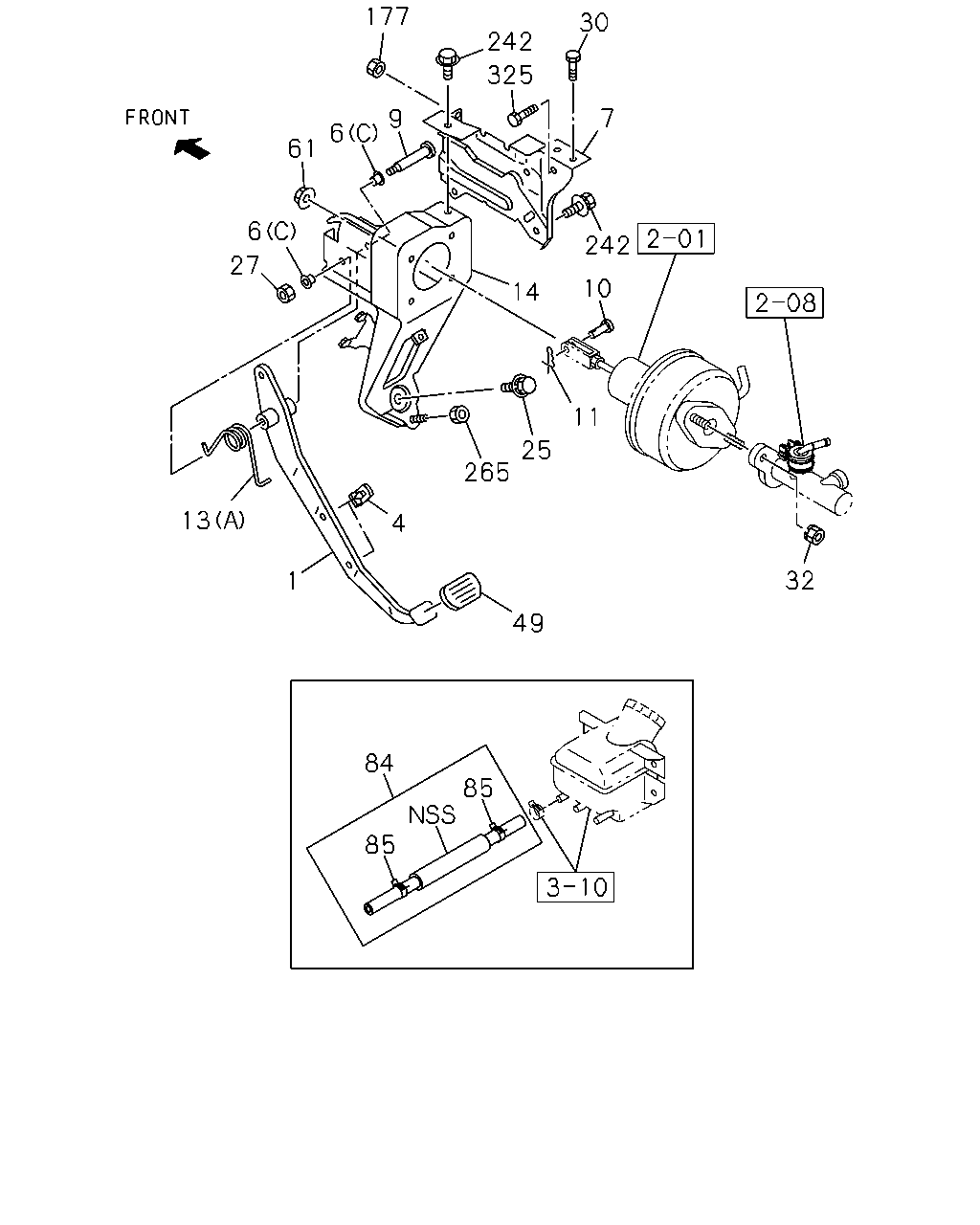

çizim 53318
177 30 242 325 7 9 6 61 6 242 27 10 14 11 25 265 13 4 32 1 49 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0201-0804 ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0805- ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0201-0501 ●
1 00.830 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0502-0804 ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0805- ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0201-0804 ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0201-0804 ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0201-0501 ●
6 00.831 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0502-0804 ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0805- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0201-0501 ●
6 00.831 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0502-0804 ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0805- ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0201-0804 ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0805- ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0201-0804 ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0805- ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0201-0804 ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0805-1406 ● ●
10 00.833 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0201-0804 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0805- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0201-0804 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0805- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0201-0501 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0502-0804 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0805- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0201-0804 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0805- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0201-0501 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0502-0804 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0805- ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0201-0804 ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0805- ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0201-0804 ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0805- ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0201-0512 ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601-0804 ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0805- ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0201-0804 ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0805- ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0201-0804 ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0805- ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0201-0804 ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0805- ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0201-0501 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0502-0804 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0805-1405 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MZZ6U(RSF) 		8-97135-025-0 01 1 0805-1405 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-98193-435-0 01 1 1406- ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MZZ6U(RSF) 		8-98193-435-0 01 1 1406- ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0201-0501 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0502-0804 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0805-1405 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MZZ6U(RSF) 04.681 		8-97130-480-0 02 1 0805-1405 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 		8-98168-080-0 02 1 1406- ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MZZ6U(RSF) 		8-98168-080-0 02 1 1406- ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0201-0804 ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0805- ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0201-0512 ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601-0804 ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0805- ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0201-0610 ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611-0804 ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0805- ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0201-0512 ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0804 ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
