◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#19324) — 180 parça

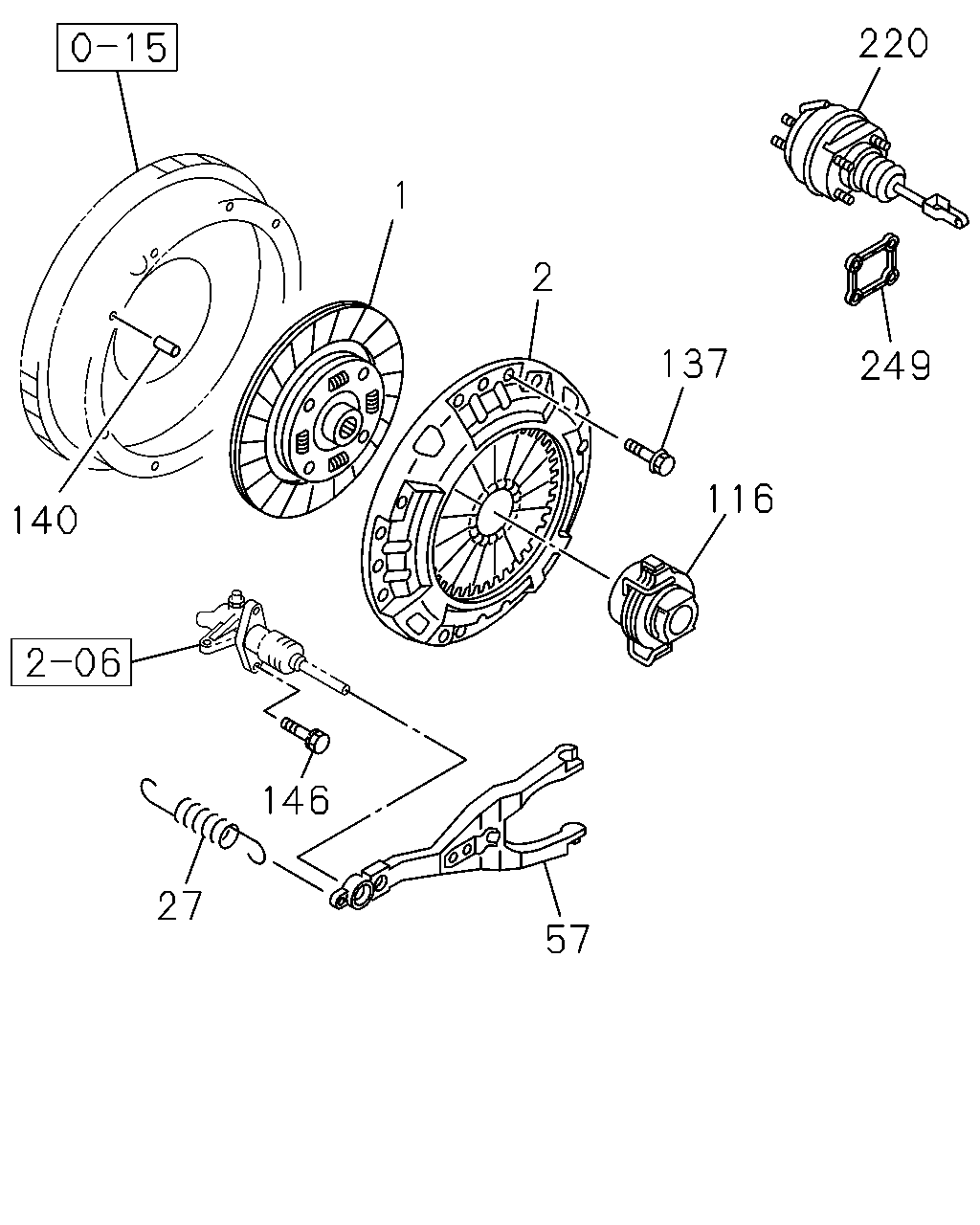

çizim 47806
220 1 2 137 249 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 0201-0301 ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0302-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-97377-149-0 01 1 0502-1402 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-97367-795-0 01 1 0805-1007 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-98164-917-1 01 1 1008- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-049-2 01 1 0502- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1008-1501 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1502- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0302-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) 		8-97310-796-0 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 08.859 		8-97351-794-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-081-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0302-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-050-1 01 1 0502- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0201-0301 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0302-0501 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-97184-359-0 01 1 0502-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-98025-313-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-97184-358-0 01 1 0805-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-98025-314-0 01 1 0901- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0201-0301 ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0302-0501 ●
57 00.795 FORK; SHIFT,CLU
4HF1 ENG(RLS) 		8-97255-303-0 01 1 0502- ●
57 00.795 FORK; SHIFT,CLU
4HK1 ENG(RJS) 		8-97310-456-1 01 1 0805- ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0201-0301 ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0302-0501 ●
116 00.799 BLOCK; SHIFT,CLU
4HF1 ENG(RLS) 		8-97255-313-0 01 1 0502- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-145-0 01 1 0201-0301 ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0302-0501 ●
116 00.799 BLOCK; SHIFT,CLU
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-110-0 01 1 0502- ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0201-0301 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0501 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0502-0512 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0804 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0805- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0201-0301 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0302-0501 ●
140 00.862 PIN; STRAIGHT
4HF1 ENG(RLS) L=25 		8-94410-361-0 02 1 0502-0804 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0805- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0201-0301 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0302-0512 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0804 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0805- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0201-0301 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0302-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0502- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0805- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0201-0301 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0302-0804 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0805- ● ●

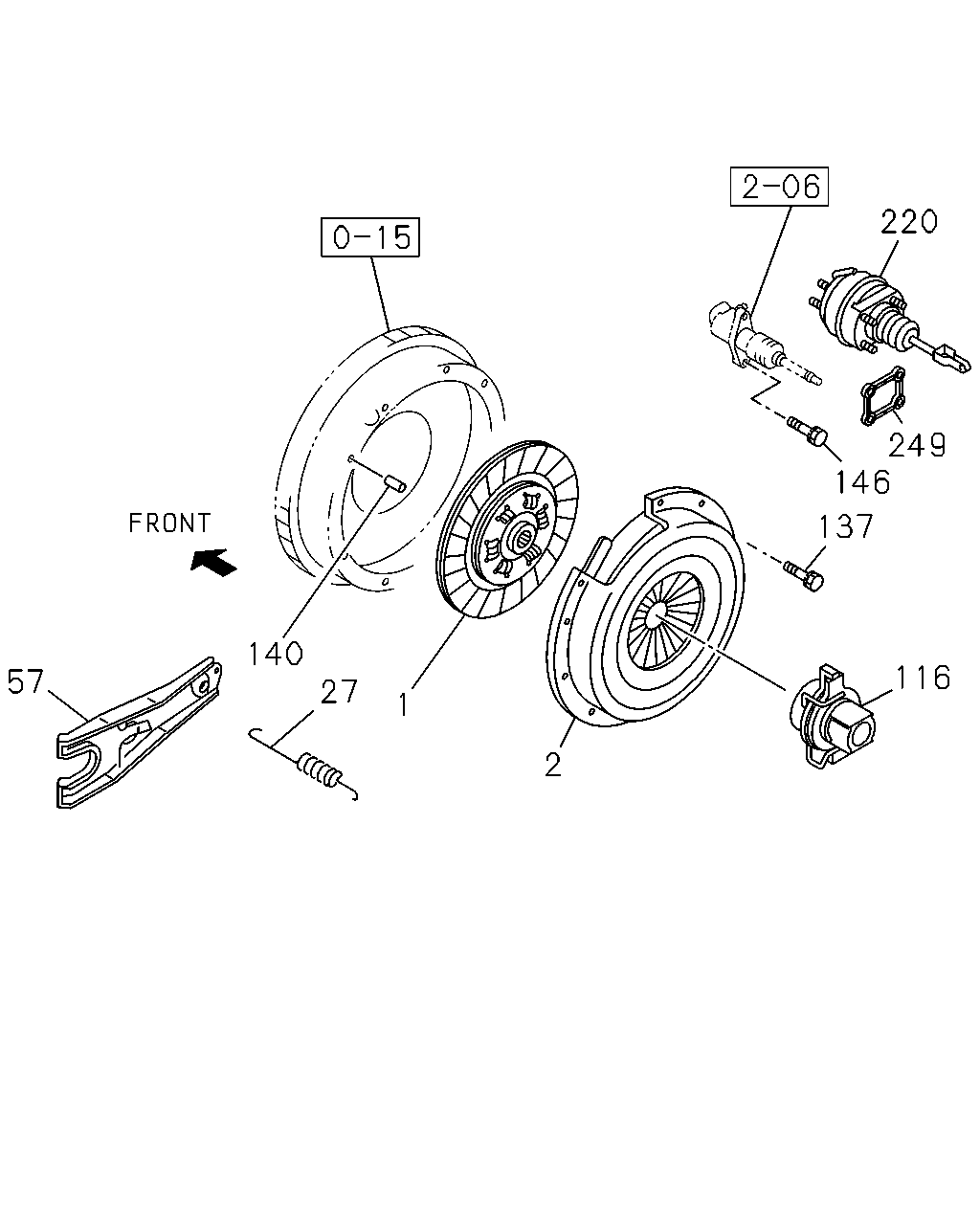

çizim 52177
220 249 146 137 140 116 57 27 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 0201-0301 ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0302-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-97377-149-0 01 1 0502-1402 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-97367-795-0 01 1 0805-1007 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-98164-917-1 01 1 1008- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-049-2 01 1 0502- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1008-1501 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1502- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0302-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) 		8-97310-796-0 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 08.859 		8-97351-794-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-081-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0302-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-050-1 01 1 0502- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0201-0301 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0302-0501 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-97184-359-0 01 1 0502-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-98025-313-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-97184-358-0 01 1 0805-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-98025-314-0 01 1 0901- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0201-0301 ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0302-0501 ●
57 00.795 FORK; SHIFT,CLU
4HF1 ENG(RLS) 		8-97255-303-0 01 1 0502- ●
57 00.795 FORK; SHIFT,CLU
4HK1 ENG(RJS) 		8-97310-456-1 01 1 0805- ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0201-0301 ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0302-0501 ●
116 00.799 BLOCK; SHIFT,CLU
4HF1 ENG(RLS) 		8-97255-313-0 01 1 0502- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-145-0 01 1 0201-0301 ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0302-0501 ●
116 00.799 BLOCK; SHIFT,CLU
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-110-0 01 1 0502- ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0201-0301 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0501 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0502-0512 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0804 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0805- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0201-0301 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0302-0501 ●
140 00.862 PIN; STRAIGHT
4HF1 ENG(RLS) L=25 		8-94410-361-0 02 1 0502-0804 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0805- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0201-0301 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0302-0512 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0804 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0805- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0201-0301 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0302-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0502- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0805- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0201-0301 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0302-0804 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0805- ● ●

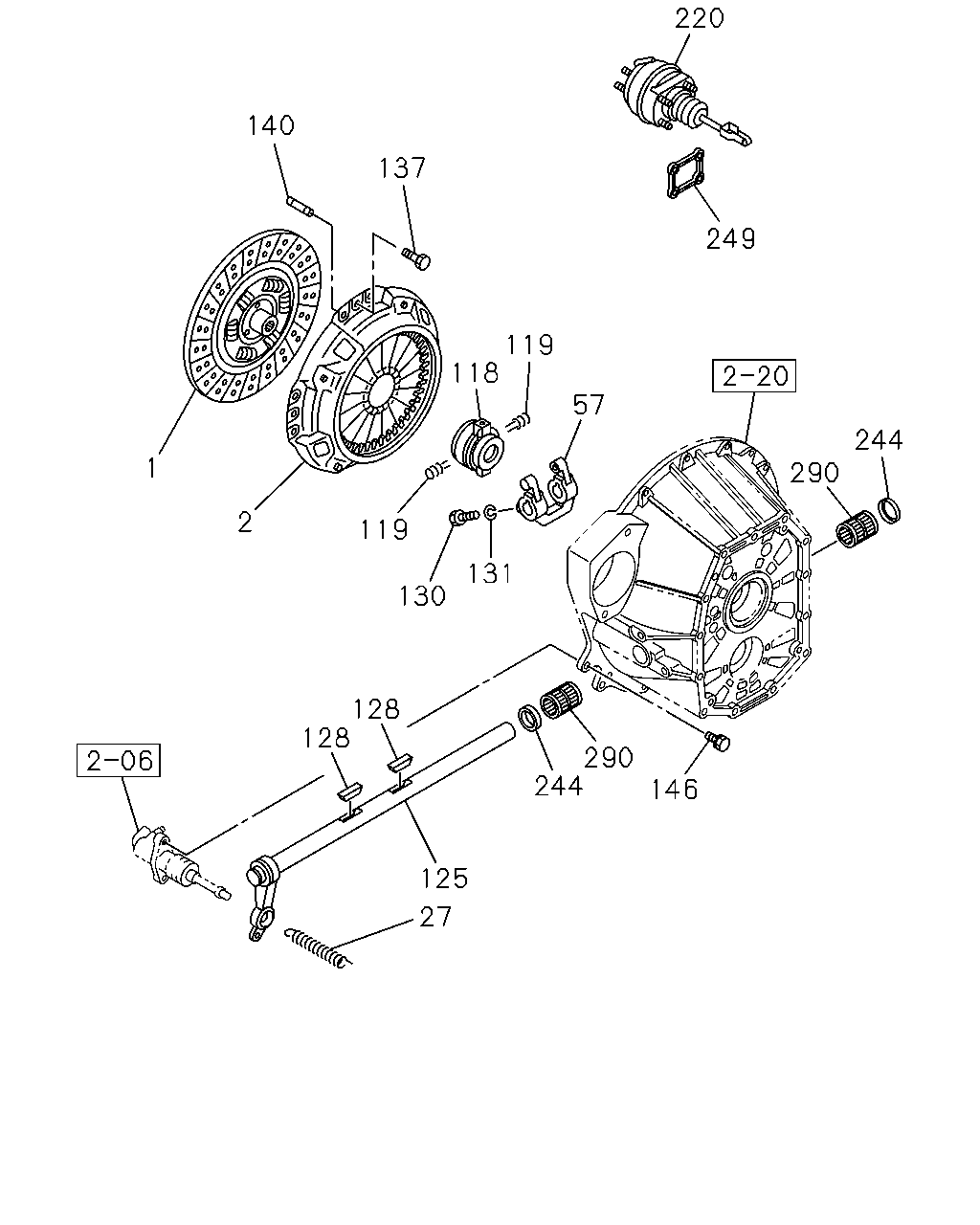

çizim 52270
220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 0201-0301 ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0302-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-97377-149-0 01 1 0502-1402 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-97367-795-0 01 1 0805-1007 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) 		8-98164-917-1 01 1 1008- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 0501-0501 ●
1 00.886 DISC; CLUTCH
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-049-2 01 1 0502- ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1008-1501 ●
1 00.886 DISC; CLUTCH
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-092-0 01 1 1502- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0302-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) 		8-97310-796-0 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 08.859 		8-97351-794-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-081-0 01 1 0805-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1 ENG(RJS) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0201-0301 ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0302-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-050-1 01 1 0502- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0201-0301 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0302-0501 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-97184-359-0 01 1 0502-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1 ENG(RLS) 		8-98025-313-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-97184-358-0 01 1 0805-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1 ENG(RJS) 		8-98025-314-0 01 1 0901- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0201-0301 ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0302-0501 ●
57 00.795 FORK; SHIFT,CLU
4HF1 ENG(RLS) 		8-97255-303-0 01 1 0502- ●
57 00.795 FORK; SHIFT,CLU
4HK1 ENG(RJS) 		8-97310-456-1 01 1 0805- ●
118 00.799 BEARING; CLU RELEASE
4HK1 ENG(RJS) 		1-31310-012-0 01 1 0805- ●
118 00.799 BEARING; CLU RELEASE
4HK1 ENG(RJS) BEST VALUE PARTS 		1-87610-110-0 01 1 0805- ●
119 00.797 SPRING; SHIFT FORK
4HK1 ENG(RJS) 		1-31329-024-0 02 1 0805- ●
125 00.805 SHAFT; CLU
4HK1 ENG(RJS) 		8-97310-435-0 01 1 0805- ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HK1 ENG(RJS) 		9-09867-008-0 02 1 0805- ●
130 00.833 SCREW; SHIFT FORK
4HK1 ENG(RJS) M8X14 		0-61200-814-0 01 1 0805- ●
131 00.833 WASHER; LK,SHIFT FORK
4HK1 ENG(RJS) 04.439 ID=8.2 		0-91510-508-0 01 1 0805- ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0201-0301 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0501 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0502-0512 ●
137 00.862 BOLT; CLU COVER
4HF1 ENG(RLS) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0804 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0805- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0201-0301 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0302-0501 ●
140 00.862 PIN; STRAIGHT
4HF1 ENG(RLS) L=25 		8-94410-361-0 02 1 0502-0804 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0805- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0201-0301 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0302-0512 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0804 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0805- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0201-0301 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0302-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0502- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1 ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0805- ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) 00.797 		1-09625-002-0 02 1 0805- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0201-0301 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0302-0804 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0805- ● ●
290 00.862 BEARING; NEEDLE
4HK1 ENG(RJS) 00.683 NTN 		1-09811-002-1 02 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
