Sayfa 1-50 - Isuzu EPC

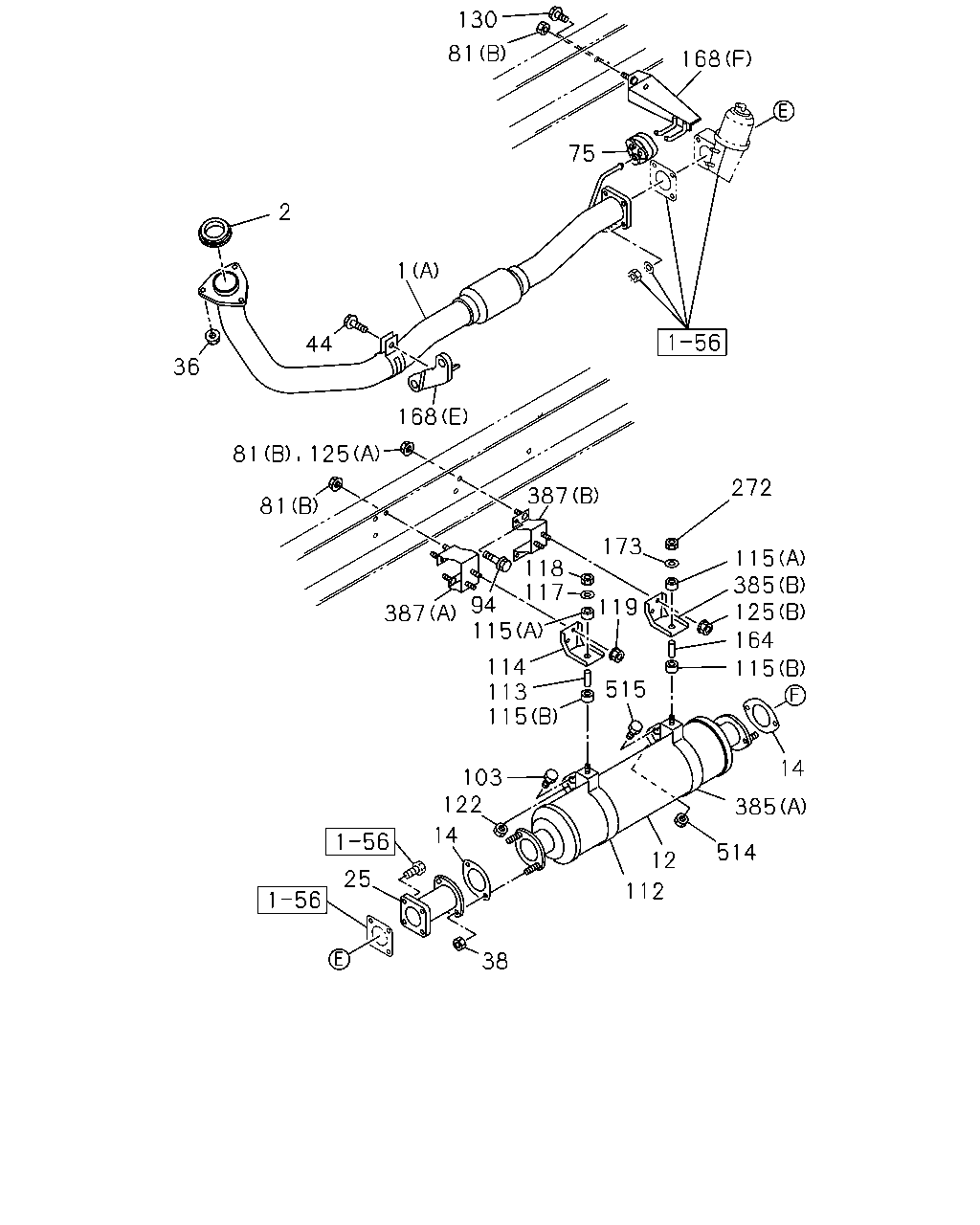

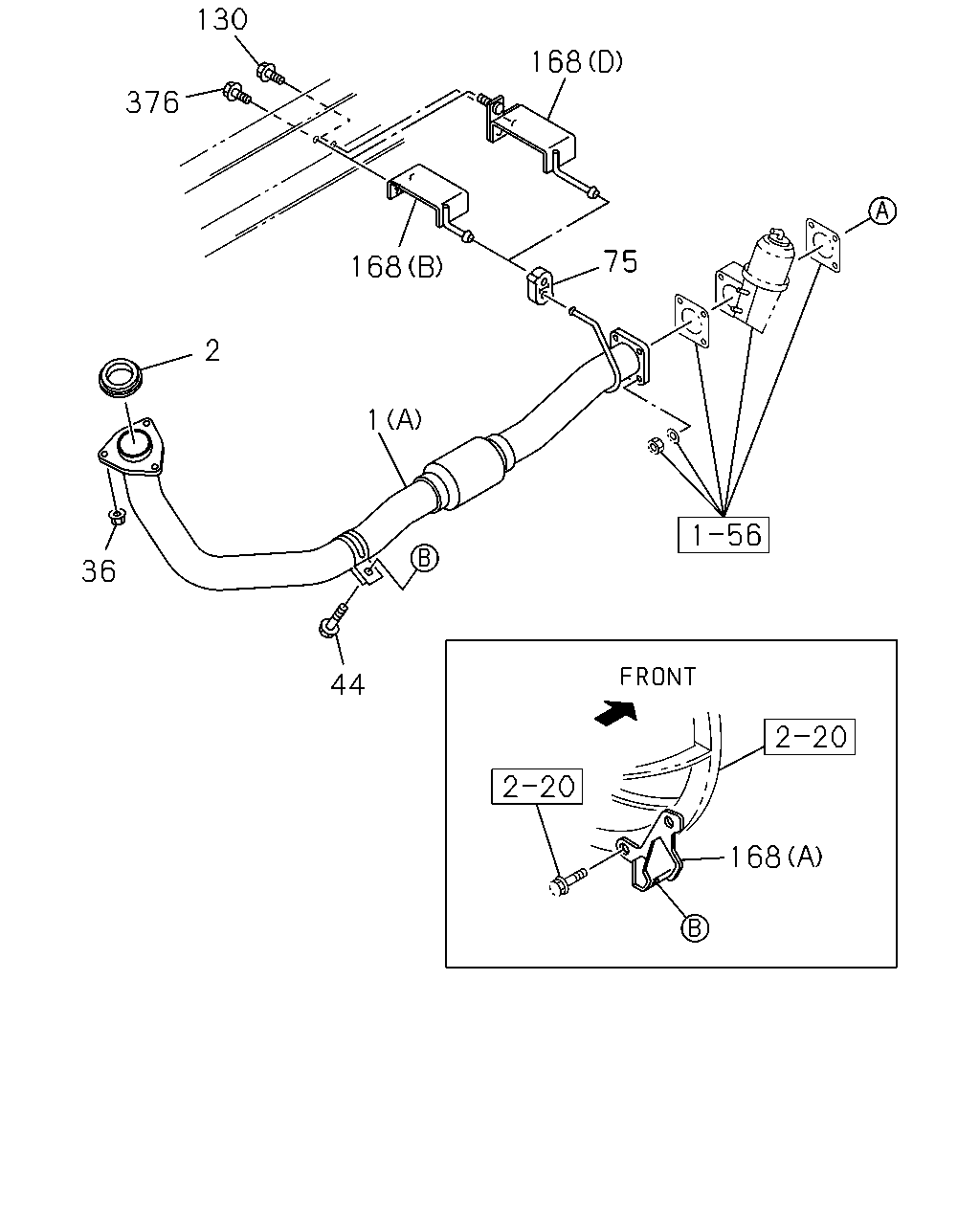

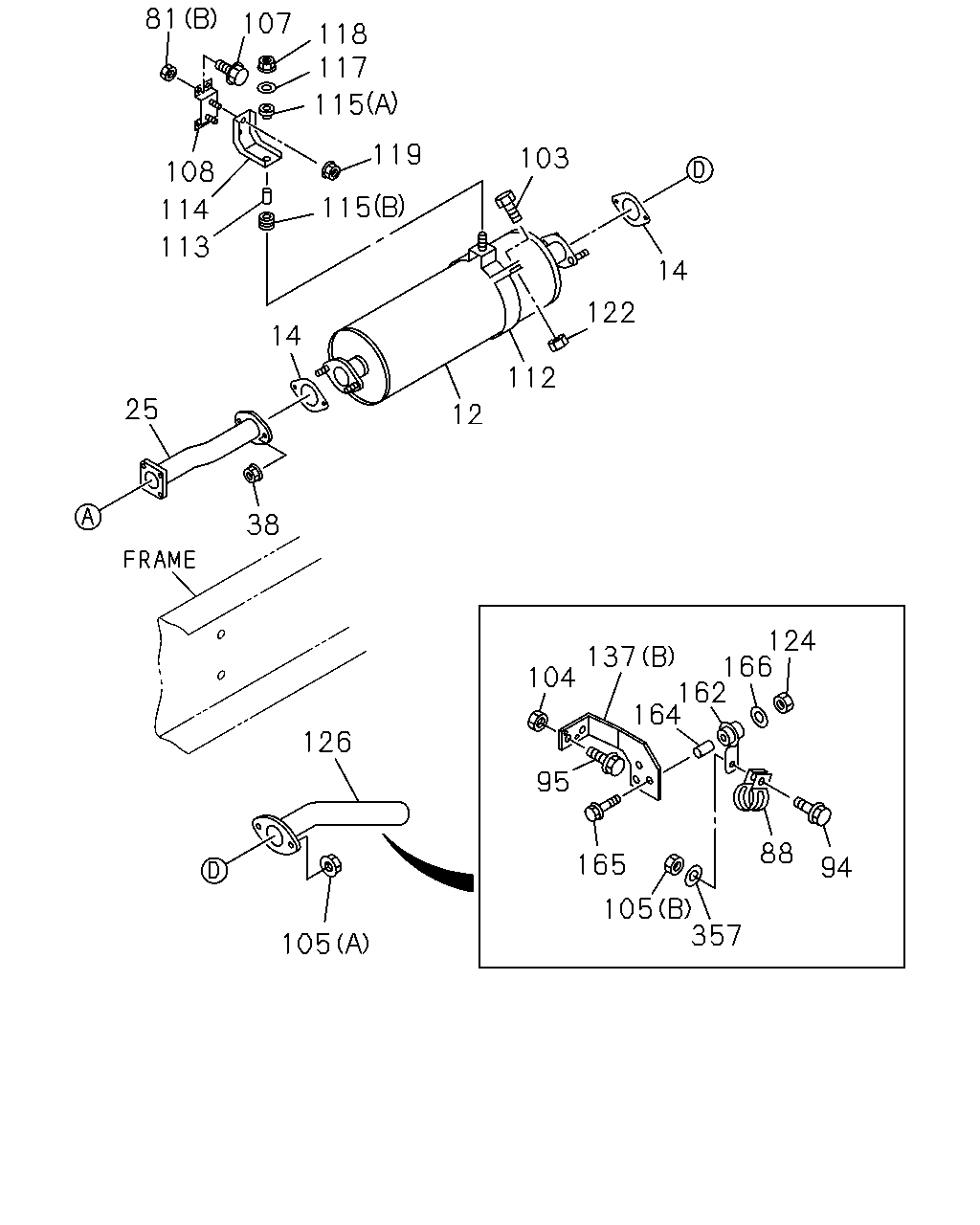

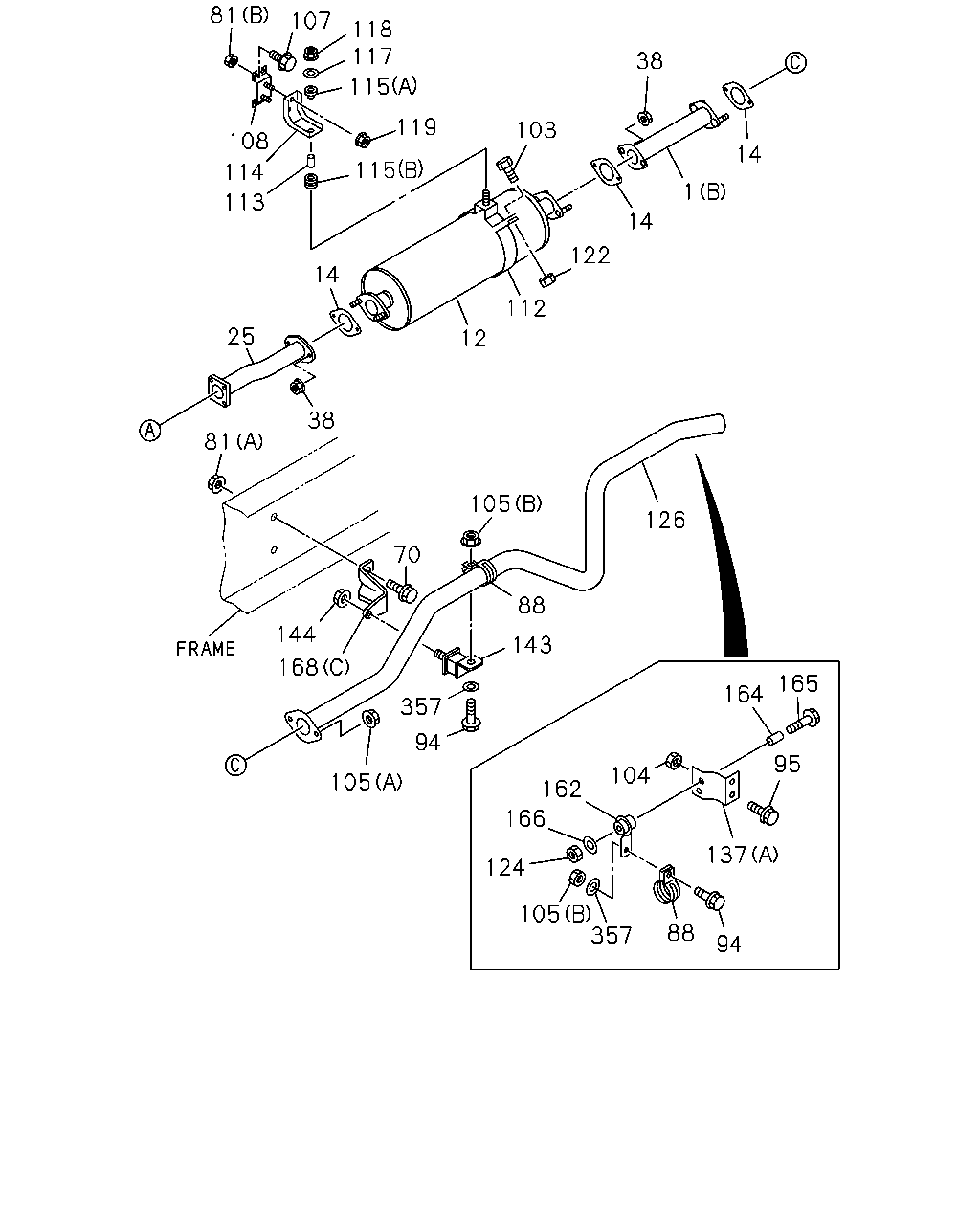

1-50 — EXHAUST PIPE AND SILENCER (#19321) — 502 parça

130 81 168 75 2 1 44 36 168 81 125 272 387 81 173 115 385 125 118 117 119 94 115 387 164 114 113 115 115 515 14 103 122 385 14 514 12 25 112 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-97089-322-0	01	1	0201-0301	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0201-0501	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0502-	●
1	03.609 PIPE; EXH (B)	8-97307-804-0	01	1	0805-		●
1	03.609 PIPE; EXH (A)	8-97365-227-1	01	1	0805-		●
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0201-0408	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-0804	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0805-	●	●
12	03.701 SILENCER ASM; EXH	8-97206-525-3	01	1	0201-0501	●
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0502-	●
12	03.701 SILENCER ASM; EXH	8-97222-489-1	01	1	0805-		●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97100-907-1	01	1	0201-0301	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0302-0501	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97185-798-0	01	1	0805-		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0201-0804	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0805-	●	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-		●
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0201-0301	●
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0302-0312	●
44	03.613 BOLT; BRKT 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0501	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0707	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●
44	03.613 BOLT; BRKT 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●
44	03.613 BOLT; BRKT 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●
44	03.613 BOLT; BRKT 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0805-		●
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0201-	●
75	03.704 RUBBER; SUPPORT,BRKT	8-97080-694-0	01	1	0805-		●
81	03.704 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-		●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	0805-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0302-0804	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-		●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0201-0707	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0804	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0805-0909	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0201-0501	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0502-	●
112	03.706 BRACKET; HANGER 03.704	8-97207-224-0	01	1	0805-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0201-0804	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0805-	●	●
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0201-0501	●
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-	●
114	03.704 BRACKET; EXH SILENCER	8-94329-857-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0804	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0805-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-	●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0201-0804	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0805-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0201-0804	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0805-	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0804	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0201-0512	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-0804	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0805-	●	●
125	03.708 NUT; CLAMP 4HK1 ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0805-		●
125	03.708 NUT; CLAMP 4HK1 ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-		●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0512	●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-0804	●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0201-0804	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1 ENG(RJS) L=37.5	9-22151-217-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97238-728-0	01	1	0201-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-647-1	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0302-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (C)	8-97096-651-0	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (C)	8-97096-651-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (F)	8-97214-433-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (E)	8-97365-228-0	01	1	0805-		●
173	03.685 WASHER; PL 4HK1 ENG(RJS) 03.704 OD=55	9-09852-169-0	01	1	0805-		●
272	03.685 NUT; FLANGE 4HK1 ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	01	1	0805-		●
385	03.704 BRACKET; SILENCER MTG 4HK1 ENG(RJS) (B)	8-94329-857-0	01	1	0805-		●
385	03.704 BRACKET; SILENCER MTG 4HK1 ENG(RJS) (A)	8-97207-224-0	01	1	0805-		●
387	03.704 SPACER; BRKT 4HK1 ENG(RJS) (B)	8-97172-493-2	01	1	0805-		●
387	03.704 SPACER; BRKT 4HK1 ENG(RJS) (A)	8-97218-212-0	01	1	0805-		●
514	03.704 NUT; BAND 4HK1 ENG(RJS) 02.334 M8	0-91110-508-0	01	1	0805-		●
515	03.704 BOLT; BAND 4HK1 ENG(RJS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0805-0909		●
515	03.704 BOLT; BAND M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-		●

81 107 118 117 38 115 119 103 108 14 115 114 1 113 14 122 14 112 25 12 38 81 105 126 70 88 144 143 168 165 164 357 94 95 104 105 162 166 137 124 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-97089-322-0	01	1	0201-0301	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0201-0501	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0502-	●
1	03.609 PIPE; EXH (B)	8-97307-804-0	01	1	0805-		●
1	03.609 PIPE; EXH (A)	8-97365-227-1	01	1	0805-		●
12	03.701 SILENCER ASM; EXH	8-97206-525-3	01	1	0201-0501	●
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0502-	●
12	03.701 SILENCER ASM; EXH	8-97222-489-1	01	1	0805-		●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97100-907-1	01	1	0201-0301	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0302-0501	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97185-798-0	01	1	0805-		●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-		●
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
81	03.704 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-		●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	0805-		●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0302-0804	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-	●	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0302-0804	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-		●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0512	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-0804	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0805-	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0201-0707	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0804	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0805-0909	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0602	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0302-0512	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-0804	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-		●
107	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0201-0501	●
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512	●
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0201-0501	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0502-	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0201-0501	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0502-	●
112	03.706 BRACKET; HANGER 03.704	8-97207-224-0	01	1	0805-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0201-0804	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0805-	●	●
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0201-0501	●
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-	●
114	03.704 BRACKET; EXH SILENCER	8-94329-857-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0804	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0805-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-	●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0201-0804	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0805-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0201-0804	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0805-	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0804	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0201-0512	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-0804	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0805-	●	●
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0602	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●	●
126	03.705 PIPE; EXH,RR	8-97034-103-0	01	1	0201-0201	●
126	03.705 PIPE; EXH,RR	8-97328-181-0	01	1	0202-0301	●
126	03.705 PIPE; EXH,RR	8-97240-342-1	01	1	0302-	●
126	03.705 PIPE; EXH,RR 4HK1 ENG(RJS)	8-98011-818-0	01	1	0805-		●
137	03.706 BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97116-588-2	01	1	0201-0301	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0302-	●
137	03.706 BRACKET; TAIL PIPE (C)	8-97185-801-0	01	1	0805-		●
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0201-0301	●
143	03.704 RUBBER; SUPPORT 4HK1 ENG(RJS)	8-97371-655-1	01	1	0805-		●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
144	03.613 NUT; MTG RUBBER 4HK1 ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0201-0804	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0201-0804	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1 ENG(RJS) L=37.5	9-22151-217-0	01	1	0805-		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0201-0512	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-0804	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0805-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0201-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-0804	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0805-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97238-728-0	01	1	0201-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-647-1	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0302-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (C)	8-97096-651-0	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (C)	8-97096-651-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (F)	8-97214-433-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (E)	8-97365-228-0	01	1	0805-		●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0804	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-	●	●
357	03.708 WASHER; PL,CLAMP 4HK1 ENG(RJS) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-		●

130 168 376 75 168 2 1 36 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-97089-322-0	01	1	0201-0301	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0201-0501	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0502-	●
1	03.609 PIPE; EXH (B)	8-97307-804-0	01	1	0805-		●
1	03.609 PIPE; EXH (A)	8-97365-227-1	01	1	0805-		●
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0201-0408	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-0804	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0805-	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0201-0804	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0805-	●	●
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0201-0301	●
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0302-0312	●
44	03.613 BOLT; BRKT 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0501	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0707	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●
44	03.613 BOLT; BRKT 4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●
44	03.613 BOLT; BRKT 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●
44	03.613 BOLT; BRKT 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●
44	03.613 BOLT; BRKT 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0805-		●
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0201-	●
75	03.704 RUBBER; SUPPORT,BRKT	8-97080-694-0	01	1	0805-		●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0512	●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-0804	●
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0805-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97238-728-0	01	1	0201-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-647-1	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0302-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (C)	8-97096-651-0	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (C)	8-97096-651-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (F)	8-97214-433-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (E)	8-97365-228-0	01	1	0805-		●
376	03.708 BOLT; BRKT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0201-0301	●

81 107 118 117 115 119 103 108 115 114 113 14 122 14 112 25 12 38 124 166 162 164 137 104 126 95 88 165 94 105 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-97206-525-3	01	1	0201-0501	●
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0502-	●
12	03.701 SILENCER ASM; EXH	8-97222-489-1	01	1	0805-		●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97100-907-1	01	1	0201-0301	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0302-0501	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97185-798-0	01	1	0805-		●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-		●
81	03.704 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-		●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	0805-		●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0302-0804	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-	●	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0302-0804	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-		●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0512	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-0804	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0805-	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0201-0707	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0804	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0805-0909	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0602	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0302-0512	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-0804	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-		●
107	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0201-0501	●
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512	●
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0201-0501	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0502-	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0201-0501	●
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0502-	●
112	03.706 BRACKET; HANGER 03.704	8-97207-224-0	01	1	0805-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0201-0804	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0805-	●	●
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0201-0501	●
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-	●
114	03.704 BRACKET; EXH SILENCER	8-94329-857-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0804	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0805-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0201-0501	●
115	03.704 RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-	●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (B)	8-97379-882-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
115	03.704 RUBBER; MTG,SILENCER 4HK1 ENG(RJS) (A)	8-97379-927-0	01	1	0805-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0201-0804	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0805-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0201-0804	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0805-	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0804	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0201-0512	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-0804	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0805-	●	●
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0602	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●	●
126	03.705 PIPE; EXH,RR	8-97034-103-0	01	1	0201-0201	●
126	03.705 PIPE; EXH,RR	8-97328-181-0	01	1	0202-0301	●
126	03.705 PIPE; EXH,RR	8-97240-342-1	01	1	0302-	●
126	03.705 PIPE; EXH,RR 4HK1 ENG(RJS)	8-98011-818-0	01	1	0805-		●
137	03.706 BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97116-588-2	01	1	0201-0301	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0302-	●
137	03.706 BRACKET; TAIL PIPE (C)	8-97185-801-0	01	1	0805-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0201-0804	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0201-0804	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1 ENG(RJS) L=37.5	9-22151-217-0	01	1	0805-		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0201-0512	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-0804	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0805-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0201-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-0804	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0805-	●	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0804	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-	●	●
357	03.708 WASHER; PL,CLAMP 4HK1 ENG(RJS) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-		●

38 14 1 81 105 70 88 144 168 126 143 357 94 105 105 162 357 104 165 164 137 95 88 166 124 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-97089-322-0	01	1	0201-0301	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0201-0501	●
1	03.609 PIPE; EXH (A)	8-97256-415-1	01	1	0502-	●
1	03.609 PIPE; EXH (B)	8-97307-804-0	01	1	0805-		●
1	03.609 PIPE; EXH (A)	8-97365-227-1	01	1	0805-		●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0201-0301	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0302-0804	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0805-		●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-		●
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
81	03.704 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0501	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-		●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	0805-		●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0201-0301	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0302-0804	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-	●	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0201-0301	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0302-0804	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0805-		●
94	03.704 BOLT; CLAMP 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-		●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0512	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-0804	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0805-	●	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0602	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0201-0301	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0302-0512	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-0804	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0805-		●
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0602	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●	●
126	03.705 PIPE; EXH,RR	8-97034-103-0	01	1	0201-0201	●
126	03.705 PIPE; EXH,RR	8-97328-181-0	01	1	0202-0301	●
126	03.705 PIPE; EXH,RR	8-97240-342-1	01	1	0302-	●
126	03.705 PIPE; EXH,RR 4HK1 ENG(RJS)	8-98011-818-0	01	1	0805-		●
137	03.706 BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97116-588-2	01	1	0201-0301	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0302-	●
137	03.706 BRACKET; TAIL PIPE (C)	8-97185-801-0	01	1	0805-		●
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0201-0301	●
143	03.704 RUBBER; SUPPORT 4HK1 ENG(RJS)	8-97371-655-1	01	1	0805-		●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
144	03.613 NUT; MTG RUBBER 4HK1 ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0201-0804	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0201-0804	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0805-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1 ENG(RJS) L=37.5	9-22151-217-0	01	1	0805-		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0201-0512	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-0804	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0805-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0201-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-0804	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0805-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97238-728-0	01	1	0201-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-647-1	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0302-0501	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97350-516-0	01	1	0502-	●
168	03.613 BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (C)	8-97096-651-0	01	1	0201-0301	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (C)	8-97096-651-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (F)	8-97214-433-0	01	1	0805-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1 ENG(RJS) (E)	8-97365-228-0	01	1	0805-		●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0804	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-	●	●
357	03.708 WASHER; PL,CLAMP 4HK1 ENG(RJS) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
