Sayfa 1-45 - Isuzu EPC

1-45 — WATER SEDIMENTER; FUEL (#19320) — 174 parça

20 20 19 21 20 21 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-2	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-3	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0805-		●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98017-806-2	01	1	0805-		●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97189-165-0	01	1	0201-0212	●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0301-0501	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0502-	●
19	03.890 BRACKET; FUEL SEDIMENTER (B)	8-97368-101-5	01	1	0805-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0201-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0201-0301	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0805-		●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0302	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0303-0310	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
21	03.890 NUT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0302	●

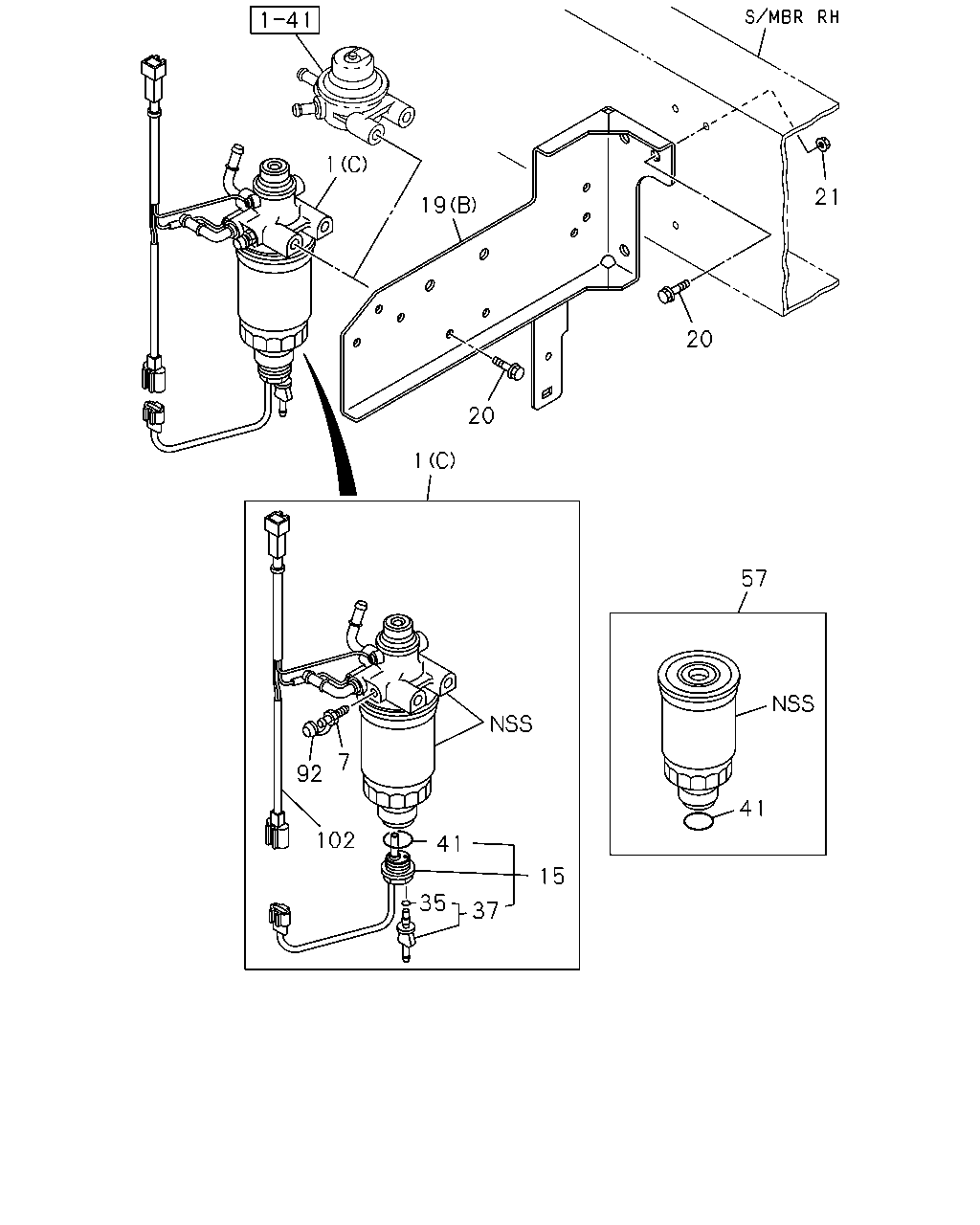

1 21 19 20 20 1 57 7 92 41 102 41 15 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-2	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-3	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0805-		●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98017-806-2	01	1	0805-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0201-0501	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0502-0804	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0805-	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-97172-546-1	01	1	0805-		●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0201-0501	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0502-0712	●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-98004-758-0	01	1	0805-		●
15	03.890 SENSOR ASM; SEDIMENTER EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98009-886-0	01	1	0805-		●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97189-165-0	01	1	0201-0212	●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0301-0501	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0502-	●
19	03.890 BRACKET; FUEL SEDIMENTER (B)	8-97368-101-5	01	1	0805-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0201-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0201-0301	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0805-		●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0302	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0303-0310	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
21	03.890 NUT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0302	●
35	03.890 GASKET; DRAIN PLUG	8-98004-898-0	01	1	0805-		●
37	03.890 PLUG; SENSOR FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0801-	●
37	03.890 PLUG; SENSOR	8-98004-899-0	01	1	0805-		●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0201-0501	●
41	03.890 GASKET; SENSOR TO CASE 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0712	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0805-		●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-98037-481-0	01	1	0805-		●
57	03.890 CARTRIDGE KIT; FUEL FILTER BEST VALUE PARTS	5-87610-157-0	01	1	0805-		●
92	01.203 CAP; DRAIN 03.417	8-97172-548-0	01	1	0805-		●
102	02.480 HARNESS; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97372-339-0	01	1	0805-		●

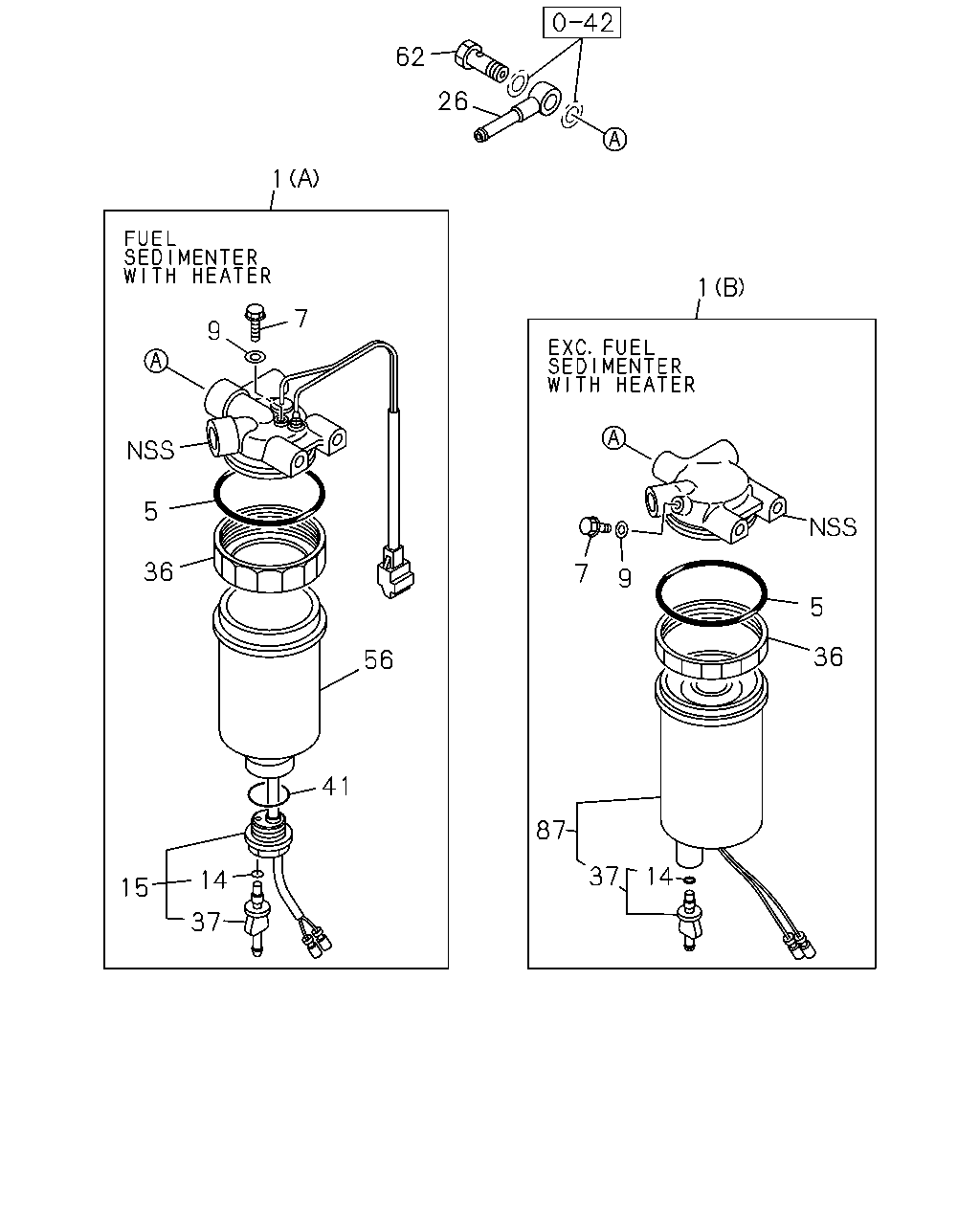

62 26 1 1 7 9 5 36 7 9 5 36 56 41 87 37 14 14 15 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-2	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-3	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0805-		●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98017-806-2	01	1	0805-		●
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	0201-0501	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS)	5-09623-075-0	01	1	0502-0804	●
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	0805-	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0201-0501	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0502-0804	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0805-	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-97172-546-1	01	1	0805-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0201-0501	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0201-0501	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	0201-0501	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	0502-0712	●
14	03.890 GASKET; SENSOR TO CENTER BOLT EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0201-0501	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0502-0712	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	0801-	●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0201-0501	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0502-0712	●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-98004-758-0	01	1	0805-		●
15	03.890 SENSOR ASM; SEDIMENTER EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98009-886-0	01	1	0805-		●
26	03.163 PIPE; FUEL,IN & OUT	5-15411-223-1	02	1	0201-0501	●
26	03.163 PIPE; FUEL,IN & OUT 4HF1 ENG(RLS)	5-15411-223-1	02	1	0502-	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	0201-0501	●
36	03.890 RING; BODY TO CASE 4HF1 ENG(RLS)	5-13234-001-0	01	1	0502-0804	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	0805-	●
37	03.890 PLUG; SENSOR FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0801-	●
37	03.890 PLUG; SENSOR	8-98004-899-0	01	1	0805-		●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0201-0501	●
41	03.890 GASKET; SENSOR TO CASE 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0712	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0805-		●
56	03.890 CASE; FUEL SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	0201-0501	●
56	03.890 CASE; FUEL SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	0502-0712	●
62	03.162 BOLT; EYE,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	0201-0501	●
62	03.162 BOLT; EYE,FUEL FILTER 4HF1 ENG(RLS) M14X29 EYE-BOLT	9-09906-325-1	02	1	0502-	●
87	03.890 CASE ASM; SEDIMENTER EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0201-0501	●
87	03.890 CASE ASM; SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0502-0712	●
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-1	01	1	0801-	●

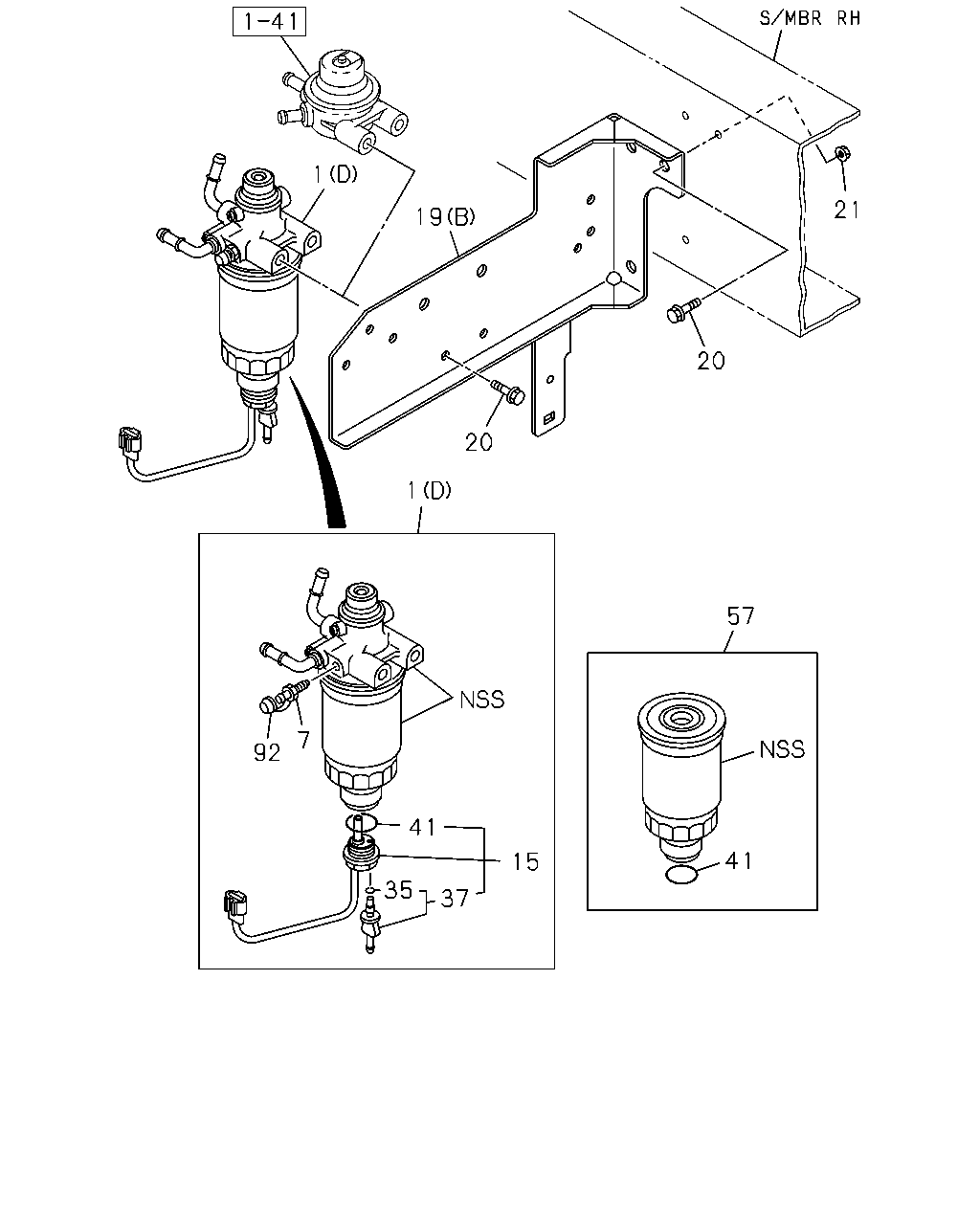

1 21 19 20 20 1 57 7 92 41 41 15 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-2	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-3	01	1	0201-0501	●
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	0502-	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0805-		●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98017-806-2	01	1	0805-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0201-0501	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0502-0804	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0805-	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-97172-546-1	01	1	0805-		●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0201-0501	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0502-0712	●
15	03.890 SENSOR ASM; SEDIMENTER FUEL SEDIMENTER WITH HEATER<6HU>	8-98004-758-0	01	1	0805-		●
15	03.890 SENSOR ASM; SEDIMENTER EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98009-886-0	01	1	0805-		●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97189-165-0	01	1	0201-0212	●
19	03.890 BRACKET; FUEL SEDIMENTER FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0301-0501	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97363-089-0	01	1	0502-	●
19	03.890 BRACKET; FUEL SEDIMENTER (B)	8-97368-101-5	01	1	0805-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0201-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0201-0301	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0805-		●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0302	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0303-0310	●
21	03.890 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
21	03.890 NUT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0302	●
35	03.890 GASKET; DRAIN PLUG	8-98004-898-0	01	1	0805-		●
37	03.890 PLUG; SENSOR FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0201-0501	●
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0712	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0801-	●
37	03.890 PLUG; SENSOR	8-98004-899-0	01	1	0805-		●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0201-0501	●
41	03.890 GASKET; SENSOR TO CASE 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0712	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0805-		●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-98037-481-0	01	1	0805-		●
57	03.890 CARTRIDGE KIT; FUEL FILTER BEST VALUE PARTS	5-87610-157-0	01	1	0805-		●
92	01.203 CAP; DRAIN 03.417	8-97172-548-0	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
