1-40 — FUEL TANK (#19318) — 120 parça

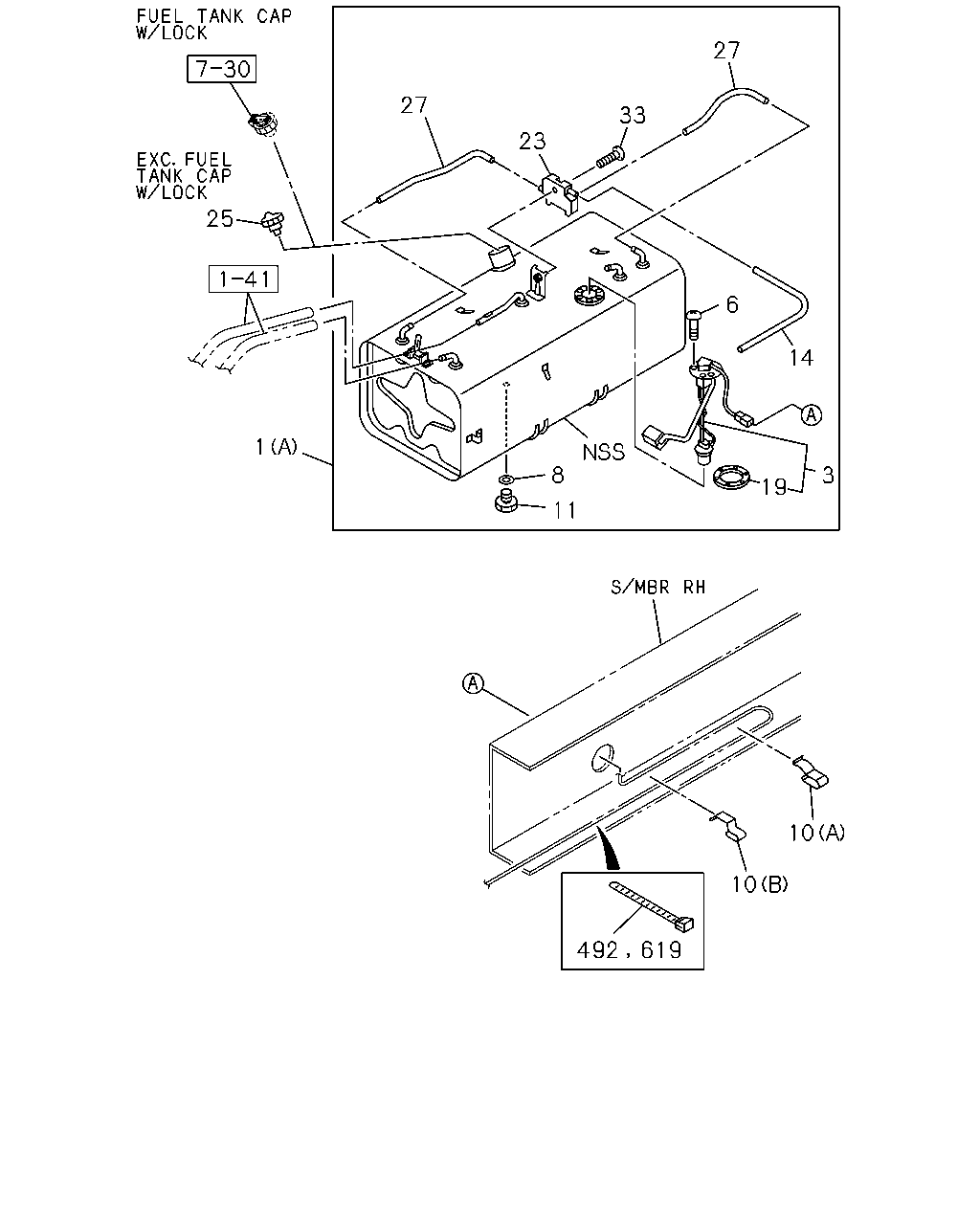

çizim 52176
27 27 33 23 25 6 14 1 8 3 19 11 10 10 492 619
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-98280-479-0 01 1 1411- ●
1 03.001 TANK; FUEL
(A) 1000X340X327 100L 		8-97188-865-0 01 1 0201-0301 ●
1 03.001 TANK; FUEL
(B) 980X380X375 100L 		8-97356-869-0 01 1 0302-0401 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-5 01 1 0402-1410 ●
1 03.001 TANK; FUEL
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-97375-634-5 01 1 1411- ●
1 03.001 TANK; FUEL
(B) 1003X375X380 100L 		8-97351-658-8 01 1 0805- ●
3 03.107 UNIT; FUEL TANK,SUB
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0201-0301 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0302-0501 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0502-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98050-491-0 01 1 0805- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0201-0501 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-0804 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0805- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0201-0301 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0302-0501 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502-0804 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0805- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0805- ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483 (A) T=10.5 		5-09709-014-0 AR 1 0201-0804 ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483 (A) T=10.5 		5-09709-014-0 AR 1 0805- ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (B) T=6.0 		5-09709-024-0 AR 1 0201-0804 ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (B) T=6.0 		5-09709-024-0 AR 1 0805- ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (A) T=8.7 		5-09709-048-0 AR 1 0201-0207 ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B) T=9 & 10.5 		8-97041-091-0 AR 1 0201-0804 ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B) T=9 & 10.5 		8-97041-091-0 AR 1 0805- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0302-0501 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0804 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0805- ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 0402- ● ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0201-0301 ●
19 03.112 GASKET; FUEL TANK UNIT
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0201-0301 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0302-0501 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0502-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT 8-97222-756-0 01 1 0805- ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0201-0301 ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0201-0804 ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0805- ● ●
27 03.163 HOSE; BREATHER
L=470 SERVICED BY L=3000 		8-94128-826-0 02 1 0201-0301 ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0201-0301 ●
492 03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250 		5-09707-030-1 01 1 0201-0804 ●
492 03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250 		5-09707-030-1 01 1 0805- ● ●
619 03.028 CLIP; FUEL TANK UNIT CABLE
03.162 L=140 		5-09707-031-1 02 1 0805- ●

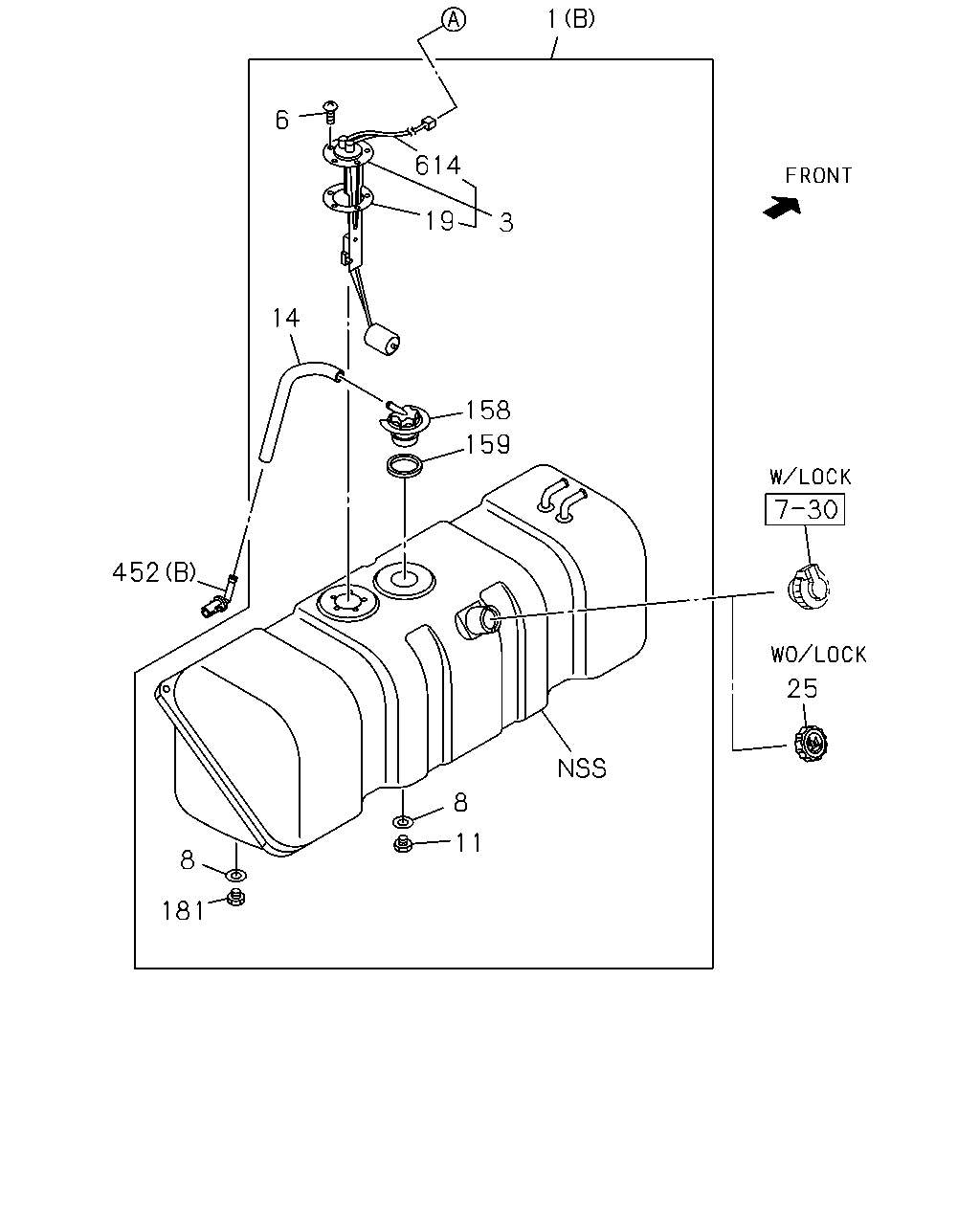

çizim 53115
1 6 614 19 3 14 158 159 452 25 8 11 8 181
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-98280-479-0 01 1 1411- ●
1 03.001 TANK; FUEL
(A) 1000X340X327 100L 		8-97188-865-0 01 1 0201-0301 ●
1 03.001 TANK; FUEL
(B) 980X380X375 100L 		8-97356-869-0 01 1 0302-0401 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-5 01 1 0402-1410 ●
1 03.001 TANK; FUEL
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-97375-634-5 01 1 1411- ●
1 03.001 TANK; FUEL
(B) 1003X375X380 100L 		8-97351-658-8 01 1 0805- ●
3 03.107 UNIT; FUEL TANK,SUB
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> 		8-98278-777-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0201-0301 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0302-0501 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0502-1410 ●
3 03.107 UNIT; FUEL TANK,SUB
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98050-491-0 01 1 0805- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0201-0501 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-0804 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0805- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0201-0301 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0302-0501 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502-0804 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0805- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0805- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0302-0501 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0804 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0805- ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 0402- ● ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0201-0301 ●
19 03.112 GASKET; FUEL TANK UNIT
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> ID=42 OD=71 		5-83148-001-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0201-0301 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0302-0501 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0502-1410 ●
19 03.112 GASKET; FUEL TANK UNIT
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411- ●
19 03.112 GASKET; FUEL TANK UNIT 8-97222-756-0 01 1 0805- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0201-0804 ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0805- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0302-0501 ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0502-0804 ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0805- ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0302-0501 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0502-0804 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0805- ● ●
181 03.001 PLUG; CONNECTOR
01.453 M14X14 		9-09862-156-0 01 1 0805- ●
452 03.028 BREATHER; FUEL TANK
(A) 		8-97062-954-1 01 1 0201-0301 ●
452 03.028 BREATHER; FUEL TANK
(B) 		8-97357-261-0 01 1 0302-0804 ●
452 03.028 BREATHER; FUEL TANK
(B) 		8-97357-261-0 01 1 0805- ● ●
614 03.028 HARNESS; FUEL
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> 		8-98285-440-0 01 1 1411- ●
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 0302-0501 ●
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 0502-1410 ●
614 03.028 HARNESS; FUEL
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-614-0 01 1 1411- ●

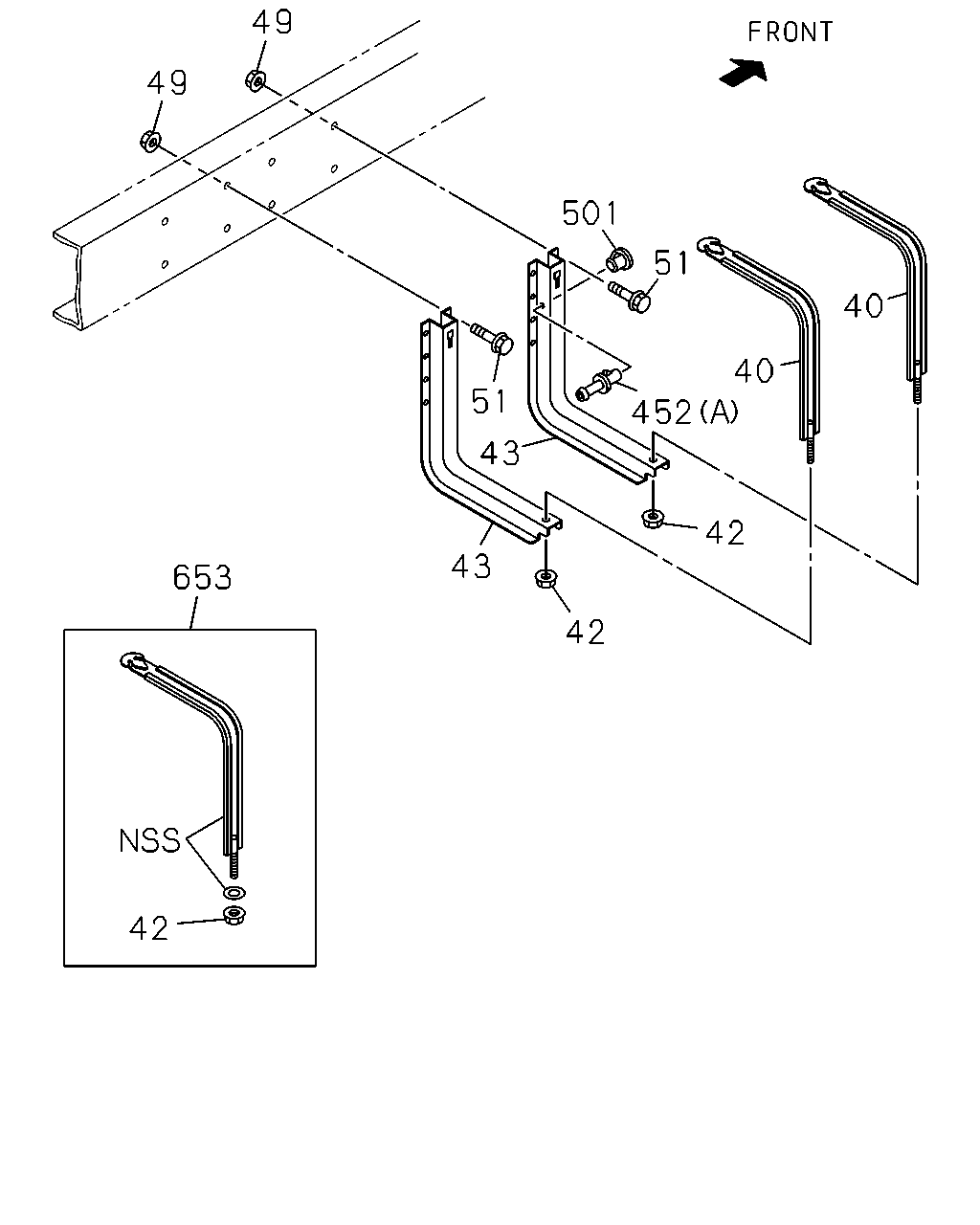

çizim 53293
40 40 452 42 42 43 43 51 501 49 49 51 653 42
BalonParca AdiParca NoAdetTipApplied Date A B
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-385-4 02 1 0201-0301 ●
40 03.022 BELT; SUPPORT,FUEL TANK
L=668 		8-97169-231-1 02 1 0302-0501 ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0201-0804 ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0805- ● ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 02 1 0201-0301 ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 0302-0804 ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 0805- ● ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 0302-0804 ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 0805- ● ●
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 0201-0602 ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0603-0804 ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0805- ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0201-0512 ●
51 03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0601- ●
51 03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE 		0-28661-030-0 07 1 0805- ●
452 03.028 BREATHER; FUEL TANK
(A) 		8-97062-954-1 01 1 0201-0301 ●
452 03.028 BREATHER; FUEL TANK
(B) 		8-97357-261-0 01 1 0302-0804 ●
452 03.028 BREATHER; FUEL TANK
(B) 		8-97357-261-0 01 1 0805- ● ●
501 03.028 GROMMET; BRKT 8-97096-990-0 01 1 0201-0301 ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0502-0804 ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0805- ● ●
