Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

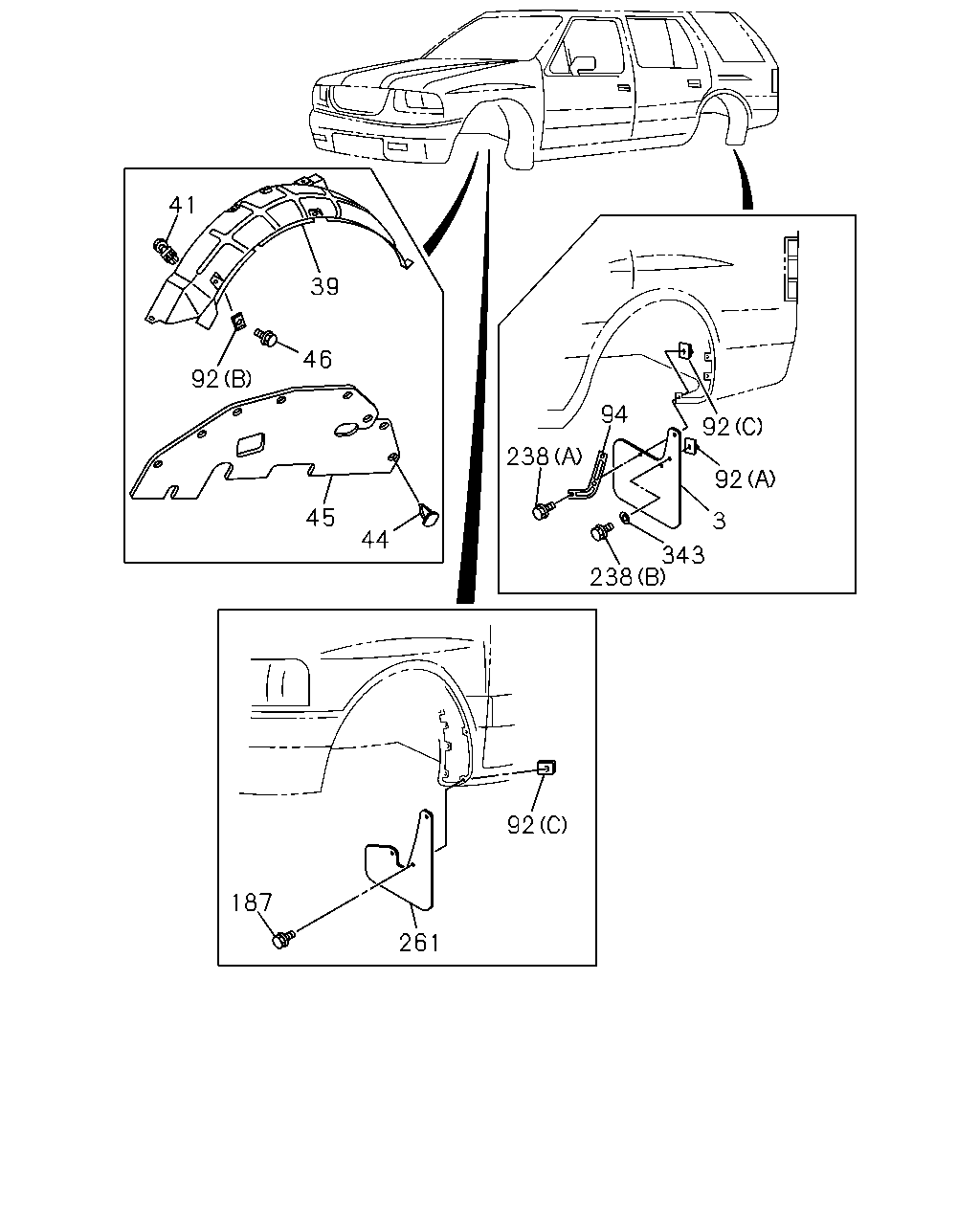

6-47 — MUD GUARD AND INSULATOR
(#19317) — 25 parça
41
39
46
92
92
94
238
92
45
3
343
238
44
92
187
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GUARD; MUD,RR
THA
8-97915-035-0
01
1
0009-0011
3
GUARD; MUD,RR
THA
8-97915-034-0
01
1
0009-0011
39
LINER; FENDER
THA
8-97913-909-1
01
1
0009-
39
LINER; FENDER
THA
8-97913-908-1
01
1
0009-
41
RIVET; INNER LINER
THA
8-97915-614-0
12
1
0009-
44
CLIP; ANCHOR
OD=22 L=10.7 THA
8-94215-211-0
16
1
0009-
45
COVER; MUD,FENDER SKIRT
THA
8-97911-351-0
01
1
0009-0011
45
COVER; MUD,FENDER SKIRT
THA
8-97921-783-0
01
1
0012-
45
COVER; MUD,FENDER SKIRT
THA
8-97911-350-1
01
1
0009-0011
45
COVER; MUD,FENDER SKIRT
THA
8-97921-784-0
01
1
0012-
46
SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING
8-94321-767-1
04
1
0009-
92
NUT; MUD COVER
(A) THA
8-97917-246-0
02
1
0009-0011
92
NUT; MUD COVER
(C) THA
8-97918-102-0
06
1
0012-
92
NUT; MUD COVER
(B) THA
8-97918-102-0
04
1
0009-
92
NUT; MUD COVER
(C) THA
8-97918-102-0
06
1
0009-0011
92
NUT; MUD COVER
(C) THA
8-97918-102-0
06
1
0009-0011
94
RETAINER; FLAP RUBBER
THA
8-94379-228-0
01
1
0009-
94
RETAINER; FLAP RUBBER
THA
8-94379-229-0
01
1
0009-
187
SCREW; FENDER COVER
M6X20 W/PL WASHER TAPPING
8-94321-767-1
06
1
0009-0102
187
SCREW; FENDER COVER
M6X20 W/PL WASHER TAPPING
8-94321-767-1
04
1
0103-
238
SCREW; MUD GUARD
(A) THA
8-97916-621-0
06
1
0009-0011
238
SCREW; MUD GUARD
(B) THA
8-97917-243-0
02
1
0009-0011
261
RUBBER; FRT,MUD GUARD
THA
8-97915-033-0
01
1
0009-
261
RUBBER; FRT,MUD GUARD
THA
8-97915-032-0
01
1
0009-
343
SPACER; FRT PANEL
THA
8-97917-245-0
02
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
