Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#19312) — 207 parça

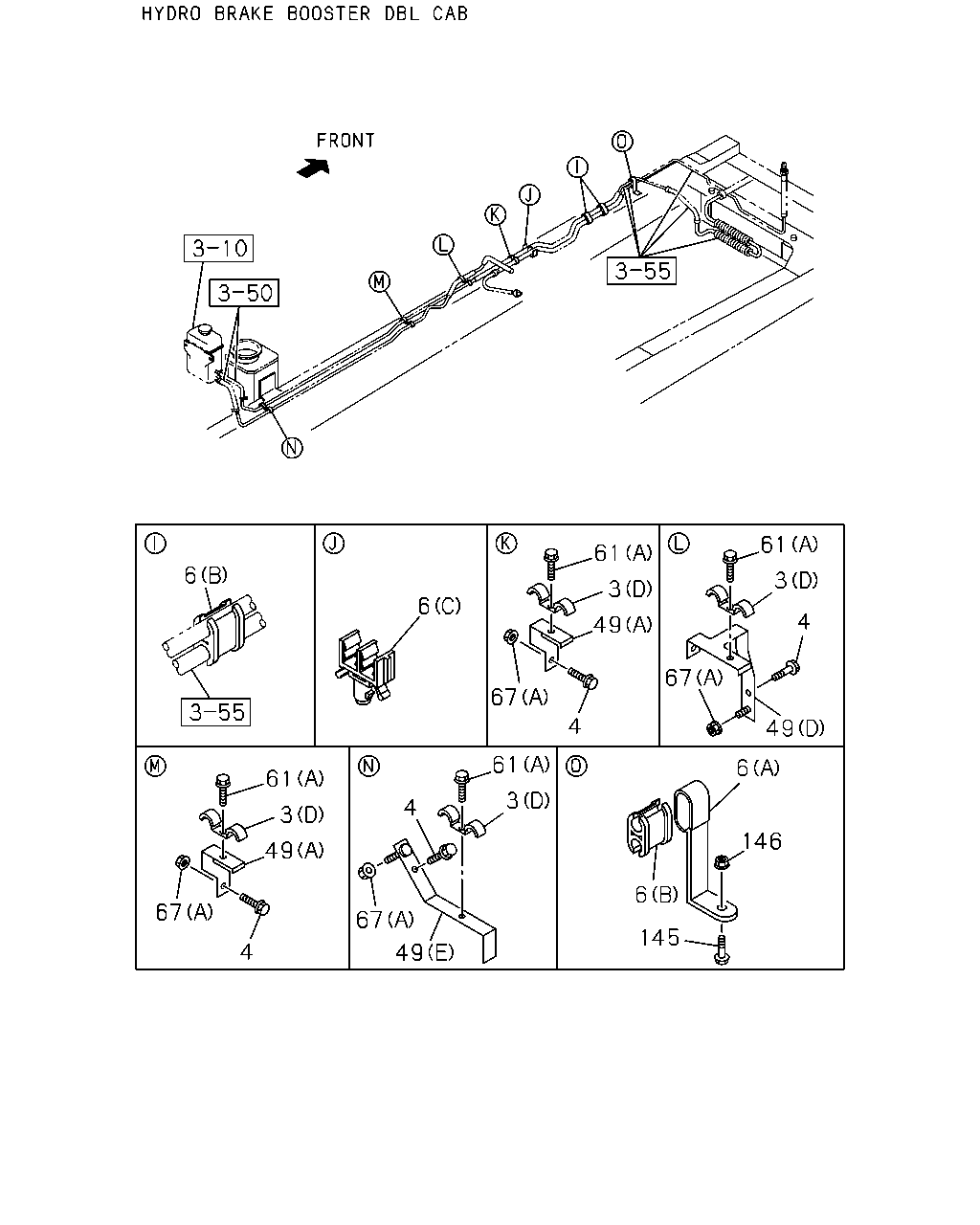

6 6 6 146 6 145 61 3 67 4 49 61 67 4 49 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (D) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-	●	●	●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9812-0105	●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-	●	●	●	●	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-		●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-0105	●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-		●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0106-	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (D)	8-97251-896-1	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (E)	8-97255-806-1	01	1	0106-		●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0106-		●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9812-	●	●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●	●	●

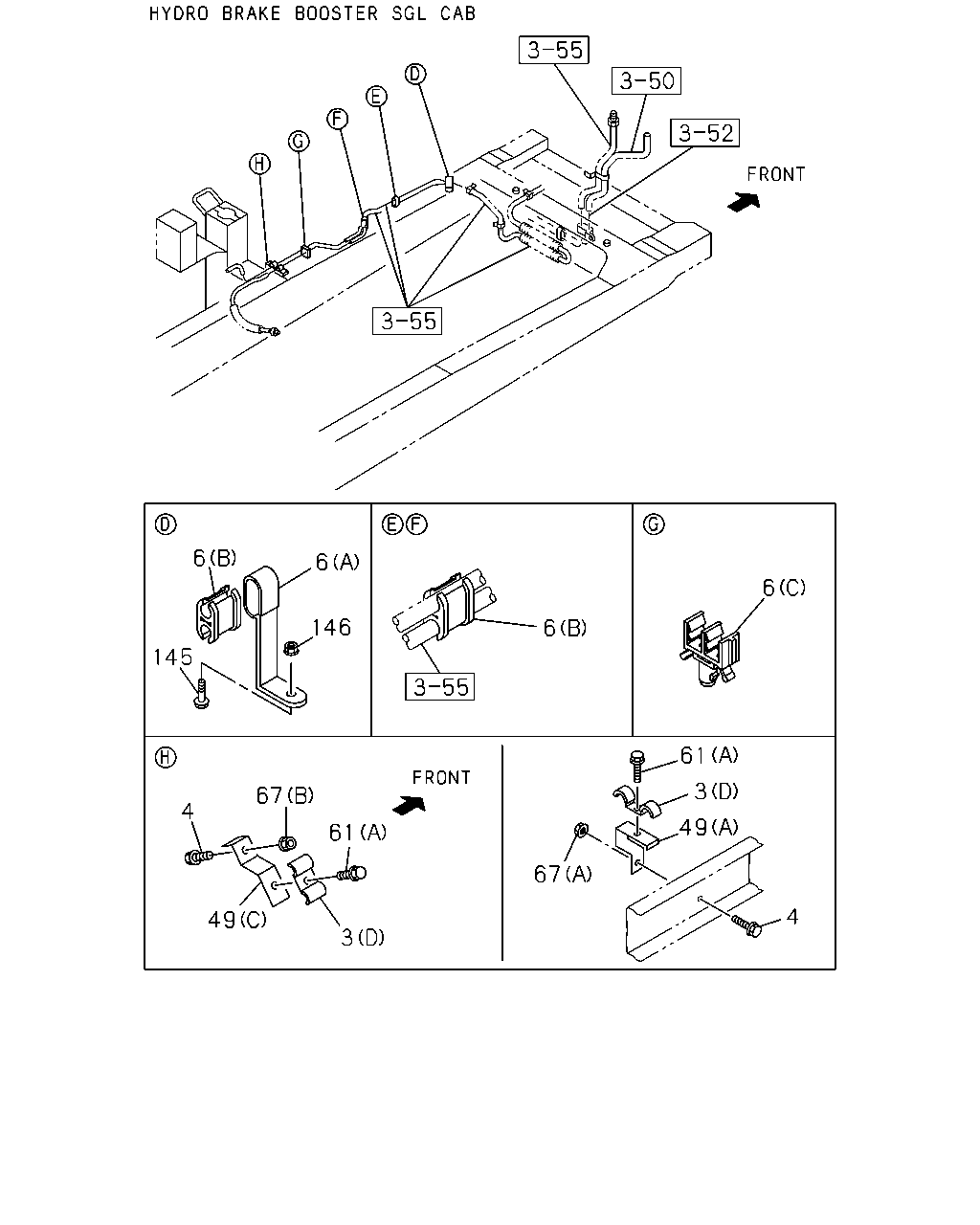

61 61 6 3 3 6 4 49 67 67 4 49 61 6 61 3 4 3 146 49 6 67 67 145 4 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (D) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-	●	●	●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9812-0105	●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-	●	●	●	●	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-		●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-0105	●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-		●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0106-	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (D)	8-97251-896-1	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (E)	8-97255-806-1	01	1	0106-		●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0106-		●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9812-	●	●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●	●	●

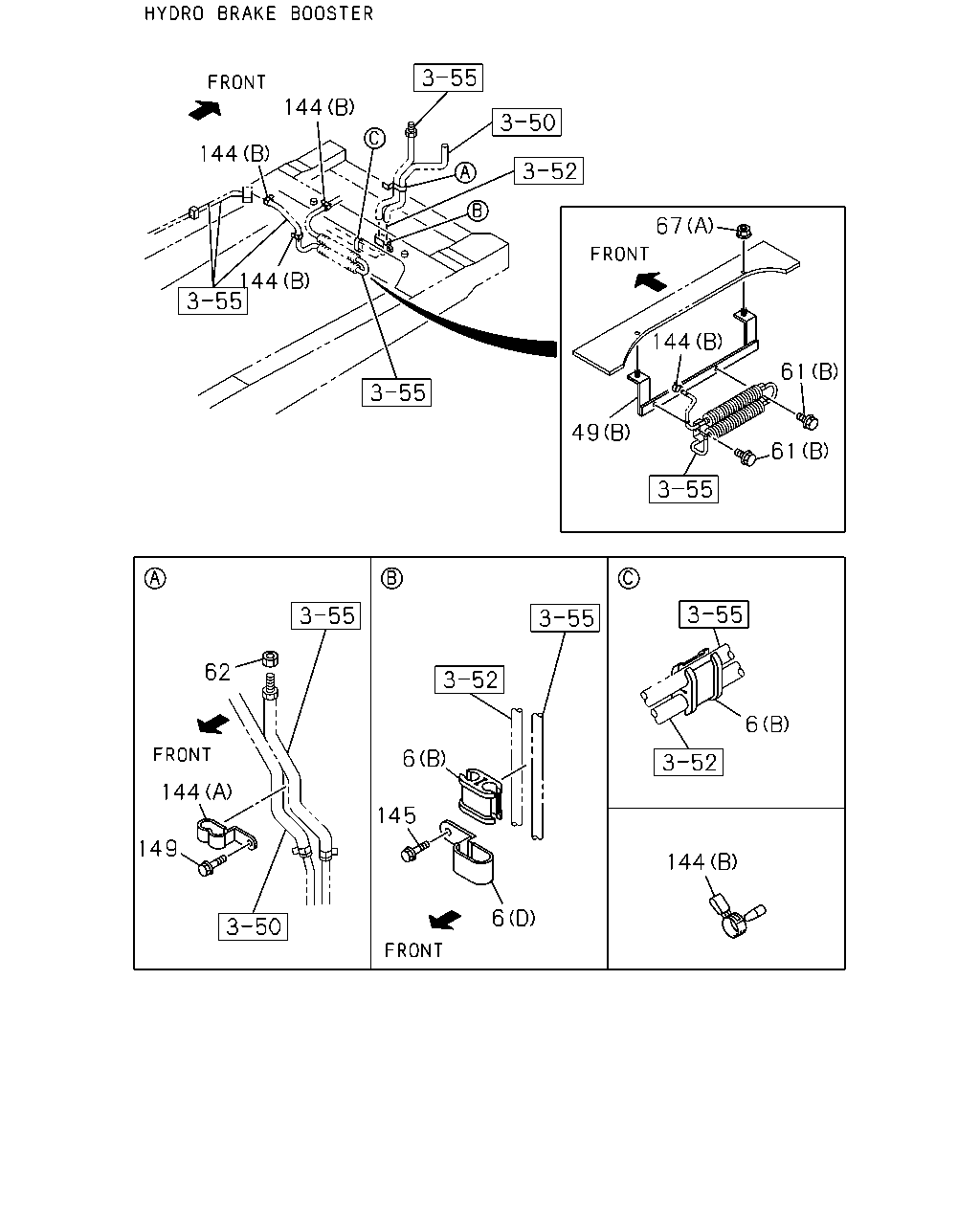

144 144 67 144 144 61 49 61 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9812-	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	9812-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9812-0105	●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0106-	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (D)	8-97251-896-1	01	1	0106-		●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (E)	8-97255-806-1	01	1	0106-		●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9812-	●	●	●	●	●
61	04.686 BOLT; BRK PIPE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0106-		●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9812-	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9812-	●	●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	9812-	●	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9812-	●	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-	●		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-		●		●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-	●	●	●	●	●

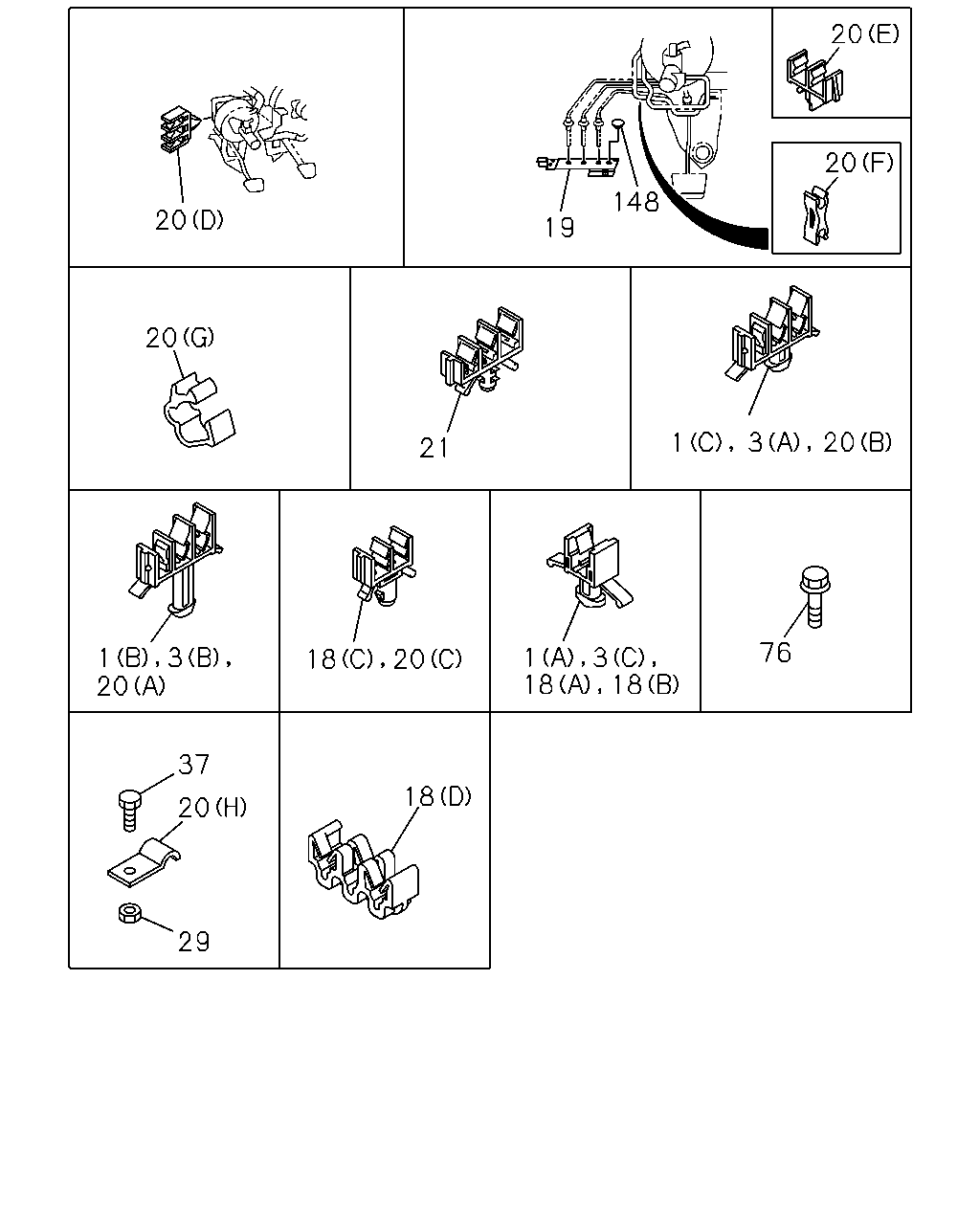

20 148 20 20 19 20 1 3 20 21 76 20 18 18 37 18 20 29 1 3 18 20 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.686 CLIP; OIL PIPE TO BODY 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-	●
1	04.686 CLIP; OIL PIPE TO BODY 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=32.5	8-94405-141-0	01	1	9812-	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (D) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	03	1	9812-0105	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9812-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	04	1	0001-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X3	8-94487-369-0	01	1	0001-	●
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9812-0105	●
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9812-0105	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9812-9905	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9812-9905	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9906-9912	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9906-9912	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0001-0105	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0001-0105	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0001-0105	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●
19	04.686 BRACKET; OIL PIPE	8-97149-718-2	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9812-	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9812-	●
20	04.686 CLIP; BRK PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9906-9912	●
20	04.686 CLIP; BRK PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9812-9905	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9906-0105	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0106	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0112	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0112	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0201-	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	03	1	0201-	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-	●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> (E) ID=4.8X2	8-94113-470-0	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> 04.868 (F) ID=4.6X2	8-94241-454-0	01	1	8912-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H) B=18 L=20	1-09700-372-0	02	1	0001-0105	●		●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H) B=18 L=20	1-09700-372-0	02	1	0106-	●
20	04.686 CLIP; BRK PIPE (H) B=18 L=20	1-09700-372-0	02	1	0106-		●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-9912	●
21	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105	●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105	●
21	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0106-	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9904	●
21	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●
21	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	04	1	0106-	●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0001-0105	●		●	●	●	●	●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
29	04.686 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●	●	●	●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0001-0105	●		●	●	●	●	●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●
37	04.686 BOLT; CLIP FIX 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-		●	●	●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-	●	●	●	●	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9812-9903	●		●			●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9904-0105	●		●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> 03.483	8-94294-358-0	01	1	9904-0105						●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0106-0207	●
148	04.686 GROMMET EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0106-0207			●
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	0106-0207						●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0208-	●		●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> 03.483	8-94294-358-0	01	1	0208-						●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
