Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#19310) — 491 parça

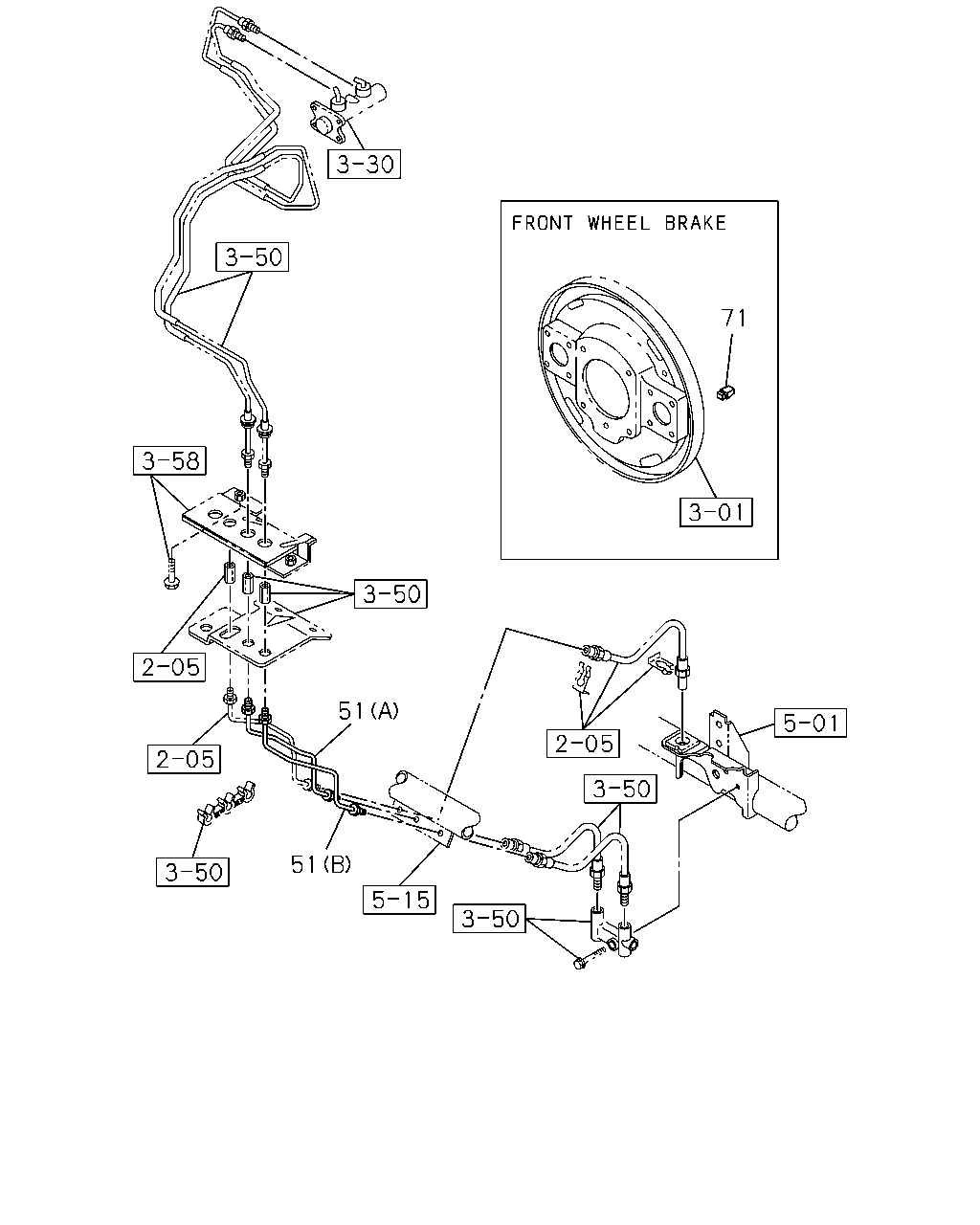

71 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-803-1	01	1	0001-0105		●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0106-	●
51	04.685 PIPE; BRK (C)	8-97206-803-1	01	1	0106-		●
51	04.685 PIPE; BRK 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-862-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-573-1	01	1	0106-	●
51	04.685 PIPE; BRK (B) FRONT	8-97177-306-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97177-307-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-804-1	01	1	0001-0105				●
51	04.685 PIPE; BRK (C)	8-97206-804-1	01	1	0106-				●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97247-893-0	01	1	0001-0105					●
51	04.685 PIPE; BRK (C)	8-97247-893-0	01	1	0106-					●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-805-1	01	1	0001-0105						●
51	04.685 PIPE; BRK (C)	8-97206-805-1	01	1	0106-						●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97185-059-1	01	1	0001-0105			●
51	04.685 PIPE; BRK (C)	8-97185-059-1	01	1	0106-			●
71	04.686 GROMMET; OIL PIPE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9ZM),(9ZP), (9ZQ),(95V),(97V) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> 05.002	8-97044-742-1	02	1	9903-9903	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> 05.002	8-97044-742-1	02	1	9904-9909	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V) EXC. DISC BRAKE FRT<J52> 05.002	8-97044-742-1	02	1	9910-0105	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE (BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> 05.002	9-09756-034-0	02	1	9903-9909	●	●	●	●	●	●
71	04.686 GROMMET; OIL PIPE (BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) EXC. DISC BRAKE FRT<J52> 05.002	9-09756-034-0	02	1	9910-0105	●	●	●	●

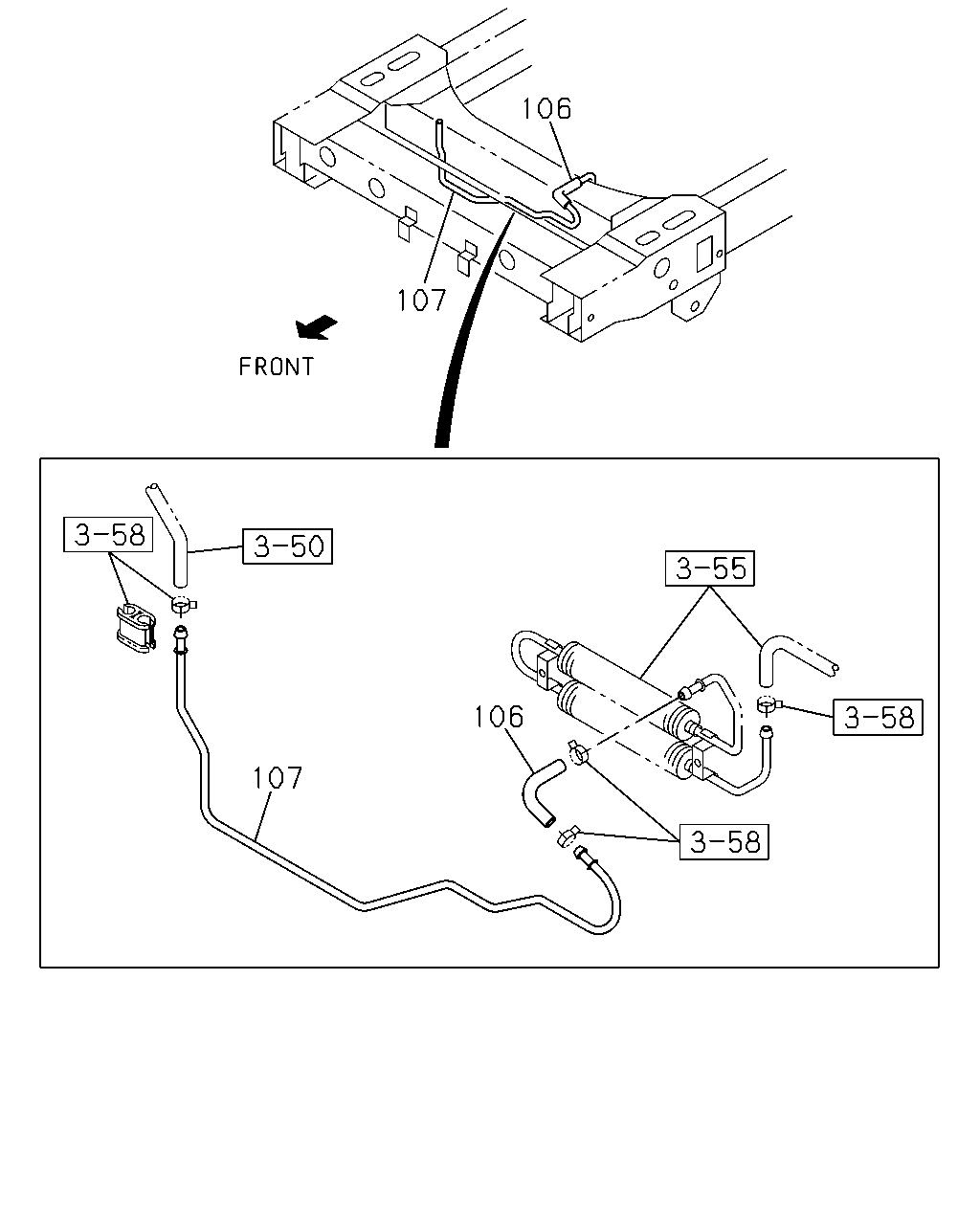

106 107 106 107

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	106	04.686 HOSE; FIN PIPE TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97181-219-2	01	1	9812-	●			●	●	●	●
	107	04.686 PIPE; RETURN TO FIN PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97180-989-2	01	1	9812-	●			●	●	●	●

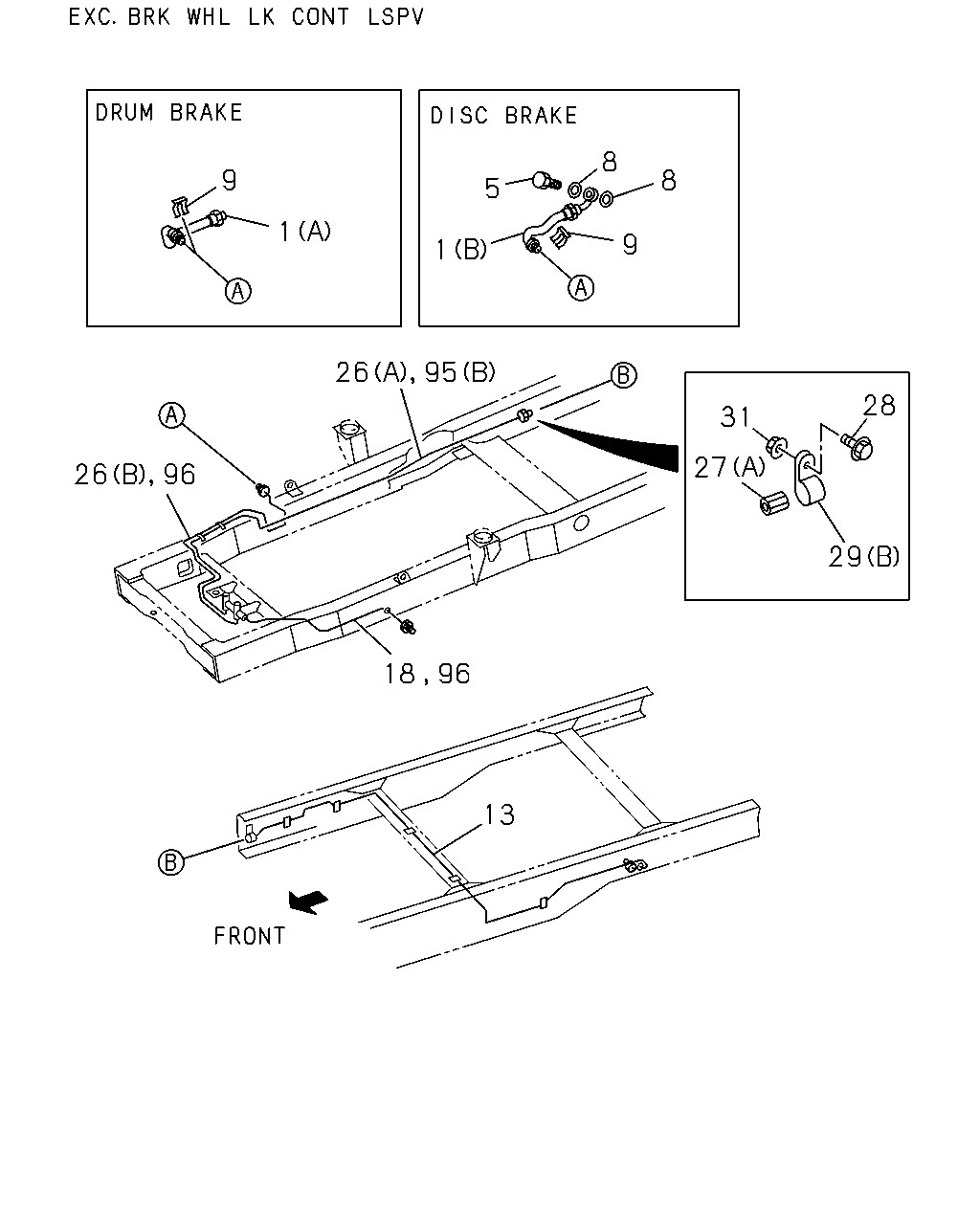

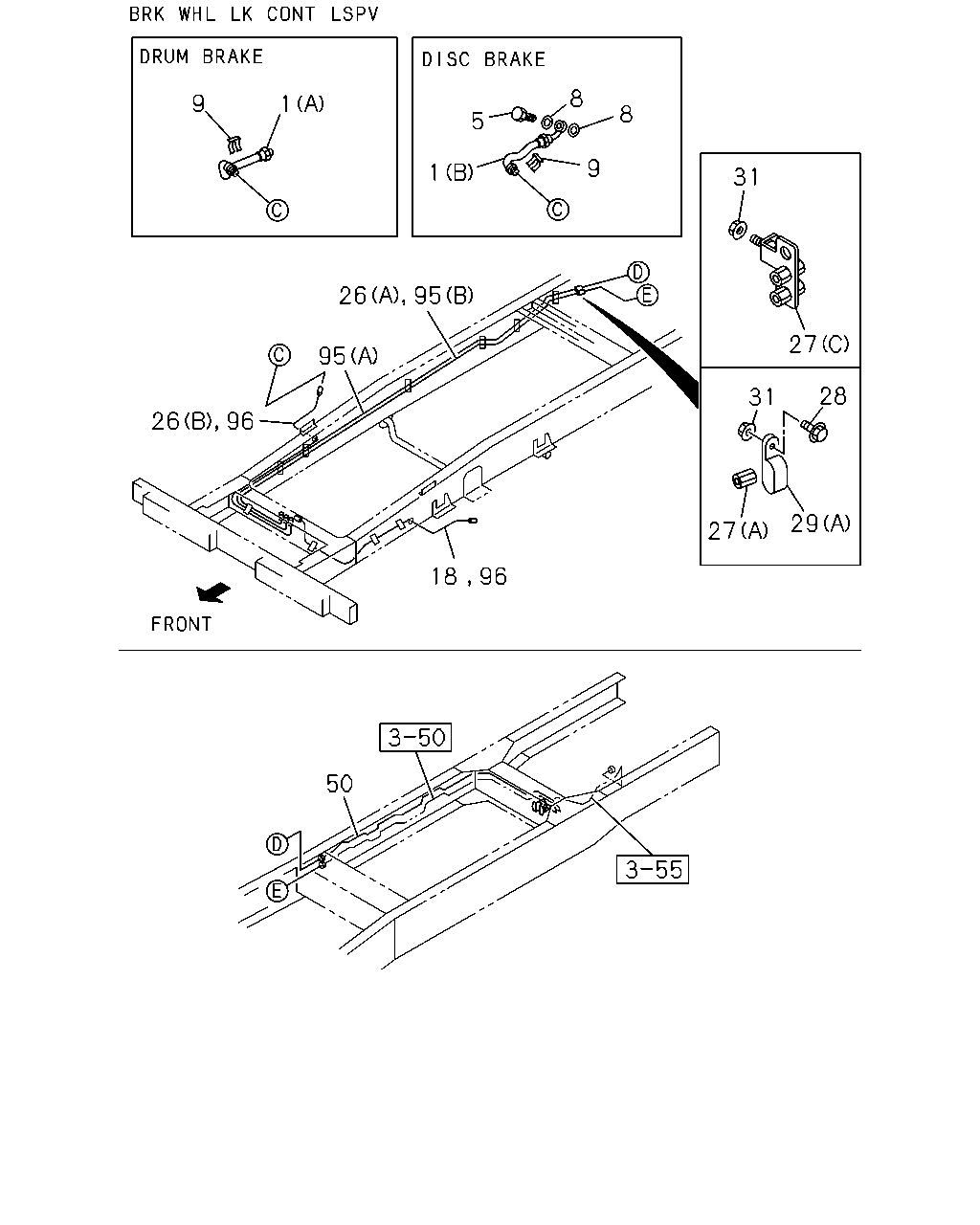

8 9 1 8 5 9 1 31 26 95 27 95 28 31 29 27 18 96 50 26 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	9812-9912	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97039-542-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0001-0004	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0005-	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	9812-9912	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0001-0004	●			●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97182-898-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0005-0206	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0207-	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> (A)	8-97039-543-0	02	1	9812-0105	●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-953-3	01	1	9812-9912	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>	8-97079-953-3	01	1	0001-0105	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-97079-952-4	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	9812-9912	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-754-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR	8-97126-880-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-872-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-577-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-880-0	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (D)	8-97289-441-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97185-065-2	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (C)	8-97289-440-0	01	1	0106-		●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-943-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-9912	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9812-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-0007	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20	9-09535-533-0	01	1	9812-0105	●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20	9-09525-532-0	01	1	9812-0105	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (C) ID=16 H=24 L=20	9-09527-015-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0007	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 FRONT	5-47411-785-0	01	1	9812-9903	●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 FRONT	5-47411-785-0	01	1	9904-9912	●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> 04.686 FRONT	5-47411-785-0	01	1	9904-9912		●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 FRONT	5-47411-785-0	01	1	0001-0105	●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 FRONT	5-47411-785-0	01	1	0001-0105		●
50	04.685 PIPE; BRK,UNION TO VLV FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 FRONT	5-47411-785-0	01	1	0106-	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97149-121-0	01	1	9812-9905	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97149-121-0	01	1	9906-9912	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> FRONT	8-97149-121-0	01	1	0001-0105	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> FRONT	8-97143-560-0	01	1	9812-9905	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> FRONT	8-97143-560-0	01	1	9906-0105	●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> 05.476 FRONT	5-47411-788-0	01	1	9812-9912				●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.476 FRONT	5-47411-788-0	01	1	0001-0105				●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> 04.686 FRONT	5-47411-789-0	01	1	9812-9912					●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 FRONT	5-47411-789-0	01	1	0001-0105					●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRONT	8-97170-243-3	01	1	9812-9912						●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97170-243-3	01	1	0001-0105						●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRONT	5-47411-780-0	01	1	9902-9912			●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	5-47411-780-0	01	1	0001-0105			●
50	04.685 PIPE; BRK,UNION TO VLV 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> FRONT	8-97259-574-1	01	1	0106-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97122-369-2	01	1	9812-9912	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9904-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97142-709-0	01	1	0001-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9904-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52>	8-97177-532-3	01	1	9812-9912	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97177-532-3	01	1	0001-0009	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-045-0	01	1	0010-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-045-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52>	8-97177-531-2	01	1	9812-9912	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97177-531-2	01	1	0001-0009	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-044-0	01	1	0010-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-044-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-954-1	01	1	9812-9903	●		●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-954-1	01	1	9904-0105	●	●		●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685	8-97141-755-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-950-0	01	1	9812-9903	●		●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-950-0	01	1	9904-0105	●	●		●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685	8-97079-953-3	01	1	0106-	●

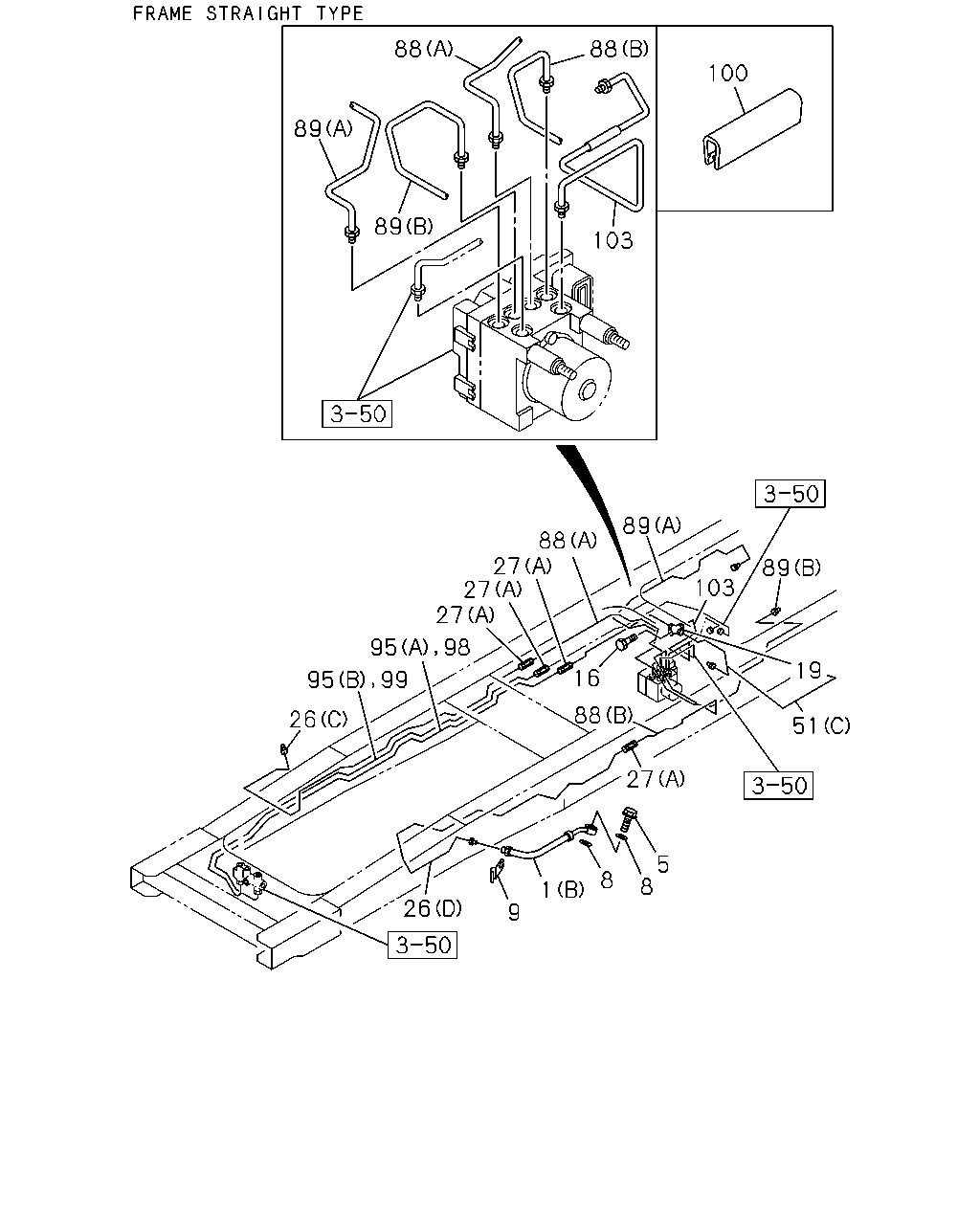

88 88 100 89 89 103 89 88 27 27 27 89 103 95 98 19 16 88 26 51 27 5 8 8 1 26 9 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	9812-9912	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97039-542-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0001-0004	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0005-	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	9812-9912	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0001-0004	●			●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97182-898-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0005-0206	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0207-	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> (A)	8-97039-543-0	02	1	9812-0105	●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0007-0105	●	●	●	●	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
16	04.686 BOLT; 3 WAY CONNECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-		●	●	●	●	●	●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0001-0105	●	●	●	●	●	●
19	04.686 UNION; OIL PIPE 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0001-0105	●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0106-	●
19	04.686 UNION; OIL PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0106-	●
19	04.686 UNION; OIL PIPE 08.963 M10 3WAY	9-09227-325-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	9812-9912	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-754-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR	8-97126-880-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-872-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-577-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-880-0	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (D)	8-97289-441-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97185-065-2	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (C)	8-97289-440-0	01	1	0106-		●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-943-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-9912	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9812-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-803-1	01	1	0001-0105		●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0106-	●
51	04.685 PIPE; BRK (C)	8-97206-803-1	01	1	0106-		●
51	04.685 PIPE; BRK 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-862-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-573-1	01	1	0106-	●
51	04.685 PIPE; BRK (B) FRONT	8-97177-306-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97177-307-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-804-1	01	1	0001-0105				●
51	04.685 PIPE; BRK (C)	8-97206-804-1	01	1	0106-				●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97247-893-0	01	1	0001-0105					●
51	04.685 PIPE; BRK (C)	8-97247-893-0	01	1	0106-					●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-805-1	01	1	0001-0105						●
51	04.685 PIPE; BRK (C)	8-97206-805-1	01	1	0106-						●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97185-059-1	01	1	0001-0105			●
51	04.685 PIPE; BRK (C)	8-97185-059-1	01	1	0106-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-889-0	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-889-0	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-889-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-889-0	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-885-0	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-885-0	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-885-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-885-0	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-868-1	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-868-1	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-867-2	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97259-576-2	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-890-0	01	1	0001-0105				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-890-0	01	1	0106-				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-886-0	01	1	0001-0105				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-886-0	01	1	0106-				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-891-0	01	1	0001-0105					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-891-0	01	1	0106-					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-887-0	01	1	0001-0105					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-887-0	01	1	0106-					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-892-0	01	1	0001-0105						●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-892-0	01	1	0106-						●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-888-0	01	1	0001-0105						●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-888-0	01	1	0106-						●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-877-0	01	1	0001-0105			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-877-0	01	1	0106-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-876-0	01	1	0001-0105			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-876-0	01	1	0106-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-879-0	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97247-879-0	01	1	0001-0105		●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-879-0	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR (B)	8-97247-879-0	01	1	0106-		●	●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-878-2	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97247-878-2	01	1	0001-0105		●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-878-2	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR (A)	8-97247-878-2	01	1	0106-		●	●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-870-0	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-870-0	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-869-1	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-869-1	01	1	0106-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97122-369-2	01	1	9812-9912	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9904-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97142-709-0	01	1	0001-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9904-0105	●	●	●	●	●	●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97122-369-3	01	1	0001-0105	●
98	04.686 PIPE ASM; 4/6 WAY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97259-571-1	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> FRONT	8-97149-838-0	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97142-710-0	01	1	0001-0105	●	●	●	●	●	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97142-710-0	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> FRONT	8-97185-055-1	01	1	0001-0105	●	●	●	●	●	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> FRONT	8-97185-055-1	01	1	0106-	●	●	●	●	●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	8-97142-709-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> REAR	8-97149-839-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97259-572-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 05.476 REAR	8-97185-065-1	01	1	0001-0001	●	●	●	●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> REAR	8-97185-056-2	01	1	0002-	●	●	●	●	●	●	●
100	04.931 PROTECTOR; EDGE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0011-0105	●
100	04.931 PROTECTOR; EDGE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.008 L=80	5-22439-006-0	01	1	0011-0105		●	●	●	●	●
100	04.931 PROTECTOR; EDGE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0106-	●
100	04.931 PROTECTOR; EDGE 03.008 L=80	5-22439-006-0	01	1	0106-		●	●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0001-0105	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-874-0	01	1	0001-0105		●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0106-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI	8-97247-874-0	01	1	0106-		●	●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-864-2	01	1	0001-0105	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-864-2	01	1	0106-	●

8 9 8 5 1 9 1 95 26 28 31 27 29 13 18 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	9812-9912	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97039-542-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0001-0004	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0005-	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	9812-9912	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0001-0004	●			●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97182-898-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0005-0206	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0207-	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> (A)	8-97039-543-0	02	1	9812-0105	●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ>	8-97081-691-5	01	1	9812-0105	●
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-717-0	01	1	9812-9903	●
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-717-0	01	1	9904-0105	●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-717-0	01	1	9904-0105		●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-718-0	01	1	9812-0105				●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-719-0	01	1	9812-0105					●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-720-0	01	1	9812-0105						●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-716-0	01	1	9902-0105			●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-953-3	01	1	9812-9912	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>	8-97079-953-3	01	1	0001-0105	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-97079-952-4	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	9812-9912	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-754-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR	8-97126-880-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-872-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-577-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-880-0	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (D)	8-97289-441-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97185-065-2	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (C)	8-97289-440-0	01	1	0106-		●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-943-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-9912	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9812-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-0007	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20	9-09535-533-0	01	1	9812-0105	●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20	9-09525-532-0	01	1	9812-0105	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (C) ID=16 H=24 L=20	9-09527-015-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0007	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97122-369-2	01	1	9812-9912	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97142-710-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) FRONT	8-97149-838-0	01	1	9904-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97142-709-0	01	1	9904-9912	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97142-709-0	01	1	0001-0105	●	●	●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9812-9901	●			●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9902-9903	●		●	●	●	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) REAR	8-97149-839-0	01	1	9904-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52>	8-97177-532-3	01	1	9812-9912	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97177-532-3	01	1	0001-0009	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-045-0	01	1	0010-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-045-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52>	8-97177-531-2	01	1	9812-9912	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97177-531-2	01	1	0001-0009	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-044-0	01	1	0010-0105	●	●	●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97300-044-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-954-1	01	1	9812-9903	●		●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-954-1	01	1	9904-0105	●	●		●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685	8-97141-755-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-950-0	01	1	9812-9903	●		●	●	●	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97096-950-0	01	1	9904-0105	●	●		●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685	8-97079-953-3	01	1	0106-	●

88 88 89 31 27 89 103 27 28 31 27 29 89 88 89 103 98 19 99 26 16 88 26 51 5 8 8 26 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	9812-9912	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97039-542-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0001-0004	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97039-542-0	02	1	0005-	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	9812-9912	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0001-0004	●			●	●	●
1	04.680 HOSE; FLEX,FRT BRK G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97182-898-0	02	1	0001-0004	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0005-0206	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-97182-898-0	02	1	0207-	●	●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> (A)	8-97039-543-0	02	1	9812-0105	●	●	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9812-0105	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0106-	●	●	●	●	●	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0007-0105	●	●	●	●	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
16	04.686 BOLT; 3 WAY CONNECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-		●	●	●	●	●	●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0001-0105	●	●	●	●	●	●
19	04.686 UNION; OIL PIPE 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0001-0105	●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0106-	●
19	04.686 UNION; OIL PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0106-	●
19	04.686 UNION; OIL PIPE 08.963 M10 3WAY	9-09227-325-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	9812-9912	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-755-0	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B)	8-97141-754-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR	8-97126-880-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-873-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-872-4	01	1	0001-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-577-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97247-880-0	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D)	8-97289-441-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (D)	8-97289-441-0	01	1	0106-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97185-065-2	01	1	0001-0009	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0010-0105	●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97289-440-0	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (C)	8-97289-440-0	01	1	0106-		●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-943-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-9912	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0001-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	9812-0105	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-0007	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0008-0105	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20	9-09535-533-0	01	1	9812-0105	●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20	9-09525-532-0	01	1	9812-0105	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (C) ID=16 H=24 L=20	9-09527-015-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0007	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0008-	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-803-1	01	1	0001-0105		●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-803-1	01	1	0106-	●
51	04.685 PIPE; BRK (C)	8-97206-803-1	01	1	0106-		●
51	04.685 PIPE; BRK 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-862-1	01	1	0001-0105	●
51	04.685 PIPE; BRK 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97259-573-1	01	1	0106-	●
51	04.685 PIPE; BRK (B) FRONT	8-97177-306-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97177-307-0	01	1	9812-9907	●	●	●	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	9908-	●	●	●	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-804-1	01	1	0001-0105				●
51	04.685 PIPE; BRK (C)	8-97206-804-1	01	1	0106-				●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97247-893-0	01	1	0001-0105					●
51	04.685 PIPE; BRK (C)	8-97247-893-0	01	1	0106-					●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97206-805-1	01	1	0001-0105						●
51	04.685 PIPE; BRK (C)	8-97206-805-1	01	1	0106-						●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-97185-059-1	01	1	0001-0105			●
51	04.685 PIPE; BRK (C)	8-97185-059-1	01	1	0106-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-889-0	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-889-0	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-889-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-889-0	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-885-0	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-885-0	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-885-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-885-0	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-868-1	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-868-1	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-867-2	01	1	0001-0105	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97259-576-2	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-890-0	01	1	0001-0105				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-890-0	01	1	0106-				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-886-0	01	1	0001-0105				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-886-0	01	1	0106-				●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-891-0	01	1	0001-0105					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-891-0	01	1	0106-					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-887-0	01	1	0001-0105					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-887-0	01	1	0106-					●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-892-0	01	1	0001-0105						●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-892-0	01	1	0106-						●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-888-0	01	1	0001-0105						●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-888-0	01	1	0106-						●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-97247-877-0	01	1	0001-0105			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (B)	8-97247-877-0	01	1	0106-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-97247-876-0	01	1	0001-0105			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT (A)	8-97247-876-0	01	1	0106-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-879-0	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97247-879-0	01	1	0001-0105		●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-879-0	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR (B)	8-97247-879-0	01	1	0106-		●	●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-878-2	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97247-878-2	01	1	0001-0105		●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-878-2	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR (A)	8-97247-878-2	01	1	0106-		●	●	●	●	●	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-870-0	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97247-870-0	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-869-1	01	1	0001-0105	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97247-869-1	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97122-369-3	01	1	0001-0105	●
98	04.686 PIPE ASM; 4/6 WAY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97259-571-1	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> FRONT	8-97149-838-0	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97142-710-0	01	1	0001-0105	●	●	●	●	●	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97142-710-0	01	1	0106-	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> FRONT	8-97185-055-1	01	1	0001-0105	●	●	●	●	●	●
98	04.686 PIPE ASM; 4/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> FRONT	8-97185-055-1	01	1	0106-	●	●	●	●	●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	8-97142-709-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> REAR	8-97149-839-0	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97259-572-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 05.476 REAR	8-97185-065-1	01	1	0001-0001	●	●	●	●	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> REAR	8-97185-056-2	01	1	0002-	●	●	●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0001-0105	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-874-0	01	1	0001-0105		●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0106-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI	8-97247-874-0	01	1	0106-		●	●	●	●	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-864-2	01	1	0001-0105	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-864-2	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
