Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#1931) — 309 parça

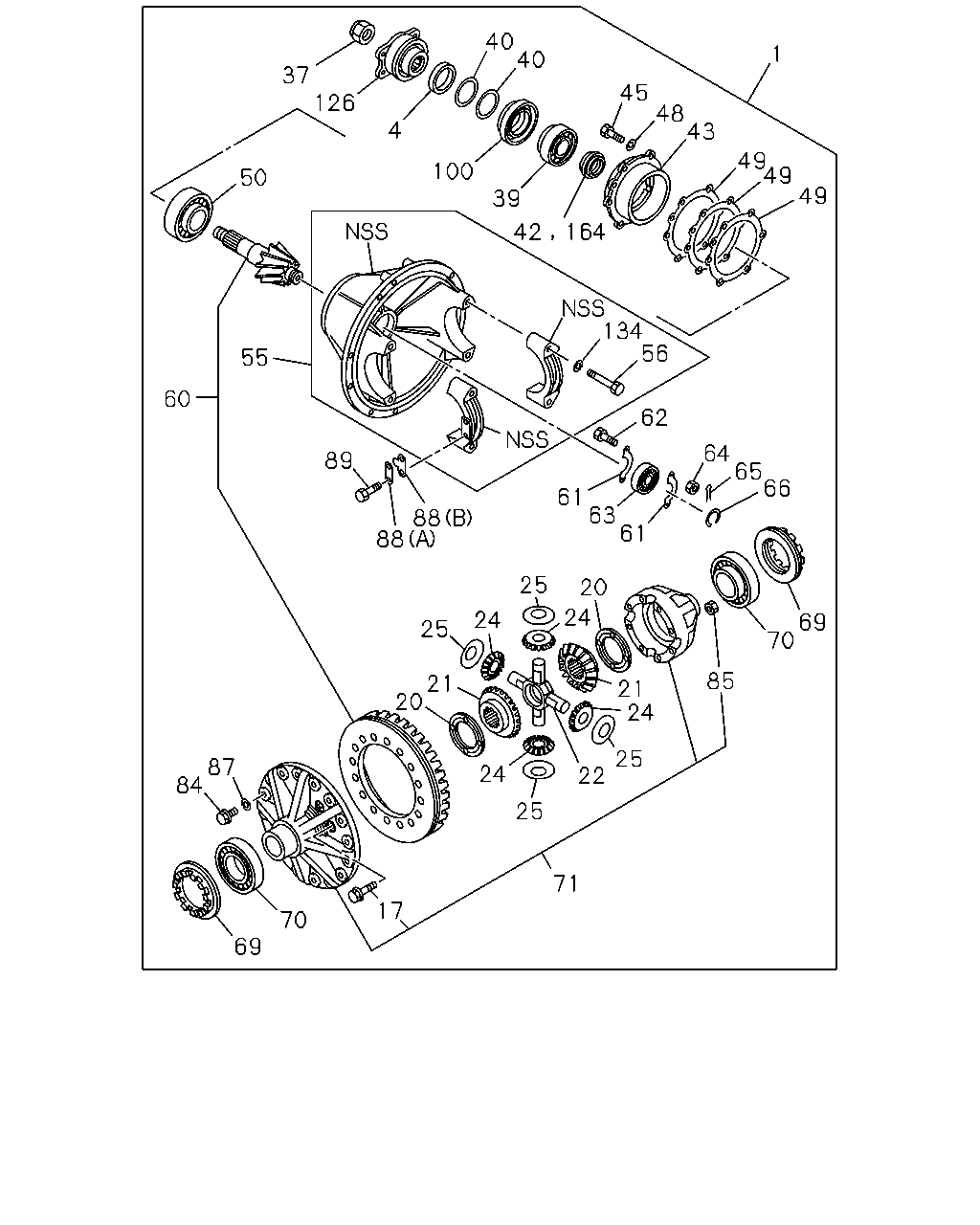

40 40 1 37 126 45 48 43 4 49 49 49 100 50 39 42 164 134 56 55 60 62 64 65 66 89 61 63 61 88 88 25 20 24 24 69 70 25 85 21 20 21 24 25 22 87 84 24 25 71 17 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41000-922-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41000-620-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/6	1-41001-340-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/6	1-41001-311-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41001-338-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41001-276-0	01	1	9207-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9207-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9207-		●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9207-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.80	1-41562-061-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.00	1-41562-062-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.20	1-41562-063-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.40	1-41562-064-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.90	1-41562-080-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.10	1-41562-081-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.30	1-41562-082-0	AR	1	9207-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.75	1-41562-139-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.80	1-41562-140-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.85	1-41562-141-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.90	1-41562-142-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.95	1-41562-143-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.00	1-41562-144-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.05	1-41562-145-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.10	1-41562-146-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.15	1-41562-147-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.20	1-41562-148-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.25	1-41562-149-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.30	1-41562-150-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.35	1-41562-151-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.40	1-41562-152-0	AR	1	9207-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.45	1-41562-153-0	AR	1	9207-		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-022-0	02	1	9207-9312	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-105-0	02	1	9401-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-075-0	02	1	9207-		●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86>	1-41521-018-1	01	1	9207-9311	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86>	1-41521-050-1	01	1	9312-	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86> OD=30	1-41521-014-1	01	1	9207-		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-016-0	04	1	9207-9312	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-032-0	04	1	9401-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-010-2	04	1	9207-		●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF<G86> ID=29 OD=60	1-41562-119-0	04	1	9207-	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF<G86>	1-41552-012-0	04	1	9207-		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9207-	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9207-		●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9207-	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9207-		●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-		●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9207-	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9207-		●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9207-		●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9207-		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9207-	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9207-	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9207-		●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9207-	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9207-		●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9207-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9207-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9207-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9207-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-9407	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9409-	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9207-9407		●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9408-9408	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9409-		●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9207-	●
63	BEARING; PINION PILOT KOYO	1-09810-074-1	01	1	9207-	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9207-9509		●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9510-		●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9207-9509		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-		●	●
64	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9207-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9207-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9207-	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9207-	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9207-		●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9207-		●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9207-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9207-	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9207-		●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9207-		●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9207-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9207-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9207-		●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9207-		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9207-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9207-		●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9207-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-	●
88	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-	●	●	●
88	PLATE; LK,ADJ NUT (B)	1-41124-002-0	02	1	9207-		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9207-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9207-		●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9207-	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9207-		●	●
134	WASHER; LK,BRG CAP	9-09150-516-0	04	1	9207-	●
134	WASHER; LK,BRG CAP	9-09150-518-0	04	1	9207-		●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●

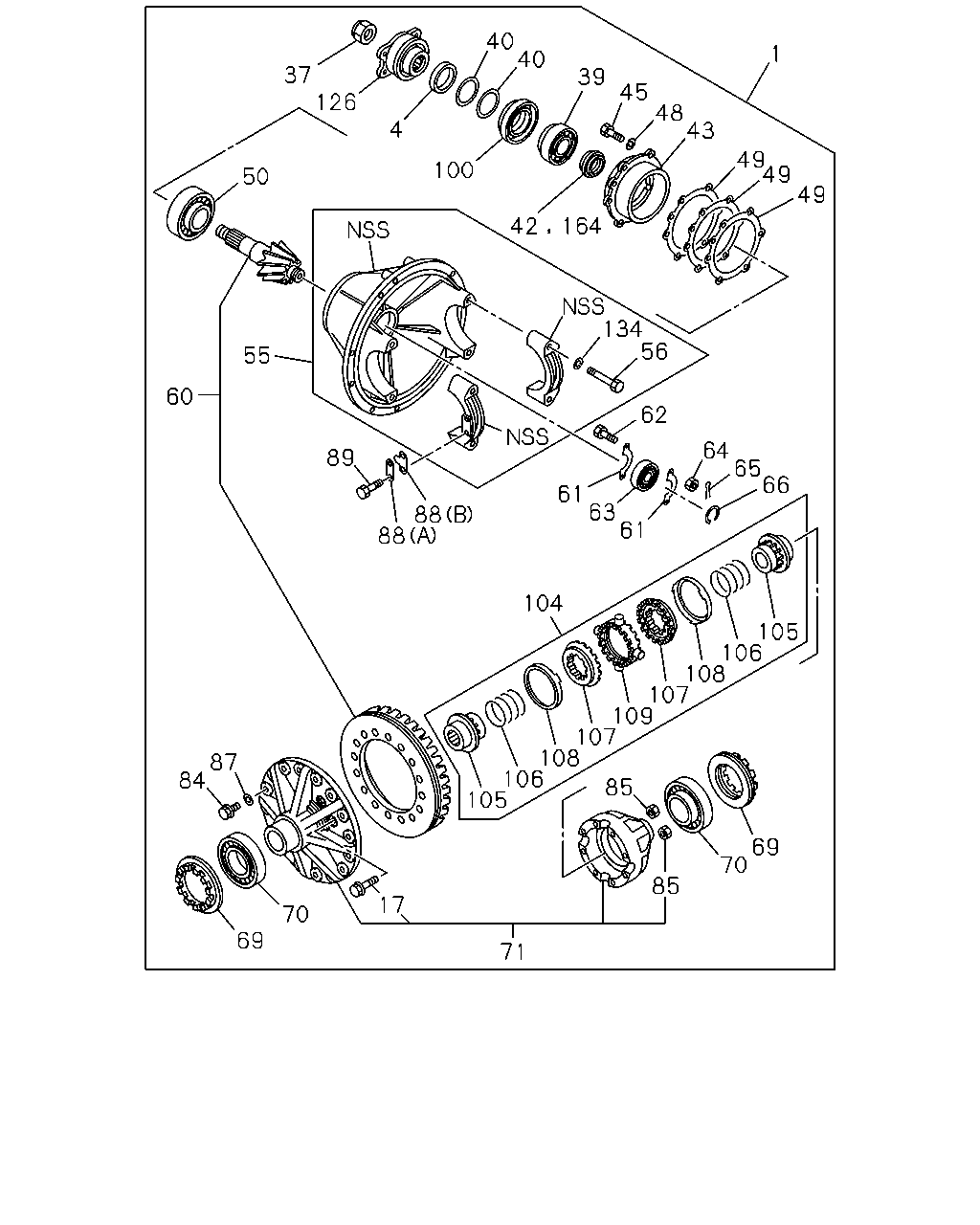

40 40 1 37 126 39 45 48 43 4 49 49 49 100 50 42 164 134 56 55 60 62 64 65 66 89 61 63 61 88 88 104 105 106 108 107 109 107 108 106 105 87 84 85 69 70 85 17 70 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41000-922-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41000-620-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/6	1-41001-340-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/6	1-41001-311-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41001-338-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41001-276-0	01	1	9207-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9207-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9207-		●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9207-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9207-		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9207-	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9207-		●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9207-	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9207-		●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9207-	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9207-9404		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9207-9404		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-		●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9207-	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9207-		●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9207-		●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9207-		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9207-		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9207-	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9207-	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9207-		●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9207-	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9207-		●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9207-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9207-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9207-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9207-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-9407	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9409-	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9207-9407		●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9408-9408	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9409-		●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9207-	●
63	BEARING; PINION PILOT KOYO	1-09810-074-1	01	1	9207-	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9207-9509		●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9510-		●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9207-9509		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-		●	●
64	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9207-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9207-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9207-	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9207-	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9207-		●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9207-		●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9207-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9207-	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9207-		●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9207-		●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9207-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9207-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9207-		●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9207-		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9207-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9207-		●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9207-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-	●
88	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-	●	●	●
88	PLATE; LK,ADJ NUT (B)	1-41124-002-0	02	1	9207-		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9207-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9207-		●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF<G86>	1-41530-020-1	01	1	9207-	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF<G86>	1-41530-032-0	01	1	9207-		●	●
105	GEAR; SIDE LIMITED SLIP DIFF<G86>	1-41539-019-1	02	1	9207-	●
105	GEAR; SIDE LIMITED SLIP DIFF<G86>	1-41561-083-0	02	1	9207-		●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF<G86>	1-41539-006-0	02	1	9207-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF<G86>	1-09580-314-0	02	1	9207-		●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF<G86>	1-41539-003-0	02	1	9207-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF<G86>	1-41532-003-0	02	1	9207-		●	●
108	RING; HOLD OUT LIMITED SLIP DIFF<G86>	1-41539-004-0	02	1	9207-	●
108	RING; HOLD OUT LIMITED SLIP DIFF<G86>	1-41539-032-0	02	1	9207-		●	●
109	SPIDER; DIFF LIMITED SLIP DIFF<G86>	1-41539-014-0	01	1	9207-	●
109	SPIDER; DIFF LIMITED SLIP DIFF<G86>	1-41521-034-0	01	1	9207-		●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9207-	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9207-		●	●
134	WASHER; LK,BRG CAP	9-09150-516-0	04	1	9207-	●
134	WASHER; LK,BRG CAP	9-09150-518-0	04	1	9207-		●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
