Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#19309) — 388 parça

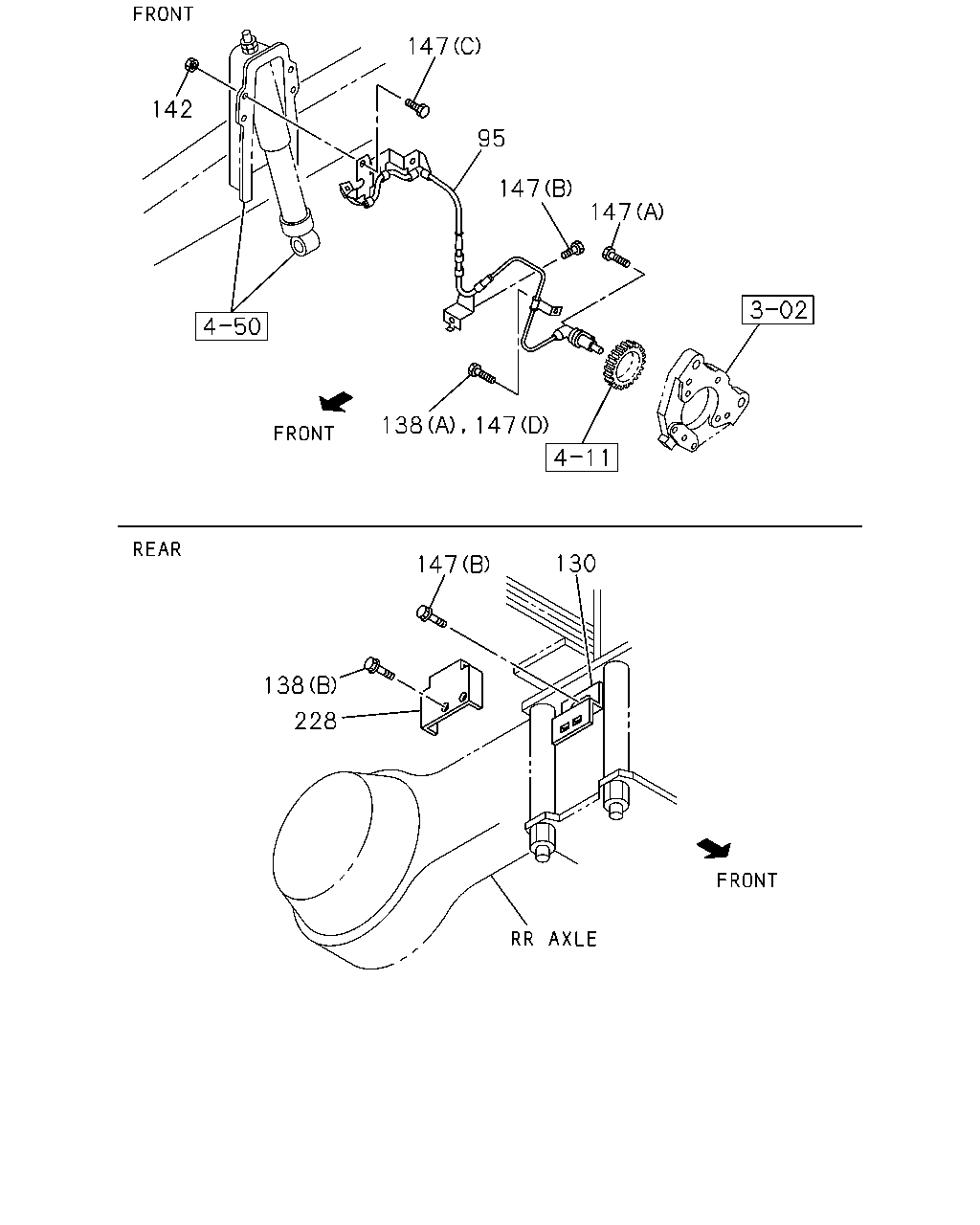

147 142 95 147 147 138 147 130 147 138 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.150	8-97182-970-1	01	1	0001-0004	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> 01.150	8-97182-970-1	01	1	0001-0004		●	●	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-622-2	01	1	0005-0105	●	●	●	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-622-3	01	1	0106-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97256-622-3	01	1	0106-		●	●	●	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 01.150	8-97182-971-1	01	1	0001-0004	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ> 01.150	8-97182-971-1	01	1	0001-0004			●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> 01.150	8-97182-971-1	01	1	0001-0004		●				●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-1	01	1	0005-0105	●		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-623-1	01	1	0005-0105		●				●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-2	01	1	0106-	●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-2	01	1	0106-			●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97256-623-2	01	1	0106-		●				●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97144-873-0	01	1	0001-0004	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97144-872-0	01	1	0001-0004	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-1	01	1	0001-0105	●		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97249-056-1	01	1	0001-0105				●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-2	01	1	0106-	●
95	04.710 SENSOR; SPD,FRT WHEEL HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-2	01	1	0106-			●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97249-056-2	01	1	0106-				●	●		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0001-0105	●	●	●	●	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0106-	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0106-		●	●	●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.611 (A) M10X20 FLANGE	0-28681-020-0	02	1	0001-0012	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (A) M10X12 FLANGE	0-28081-012-0	02	1	0101-0105	●	●	●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (A) M10X12 FLANGE	0-28081-012-0	02	1	0106-	●
138	04.720 BOLT; COVER 04.640 (A) M10X12 FLANGE	0-28081-012-0	02	1	0106-		●	●	●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0001-0105	●	●	●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●
138	04.720 BOLT; COVER 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0106-		●	●	●	●	●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	04	1	0001-0012	●	●	●	●	●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-0105	●	●	●	●	●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
142	04.710 NUT; SPEED SENSOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 09.008 (D) M10X20 FLANGE	0-28081-020-0	02	1	0001-0012	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.008 (D) M10X20 FLANGE	0-28081-020-0	02	1	0001-0012		●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0001-0012	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0001-0012		●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0001-0012	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	04	1	0001-0012	●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	06	1	0101-0105	●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	06	1	0106-	●
147	04.710 BOLT; SPEED SENSOR 08.900 (B) M8X12 FLANGE	0-28080-812-0	06	1	0106-		●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (C) M8X20 FLANGE	0-28680-820-0	04	1	0001-0012	●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (C) M8X20 FLANGE	0-28680-820-0	02	1	0101-0105	●	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (C) M8X20 FLANGE	0-28680-820-0	02	1	0106-	●
147	04.710 BOLT; SPEED SENSOR 02.664 (C) M8X20 FLANGE	0-28680-820-0	02	1	0106-		●	●	●	●	●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0001-0105	●	●	●	●	●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0106-	●
228	04.730 COVER; ABS	8-97233-083-0	01	1	0106-		●	●	●	●	●	●

193 188 181 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	G
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9812-9908	●	●
181	04.686 BOLT; PIPE 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9812-9908			●	●
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9909-0105	●	●	●	●
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9908	●	●
188	04.685 NUT; PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9908			●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9909-0105	●	●	●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●	●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	9812-0105	●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11>	8-97160-076-2	01	1	9812-0105			●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	0106-0207	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	0106-0207		●
192	04.685 PIPE; PRESSURE	8-97160-076-2	01	1	0106-0207			●	●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	0208-	●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11>	8-97160-076-2	01	1	0208-			●	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97177-033-3	01	1	9812-	●	●	●	●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97177-089-5	01	1	9812-	●	●	●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	9812-	●	●	●	●	●

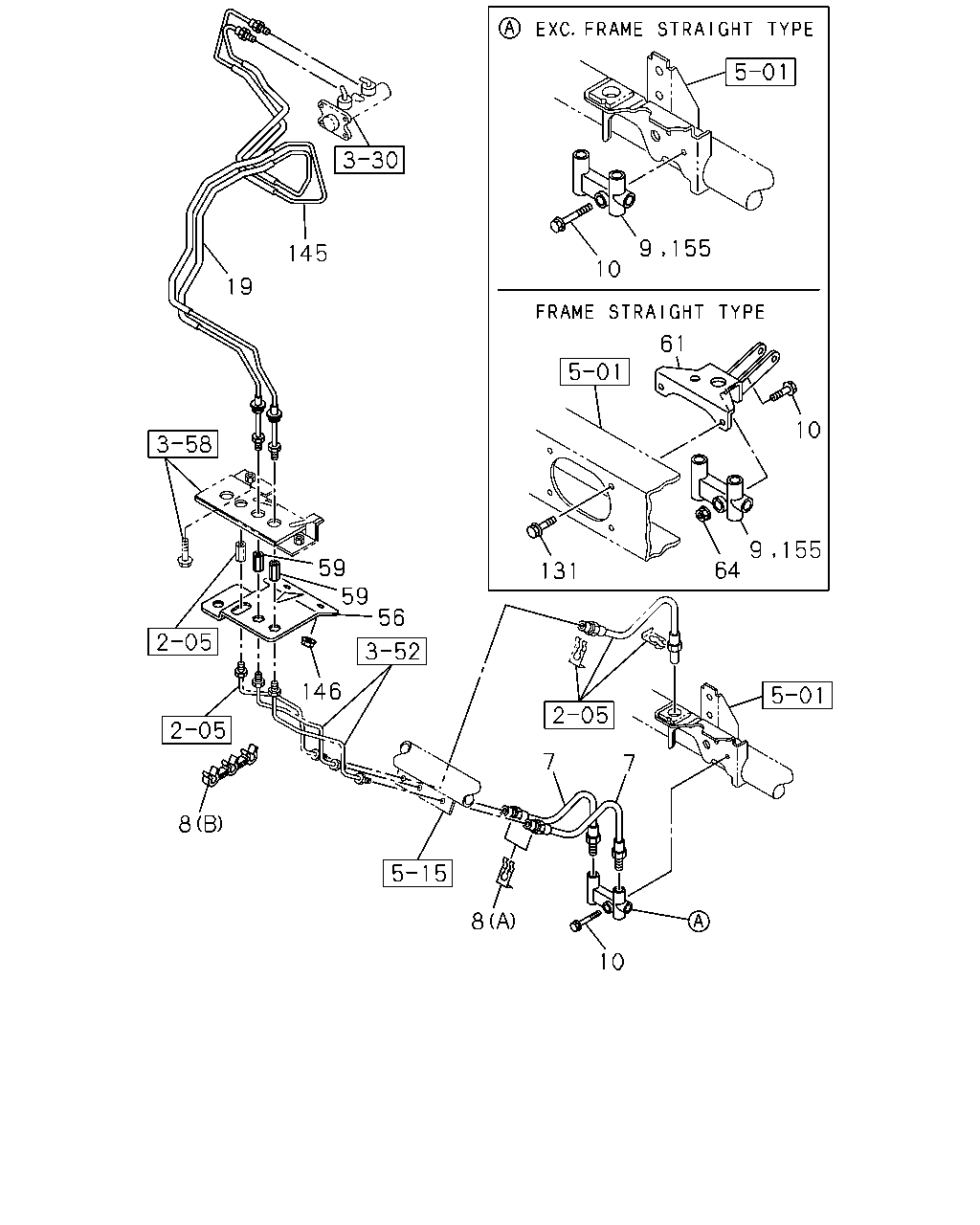

9 155 145 10 19 61 10 155 9 64 59 59 131 56 146 7 7 8 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9812-	●	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9812-	●	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9812-9912	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	0001-0105	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-0	01	1	0001-0105	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-1	01	1	0106-	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	8-97139-922-1	01	1	0106-		●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9812-	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-592-0	01	1	0110-0207	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-592-0	01	1	0110-0207			●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-592-0	01	1	0110-0207		●				●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-592-0	01	1	0208-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11>	8-97314-592-0	01	1	0208-		●				●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11>	8-97149-834-1	01	1	9812-0109	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97149-834-1	01	1	0110-0207	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97149-834-1	01	1	0110-0207			●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97149-834-1	01	1	0110-0207				●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97149-834-1	01	1	0208-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11>	8-97149-834-1	01	1	0208-				●	●		●
56	04.686 BRACKET; UNION,BRK	8-97149-604-1	01	1	9812-	●	●	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9812-	●	●	●	●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	9812-	●	●	●	●	●	●	●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-	●	●	●	●	●	●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-	●	●	●	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-585-0	01	1	0110-0207	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-585-0	01	1	0110-0207			●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-585-0	01	1	0110-0207		●				●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-585-0	01	1	0208-	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11>	8-97314-585-0	01	1	0208-		●				●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11>	8-97149-833-1	01	1	9812-0109	●	●	●	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97149-833-1	01	1	0110-0207	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97149-833-1	01	1	0110-0207			●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97149-833-1	01	1	0110-0207				●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97149-833-1	01	1	0208-	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11>	8-97149-833-1	01	1	0208-				●	●		●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●
146	04.685 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105				●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9812-9912	●	●	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-1	01	1	0001-0105	●	●	●	●	●	●
155	04.686 JOINT; 6WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0106-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

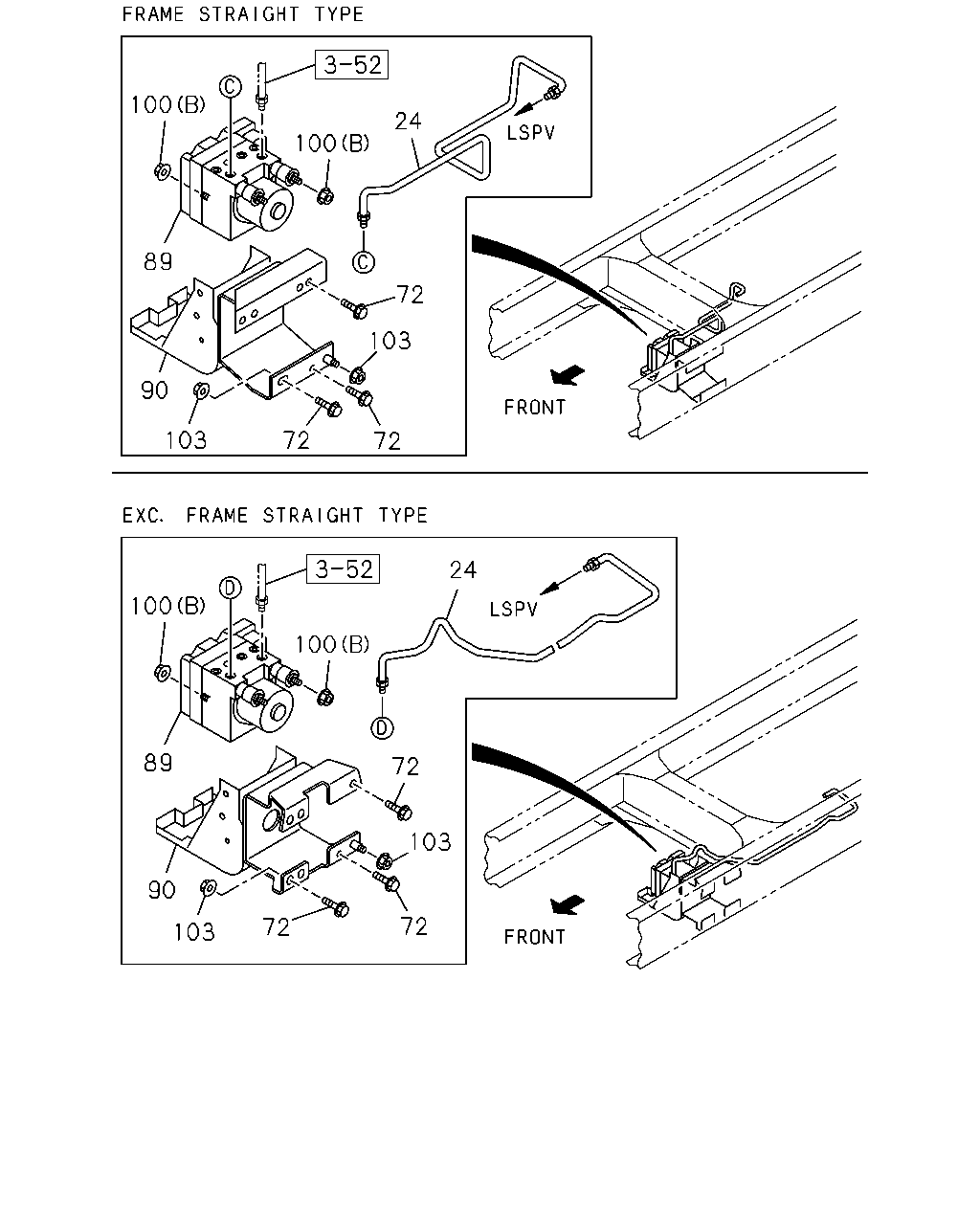

55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	9812-9903	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	9904-9912	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> REAR	5-47411-784-0	01	1	9904-9912						●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0001-0105	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0001-0105						●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0106-	●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	0001-0105	●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> REAR	5-47411-784-0	01	1	0001-0105						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	0106-	●
55	04.686 PIPE; BRK,VLV TO UNION REAR	5-47411-784-0	01	1	0106-						●
55	04.686 PIPE; BRK,VLV TO UNION 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97247-863-1	01	1	0001-0105	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97149-122-1	01	1	9812-9905	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97149-122-1	01	1	9906-9912	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> REAR	8-97149-122-1	01	1	0001-0105	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> REAR	8-97184-238-0	01	1	9812-9905	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> REAR	8-97184-238-0	01	1	9906-0105	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> 04.685 REAR	5-47411-786-0	01	1	9812-9912			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR	5-47411-786-0	01	1	0001-0105			●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> 04.685 REAR	5-47411-786-0	01	1	0001-0105			●
55	04.686 PIPE; BRK,VLV TO UNION 04.685 REAR	5-47411-786-0	01	1	0106-			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> REAR	5-47411-789-0	01	1	9812-9912				●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-789-0	01	1	0001-0105				●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> REAR	8-97247-894-0	01	1	0001-0105				●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97247-894-0	01	1	0106-				●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> REAR	5-47411-790-0	01	1	9812-9912					●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-790-0	01	1	0001-0105					●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> REAR	5-47411-790-0	01	1	0001-0105					●
55	04.686 PIPE; BRK,VLV TO UNION REAR	5-47411-790-0	01	1	0106-					●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> 04.685 REAR	5-47411-777-0	01	1	9902-9912		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR	5-47411-777-0	01	1	0001-0105		●
55	04.686 PIPE; BRK,VLV TO UNION 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97259-575-2	01	1	0106-	●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> 04.685 REAR	5-47411-777-0	01	1	0001-0105		●
55	04.686 PIPE; BRK,VLV TO UNION 04.685 REAR	5-47411-777-0	01	1	0106-		●

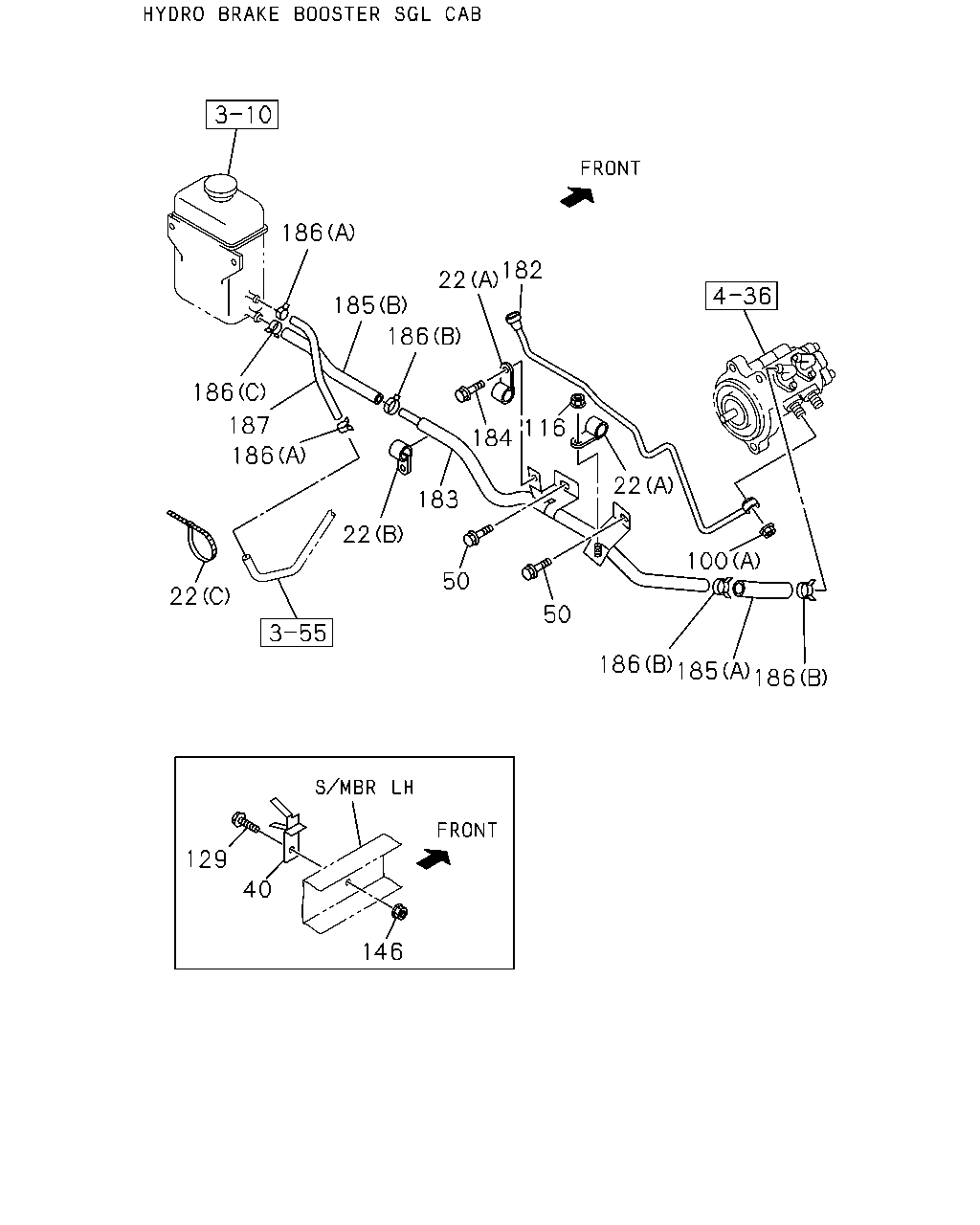

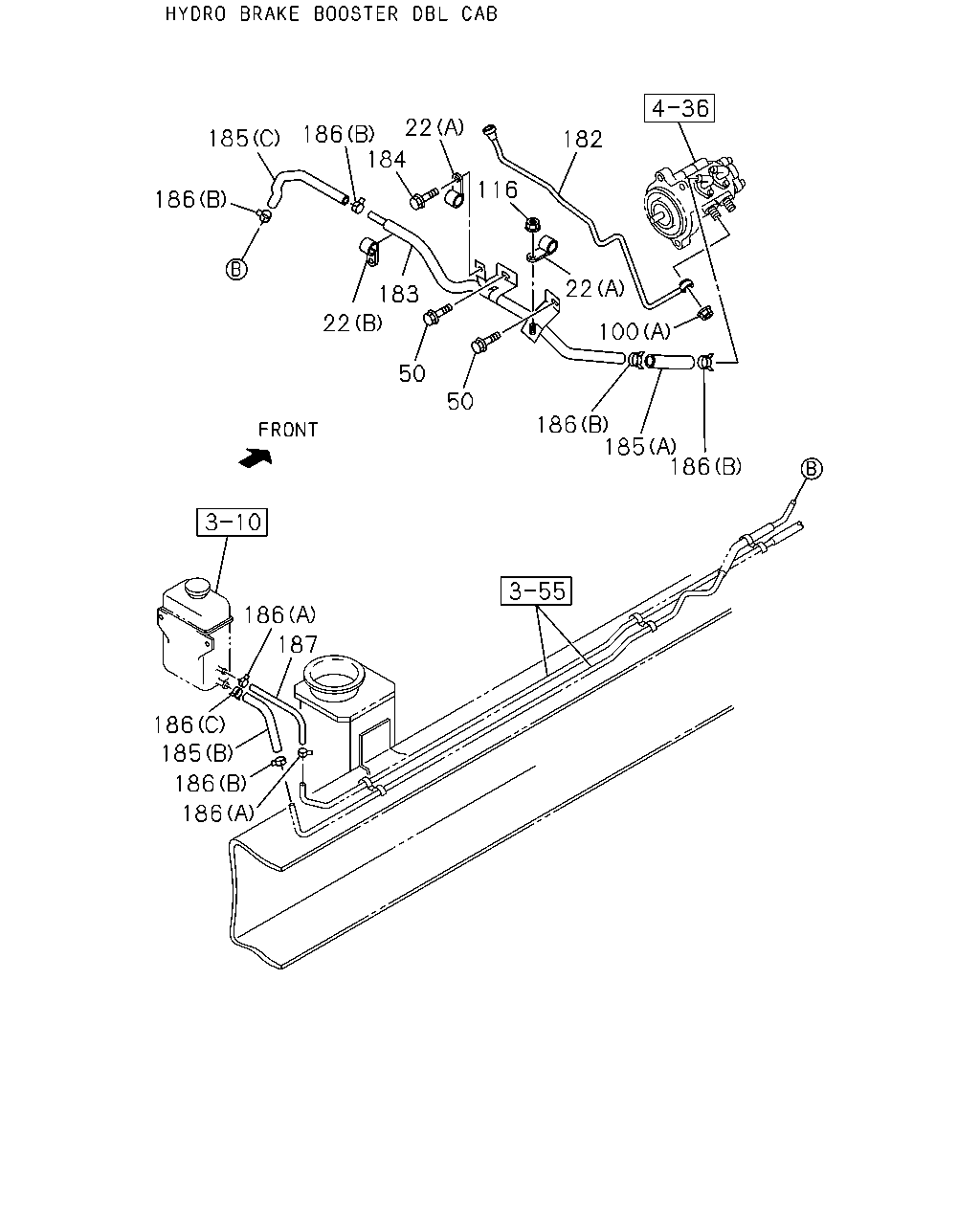

22 186 184 185 182 116 186 22 183 22 100 50 50 186 185 186 186 187 186 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9812-0105	●		●
22	04.685 CLIP CHARGE AIR COOLER<6PL> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9812-0105				●	●
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-			●
22	04.685 CLIP 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-				●	●		●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9812-0105	●		●
22	04.685 CLIP EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9812-0105				●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9812-0105	●		●
22	04.685 CLIP EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9812-0105				●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	9812-	●		●	●	●		●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-	●		●	●	●		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	9812-0105	●		●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0106-	●		●	●	●		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0001-0105	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-		●	●	●	●	●	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●		●	●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207			●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207				●	●		●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-	●		●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0208-	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MZZ6F(RSR)	8-97328-692-0	01	1	0208-				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97181-945-0	01	1	9812-0009	●		●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0010-0105	●		●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0106-0112	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0106-0112			●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97264-895-0	01	1	0106-0112				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0201-0207	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0201-0207			●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97264-895-0	01	1	0201-0207				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0208-	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW)	8-97264-895-0	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0208-	●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0208-			●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR)	8-97328-693-0	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97328-694-0	01	1	0208-	●
183	04.685 PIPE; SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	9812-0005	●		●
183	04.685 PIPE; SUCTION CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	9812-0005				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0006-0105	●		●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	0006-0105				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0106-0112	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0106-0112			●
183	04.685 PIPE; SUCTION	8-97184-067-4	01	1	0106-0112				●	●		●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0201-0207	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0201-0207			●
183	04.685 PIPE; SUCTION	8-97184-067-4	01	1	0201-0207				●	●		●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0208-	●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0208-			●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW)	8-97184-067-4	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9812-0005	●		●
183	04.685 PIPE; SUCTION EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9812-0005				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105	●		●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0106-0112	●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0201-	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005	●		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005	●		●
184	04.681 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005				●	●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005				●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0105	●		●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0105				●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9812-0105	●		●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9812-0105				●	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-			●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-				●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9812-0105	●		●
185	04.681 HOSE; RUBBER,SUCTION EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9812-0105				●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0208-	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MZZ6F(RSR) (A)	8-97330-513-0	01	1	0208-				●	●		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	9812-0204	●		●	●	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0205-0207	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0205-0207			●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (A)	0-09814-120-0	01	1	0205-0207				●	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0208-	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) 06.670 (A)	0-09814-120-0	01	1	0208-				●	●		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0106-							●
185	04.681 HOSE; RUBBER,SUCTION (C)	8-97256-681-0	01	1	0106-							●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0106-							●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	9812-0105	●		●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> L=270	0-09809-270-0	01	1	9812-0105				●	●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0106-	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0106-			●
187	04.681 HOSE; RUBBER,OIL TANK L=270	0-09809-270-0	01	1	0106-				●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9812-0105	●		●
187	04.681 HOSE; RUBBER,OIL TANK EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9812-0105				●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	0106-	●
187	04.681 HOSE; RUBBER,OIL TANK L=200	0-09809-200-0	01	1	0106-							●

100 24 100 89 72 103 90 103 72 72 24 100 100 89 72 103 90 72 72 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0001-0105	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-875-1	01	1	0001-0105		●	●	●	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0106-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0106-		●	●	●	●	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0001-0105	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0106-	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0001-0004	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0001-0004			●	●	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0001-0105	●	●	●	●	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0106-	●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0106-		●	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE>	8-97255-105-2	01	1	0001-0105	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97255-105-2	01	1	0001-0105		●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE>	8-97255-105-3	01	1	0106-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97255-105-3	01	1	0106-		●	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE>	8-97255-106-3	01	1	0001-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-2	01	1	0001-0105	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-497-2	01	1	0001-0105			●	●	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0106-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0106-			●	●	●	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97245-499-1	01	1	0001-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-500-2	01	1	0001-0105		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-500-4	01	1	0106-		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	9812-0105	●		●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0106-	●		●	●	●		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0001-0105	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-		●	●	●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0001-0004	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	01	1	0001-0004		●	●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	01	1	0005-0105		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0005-0105	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	01	1	0005-0105			●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0001-0004	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0005-0105	●		●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-			●	●	●	●	●

186 182 22 185 186 186 187 116 184 186 22 183 22 100 50 22 50 186 185 186 129 40 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9812-0105	●		●
22	04.685 CLIP CHARGE AIR COOLER<6PL> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9812-0105				●	●
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-			●
22	04.685 CLIP 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-				●	●		●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9812-0105	●		●
22	04.685 CLIP EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9812-0105				●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9812-0105	●		●
22	04.685 CLIP EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9812-0105				●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	0106-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	9812-	●		●	●	●		●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97188-262-0	01	1	9812-0105	●		●
40	04.690 BRACKET EXC. CHARGE AIR COOLER<6PL>	8-97188-262-0	01	1	9812-0105				●	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97188-262-0	01	1	0106-	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-	●		●	●	●		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	9812-0105	●		●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0106-	●		●	●	●		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0001-0105	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0106-		●	●	●	●	●	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●		●	●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207			●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207				●	●		●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-	●		●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-				●	●		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●		●
129	04.710 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105				●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●
146	04.685 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105				●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●	●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0208-	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MZZ6F(RSR)	8-97328-692-0	01	1	0208-				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97181-945-0	01	1	9812-0009	●		●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0010-0105	●		●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0106-0112	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0106-0112			●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97264-895-0	01	1	0106-0112				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0201-0207	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0201-0207			●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97264-895-0	01	1	0201-0207				●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0208-	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6R(RNW)	8-97264-895-0	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0208-	●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0208-			●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR)	8-97328-693-0	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97328-694-0	01	1	0208-	●
183	04.685 PIPE; SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	9812-0005	●		●
183	04.685 PIPE; SUCTION CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	9812-0005				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0006-0105	●		●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	0006-0105				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0106-0112	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0106-0112			●
183	04.685 PIPE; SUCTION	8-97184-067-4	01	1	0106-0112				●	●		●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0201-0207	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0201-0207			●
183	04.685 PIPE; SUCTION	8-97184-067-4	01	1	0201-0207				●	●		●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0208-	●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0208-			●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW)	8-97184-067-4	01	1	0208-				●	●		●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9812-0005	●		●
183	04.685 PIPE; SUCTION EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9812-0005				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105	●		●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105				●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0106-0112	●
183	04.685 PIPE; SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0201-	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005	●		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005	●		●
184	04.681 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005				●	●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0005				●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0105	●		●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0105				●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9812-0105	●		●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9812-0105				●	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-			●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-				●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9812-0105	●		●
185	04.681 HOSE; RUBBER,SUCTION EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9812-0105				●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	0106-	●
185	04.681 HOSE; RUBBER,SUCTION M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0208-	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MZZ6F(RSR) (A)	8-97330-513-0	01	1	0208-				●	●		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	9812-0204	●		●	●	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0205-0207	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0205-0207			●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (A)	0-09814-120-0	01	1	0205-0207				●	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0208-	●		●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6R(RNW) 06.670 (A)	0-09814-120-0	01	1	0208-				●	●		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0106-							●
185	04.681 HOSE; RUBBER,SUCTION (C)	8-97256-681-0	01	1	0106-							●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	9812-	●		●	●	●		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0106-							●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	9812-0105	●		●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> L=270	0-09809-270-0	01	1	9812-0105				●	●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0106-	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0106-			●
187	04.681 HOSE; RUBBER,OIL TANK L=270	0-09809-270-0	01	1	0106-				●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9812-0105	●		●
187	04.681 HOSE; RUBBER,OIL TANK EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9812-0105				●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	0106-	●
187	04.681 HOSE; RUBBER,OIL TANK L=200	0-09809-200-0	01	1	0106-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
