3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#19307) — 56 parça

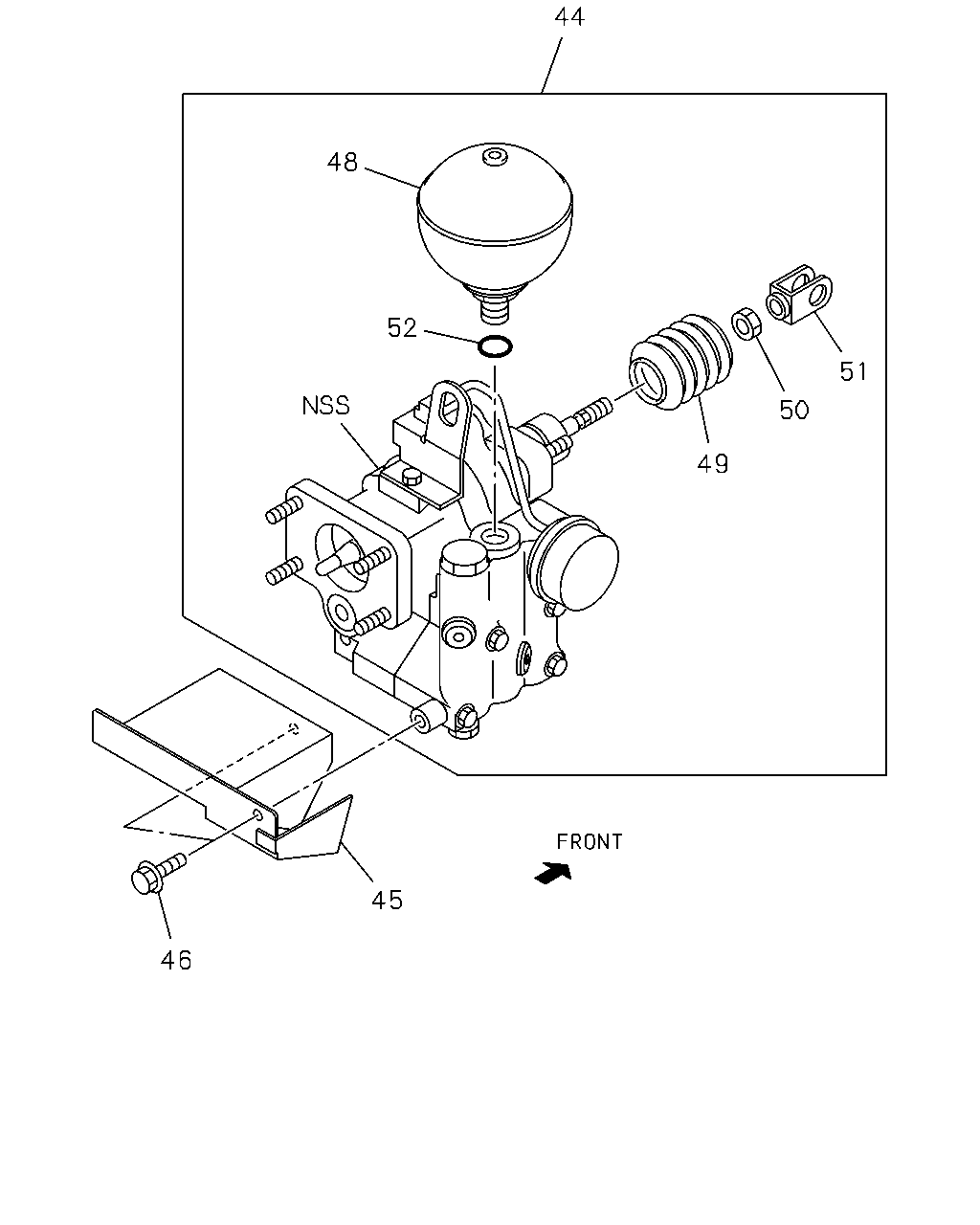

çizim 50163
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 9812- ● ● ● ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 9812- ● ● ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9812- ● ● ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 9812- ● ● ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 9812- ● ● ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 9812- ● ● ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 9812- ● ● ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 9812- ● ● ● ● ●
çizim 51474
47 1 17 16 24 15 11 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97177-974-0 01 1 9812-0105 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97177-974-0 01 1 9812-0105 ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97177-974-0 01 1 0106-0109 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0110- ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97177-972-1 01 1 9812-0105 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		9-83315-319-0 01 1 9812-9901 ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9812-9901 ●
3 04.906 RETAINER; FRT SHELL,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9812-9901 ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		9-83315-319-0 01 1 9902-9903 ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9902-9903 ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9902-9903 ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9904-0105 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		9-83315-319-0 01 1 9904-0105 ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0106- ● ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9812-0105 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9812-0105 ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 0106-0109 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0110- ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 04.913 		9-83345-063-0 01 1 9812-0105 ● ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9812-0105 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94465-510-0 01 1 9812-0105 ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 0106-0109 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0110- ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94341-722-0 01 1 9812-0105 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9812-0105 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9812-0105 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 0106-0109 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0110- ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94375-083-0 01 1 9812-0105 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0106- ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9812-0105 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9812-0105 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> M10 FLANGE 		8-97096-430-0 01 1 9812-0105 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9812-0105 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		5-47829-011-0 01 1 9812-0105 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 0106-0109 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0110- ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94341-787-0 01 1 9812-0105 ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9812-0105 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97079-350-0 01 1 9812-0105 ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0106- ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94152-349-0 01 1 9812-0105 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9812-0105 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97079-349-0 01 1 9812-0105 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 0106-0109 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0110- ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-94375-084-1 01 1 9812-0105 ● ● ● ●
47 04.901 SPACER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 00.864 		8-97167-489-0 01 1 9812-0105 ● ● ● ●
