3-30 — BRAKE MASTER CYLINDER (#19306) — 76 parça

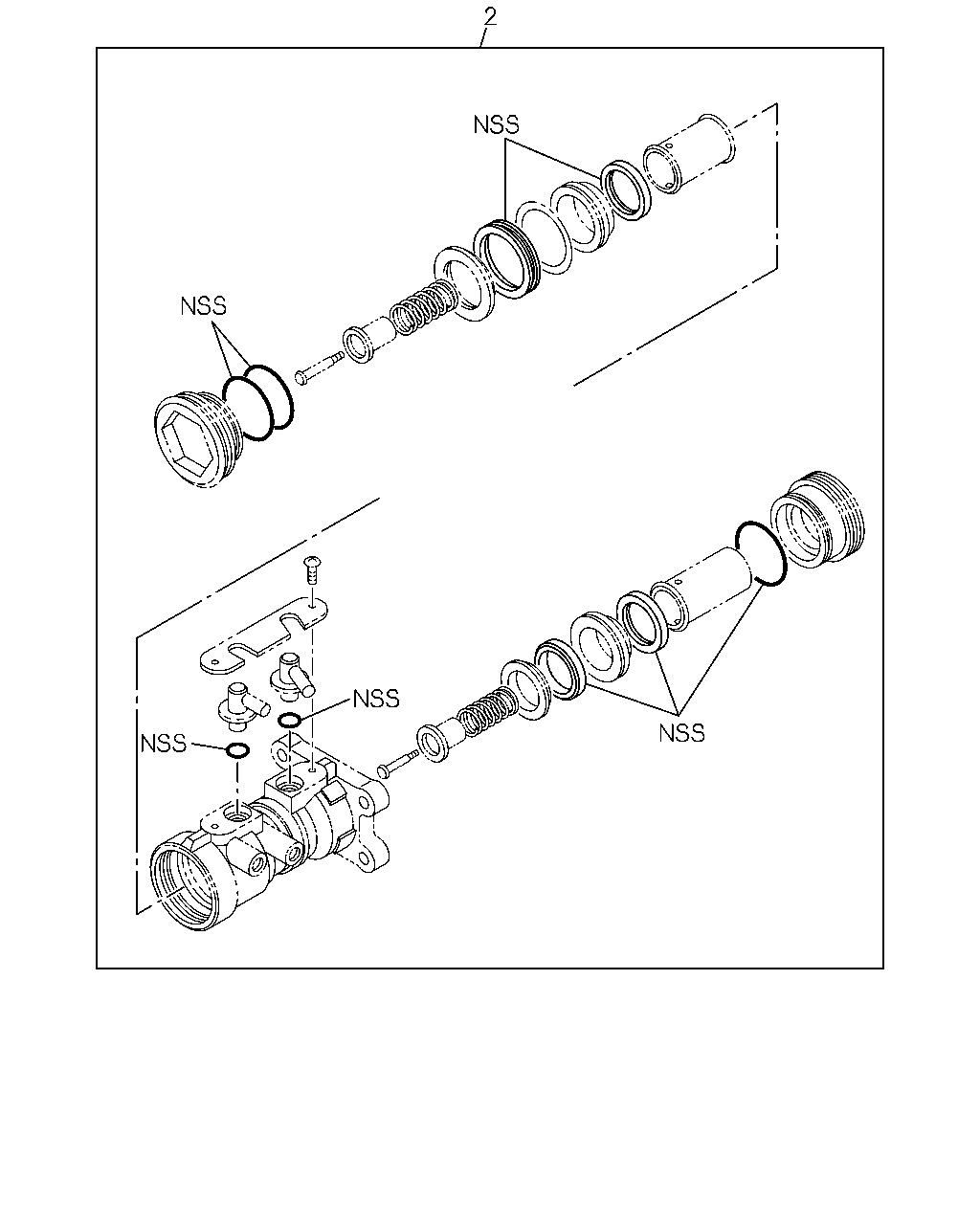

çizim 12805
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 9812-0105 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-471-0 01 1 9812-0105 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 0106- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-470-0 01 1 9812-0105 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-705-0 01 1 9812-0007 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97254-775-0 01 1 0008- ● ● ● ● ●

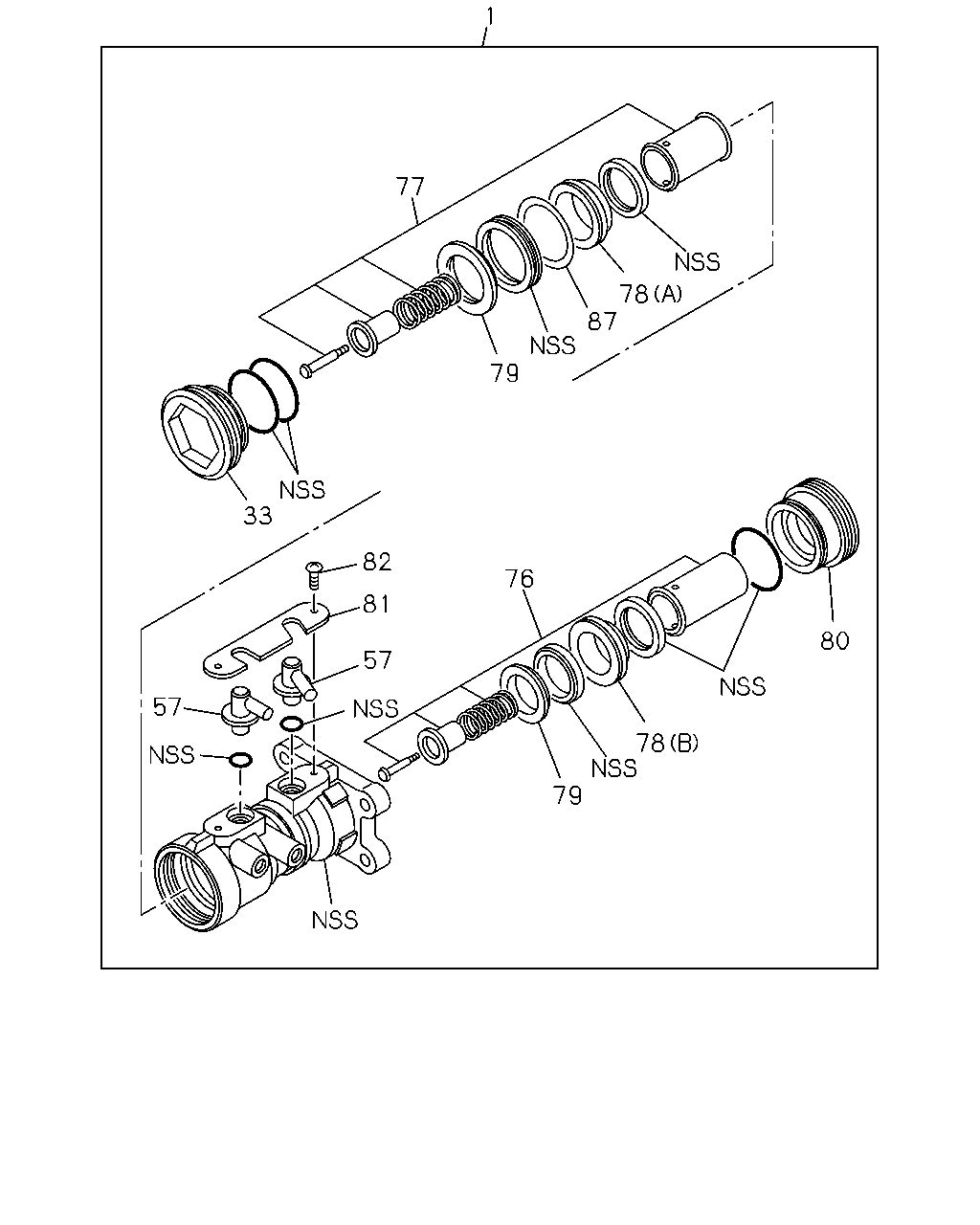

çizim 49645
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97219-305-0 01 1 9812-9901 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97219-305-0 01 1 9812-9901 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97219-308-0 01 1 9812-9901 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97207-684-0 01 1 9812-9901 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97224-378-0 01 1 9902-0007 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97254-770-0 01 1 0008- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-372-0 01 1 9902-0105 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-372-0 01 1 9902-0105 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-372-0 01 1 0106-0109 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-370-0 01 1 0110- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-375-0 01 1 9902-0105 ● ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 9812-0105 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97186-697-0 01 1 9812-0105 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 0106- ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97186-696-0 01 1 8912-0105 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 9812-0105 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 0106- ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-441-0 02 1 9812-0109 ● ● ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97130-441-0 02 1 0110- ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-442-0 02 1 0110- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-465-0 01 1 9812-9901 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-465-0 01 1 9812-9901 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-464-0 01 1 9812-9901 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-701-0 01 1 9812-9901 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97224-641-0 01 1 9902- ● ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 9902-0105 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-643-0 01 1 9902-0105 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 0106- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-636-0 01 1 9902-0105 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-467-0 01 1 9812-9901 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-467-0 01 1 9812-9901 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-466-0 01 1 9812-9901 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-699-0 01 1 9812-9901 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97224-640-0 01 1 9902- ● ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 9902-0105 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-642-0 01 1 9902-0105 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 0106- ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-635-0 01 1 9902-0105 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 9812-0105 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A) 		8-97130-455-0 01 1 9812-0105 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0106- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-457-0 01 1 9812-9812 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97130-457-0 01 1 9812-9812 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 9812-0105 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97217-312-0 01 1 9812-0105 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0106- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A) 		8-97130-454-0 01 1 9812-0105 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97130-456-0 01 1 9812-9812 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97217-310-0 01 1 9812-0105 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 9812- ● ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 9812- ● ● ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 9812-0105 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-463-0 02 1 9812-0105 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 0106- ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-462-0 02 1 9812-0105 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 9812- ● ● ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 9812-0105 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-449-0 01 1 9812-0105 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 0106- ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-448-0 01 1 9812-0105 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 9812- ● ● ● ● ●
81 04.651 HOLDER; NIPPLE 8-97130-444-0 01 1 9812-0109 ● ● ● ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97130-444-0 01 1 0110- ● ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 0110- ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9812- ● ● ● ● ● ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 9812-0105 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-459-0 01 1 9812-0105 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 0106- ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-458-0 01 1 9812-0105 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 9812- ● ● ● ● ●
