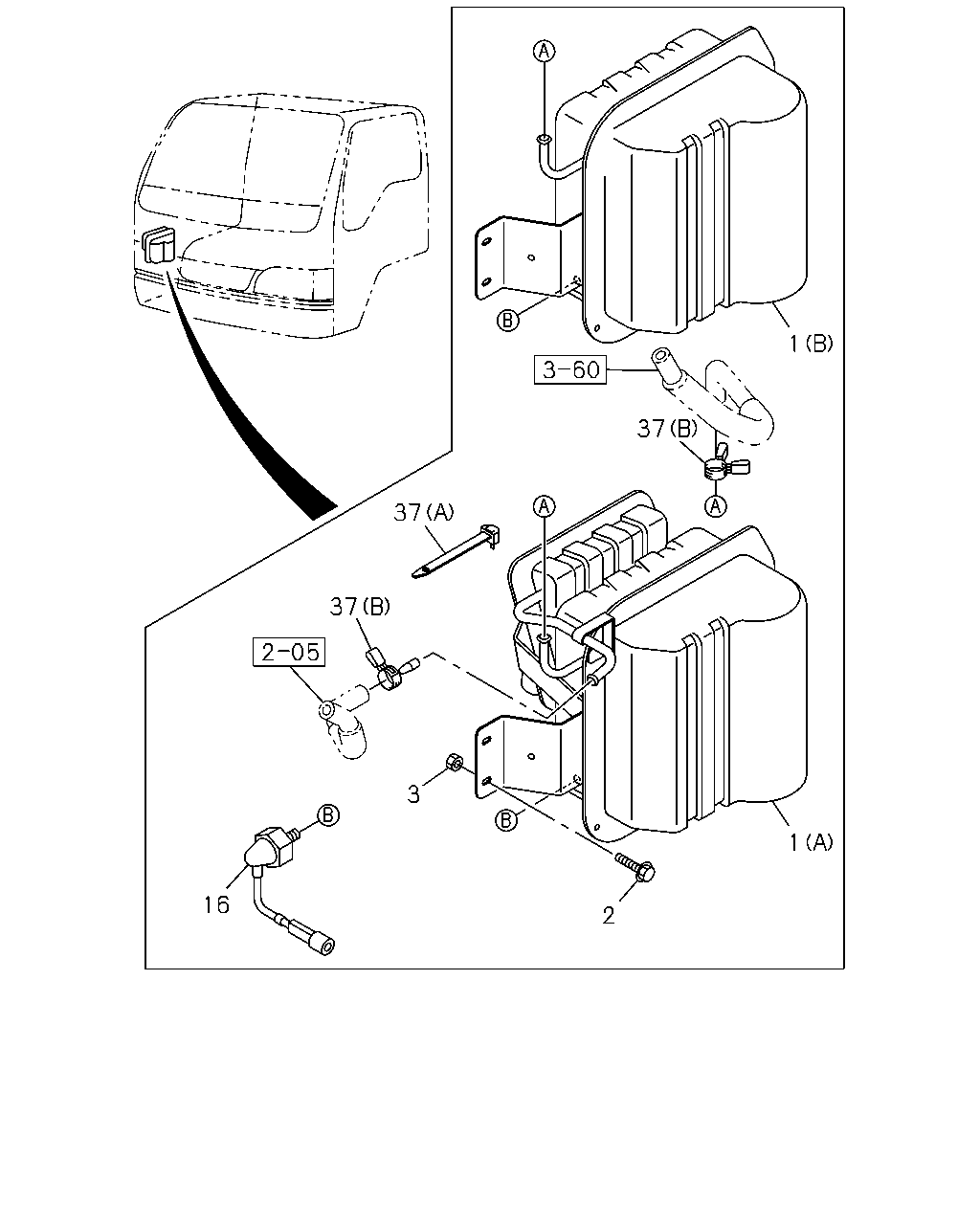

3-21 — VACUUM TANK (#19305) — 110 parça

1 37 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9812-9901	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9902-9903	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	9904-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-5	01	1	9904-			●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-3	01	1	9812-9901	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-3	01	1	9902-9903	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	9904-	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97073-471-4	01	1	9904-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-0	01	1	9812-0105	●	●			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0106-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-97172-122-1	01	1	0106-					●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-9901	●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-9901	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9903	●	●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9903	●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105	●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105	●	●
2	04.902 BOLT; VAC TANK 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105			●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109	●	●			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109	●	●
2	04.902 BOLT; VAC TANK 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109			●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-	●	●			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9901	●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9901	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9902-9903	●	●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9902-9903	●	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212	●	●			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-	●	●			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9904-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9904-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9904-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9904-			●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9812-9901	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9902-9903	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9904-0105	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9904-0105	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0106-	●	●			●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0106-	●	●	●	●

1 37 37 37 3 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9812-9901	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9902-9903	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	9904-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-5	01	1	9904-			●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-3	01	1	9812-9901	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-3	01	1	9902-9903	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	9904-	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97073-471-4	01	1	9904-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-0	01	1	9812-0105	●	●			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0106-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-97172-122-1	01	1	0106-					●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-9901	●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-9901	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9903	●	●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9903	●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105	●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105	●	●
2	04.902 BOLT; VAC TANK 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9904-0105			●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109	●	●			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109	●	●
2	04.902 BOLT; VAC TANK 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0109			●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-	●	●			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9901	●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9901	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9902-9903	●	●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9902-9903	●	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212	●	●			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212			●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-	●	●			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-			●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	9812-9901	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	9902-9903	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	9904-	●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	9904-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9904-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9904-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9904-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9904-			●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9812-9901	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9812-9901	●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9902-9903	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9902-9903	●	●	●
37	04.902 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER<7QQ> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9904-0105	●	●			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9904-0105	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0106-	●	●			●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0106-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
