Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#19303) — 425 parça

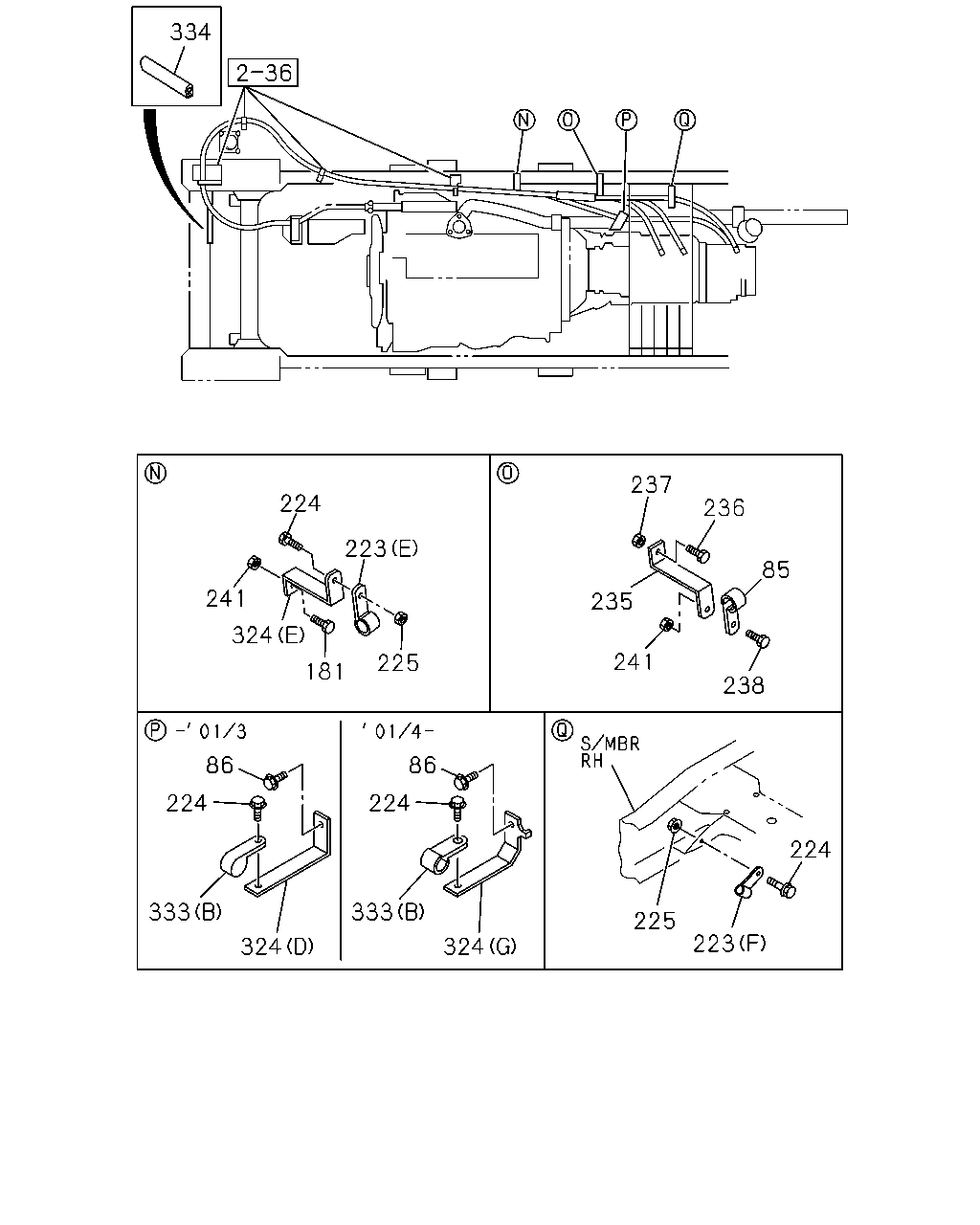

224 224 181 181 223 223 324 324 225 225 223 224 223 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901		●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903		●	●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105		●	●	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-	●	●	●	●	●	●	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21	1-09700-972-1	01	1	9812-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	9812-0105	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) (F) ID=13 L=50	9-09525-286-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) (F) ID=13 L=50	9-09525-286-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) (F) ID=14.5 L=20	1-09701-012-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9906-0012	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0101-0104	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0105-0105	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28	9-09525-556-0	01	1	9812-	●	●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901		●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-098-1	01	1	9812-0008	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0009-0105	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0106-	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901		●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903		●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105		●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) (B)	8-97202-877-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97202-877-0	01	1	9906-0105	●
324	04.785 BRACKET 4JH1 ENG(RJX) (F)	8-97305-650-0	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9906-0105	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (D)	8-97181-745-0	01	1	9812-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-745-0	01	1	9812-0105	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-744-0	01	1	9812-0103	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (G)	8-97307-640-0	01	1	0104-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW) (G)	8-97307-640-0	01	1	0106-0207	●	●	●	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW),M/T MZZ6F(RSR) (G)	8-97307-640-0	01	1	0208-	●	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9812-9901	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9902-9903	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9904-0105	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	0106-	●	●	●	●	●	●	●
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9812-0105	●	●	●	●	●	●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-	●	●	●	●	●	●	●

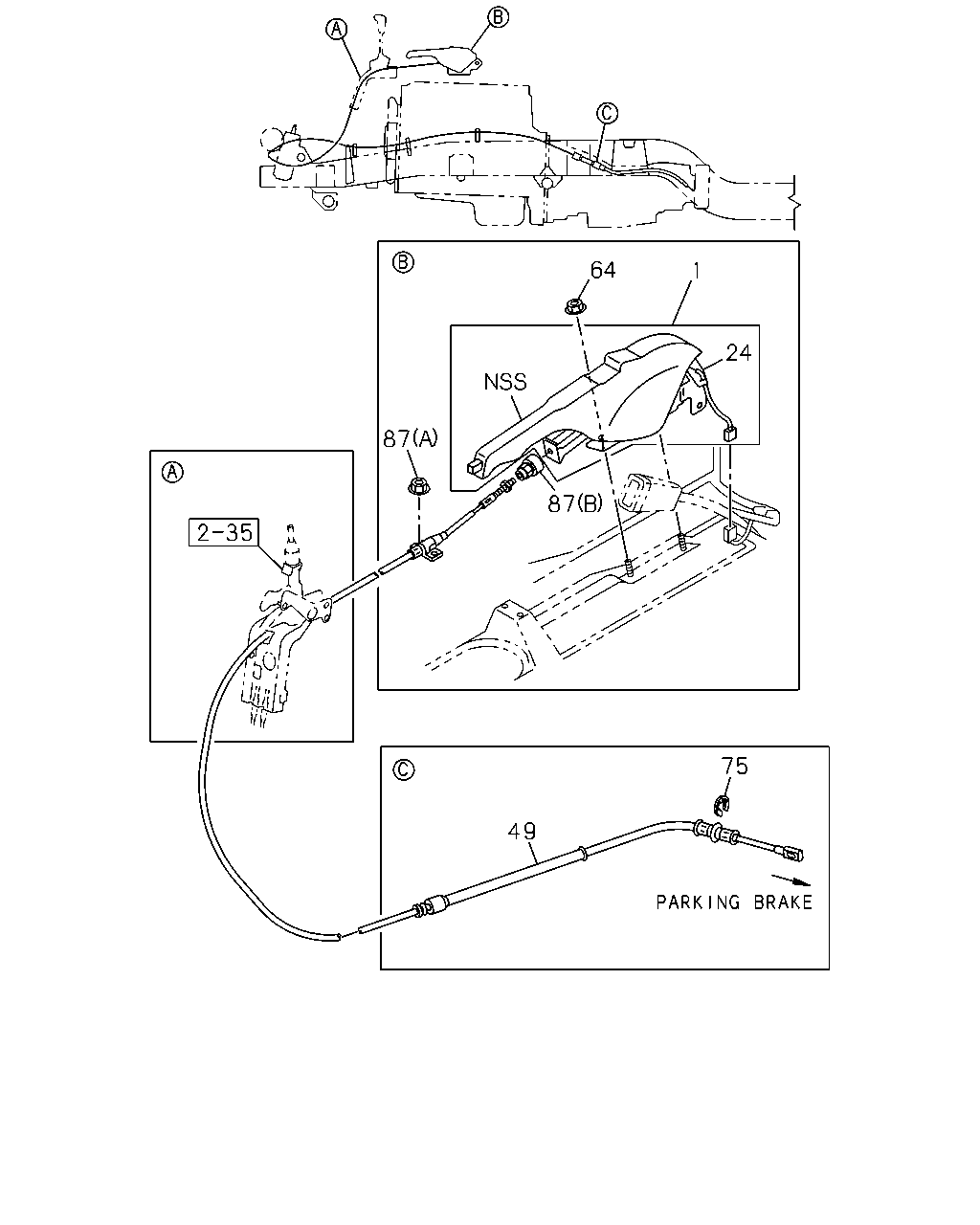

64 1 24 87 87 75 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97890-438-1	01	1	9812-0108	●	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97995-846-0	01	1	0109-0110	●	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-1	01	1	0111-	●	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97890-859-0	01	1	9812-0108	●	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0109-	●	●	●	●	●	●	●
49	04.779 CABLE; PARKING BRK M/T MSB5S(R45)	8-97184-276-2	01	1	9812-9905	●
49	04.779 CABLE; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-97184-276-2	01	1	9906-0105	●
49	04.779 CABLE; PARKING BRK 4JH1 ENG(RJX) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97215-430-1	01	1	0106-	●
49	04.779 CABLE; PARKING BRK M/T MXA5R(RMT) CHARGE AIR COOLER<6PL>	8-97215-434-0	01	1	9812-0105	●	●			●	●
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL>	8-97215-434-0	01	1	0106-	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9812-	●	●	●	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE M/T MXA5R(RMT),M/T MSB5S(R45) 04.681 ID=12	9-09185-412-0	01	1	9812-9905	●	●			●	●
75	04.790 RING; SNAP,HAND BRK CABLE M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 04.681 ID=12	9-09185-412-0	01	1	9906-0105	●	●			●	●
75	04.790 RING; SNAP,HAND BRK CABLE 4JH1 ENG(RJX) 04.681 ID=12	9-09185-412-0	01	1	0106-	●
75	04.790 RING; SNAP,HAND BRK CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12	9-09185-412-0	01	1	0106-	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9812-	●	●	●	●	●	●	●

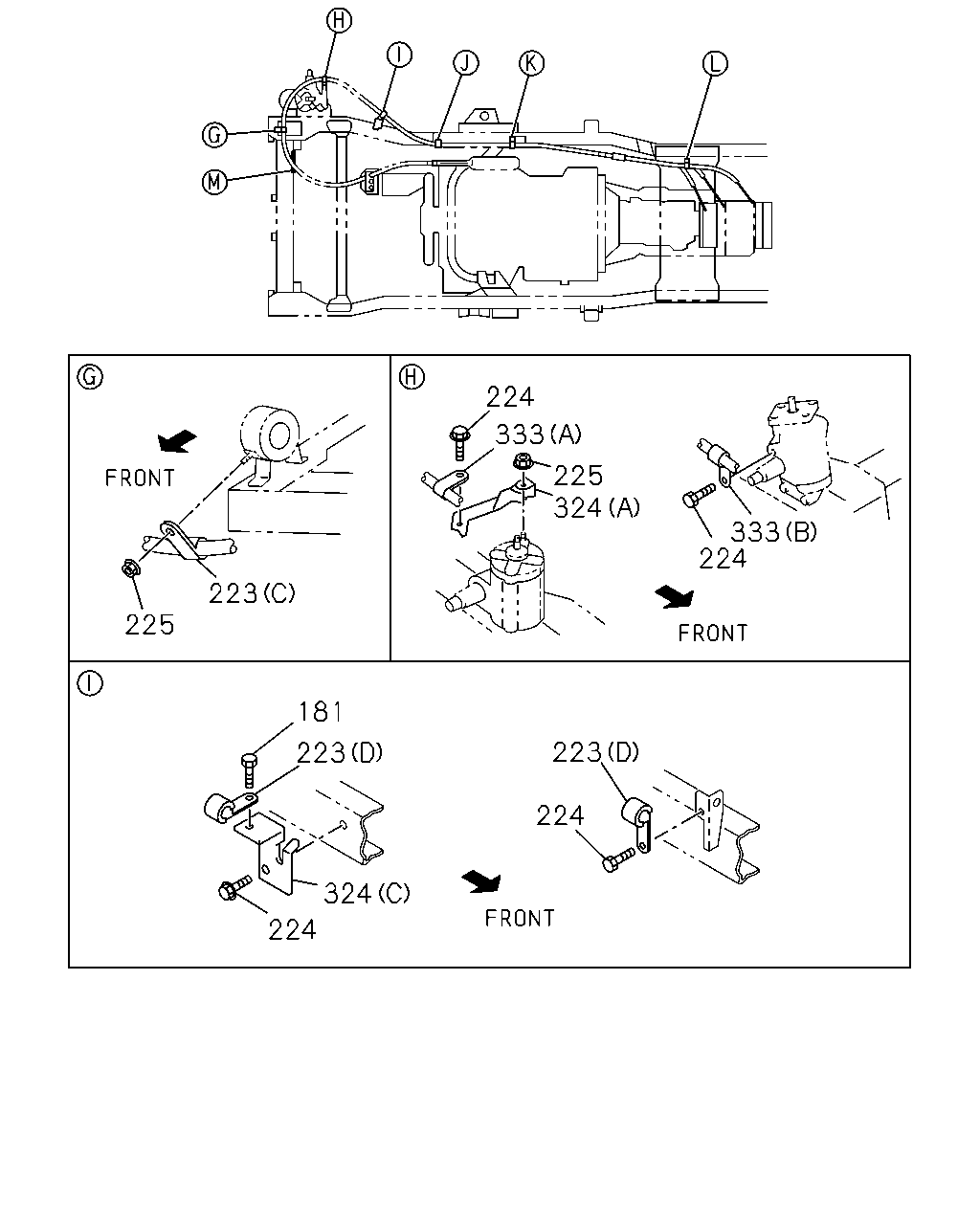

224 333 225 324 333 224 223 225 181 223 223 224 324 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901		●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903		●	●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105		●	●	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-	●	●	●	●	●	●	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21	1-09700-972-1	01	1	9812-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	9812-0105	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) (F) ID=13 L=50	9-09525-286-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) (F) ID=13 L=50	9-09525-286-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) (F) ID=14.5 L=20	1-09701-012-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9812-9905	●

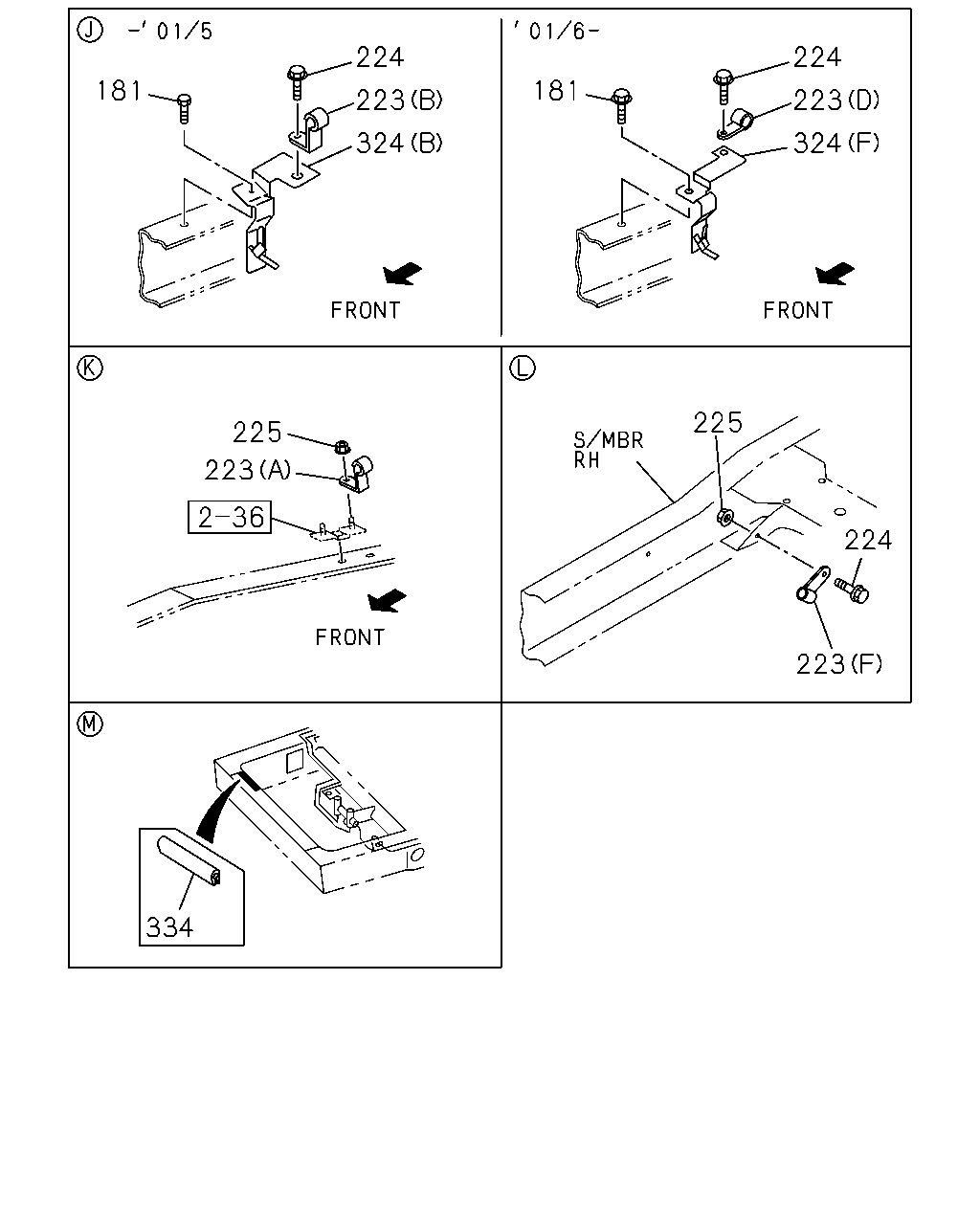

223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9906-0012	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0101-0104	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0105-0105	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28	9-09525-556-0	01	1	9812-	●	●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901		●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-098-1	01	1	9812-0008	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0009-0105	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0106-	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901		●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903		●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105		●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) (B)	8-97202-877-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97202-877-0	01	1	9906-0105	●
324	04.785 BRACKET 4JH1 ENG(RJX) (F)	8-97305-650-0	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9906-0105	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (D)	8-97181-745-0	01	1	9812-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-745-0	01	1	9812-0105	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-744-0	01	1	9812-0103	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (G)	8-97307-640-0	01	1	0104-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW) (G)	8-97307-640-0	01	1	0106-0207	●	●	●	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW),M/T MZZ6F(RSR) (G)	8-97307-640-0	01	1	0208-	●	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9812-9901	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9902-9903	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9904-0105	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	0106-	●	●	●	●	●	●	●
333	04.785 CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	9812-0105	●
333	04.785 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	0106-	●
333	04.785 CLIP; CABLE M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	9812-0105	●	●	●	●
333	04.785 CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	9812-0105	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0106-0207	●	●	●	●	●	●	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0208-	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW),M/T MZZ6F(RSR) (B) ID=11 L=60	9-09525-096-0	01	1	0208-		●	●	●	●	●	●

334 237 224 236 223 85 241 235 324 241 225 181 238 86 86 224 224 224 333 333 225 223 324 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
85	04.785 CLIP; BRKT M/T MXA5R(RMT) ID=12 L=70	1-09700-097-1	01	1	9812-0105	●	●			●	●
85	04.785 CLIP; BRKT 4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70	1-09700-097-1	01	1	0106-	●
86	04.785 BOLT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9812-0105	●	●	●	●
86	04.785 BOLT M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0106-0207	●	●	●	●	●	●	●
86	04.785 BOLT M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0208-	●
86	04.785 BOLT M/T MBP6R(RNW),M/T MZZ6F(RSR) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0208-		●	●	●	●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-9901		●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9902-9903		●	●	●	●
181	04.785 BOLT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105	●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9904-0105		●	●	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-	●	●	●	●	●	●	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
181	04.785 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21	1-09700-972-1	01	1	9812-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	9812-0105	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) (F) ID=13 L=50	9-09525-286-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) (F) ID=13 L=50	9-09525-286-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) (F) ID=14.5 L=20	1-09701-012-0	01	1	0106-	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	9906-0105	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9812-9905	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	9906-0012	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0101-0104	●
223	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0105-0105	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28	9-09525-556-0	01	1	9812-	●	●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9901		●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0207		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0208-		●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-9905	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MXA5R(RMT)	8-97148-597-3	01	1	9812-0105	●	●			●	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4HE1 ENG(RLY) M/T MXA5R(RMT)	8-97148-597-3	01	1	0106-	●
236	04.785 BOLT; BRKT TO FRAME M/T MXA5R(RMT) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-0105	●	●			●	●
236	04.785 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0106-	●
237	04.785 NUT; BRKT TO FRAME M/T MXA5R(RMT) M10 FLANGE	0-91150-110-0	01	1	9812-0105	●	●			●	●
237	04.785 NUT; BRKT TO FRAME 4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE	0-91150-110-0	01	1	0106-	●
238	04.785 BOLT; CLIP TO BRKT M/T MXA5R(RMT) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●			●	●
238	04.785 BOLT; CLIP TO BRKT 4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
241	04.785 NUT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9812-9901	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9812-9901	●
241	04.785 NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	9812-9901		●	●	●
241	04.785 NUT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9902-9903	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9902-9903	●
241	04.785 NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	9902-9903		●	●	●	●
241	04.785 NUT; BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9904-0105	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	9904-0105	●
241	04.785 NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	9904-0105		●	●	●	●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●	●	●	●	●
241	04.785 NUT; BRKT M/T MXA5R(RMT) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●			●	●
241	04.785 NUT; BRKT 4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-098-1	01	1	9812-0008	●
324	04.785 BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0009-0105	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A)	8-97288-446-0	01	1	0106-	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9812-9901		●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9902-9903		●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105	●
324	04.785 BRACKET EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	9904-0105		●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-822-1	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) (B)	8-97202-877-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97202-877-0	01	1	9906-0105	●
324	04.785 BRACKET 4JH1 ENG(RJX) (F)	8-97305-650-0	01	1	0106-	●
324	04.785 BRACKET 4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9812-9905	●
324	04.785 BRACKET 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	9906-0105	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (D)	8-97181-745-0	01	1	9812-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-745-0	01	1	9812-0105	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (D)	8-97181-744-0	01	1	9812-0103	●	●	●	●
324	04.785 BRACKET M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (G)	8-97307-640-0	01	1	0104-0105	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW) (G)	8-97307-640-0	01	1	0106-0207	●	●	●	●	●	●	●
324	04.785 BRACKET M/T MBP6R(RNW),M/T MZZ6F(RSR) (G)	8-97307-640-0	01	1	0208-	●	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9812-9901	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9902-9903	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	9904-0105	●	●	●	●	●	●
324	04.785 BRACKET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97188-151-0	01	1	0106-	●	●	●	●	●	●	●
333	04.785 CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	9812-0105	●
333	04.785 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	0106-	●
333	04.785 CLIP; CABLE M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	9812-0105	●	●	●	●
333	04.785 CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	9812-0105	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0106-0207	●	●	●	●	●	●	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0208-	●
333	04.785 CLIP; CABLE M/T MBP6R(RNW),M/T MZZ6F(RSR) (B) ID=11 L=60	9-09525-096-0	01	1	0208-		●	●	●	●	●	●
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9812-0105	●	●	●	●	●	●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-	●	●	●	●	●	●	●

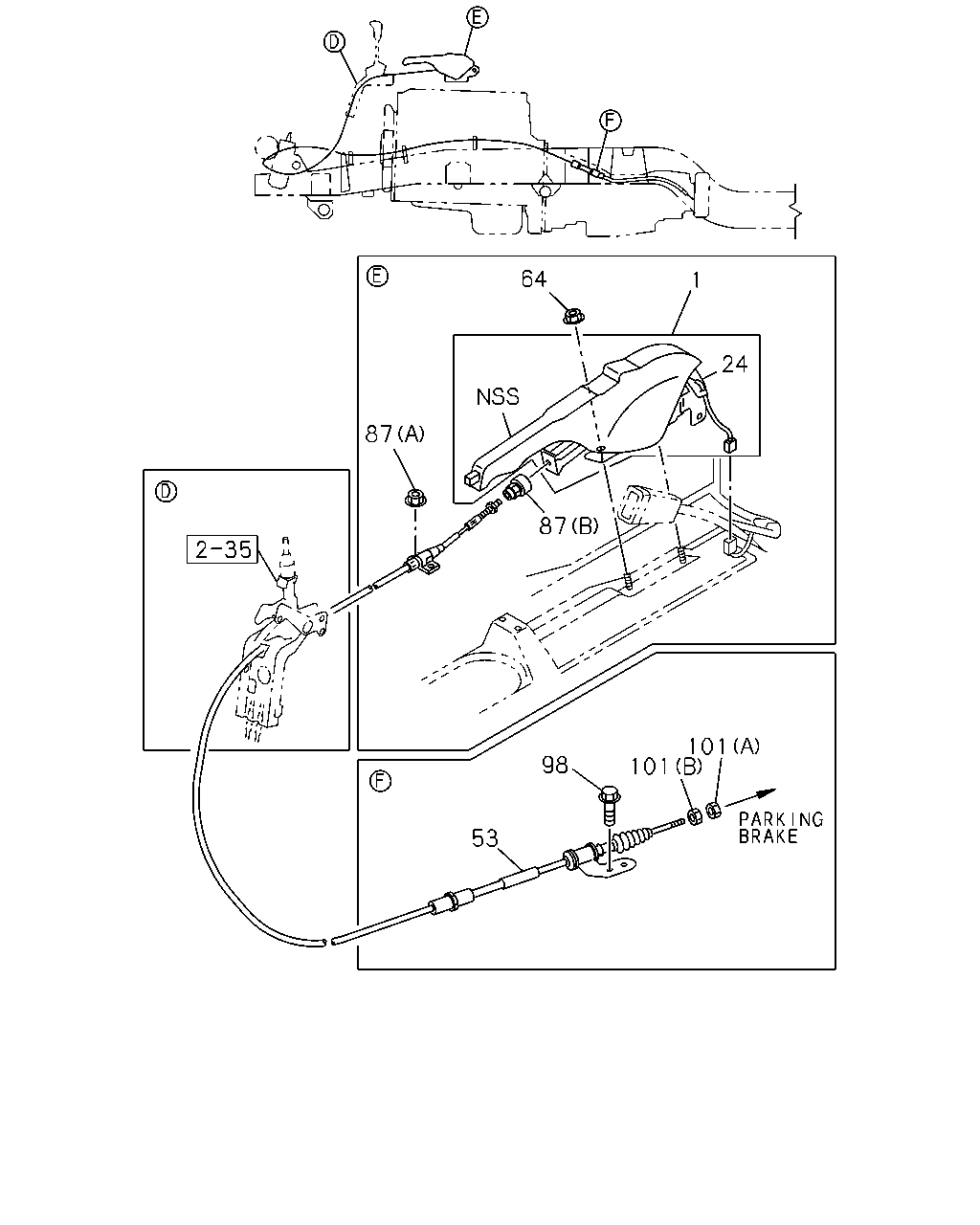

64 1 24 87 87 101 101 98 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97890-438-1	01	1	9812-0108	●	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97995-846-0	01	1	0109-0110	●	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-1	01	1	0111-	●	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97890-859-0	01	1	9812-0108	●	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0109-	●	●	●	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),CHARGE AIR COOLE R<6PL>	8-97096-461-3	01	1	9812-0105	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97096-461-3	01	1	9812-0105	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97148-609-3	01	1	9812-0105	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97148-609-3	01	1	9812-0105	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97169-967-4	01	1	9812-0105	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6R(RNW)	8-97169-967-4	01	1	0106-0207	●	●	●	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97169-967-4	01	1	0208-	●	●	●	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. CHARGE AIR COOLER<6PL>	8-97169-969-2	01	1	9812-0105	●	●	●	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9812-	●	●	●	●	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9812-	●	●	●	●	●	●	●
98	04.785 BOLT; RR COVER M/T MBP6P(RNC),M/T MBP6Q(RNM) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9812-0105	●	●	●	●
98	04.785 BOLT; RR COVER M/T MBP6R(RNW) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0106-0207	●	●	●	●	●	●	●
98	04.785 BOLT; RR COVER M/T MBP6R(RNW),M/T MZZ6F(RSR) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0208-	●	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.559 (A) M8	9-09110-408-0	01	1	9812-0105	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6R(RNW) 02.559 (A) M8	9-09110-408-0	01	1	0106-0207	●	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 (A) M8	9-09110-408-0	01	1	0208-	●	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B) M8 FLANGE	9-46259-016-0	01	1	9812-0105	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6R(RNW) (B) M8 FLANGE	9-46259-016-0	01	1	0106-0207	●	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR) (B) M8 FLANGE	9-46259-016-0	01	1	0208-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
