Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#19301) — 429 parça

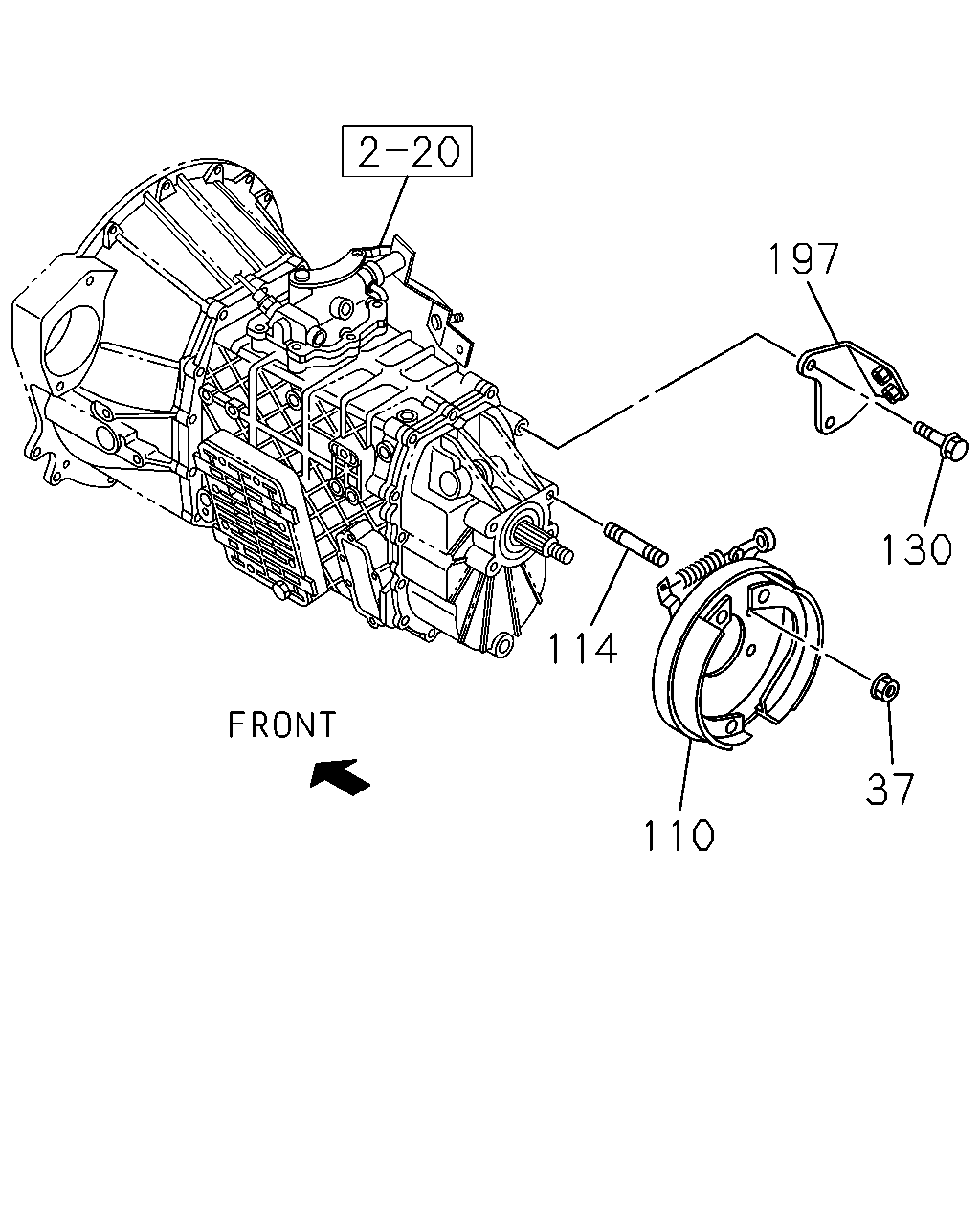

197 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9812-9905	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45) M12	8-97033-122-0	01	1	9906-0105	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9812-0105	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW) M14 FLANGE	1-09440-048-0	04	1	0106-0207	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW),M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●			●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6Q(RNM)	8-97177-548-1	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW)	8-97177-548-1	01	1	0106-0207	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97177-548-1	01	1	0208-	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0010-0105	●	●			●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0106-	●
130	05.605 BOLT; BRKT M/T MZZ6F(RSR) 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0208-	●	●	●	●	●	●	●
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6F(RSR)	8-97244-813-0	01	1	0208-	●	●	●	●	●	●	●

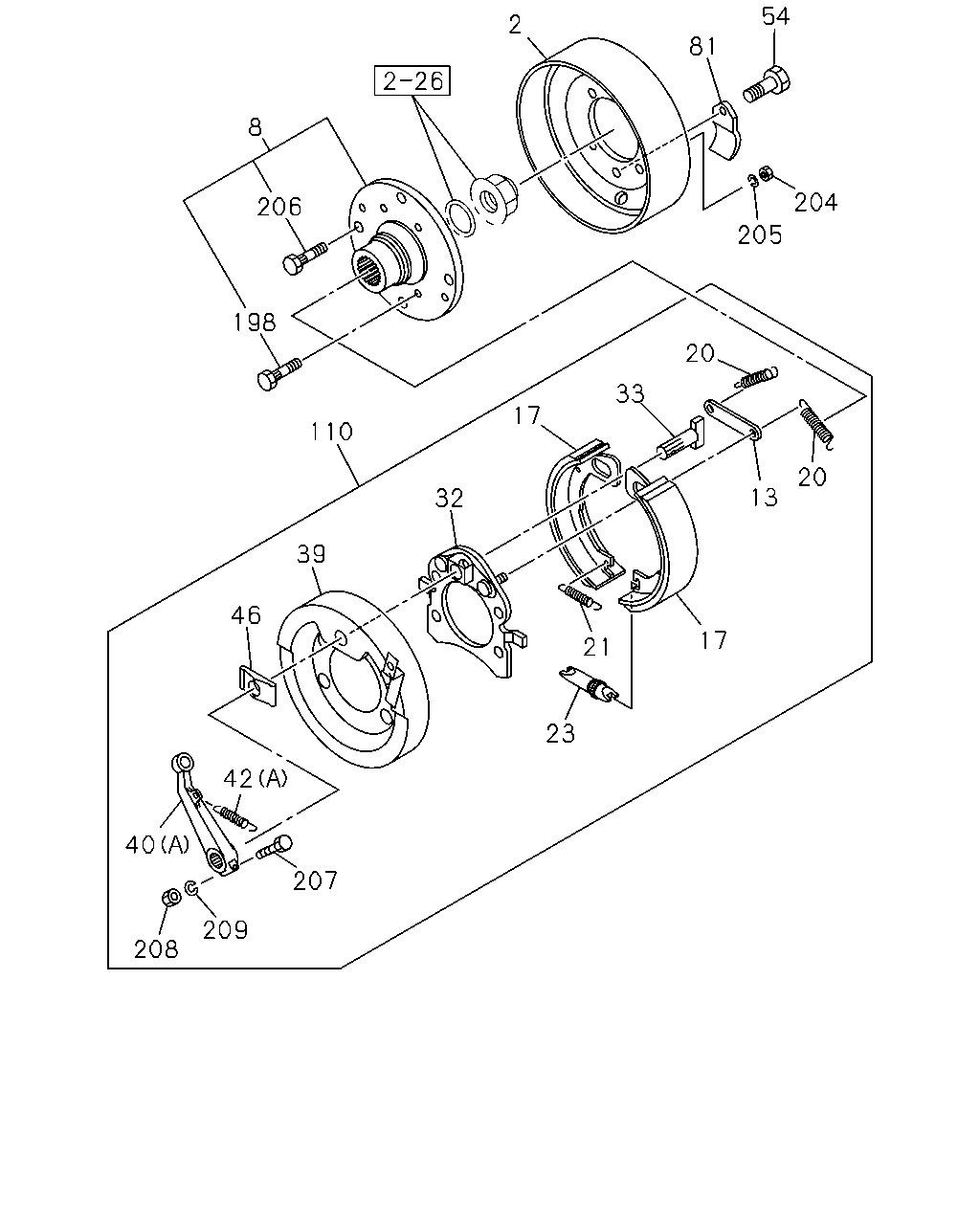

54 2 81 8 204 206 205 198 20 33 17 110 20 13 32 39 46 17 21 23 42 40 207 209 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9812-9905	●
2	05.605 DRUM; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46210-005-3	01	1	9906-0105	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	9812-0105	●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW)	1-46211-056-0	01	1	0106-0207	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46211-056-0	01	1	0208-	●	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	9812-0105	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6Q(RNM)	8-97177-198-0	01	1	9812-0105	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6R(RNW)	8-97177-198-0	01	1	0106-	●	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MZZ6F(RSR)	8-97329-120-0	01	1	0208-	●	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC)	1-46239-003-0	01	1	9812-0105	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6Q(RNM)	9-46239-002-0	01	1	9812-0105	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6R(RNW)	9-46239-002-0	01	1	0106-0207	●	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	9-46239-002-0	01	1	0208-	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9812-9905	●
17	05.606 SHOE; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-97042-933-1	02	1	9906-0105	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	9812-0105	●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW)	8-97180-702-0	02	1	0106-0207	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-702-0	02	1	0208-	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9812-9905	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-553-1	01	1	9906-0105	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6Q(RNM) 05.615	9-09942-434-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW) 05.615	9-09942-434-0	02	1	0106-0207	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.615	9-09942-434-0	02	1	0208-	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9812-9905	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-552-1	01	1	9906-0105	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	9812-0105	●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW) 05.605	9-09942-516-0	01	1	0106-0207	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.605	9-09942-516-0	01	1	0208-	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5S(R45)	5-47165-025-0	01	1	9812-9905	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	5-47165-025-0	01	1	9906-0105	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW)	1-46240-003-0	01	1	0106-0207	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46240-003-0	01	1	0208-	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9812-9905	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-46213-601-2	01	1	9906-0105	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	9812-0105	●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW)	1-46213-085-0	01	1	0106-0207	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46213-085-0	01	1	0208-	●	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC)	1-46251-009-0	01	1	9812-0105	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6Q(RNM)	1-46251-006-0	01	1	9812-0105	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6R(RNW)	1-46251-006-0	01	1	0106-0207	●	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46251-006-0	01	1	0208-	●	●	●	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC)	1-46213-075-0	01	1	9812-0105	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6Q(RNM)	8-97180-733-0	01	1	9812-0105	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6R(RNW)	8-97180-733-0	01	1	0106-0207	●	●	●	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-733-0	01	1	0208-	●	●	●	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC) (B)	1-46252-041-0	01	1	9812-0105	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6Q(RNM) (A)	8-97180-701-0	01	1	9812-0105	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6R(RNW) (A)	8-97180-701-0	01	1	0106-0207	●	●	●	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	8-97180-701-0	01	1	0208-	●	●	●	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC) (B)	1-09583-041-0	01	1	9812-0105	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (A)	1-09583-073-0	01	1	9812-0105	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6R(RNW) (A)	1-09583-073-0	01	1	0106-0207	●	●	●	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	1-09583-073-0	01	1	0208-	●	●	●	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6P(RNC)	1-09509-057-0	01	1	9812-0105	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6Q(RNM)	9-09855-362-0	01	1	9812-0105	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6R(RNW)	9-09855-362-0	01	1	0106-0207	●	●	●	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR)	9-09855-362-0	01	1	0208-	●	●	●	●	●	●	●
54	05.606 BOLT; COVER M/T MZZ6F(RSR) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0208-	●	●	●	●	●	●	●
81	05.606 COVER; CHECK HOLE,PARKING BRK M/T MZZ6F(RSR)	1-46219-019-0	02	1	0208-	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6Q(RNM)	8-97177-548-1	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW)	8-97177-548-1	01	1	0106-0207	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97177-548-1	01	1	0208-	●	●	●	●	●	●	●
198	05.605 BOLT; KNURL M/T MZZ6F(RSR) M12X39	1-09046-001-2	04	1	0208-	●	●	●	●	●	●	●
204	05.605 NUT; DRUM M/T MZZ6F(RSR) 07.529 M14	9-99110-514-0	04	1	0208-	●	●	●	●	●	●	●
205	05.605 WASHER; SPRING M/T MZZ6F(RSR) 00.796 ID=14.2	9-09150-514-0	04	1	0208-	●	●	●	●	●	●	●
206	05.605 BOLT; DRUM TO FLANGE M/T MZZ6F(RSR) M14X35	9-46219-011-0	04	1	0208-	●	●	●	●	●	●	●
207	05.605 BOLT; LEVER M/T MZZ6F(RSR) 04.037	0-10811-040-0	01	1	0208-	●	●	●	●	●	●	●
208	05.605 NUT; LEVER M/T MZZ6F(RSR) 06.822 M10	9-09111-410-0	01	1	0208-	●	●	●	●	●	●	●
209	05.605 WASHER; SP,LEVER M/T MZZ6F(RSR) 00.002 ID=10.2	9-09150-510-0	01	1	0208-	●	●	●	●	●	●	●

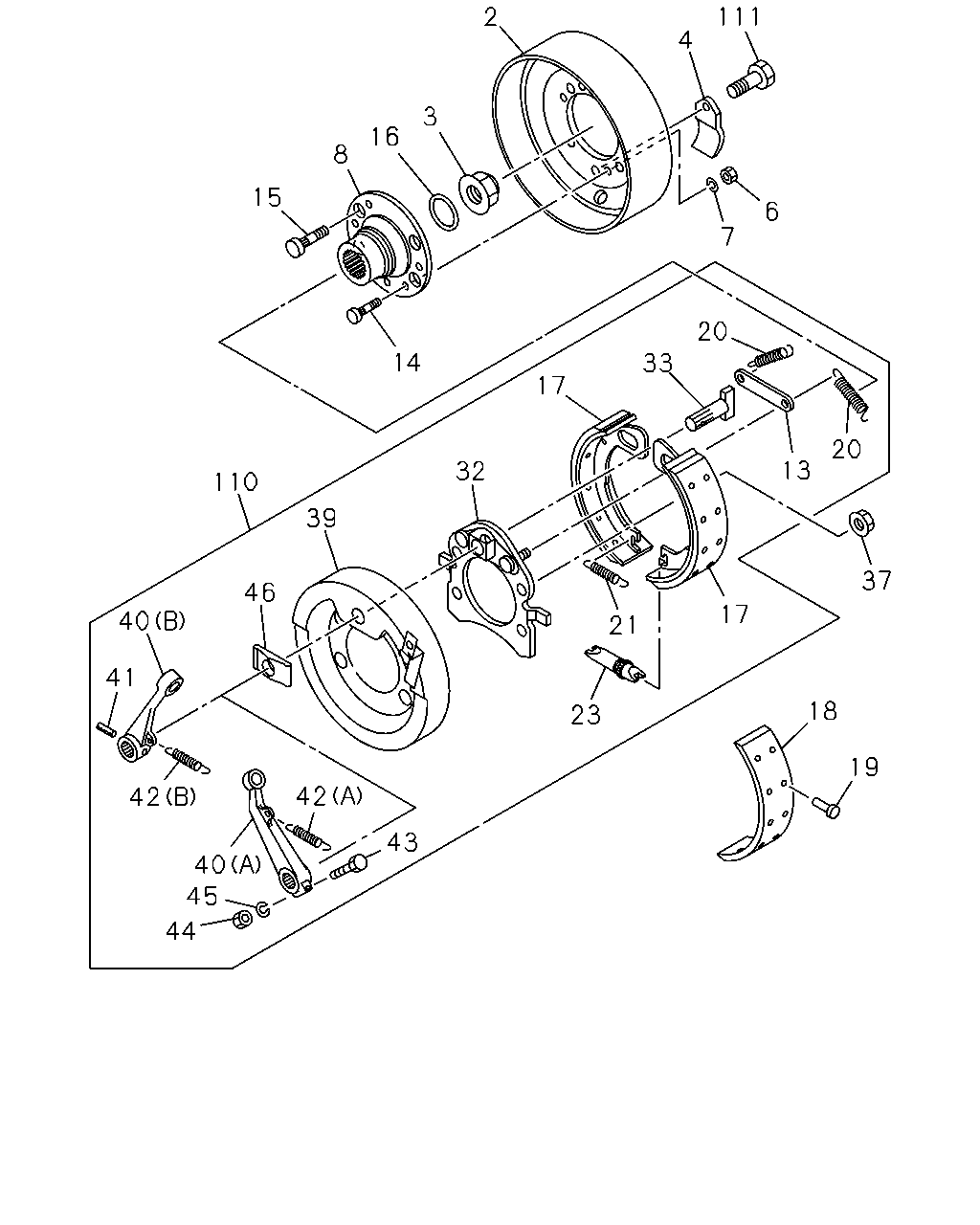

2 111 4 3 16 8 15 6 7 20 33 14 17 20 13 32 110 39 37 46 17 40 21 41 18 23 19 42 42 43 40 45 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9812-9905	●
2	05.605 DRUM; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46210-005-3	01	1	9906-0105	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	9812-0105	●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW)	1-46211-056-0	01	1	0106-0207	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46211-056-0	01	1	0208-	●	●	●	●	●	●	●
3	05.610 NUT; LK M/T MBP6P(RNC),M/T MBP6Q(RNM) 05.595 M30 FLANGE	1-09449-066-1	01	1	9812-9909	●	●	●	●
3	05.610 NUT; LK M/T MBP6P(RNC),M/T MBP6Q(RNM) M33 FLANGE	1-09449-077-0	01	1	9910-0105	●	●	●	●
3	05.610 NUT; LK M/T MBP6R(RNW) M33 FLANGE	1-09449-077-0	01	1	0106-	●	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9812-9905	●
4	05.606 COVER; ADJ HOLE M/T MSB5R(RNN),M/T MSB5S(R45)	5-42319-003-0	01	1	9906-0105	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	9812-0105	●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6R(RNW)	1-46219-019-0	02	1	0106-	●	●	●	●	●	●	●
6	05.605 NUT; FLANGE M/T MBP6Q(RNM) 07.529 M14	9-99110-514-0	04	1	9812-0105	●	●	●	●
6	05.605 NUT; FLANGE M/T MBP6R(RNW) 07.529 M14	9-99110-514-0	04	1	0106-	●	●	●	●	●	●	●
7	05.605 WASHER; LK,FLANGE M/T MBP6Q(RNM) 00.796 ID=14.2	9-09150-514-0	04	1	9812-0105	●	●	●	●
7	05.605 WASHER; LK,FLANGE M/T MBP6R(RNW) 00.796 ID=14.2	9-09150-514-0	04	1	0106-	●	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	9812-0105	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6Q(RNM)	8-97177-198-0	01	1	9812-0105	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6R(RNW)	8-97177-198-0	01	1	0106-	●	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MZZ6F(RSR)	8-97329-120-0	01	1	0208-	●	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC)	1-46239-003-0	01	1	9812-0105	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6Q(RNM)	9-46239-002-0	01	1	9812-0105	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6R(RNW)	9-46239-002-0	01	1	0106-0207	●	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	9-46239-002-0	01	1	0208-	●	●	●	●	●	●	●
14	05.605 BOLT; DRUM TO FLANGE M/T MBP6Q(RNM) M14X35	9-46219-011-0	04	1	9812-0105	●	●	●	●
14	05.605 BOLT; DRUM TO FLANGE M/T MBP6R(RNW) M14X35	9-46219-011-0	04	1	0106-	●	●	●	●	●	●	●
15	05.605 BOLT; FLANGE M/T MBP6P(RNC),M/T MBP6Q(RNM) M12X39	1-09046-001-1	04	1	9812-0105	●	●	●	●
15	05.605 BOLT; FLANGE M/T MBP6R(RNW) M12X39	1-09046-001-2	04	1	0106-	●	●	●	●	●	●	●
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC),M/T MBP6Q(RNM) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	9812-0105	●	●	●	●
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0106-	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9812-9905	●
17	05.606 SHOE; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-97042-933-1	02	1	9906-0105	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	9812-0105	●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW)	8-97180-702-0	02	1	0106-0207	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-702-0	02	1	0208-	●	●	●	●	●	●	●
18	05.610 LINING; BRK,PARKING M/T MBP6Q(RNM)	8-97180-739-0	02	1	9812-0105	●	●	●	●
18	05.610 LINING; BRK,PARKING M/T MBP6R(RNW)	8-97180-739-0	02	1	0106-	●	●	●	●	●	●	●
19	05.158 RIVET; LINING,PARKING BRK M/T MBP6Q(RNM)	1-09732-012-0	32	1	9812-0105	●	●	●	●
19	05.158 RIVET; LINING,PARKING BRK M/T MBP6R(RNW)	1-09732-012-0	32	1	0106-	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9812-9905	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-553-1	01	1	9906-0105	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6Q(RNM) 05.615	9-09942-434-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW) 05.615	9-09942-434-0	02	1	0106-0207	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.615	9-09942-434-0	02	1	0208-	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9812-9905	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-552-1	01	1	9906-0105	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	9812-0105	●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW) 05.605	9-09942-516-0	01	1	0106-0207	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.605	9-09942-516-0	01	1	0208-	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5S(R45)	5-47165-025-0	01	1	9812-9905	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	5-47165-025-0	01	1	9906-0105	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW)	1-46240-003-0	01	1	0106-0207	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46240-003-0	01	1	0208-	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9812-9905	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-46213-601-2	01	1	9906-0105	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	9812-0105	●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW)	1-46213-085-0	01	1	0106-0207	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46213-085-0	01	1	0208-	●	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC)	1-46251-009-0	01	1	9812-0105	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6Q(RNM)	1-46251-006-0	01	1	9812-0105	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6R(RNW)	1-46251-006-0	01	1	0106-0207	●	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46251-006-0	01	1	0208-	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9812-9905	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45) M12	8-97033-122-0	01	1	9906-0105	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9812-0105	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW) M14 FLANGE	1-09440-048-0	04	1	0106-0207	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW),M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●			●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC)	1-46213-075-0	01	1	9812-0105	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6Q(RNM)	8-97180-733-0	01	1	9812-0105	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6R(RNW)	8-97180-733-0	01	1	0106-0207	●	●	●	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-733-0	01	1	0208-	●	●	●	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC) (B)	1-46252-041-0	01	1	9812-0105	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6Q(RNM) (A)	8-97180-701-0	01	1	9812-0105	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6R(RNW) (A)	8-97180-701-0	01	1	0106-0207	●	●	●	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	8-97180-701-0	01	1	0208-	●	●	●	●	●	●	●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC)	9-09878-594-0	01	1	9812-0105	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC) (B)	1-09583-041-0	01	1	9812-0105	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),M/T MBP6Q(RNM) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (A)	1-09583-073-0	01	1	9812-0105	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6R(RNW) (A)	1-09583-073-0	01	1	0106-0207	●	●	●	●	●	●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	1-09583-073-0	01	1	0208-	●	●	●	●	●	●	●
43	05.605 BOLT; LEVER TO CM/SHF M/T MBP6Q(RNM) 04.037	0-10811-040-0	01	1	9812-0105	●	●	●	●
43	05.605 BOLT; LEVER TO CM/SHF M/T MBP6R(RNW) 04.037	0-10811-040-0	01	1	0106-	●	●	●	●	●	●	●
44	05.605 NUT; LEVER TO CM/SHF M/T MBP6Q(RNM) 06.822 M10	9-09111-410-0	01	1	9812-0105	●	●	●	●
44	05.605 NUT; LEVER TO CM/SHF M/T MBP6R(RNW) 06.822 M10	9-09111-410-0	01	1	0106-	●	●	●	●	●	●	●
45	05.605 WASHER; LK,LEVER TO CM/SHF M/T MBP6Q(RNM) 00.002 ID=10.2	9-09150-510-0	01	1	9812-0105	●	●	●	●
45	05.605 WASHER; LK,LEVER TO CM/SHF M/T MBP6R(RNW) 00.002 ID=10.2	9-09150-510-0	01	1	0106-	●	●	●	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6P(RNC)	1-09509-057-0	01	1	9812-0105	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6Q(RNM)	9-09855-362-0	01	1	9812-0105	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6R(RNW)	9-09855-362-0	01	1	0106-0207	●	●	●	●	●	●	●
46	05.605 WASHER; LEVER M/T MBP6R(RNW),M/T MZZ6F(RSR)	9-09855-362-0	01	1	0208-	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6Q(RNM)	8-97177-548-1	01	1	9812-0105	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW)	8-97177-548-1	01	1	0106-0207	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97177-548-1	01	1	0208-	●	●	●	●	●	●	●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6P(RNC) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9812-0105	●	●	●	●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6Q(RNM) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-0105	●	●	●	●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6R(RNW) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●	●	●	●	●	●	●

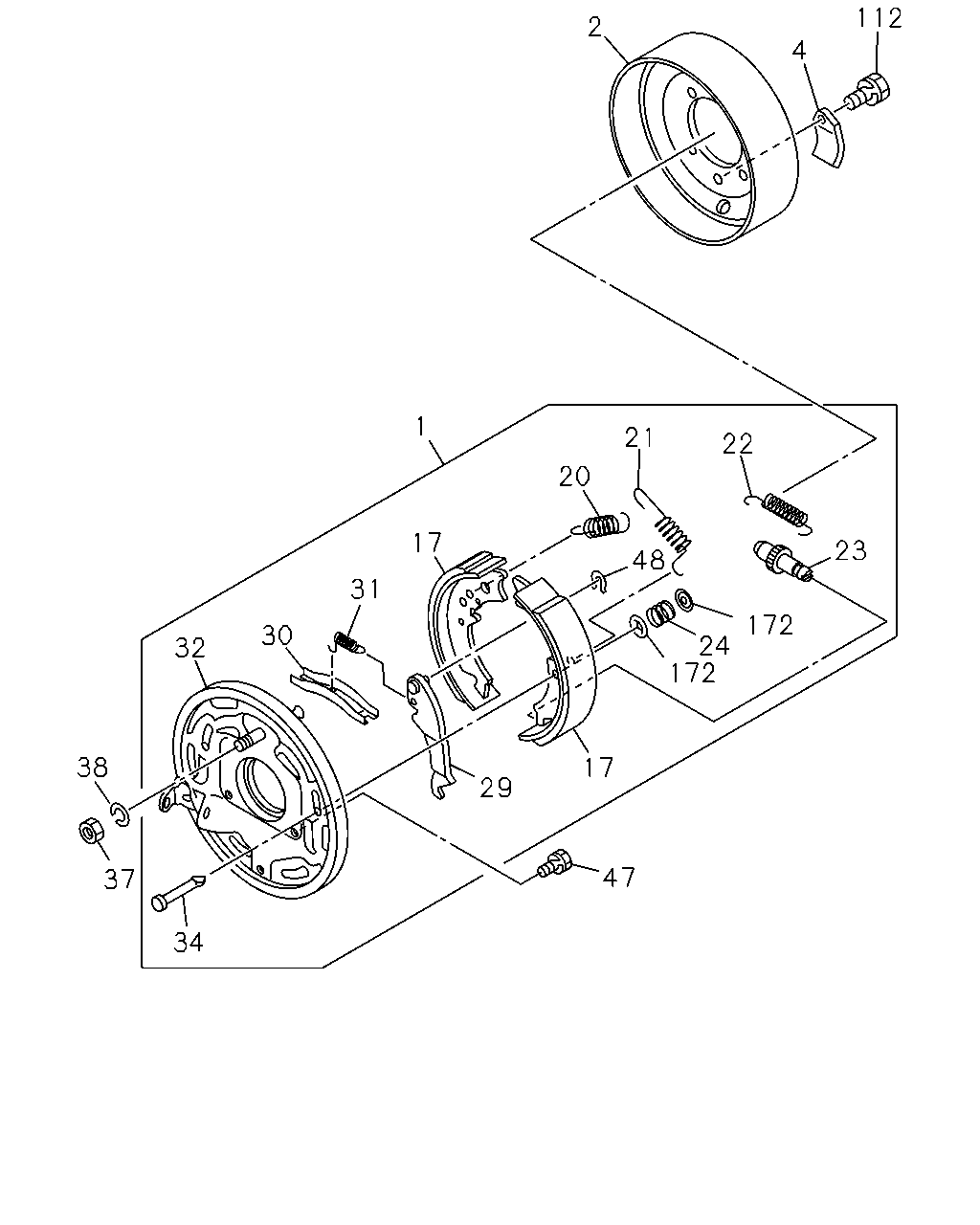

112 2 4 21 1 22 21 17 23 26 48 172 31 24 172 32 25 30 17 29 47 37 34 36 114

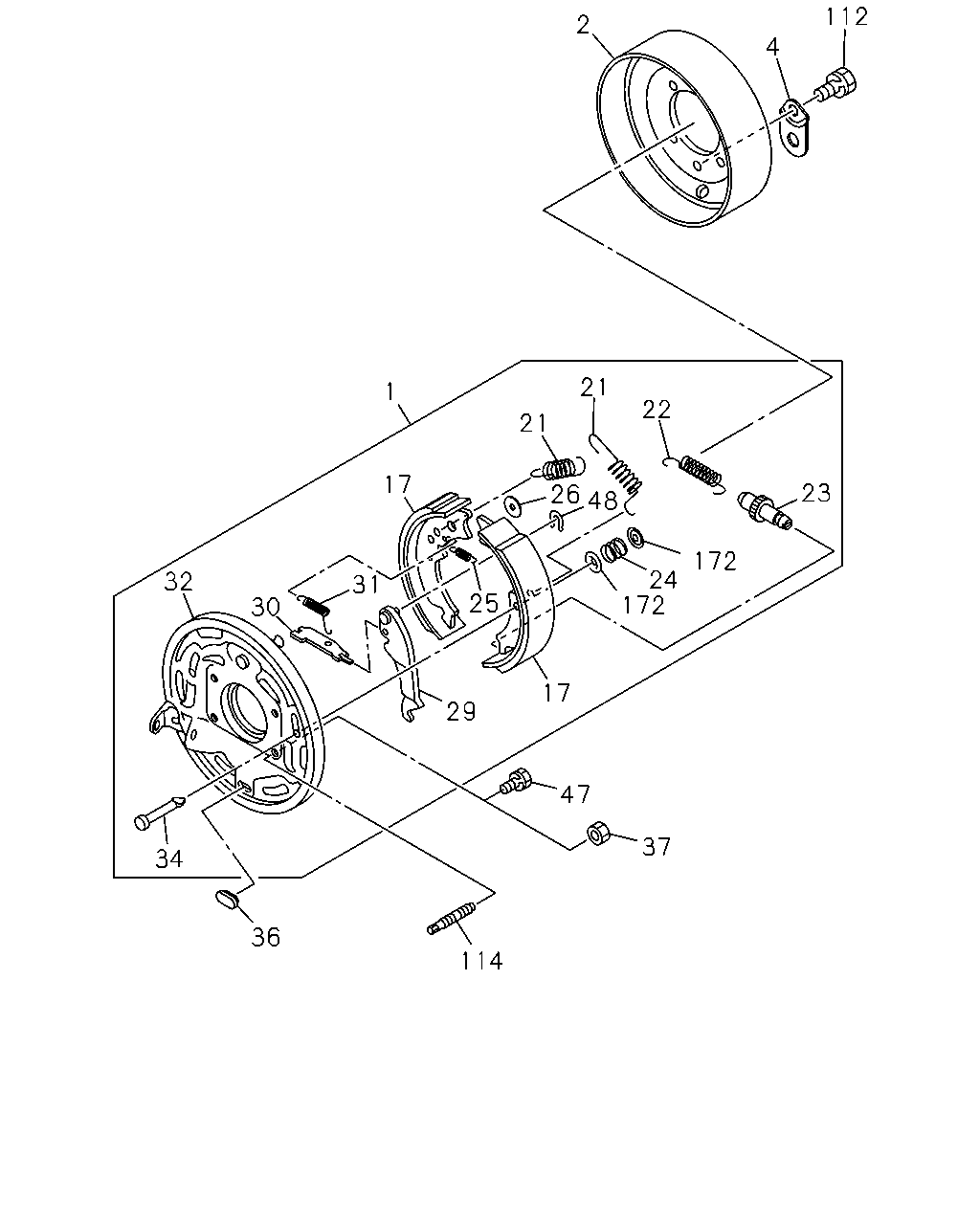

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9812-9905	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5R(RNN),M/T MSB5S(R45)	8-97034-553-2	01	1	9906-0105	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5R(RMT)	8-97100-212-2	01	1	9812-0105	●	●			●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5R(RMT)	8-97100-212-2	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9812-9905	●
2	05.605 DRUM; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46210-005-3	01	1	9906-0105	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	9812-0105	●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW)	1-46211-056-0	01	1	0106-0207	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46211-056-0	01	1	0208-	●	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9812-9905	●
4	05.606 COVER; ADJ HOLE M/T MSB5R(RNN),M/T MSB5S(R45)	5-42319-003-0	01	1	9906-0105	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	9812-0105	●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6R(RNW)	1-46219-019-0	02	1	0106-	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9812-9905	●
17	05.606 SHOE; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-97042-933-1	02	1	9906-0105	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	9812-0105	●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW)	8-97180-702-0	02	1	0106-0207	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-702-0	02	1	0208-	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9812-9905	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-552-1	01	1	9906-0105	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	9812-0105	●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW) 05.605	9-09942-516-0	01	1	0106-0207	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.605	9-09942-516-0	01	1	0208-	●	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9812-9905	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-340-1	01	1	9906-0105	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	9812-0105	●	●			●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5S(R45)	5-47165-025-0	01	1	9812-9905	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	5-47165-025-0	01	1	9906-0105	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW)	1-46240-003-0	01	1	0106-0207	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46240-003-0	01	1	0208-	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9812-9905	●
24	05.605 SPRING; BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09941-062-1	02	1	9906-0105	●
24	05.605 SPRING; BRK SHOE M/T MXA5R(RMT)	8-94132-155-0	02	1	9812-0105	●	●			●	●
24	05.605 SPRING; BRK SHOE M/T MXA5R(RMT)	8-94132-155-0	02	1	0106-	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5R(RMT)	8-94132-156-0	01	1	9812-0105	●	●			●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5R(RMT)	8-94132-156-0	01	1	0106-	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5R(RMT)	9-09851-986-0	01	1	9812-0105	●	●			●	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5R(RMT)	9-09851-986-0	01	1	0106-	●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9812-9905	●
29	04.591 LEVER; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-94128-765-0	01	1	9906-0105	●
29	04.591 LEVER; PARKING BRK M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	9812-0105	●	●			●	●
29	04.591 LEVER; PARKING BRK M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	0106-	●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9812-9905	●
30	05.605 STRUT; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46251-007-0	01	1	9906-0105	●
30	05.605 STRUT; PARKING BRK M/T MXA5R(RMT)	8-94311-779-0	01	1	9812-0105	●	●			●	●
30	05.605 STRUT; PARKING BRK M/T MXA5R(RMT)	8-94311-779-0	01	1	0106-	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9812-9905	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5R(RNN),M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9906-0105	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5R(RMT)	8-94132-158-0	01	1	9812-0105	●	●			●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5R(RMT)	8-94132-158-0	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9812-9905	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-46213-601-2	01	1	9906-0105	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	9812-0105	●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW)	1-46213-085-0	01	1	0106-0207	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46213-085-0	01	1	0208-	●	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9812-9905	●
34	05.605 PIN; BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9906-0105	●
34	05.605 PIN; BRK SHOE M/T MXA5R(RMT)	8-94132-159-0	02	1	9812-0105	●	●			●	●
34	05.605 PIN; BRK SHOE M/T MXA5R(RMT)	8-94132-159-0	02	1	0106-	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5R(RMT) 05.117	5-47169-002-0	01	1	9812-0105	●	●			●	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5R(RMT) 05.117	5-47169-002-0	01	1	0106-	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9812-9905	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45) M12	8-97033-122-0	01	1	9906-0105	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9812-0105	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW) M14 FLANGE	1-09440-048-0	04	1	0106-0207	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW),M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●			●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9812-9905	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45)	9-02060-814-0	02	1	9906-0105	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT) M12X20 FLANGE	8-97213-401-0	04	1	9812-0009	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9812-9901	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9902-9903	●	●			●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9904-9905	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9906-0105	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT) 05.158	9-46349-005-1	01	1	0106-	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT),M/T MSB5S(R45) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9812-9905	●	●			●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9906-0105	●	●			●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0106-	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0010-0105	●	●			●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0106-	●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45)	8-94378-404-0	04	1	9812-9905	●
172	05.605 CUP; SHOE HOLD M/T MSB5R(RNN),M/T MSB5S(R45)	8-94378-404-0	04	1	9906-0105	●
172	05.605 CUP; SHOE HOLD M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	9812-0105	●	●			●	●
172	05.605 CUP; SHOE HOLD M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	0106-	●

112 2 4 1 21 22 20 17 23 48 31 172 30 24 172 32 38 17 29 47 37 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9812-9905	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5R(RNN),M/T MSB5S(R45)	8-97034-553-2	01	1	9906-0105	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5R(RMT)	8-97100-212-2	01	1	9812-0105	●	●			●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5R(RMT)	8-97100-212-2	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9812-9905	●
2	05.605 DRUM; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46210-005-3	01	1	9906-0105	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	9812-0105	●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9812-0105	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW)	1-46211-056-0	01	1	0106-0207	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46211-056-0	01	1	0208-	●	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9812-9905	●
4	05.606 COVER; ADJ HOLE M/T MSB5R(RNN),M/T MSB5S(R45)	5-42319-003-0	01	1	9906-0105	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	9812-0105	●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9812-0105	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MBP6R(RNW)	1-46219-019-0	02	1	0106-	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9812-9905	●
17	05.606 SHOE; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-97042-933-1	02	1	9906-0105	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	9812-0105	●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9812-0105	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW)	8-97180-702-0	02	1	0106-0207	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97180-702-0	02	1	0208-	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9812-9905	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-553-1	01	1	9906-0105	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6Q(RNM) 05.615	9-09942-434-0	02	1	9812-0105	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW) 05.615	9-09942-434-0	02	1	0106-0207	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.615	9-09942-434-0	02	1	0208-	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9812-9905	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-552-1	01	1	9906-0105	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	9812-0105	●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9812-0105	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW) 05.605	9-09942-516-0	01	1	0106-0207	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR) 05.605	9-09942-516-0	01	1	0208-	●	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9812-9905	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-09942-340-1	01	1	9906-0105	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	9812-0105	●	●			●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5S(R45)	5-47165-025-0	01	1	9812-9905	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	5-47165-025-0	01	1	9906-0105	●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9812-0105	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW)	1-46240-003-0	01	1	0106-0207	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46240-003-0	01	1	0208-	●	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9812-9905	●
24	05.605 SPRING; BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45)	9-09941-062-1	02	1	9906-0105	●
24	05.605 SPRING; BRK SHOE M/T MXA5R(RMT)	8-94132-155-0	02	1	9812-0105	●	●			●	●
24	05.605 SPRING; BRK SHOE M/T MXA5R(RMT)	8-94132-155-0	02	1	0106-	●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9812-9905	●
29	04.591 LEVER; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	8-94128-765-0	01	1	9906-0105	●
29	04.591 LEVER; PARKING BRK M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	9812-0105	●	●			●	●
29	04.591 LEVER; PARKING BRK M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	0106-	●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9812-9905	●
30	05.605 STRUT; PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	5-46251-007-0	01	1	9906-0105	●
30	05.605 STRUT; PARKING BRK M/T MXA5R(RMT)	8-94311-779-0	01	1	9812-0105	●	●			●	●
30	05.605 STRUT; PARKING BRK M/T MXA5R(RMT)	8-94311-779-0	01	1	0106-	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9812-9905	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5R(RNN),M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9906-0105	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5R(RMT)	8-94132-158-0	01	1	9812-0105	●	●			●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5R(RMT)	8-94132-158-0	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9812-9905	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5R(RNN),M/T MSB5S(R45)	9-46213-601-2	01	1	9906-0105	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	9812-0105	●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9812-0105	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW)	1-46213-085-0	01	1	0106-0207	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6R(RNW),M/T MZZ6F(RSR)	1-46213-085-0	01	1	0208-	●	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9812-9905	●
34	05.605 PIN; BRK SHOE M/T MSB5R(RNN),M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9906-0105	●
34	05.605 PIN; BRK SHOE M/T MXA5R(RMT)	8-94132-159-0	02	1	9812-0105	●	●			●	●
34	05.605 PIN; BRK SHOE M/T MXA5R(RMT)	8-94132-159-0	02	1	0106-	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9812-9905	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45) M12	8-97033-122-0	01	1	9906-0105	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9812-0105	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW) M14 FLANGE	1-09440-048-0	04	1	0106-0207	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MBP6R(RNW),M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●			●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9812-9905	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9906-0105	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9812-9905	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5R(RNN),M/T MSB5S(R45)	9-02060-814-0	02	1	9906-0105	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT) M12X20 FLANGE	8-97213-401-0	04	1	9812-0009	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9812-9901	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9902-9903	●	●			●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9904-9905	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	9906-0105	●	●			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT) 05.158	9-46349-005-1	01	1	0106-	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT),M/T MSB5S(R45) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9812-9905	●	●			●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9906-0105	●	●			●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0106-	●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45)	8-94378-404-0	04	1	9812-9905	●
172	05.605 CUP; SHOE HOLD M/T MSB5R(RNN),M/T MSB5S(R45)	8-94378-404-0	04	1	9906-0105	●
172	05.605 CUP; SHOE HOLD M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	9812-0105	●	●			●	●
172	05.605 CUP; SHOE HOLD M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
