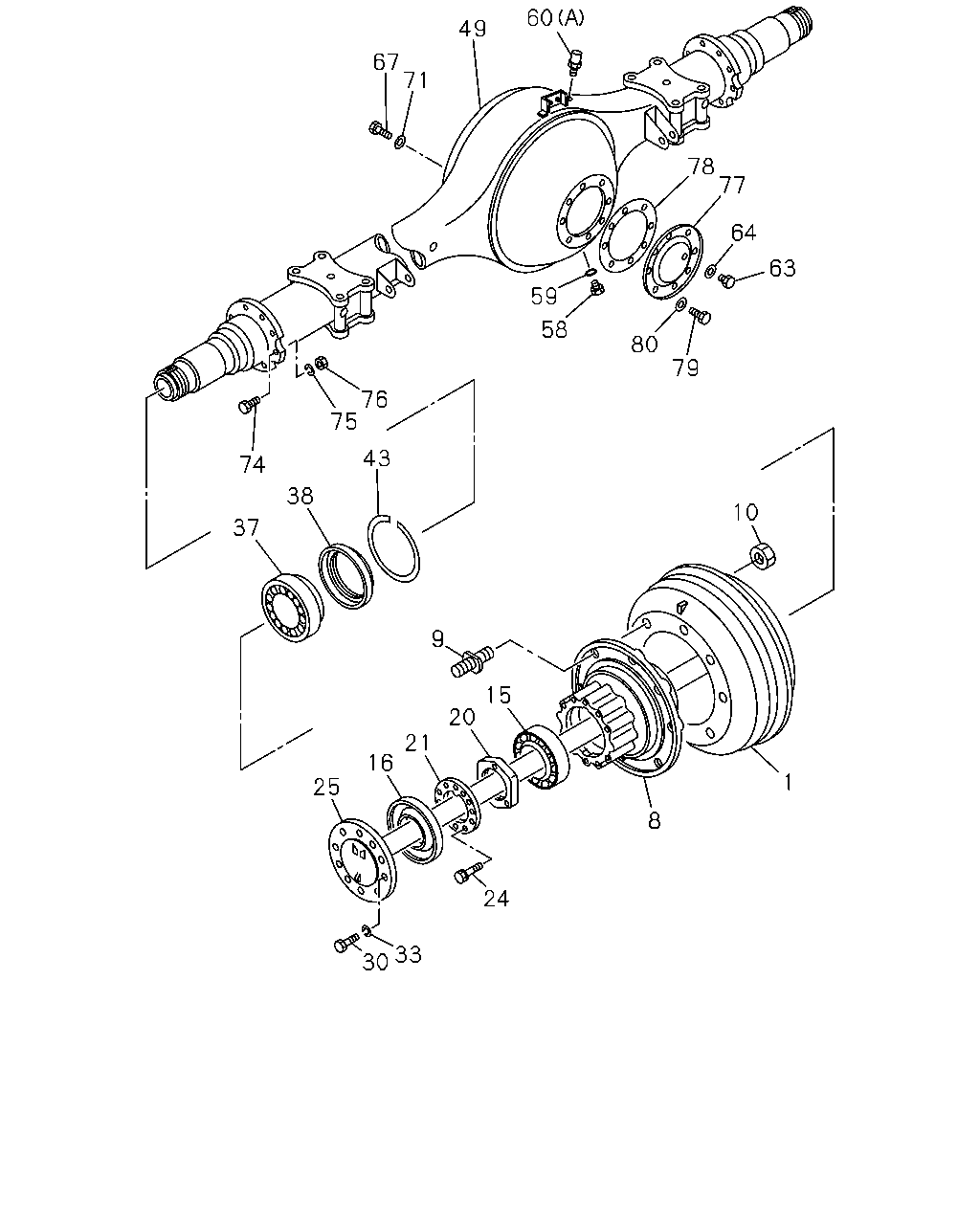

4-20 — REAR AXLE CASE AND SHAFT (#1930) — 68 parça

60 49 67 71 78 77 64 63 59 58 80 79 76 75 43 74 38 10 37 9 15 20 21 16 1 25 8 24 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR	1-42315-266-1	02	1	9207-	●	●
1	DRUM; BRK,RR	1-42315-208-2	02	1	9207-			●	●
8	HUB; RR AXLE	1-42311-041-2	02	1	9207-	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9207-	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9207-	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22	9-09110-522-0	16	1	9207-	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-044-0	02	1	9207-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-053-0	02	1	9207-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-161-0	02	1	9207-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-153-0	02	1	9207-			●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-154-0	02	1	9207-			●	●
16	SEAL; OIL,RR HUB,OUTER NOK	9-09924-468-0	02	1	9207-	●	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	9-09924-470-0	02	1	9207-	●	●	●	●
16	SEAL; OIL,RR HUB,OUTER KOYO	9-09924-499-0	02	1	9207-	●	●	●	●
20	NUT; BRG,RR HUB M74.6	9-09843-064-2	02	1	9207-	●	●	●	●
21	WASHER; LK,BRG NUT ID=74.6	1-09533-008-0	02	1	9207-	●	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9207-	●	●	●	●
25	SHAFT; AXLE,RR	1-42171-247-2	01	1	9207-	●	●
25	SHAFT; AXLE,RR	1-42171-246-2	01	1	9207-	●	●
25	SHAFT; AXLE,RR L=986	1-42171-280-0	02	1	9207-			●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	20	1	9207-	●	●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9207-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9207-	●	●
37	BEARING; HUB INNER,RR AXLE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9207-	●	●
37	BEARING; HUB INNER,RR AXLE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9207-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-150-0	02	1	9207-			●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-151-0	02	1	9207-			●	●
38	SEAL; OIL,RR HUB,INNER TKK	9-09924-415-0	02	1	9207-	●	●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	9-09924-416-0	02	1	9207-	●	●	●	●
38	SEAL; OIL,RR HUB,INNER KOYO	9-09924-417-0	02	1	9207-	●	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=150	9-09950-147-0	02	1	9207-	●	●	●	●
49	CASE; RR AXLE	1-42150-450-2	01	1	9207-	●	●
49	CASE; RR AXLE REAR SHOCK ABSORBER<GL6>	1-42150-080-3	01	1	9207-			●	●
49	CASE; RR AXLE EXC. REAR SHOCK ABSORBER<GL6>	1-42150-029-4	01	1	9207-			●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9207-	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9207-	●	●	●	●
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	9207-	●	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9207-			●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	9207-			●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9207-9307	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE	9-09920-392-0	01	1	9207-9307	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	9207-	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	9207-	●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-91066-465-0	04	1	9207-			●	●
67	BOLT; FINAL DRIVE SETTING M14X40	9-92061-440-0	08	1	9207-			●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	9207-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	9-09150-814-0	12	1	9207-			●	●
74	BOLT; RR BRK ASM SETTING M14X56	1-09060-004-0	04	1	9207-	●	●
74	BOLT; RR BRK ASM SETTING	1-09000-310-0	04	1	9207-			●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	16	1	9207-9401	●	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9402-	●	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9207-	●	●	●	●
77	COVER; RR AXLE CASE	9-42141-059-0	01	1	9207-	●	●
78	GASKET; COVER TO RR AXLE CASE	9-42142-026-2	01	1	9207-	●	●
79	BOLT; COVER TO CASE M10X16	9-09800-874-0	01	1	9207-9309	●	●
79	BOLT; COVER TO CASE M10X16	9-09800-874-0	08	1	9310-	●	●
80	GASKET; BOLT,COVER ID=10.2 OD=19	9-09572-010-0	01	1	9207-	●	●

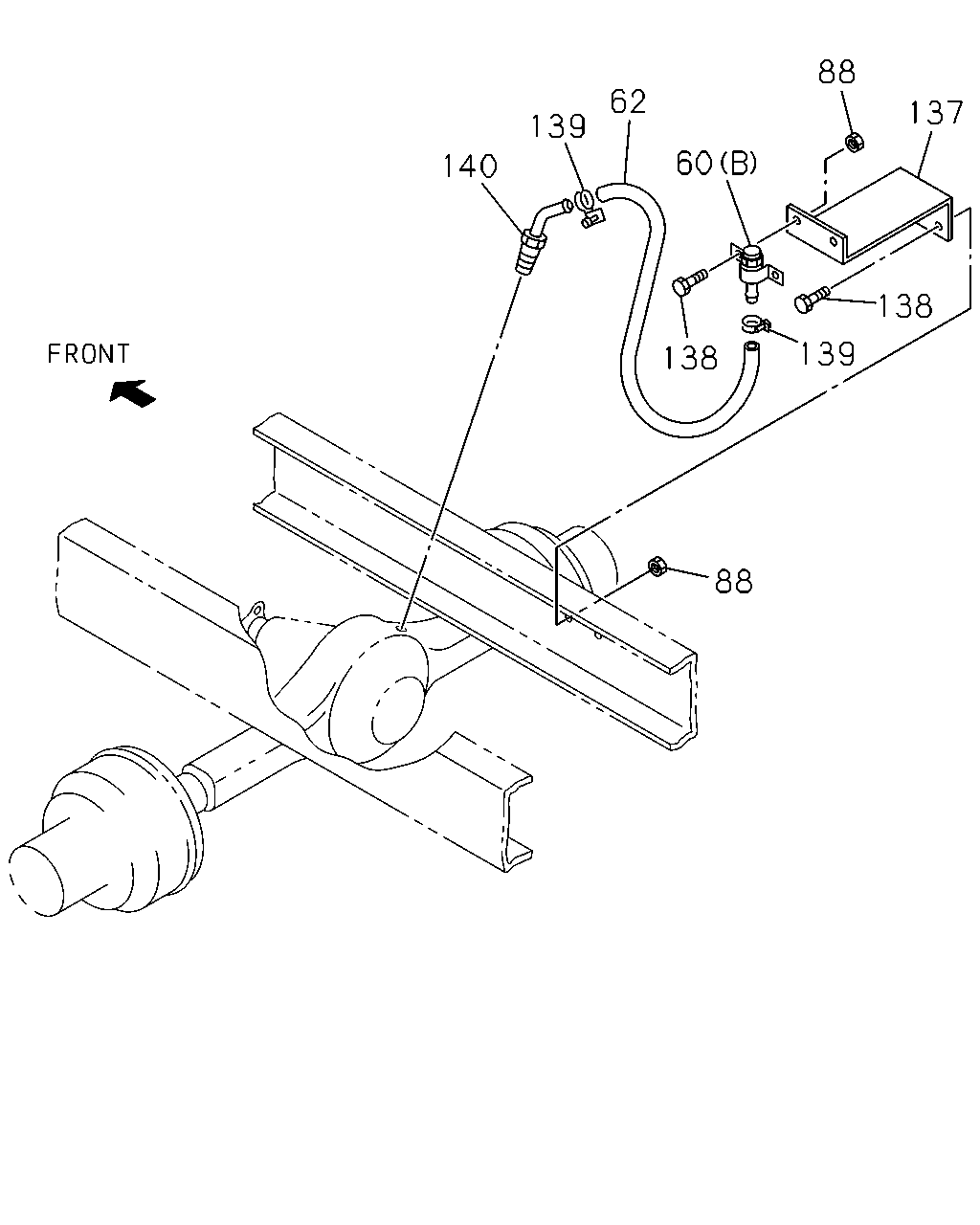

88 62 137 139 60 140 138 139 138 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	9207-	●	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9207-			●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	9207-			●	●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-500-0	01	1	9207-			●	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8	9-09110-408-0	04	1	9207-			●	●
137	BRACKET; BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	1-42129-122-0	01	1	9207-			●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28080-825-0	04	1	9207-			●	●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M>	1-09704-080-0	02	1	9207-			●	●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-080-1	01	1	9207-			●	●
