Sayfa 2-36 - Isuzu EPC

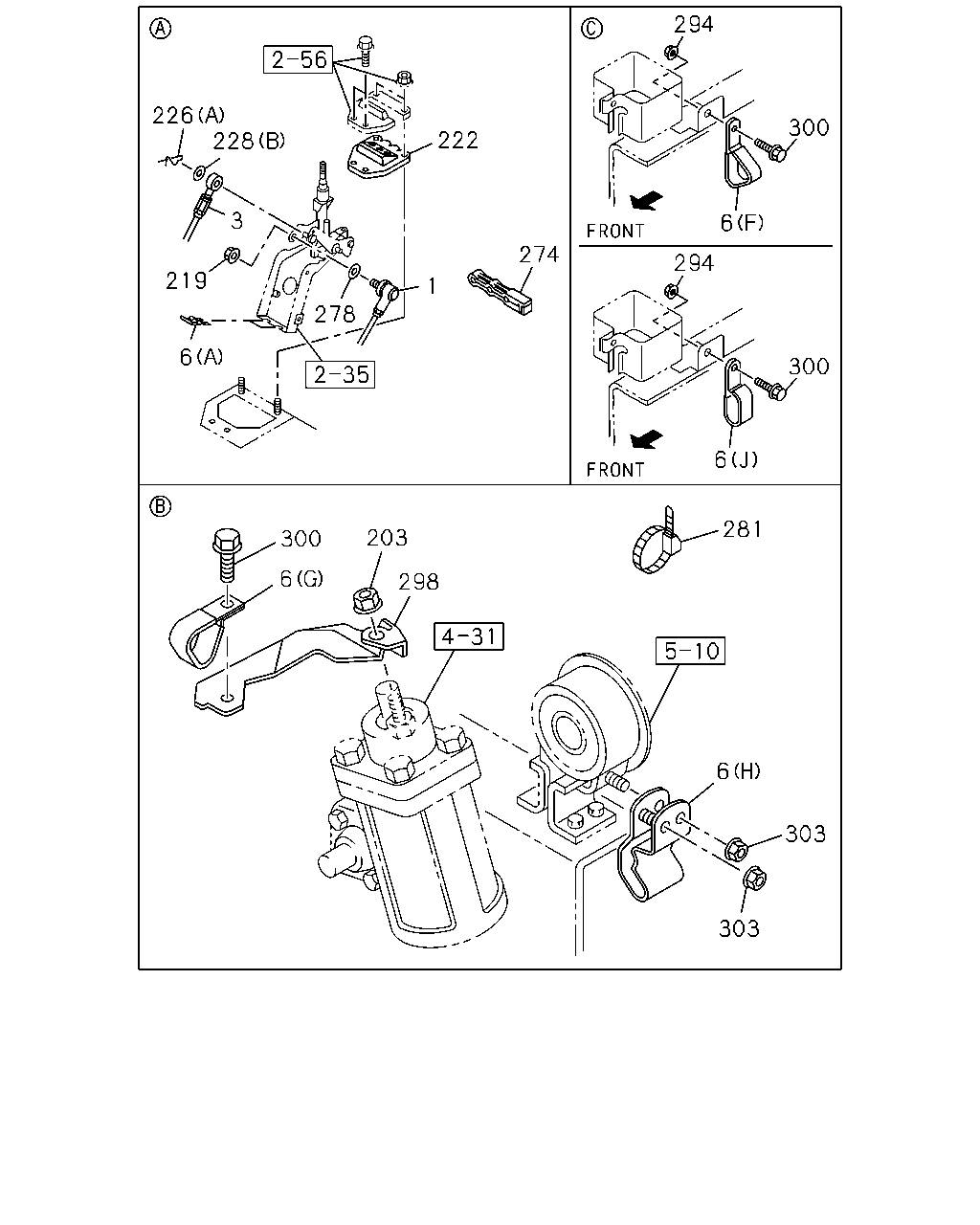

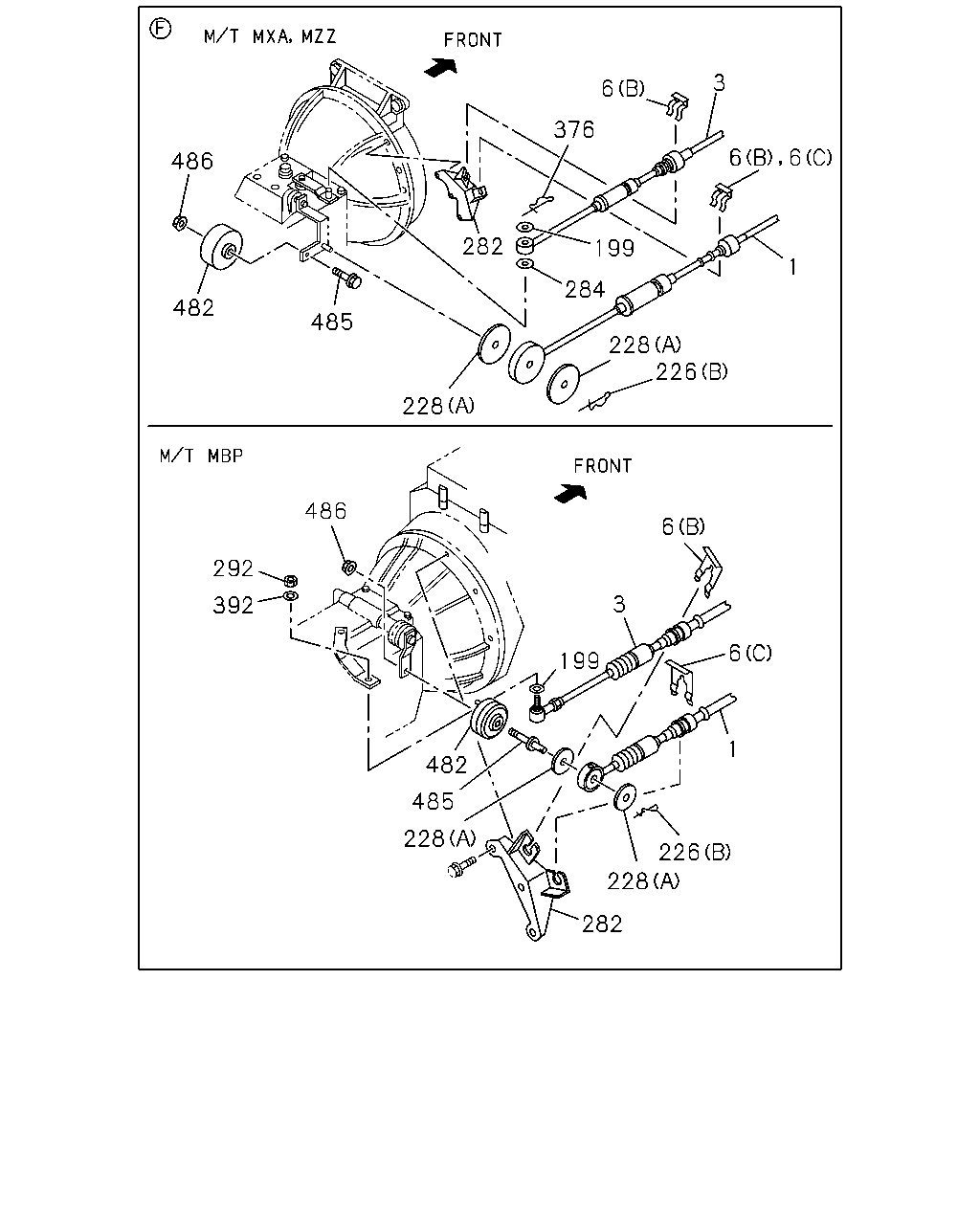

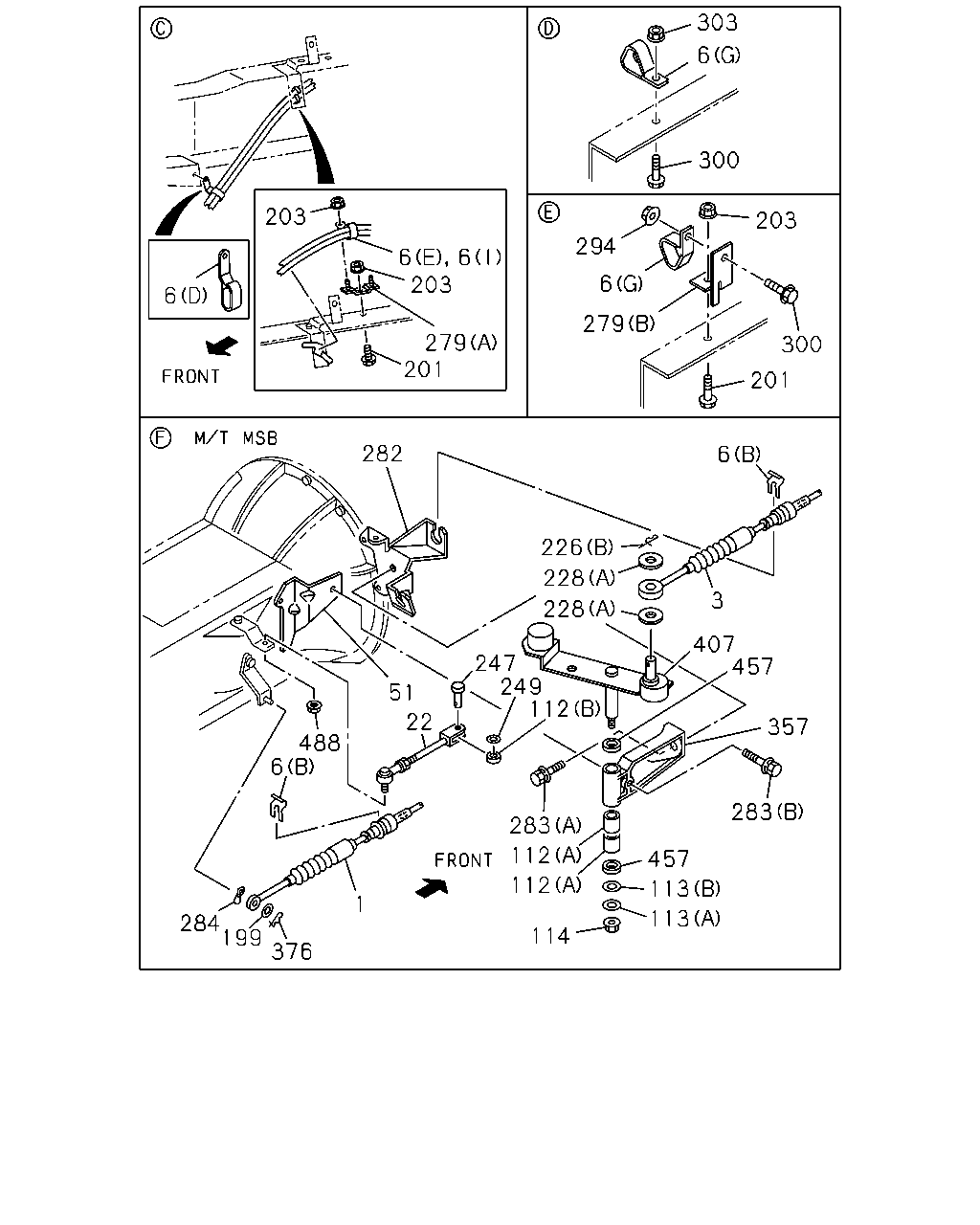

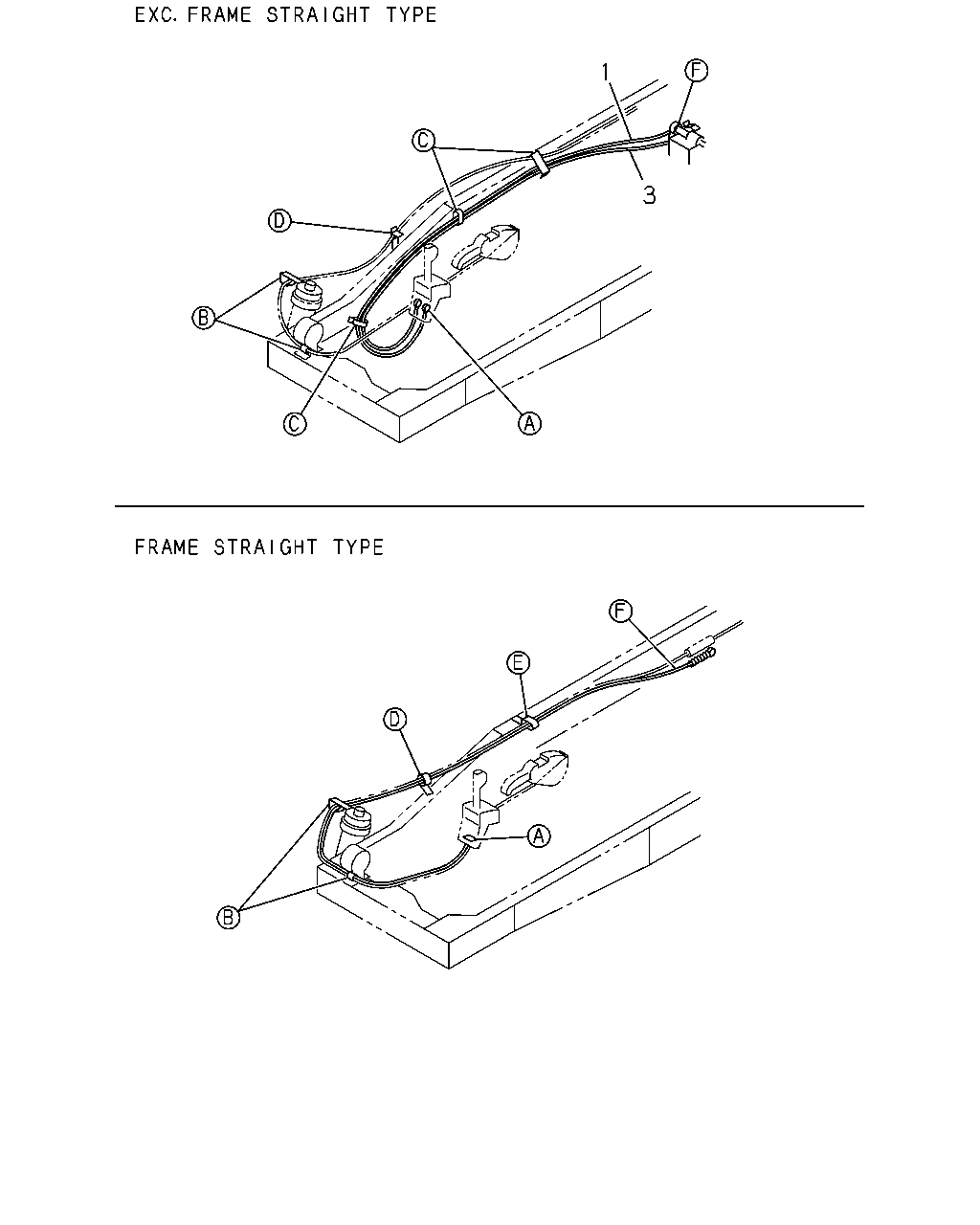

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#19294) — 308 parça

303 6 300 203 203 294 203 6 6 279 279 201 300 201 282 6 226 228 3 228 407 457 247 249 112 51 22 357 488 6 283 283 112 457 112 113 1 113 284 199 114 376 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.854 CABLE; SHIFT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2593	8-97082-951-2	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2745	8-97289-651-1	01	1	0106-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97148-592-2	01	1	9812-0203			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97351-344-0	01	1	0204-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942	8-97096-511-3	01	1	9812-			●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070	8-97148-590-0	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97148-590-0	01	1	0106-						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	0106-0203						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97351-345-0	01	1	0204-						●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> L=3070	8-97329-417-0	01	1	0208-							●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=2977	8-97259-000-2	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2780	8-97082-958-1	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2820	8-97289-616-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094	8-97148-588-2	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012	8-97096-506-3	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207	8-97148-586-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207	8-97148-586-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> L=3151	8-97329-418-0	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=3055	8-97259-001-2	01	1	0208-							●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (F)	8-97036-332-1	01	1	9812-9901	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (F)	8-97036-332-1	01	1	9902-0105	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 03.162 (D)	9-09917-171-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (I)	8-97028-508-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (J)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	9812-0105	●	●	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	0106-			●			●	●
6	04.047 CLIP; CABLE (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	0106-						●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (E) =33X16.5 =50	5-09700-341-0	01	1	9812-			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	9812-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0106-						●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0106-						●	●
22	04.035 ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11>	8-97174-058-0	01	1	9812-0105	●	●
51	04.010 BRACKET; GEAR CONT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97029-286-0	01	1	9812-0105	●	●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (A)	8-97174-057-0	02	1	9812-0105	●	●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (B)	8-97174-060-0	01	1	9812-0105	●	●
113	04.046 WASHER; RELAY LEVER FLOOR REMOTE SHIFT<M11> 16.682 (A) ID=10.5 OD=22	9-09160-610-0	02	1	9812-0105	●	●
113	04.046 WASHER; RELAY LEVER FLOOR REMOTE SHIFT<M11> 08.929 (B) ID=15 OD=36	9-09164-714-0	01	1	9812-0105	●	●
114	04.037 NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●	●	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	0106-0112			●			●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0201-			●				●
201	04.032 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
203	04.032 NUT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105			●	●	●
203	04.032 NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●			●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●			●	●
247	04.010 PIN; CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.037	9-09876-059-1	01	1	9812-0105	●	●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (A)	8-97028-496-1	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	9812-0105			●	●	●
279	04.047 BRACKET; CABLE TO FRAME CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0106-						●
282	04.010 BRACKET; TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97034-142-1	01	1	9812-0105	●	●
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX)	8-97260-120-0	01	1	0106-			●
282	04.010 BRACKET; TRANS SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97182-260-0	01	1	9812-			●
282	04.010 BRACKET; TRANS SIDE	8-97040-198-1	01	1	9812-0105				●	●
282	04.010 BRACKET; TRANS SIDE	8-97040-198-1	01	1	0106-						●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11>	8-97311-442-1	01	1	0208-							●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	9812-0105	●	●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-0105	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	9812-0105	●	●	●	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0106-0112			●			●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0201-			●				●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105			●	●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
294	00.854 NUT; CLIP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
294	00.854 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-			●
300	00.854 BOLT; CLIP POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●	●	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●	●	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●			●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-						●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105			●	●	●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105			●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-			●			●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9908			●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9909-0105			●	●	●
303	00.855 NUT; CLIP 4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●			●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9908			●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9909-0105			●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-						●	●
357	04.010 BRACKET; RELAY LEVER FLOOR REMOTE SHIFT<M11>	8-97182-166-0	01	1	9812-0105	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	9812-0105	●	●	●	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0106-0112			●			●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0201-			●				●
407	04.030 LEVER; RELAY,SHIFT FLOOR REMOTE SHIFT<M11>	8-97174-055-1	01	1	9812-0105	●	●
457	04.010 GASKET FLOOR REMOTE SHIFT<M11> ID=13.8	9-09561-114-0	02	1	9812-0105	●	●
488	04.047 NUT; CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
488	04.047 NUT; CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0105	●	●

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.854 CABLE; SHIFT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2593	8-97082-951-2	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2745	8-97289-651-1	01	1	0106-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97148-592-2	01	1	9812-0203			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97351-344-0	01	1	0204-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942	8-97096-511-3	01	1	9812-			●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070	8-97148-590-0	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97148-590-0	01	1	0106-						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	0106-0203						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97351-345-0	01	1	0204-						●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> L=3070	8-97329-417-0	01	1	0208-							●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=2977	8-97259-000-2	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2780	8-97082-958-1	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2820	8-97289-616-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094	8-97148-588-2	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012	8-97096-506-3	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207	8-97148-586-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207	8-97148-586-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> L=3151	8-97329-418-0	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=3055	8-97259-001-2	01	1	0208-							●

294 226 228 300 222 3 6 274 294 219 1 278 6 300 6 281 203 300 6 298 6 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.854 CABLE; SHIFT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2593	8-97082-951-2	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2745	8-97289-651-1	01	1	0106-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97148-592-2	01	1	9812-0203			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97351-344-0	01	1	0204-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942	8-97096-511-3	01	1	9812-			●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070	8-97148-590-0	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97148-590-0	01	1	0106-						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	0106-0203						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97351-345-0	01	1	0204-						●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> L=3070	8-97329-417-0	01	1	0208-							●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=2977	8-97259-000-2	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2780	8-97082-958-1	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2820	8-97289-616-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094	8-97148-588-2	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012	8-97096-506-3	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207	8-97148-586-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207	8-97148-586-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> L=3151	8-97329-418-0	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=3055	8-97259-001-2	01	1	0208-							●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (F)	8-97036-332-1	01	1	9812-9901	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (F)	8-97036-332-1	01	1	9902-0105	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 03.162 (D)	9-09917-171-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (I)	8-97028-508-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (J)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	9812-0105	●	●	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	0106-			●			●	●
6	04.047 CLIP; CABLE (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	0106-						●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (E) =33X16.5 =50	5-09700-341-0	01	1	9812-			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	9812-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0106-						●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0106-						●	●
203	04.032 NUT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105			●	●	●
203	04.032 NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●	●	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0105	●	●	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	0106-			●			●	●
222	04.010 GROMMET; CABLE FLOOR REMOTE SHIFT<M11>	8-97065-212-1	01	1	9812-0105	●	●	●	●	●
222	04.010 GROMMET; CABLE FLOOR REMOTE SHIFT<M11>	8-97065-212-1	01	1	0106-			●			●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●			●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●			●	●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	9904-			●			●	●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9812-0105	●	●	●	●	●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0106-			●			●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	9812-0105	●	●	●	●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0106-			●			●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105			●	●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
294	00.854 NUT; CLIP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
294	00.854 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-			●
298	00.854 BRACKET 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 04.785	8-97065-098-1	01	1	9812-0008			●	●	●
298	00.854 BRACKET 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0009-0105			●	●	●
298	00.854 BRACKET FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0106-						●	●
300	00.854 BOLT; CLIP POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●	●	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●	●	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●			●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-						●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105			●	●	●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105			●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-			●			●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9908			●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9909-0105			●	●	●
303	00.855 NUT; CLIP 4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●			●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9908			●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9909-0105			●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-						●	●

3 6 376 486 199 282 1 284 482 485 228 226 228 486 6 292 3 392 6 199 1 482 485 228 226 228 282 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.854 CABLE; SHIFT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2593	8-97082-951-2	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2745	8-97289-651-1	01	1	0106-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97148-592-2	01	1	9812-0203			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024	8-97351-344-0	01	1	0204-			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942	8-97096-511-3	01	1	9812-			●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070	8-97148-590-0	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97148-590-0	01	1	0106-						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	9812-0105				●	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97096-508-1	01	1	0106-0203						●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988	8-97351-345-0	01	1	0204-						●
1	00.854 CABLE; SHIFT,TRANS CONT CHARGE AIR COOLER<6PL> L=3070	8-97329-417-0	01	1	0208-							●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=2977	8-97259-000-2	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> L=2780	8-97082-958-1	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2820	8-97289-616-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094	8-97148-588-2	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012	8-97096-506-3	01	1	9812-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207	8-97148-586-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207	8-97148-586-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	9812-0105				●	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125	8-97096-503-0	01	1	0106-						●
3	00.852 CABLE; SELECT,TRANS CONT CHARGE AIR COOLER<6PL> L=3151	8-97329-418-0	01	1	0208-							●
3	00.852 CABLE; SELECT,TRANS CONT EXC. CHARGE AIR COOLER<6PL> L=3055	8-97259-001-2	01	1	0208-							●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (F)	8-97036-332-1	01	1	9812-9901	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (F)	8-97036-332-1	01	1	9902-0105	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 03.162 (D)	9-09917-171-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (I)	8-97028-508-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (J)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	9812-0105	●	●	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A)	8-97011-448-0	02	1	0106-			●			●	●
6	04.047 CLIP; CABLE (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	9812-9901			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	9902-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	02	1	0106-						●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (E) =33X16.5 =50	5-09700-341-0	01	1	9812-			●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	9812-0105			●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0106-						●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0106-						●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	9812-0105				●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0106-						●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●	●	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	0106-0112			●			●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0201-			●				●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●			●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●			●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●			●	●
282	04.010 BRACKET; TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97034-142-1	01	1	9812-0105	●	●
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX)	8-97260-120-0	01	1	0106-			●
282	04.010 BRACKET; TRANS SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97182-260-0	01	1	9812-			●
282	04.010 BRACKET; TRANS SIDE	8-97040-198-1	01	1	9812-0105				●	●
282	04.010 BRACKET; TRANS SIDE	8-97040-198-1	01	1	0106-						●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11>	8-97311-442-1	01	1	0208-							●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	9812-0105	●	●	●	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0106-0112			●			●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0201-			●				●
292	04.047 NUT; CABLE TO RELAY LEVER 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905				●	●
292	04.047 NUT; CABLE TO RELAY LEVER 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0105				●	●
292	04.047 NUT; CABLE TO RELAY LEVER 04.037 M8 T=8.0	8-94363-045-0	01	1	0106-						●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	9812-0105	●	●	●	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0106-0112			●			●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0201-			●				●
392	00.854 WASHER; LK,SELECT CABLE,CAB 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9812-0105				●	●
392	00.854 WASHER; LK,SELECT CABLE,CAB 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0106-						●
482	04.047 WEIGHT; SHIFT CABLE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FLOOR REMOTE SHIFT<M11>	8-97066-730-1	01	1	9812-0105			●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0106-0207			●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0208-			●				●
482	04.047 WEIGHT; SHIFT CABLE	8-97079-982-1	01	1	9812-0105				●	●
482	04.047 WEIGHT; SHIFT CABLE	8-97079-982-2	01	1	0106-						●
485	04.047 BOLT; WEIGHT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE	0-28091-260-0	01	1	9812-0105			●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0106-			●				●
485	04.047 BOLT; WEIGHT L=88	8-97017-375-0	01	1	9812-0105				●	●
485	04.047 BOLT; WEIGHT L=88	8-97017-375-0	01	1	0106-						●
486	04.047 NUT; WEIGHT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE	8-94436-194-0	01	1	9812-0105			●
486	04.047 NUT; WEIGHT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE	8-94436-194-0	01	1	9812-0105				●	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0106-			●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
