Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#19291) — 198 parça

327 91 321 185 133 248 344 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9510-9809
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	9810-0210
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9510-0210
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9510-0206
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-0210
248	CLIP; HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5	1-09709-083-0	01	1	9510-0210
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9510-0210
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9510-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	9810-0210
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9510-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	9810-0210
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9510-0210
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9510-0210

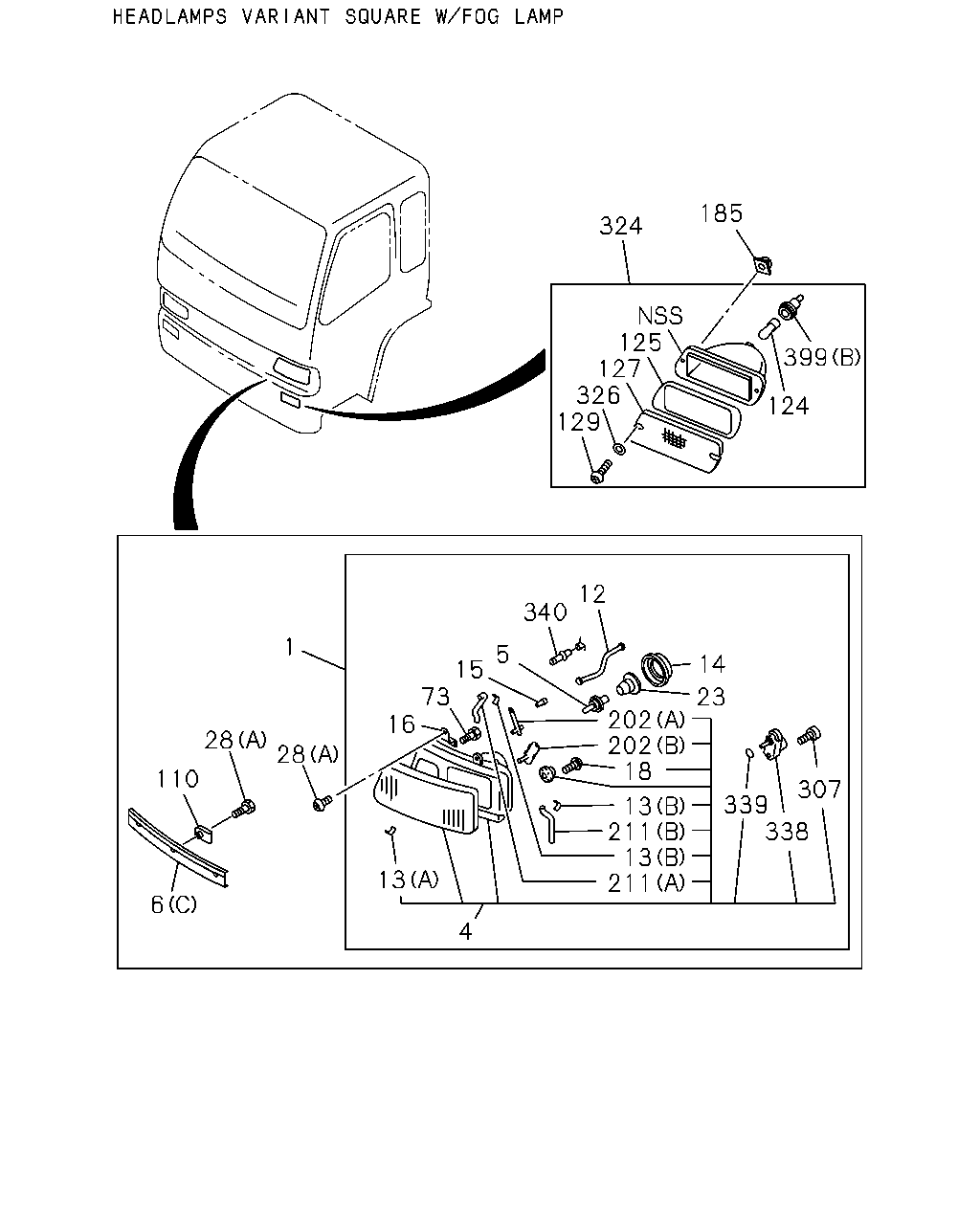

185 324 125 127 326 129 399 124 12 340 1 5 14 15 73 16 23 202 202 18 28 28 110 307 339 338 13 211 13 211 13 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-313-0	01	1	9510-0004
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-314-0	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-173-1	01	1	9510-0004
1	LAMP ASM; HEAD	1-86830-175-4	01	1	0005-0210
1	LAMP ASM; HEAD	1-82110-439-0	01	1	0211-0211
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-174-1	01	1	9510-0004
1	LAMP ASM; HEAD	1-86830-176-4	01	1	0005-0210
1	LAMP ASM; HEAD	1-82110-440-0	01	1	0211-0211
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-175-0	01	1	9510-9603
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-176-0	01	1	9510-9603
4	HEADLAMP UNIT	1-86830-197-1	01	1	0005-0210
4	HEADLAMP UNIT	1-82119-204-0	01	1	0211-0211
4	HEADLAMP UNIT	1-86830-198-1	01	1	0005-0210
4	HEADLAMP UNIT	1-82119-205-0	01	1	0211-0211
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-197-0	01	1	9510-9603
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-198-0	01	1	9510-9603
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0005-0210
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	9510-9603
6	RIM; HEADLAMP (B)	8-94165-573-0	04	1	9510-0004
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (C)	1-86830-005-5	01	1	0005-0207
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (C)	1-86830-005-5	01	1	0208-0210
6	RIM; HEADLAMP (A)	1-71118-746-1	01	1	9510-0004
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) (C)	1-86830-006-5	01	1	0005-0210
6	RIM; HEADLAMP (A)	1-71118-745-1	01	1	9510-0004
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) (C)	1-86830-005-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (C)	1-86830-006-5	01	1	0005-0207
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (C)	1-86830-006-5	01	1	0208-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) (C)	1-86830-006-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) (C)	1-86830-005-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
12	HARNESS; HEADLAMP	1-86830-145-0	02	1	0005-0210
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-145-0	02	1	9510-9603
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0005-0210
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0005-0210
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	9510-9603
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	9510-9603
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-9705
14	CAP; BULB,LAMP	1-82219-030-0	02	1	9706-0004
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0005-0210
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9510-9603
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0005-0210
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W	1-82194-079-0	02	1	9510-9603
16	BRACKET; HEADLAMP	1-86830-075-0	01	1	0005-0210
16	BRACKET; HEADLAMP	1-86830-076-0	01	1	0005-0210
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	9510-9603
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	9510-9603
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0005-0210
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	9510-9603
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0005-0210
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	9510-9603
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0005-0210
28	BOLT; HEADLAMP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9510-9603
73	BOLT; BRKT,HEADLAMP	8-94332-050-0	04	1	0005-0210
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	9510-9603
110	CLIP; RIM,HEADLAMP	1-86830-213-0	04	1	0005-0210
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-0	04	1	9510-9603
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0005-0210
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	9510-9603
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0005-0210
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	9510-9603
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0005-0210
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0005-0210
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	9510-9603
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	9510-9603
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0005-0210
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	9510-9603
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-0210
202	GEAR UNIT; HEADLAMP (B) OUTER	1-86830-139-0	02	1	0005-0210
202	GEAR UNIT; HEADLAMP (A) INNER	1-86830-140-0	02	1	0005-0210
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) OUTER	1-86830-139-0	02	1	9510-9603
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) INNER	1-86830-140-0	02	1	9510-9603
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	0005-0105
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	0005-0105
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0005-0210
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0005-0210
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-141-0	01	1	9510-9603
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-142-0	01	1	9510-9603
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-143-0	01	1	9510-9603
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-144-0	01	1	9510-9603
307	SCREW; TAPPING,HEAD LAMP M4X16 TAPPING	1-82119-067-0	02	1	0211-0211
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0005-0210
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0005-0210
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-0	01	1	9510-9603
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-0	01	1	9510-9603
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0005-0210
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	9510-9603
338	LEVELING; HEADLAMP	1-86830-138-0	02	1	0211-0211
339	GASKET; LEVELING	1-86830-158-0	02	1	0211-0211
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0005-0210
340	BULB; POSITION HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	9510-9603
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-033-0	02	1	9510-9705
399	SOCKET; TURN SIGNAL (A)	1-82219-033-0	02	1	9706-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-034-0	02	1	9510-9603
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-034-0	02	1	9604-9705
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	9706-0004
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	0005-0210

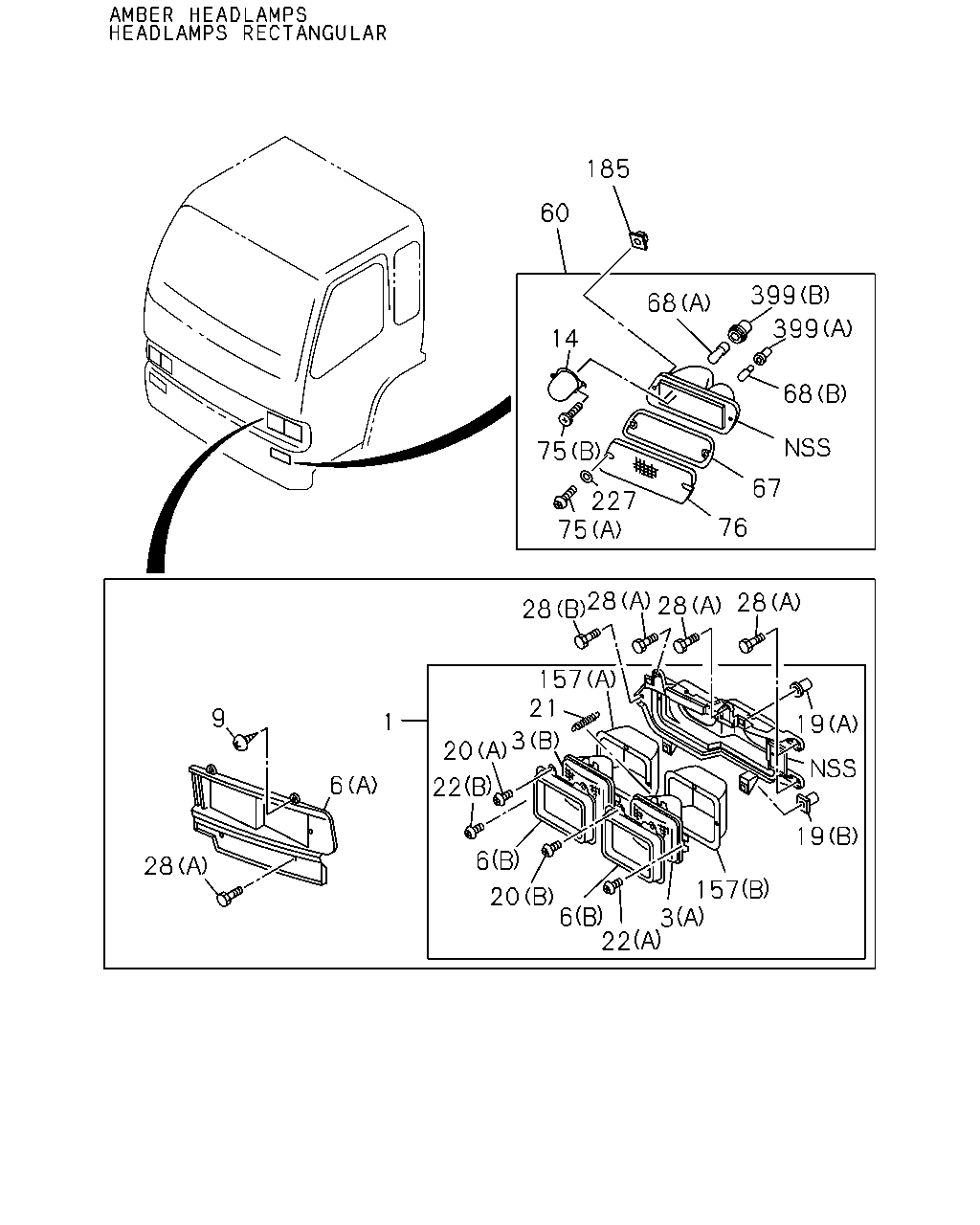

185 60 399 68 399 14 68 75 227 75 67 76 28 28 28 28 157 21 9 3 1 19 20 6 22 19 6 28 157 20 6 22 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-313-0	01	1	9510-0004
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-314-0	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-173-1	01	1	9510-0004
1	LAMP ASM; HEAD	1-86830-175-4	01	1	0005-0210
1	LAMP ASM; HEAD	1-82110-439-0	01	1	0211-0211
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-174-1	01	1	9510-0004
1	LAMP ASM; HEAD	1-86830-176-4	01	1	0005-0210
1	LAMP ASM; HEAD	1-82110-440-0	01	1	0211-0211
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-175-0	01	1	9510-9603
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-176-0	01	1	9510-9603
3	SEALED BEAM; HEADLAMP AMBER HEADLAMPS<T75> (A) TYPE2 24V 75/70W	1-82113-015-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP AMBER HEADLAMPS<T75> (B) TYPE1 24V 70W	1-82113-016-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 50/65W	8-94111-275-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	8-94111-276-0	02	1	9510-0004
6	RIM; HEADLAMP (B)	8-94165-573-0	04	1	9510-0004
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (C)	1-86830-005-5	01	1	0005-0207
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (C)	1-86830-005-5	01	1	0208-0210
6	RIM; HEADLAMP (A)	1-71118-746-1	01	1	9510-0004
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) (C)	1-86830-006-5	01	1	0005-0210
6	RIM; HEADLAMP (A)	1-71118-745-1	01	1	9510-0004
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) (C)	1-86830-005-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (C)	1-86830-006-5	01	1	0005-0207
6	RIM; HEADLAMP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (C)	1-86830-006-5	01	1	0208-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) (C)	1-86830-006-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) (C)	1-86830-005-5	01	1	0005-0210
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-4	01	1	9510-9603
6	RIM; HEADLAMP BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-4	01	1	9510-9603
9	SCREW; HEADLAMP RIM M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	9511-0004
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-9705
14	CAP; BULB,LAMP	1-82219-030-0	02	1	9706-0004
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0005-0210
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9510-9603
19	NUT; HEADLAMP (A)	1-82119-117-0	08	1	9510-0004
19	NUT; HEADLAMP (B)	8-97044-618-0	08	1	9510-0004
20	SCREW; HEADLAMP (A) M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	9510-9510
20	SCREW; HEADLAMP (B) M4X8	8-94165-886-0	16	1	9510-0004
21	SPRING; ADJ HEADLAMP	1-82119-120-0	04	1	9510-0004
22	SCREW; ADJ,HEADLAMP (A)	1-82119-118-0	07	1	9510-0004
22	SCREW; ADJ,HEADLAMP (B)	1-82119-119-0	01	1	9510-0004
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0005-0210
28	BOLT; HEADLAMP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9510-9603
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-211-0	01	1	9510-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-221-0	01	1	9609-9705
60	LAMP ASM; FRT COMB	1-82210-221-0	01	1	9706-0004
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-210-0	01	1	9510-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-220-0	01	1	9609-9705
60	LAMP ASM; FRT COMB	1-82210-220-0	01	1	9706-0004
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-033-0	02	1	9510-9705
67	GASKET; FRT COMB LAMP	1-82216-033-0	02	1	9706-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W	1-82194-036-0	02	1	9510-9705
68	BULB; FRT COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	9706-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W	8-94135-397-0	02	1	9510-9705
68	BULB; FRT COMB LAMP (B) 24V 5W	8-94135-397-0	02	1	9706-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-026-0	04	1	9510-9705
75	SCREW; FRT COMB LAMP (A)	1-82219-026-0	04	1	9706-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-031-0	04	1	9609-9705
75	SCREW; FRT COMB LAMP (B)	1-82219-031-0	04	1	9706-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-065-0	01	1	9510-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-071-0	01	1	9609-9705
76	LENS; FRT COMB LAMP	1-82215-071-0	01	1	9706-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-064-0	01	1	9510-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-070-0	01	1	9609-9705
76	LENS; FRT COMB LAMP	1-82215-070-0	01	1	9706-0004
157	RING; MTG,HEADLAMP (A)	1-82119-031-0	01	1	9510-0004
157	RING; MTG,HEADLAMP (B)	1-82119-032-0	01	1	9510-0004
157	RING; MTG,HEADLAMP (A)	1-82119-033-0	01	1	9510-0004
157	RING; MTG,HEADLAMP (B)	1-82119-034-0	01	1	9510-0004
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-0210
227	SEAT; SET SCREW,FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-032-0	04	1	9510-9705
227	SEAT; SET SCREW,FRT COMB LAMP	1-82216-032-0	04	1	9706-0004
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-033-0	02	1	9510-9705
399	SOCKET; TURN SIGNAL (A)	1-82219-033-0	02	1	9706-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-034-0	02	1	9510-9603
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-034-0	02	1	9604-9705
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	9706-0004
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	0005-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
