◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#19290) — 203 parça

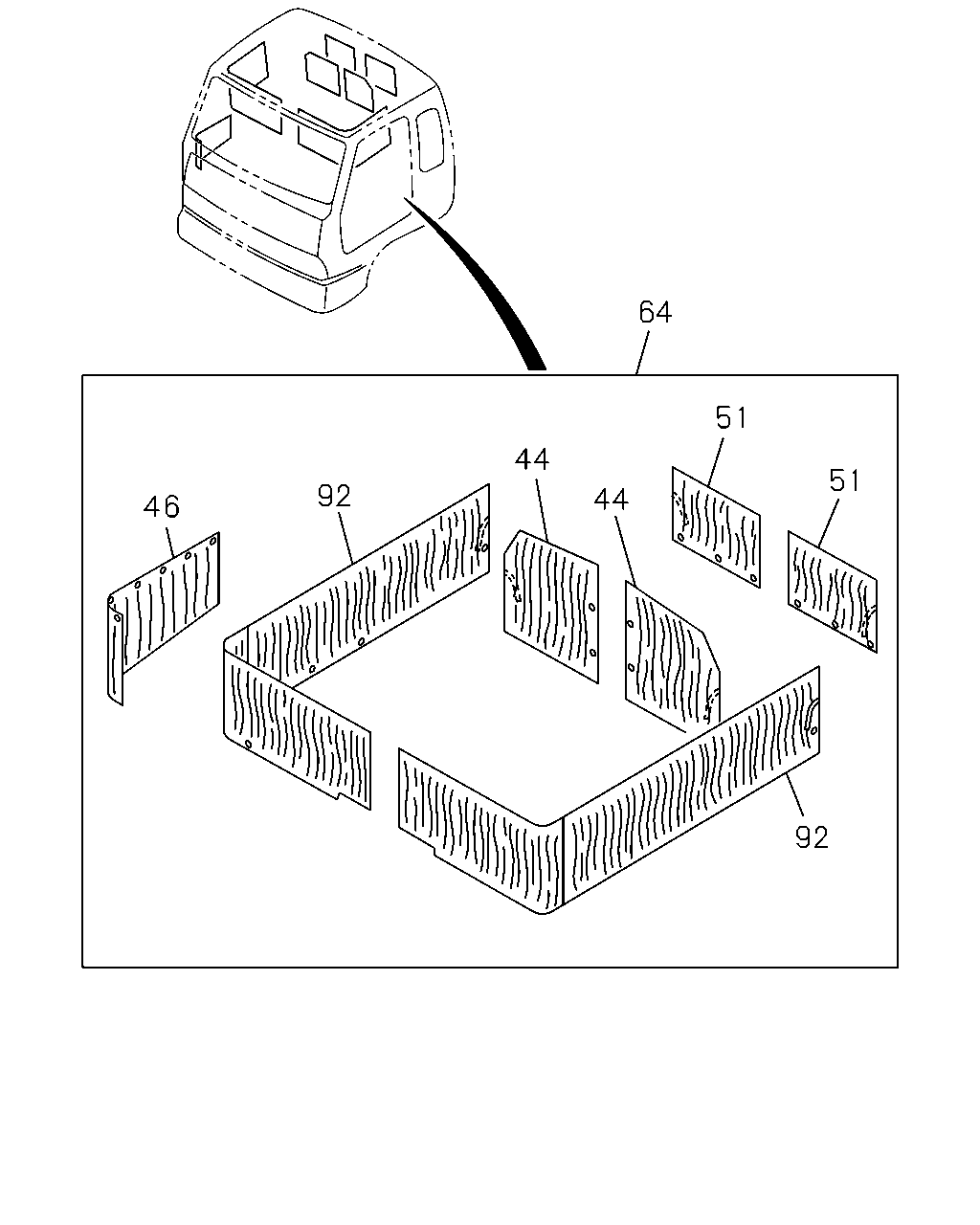

çizim 63475
64 51 44 51 92 44 46 92
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-0 01 1 9510-9603
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-0 01 1 9604-0210
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-0 01 1 9510-9603
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-0 01 1 9604-0210
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-303-0 01 1 9510-9603
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-211-0 01 1 9510-9603
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-212-0 01 1 9510-9603
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73908-205-0 01 1 9510-9603
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-215-0 01 1 9510-9603
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-216-0 01 1 9510-9603

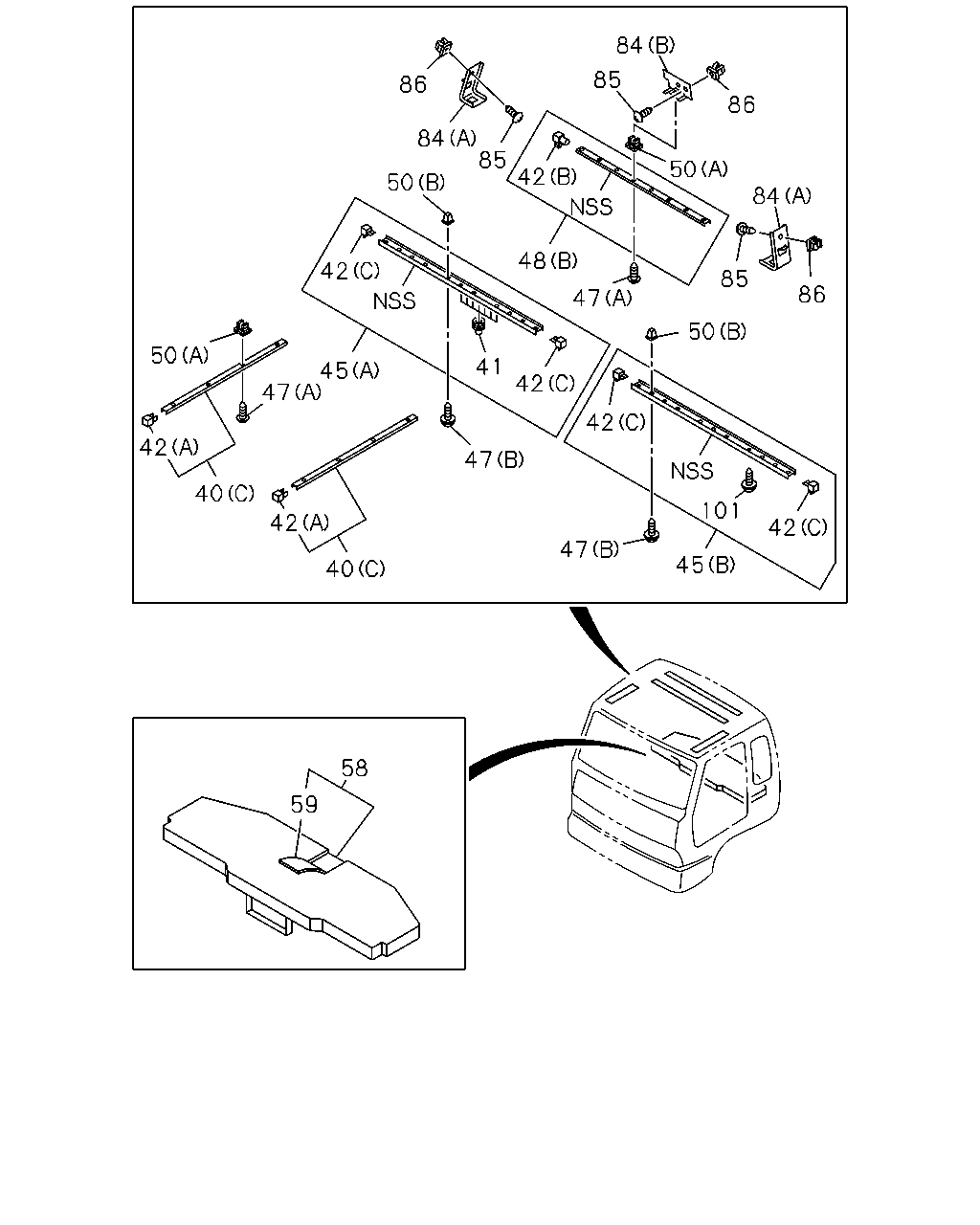

çizim 63506
84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 50 41 45 42 47 42 42 47 40 101 42 42 47 45 40 58 59
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-204-0 02 1 9510-9512
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-219-0 01 1 9601-9603
40 RAIL; CURTAIN,SIDE
(C) 		1-73908-219-0 01 1 9604-0004
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-379-0 01 1 0005-0210
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-220-0 01 1 9601-9603
40 RAIL; CURTAIN,SIDE
(C) 		1-73908-220-0 01 1 9604-0004
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-380-0 01 1 0005-0210
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9510-9603
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-9603
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-0004
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0210
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-9603
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-9603
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-9603
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005-0210
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-150-0 01 1 9604-0004
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-374-1 01 1 0005-0210
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9604-0004
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-0 01 1 0005-0210
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-3 01 1 9510-9603
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9603
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9603
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510-9603
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0210
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9510-9603
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-0210
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9510-9603
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9510-9603
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9604-0004
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-0 01 1 0005-0210
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-0210
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0210
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-226-1 01 1 9510-0003
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-521-0 01 1 0004-0004
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-0 01 1 0005-0210
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-231-0 01 1 9510-0003
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-668-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-0 01 1 0005-0210
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9510-0210
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9510-9603
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9510-9603
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9604-0210
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9803-0004
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0005-0210
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9510-9603
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9510-9603
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9604-9802
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9803-0004
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9803-0004
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0005-0210
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9510-9603
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9510-9603
86 GROMMET; SCREW,BRKT
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9802
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9803-0004
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 9510-9603
101 SCREW; STOPPER 1-73907-400-0 02 1 9604-0210

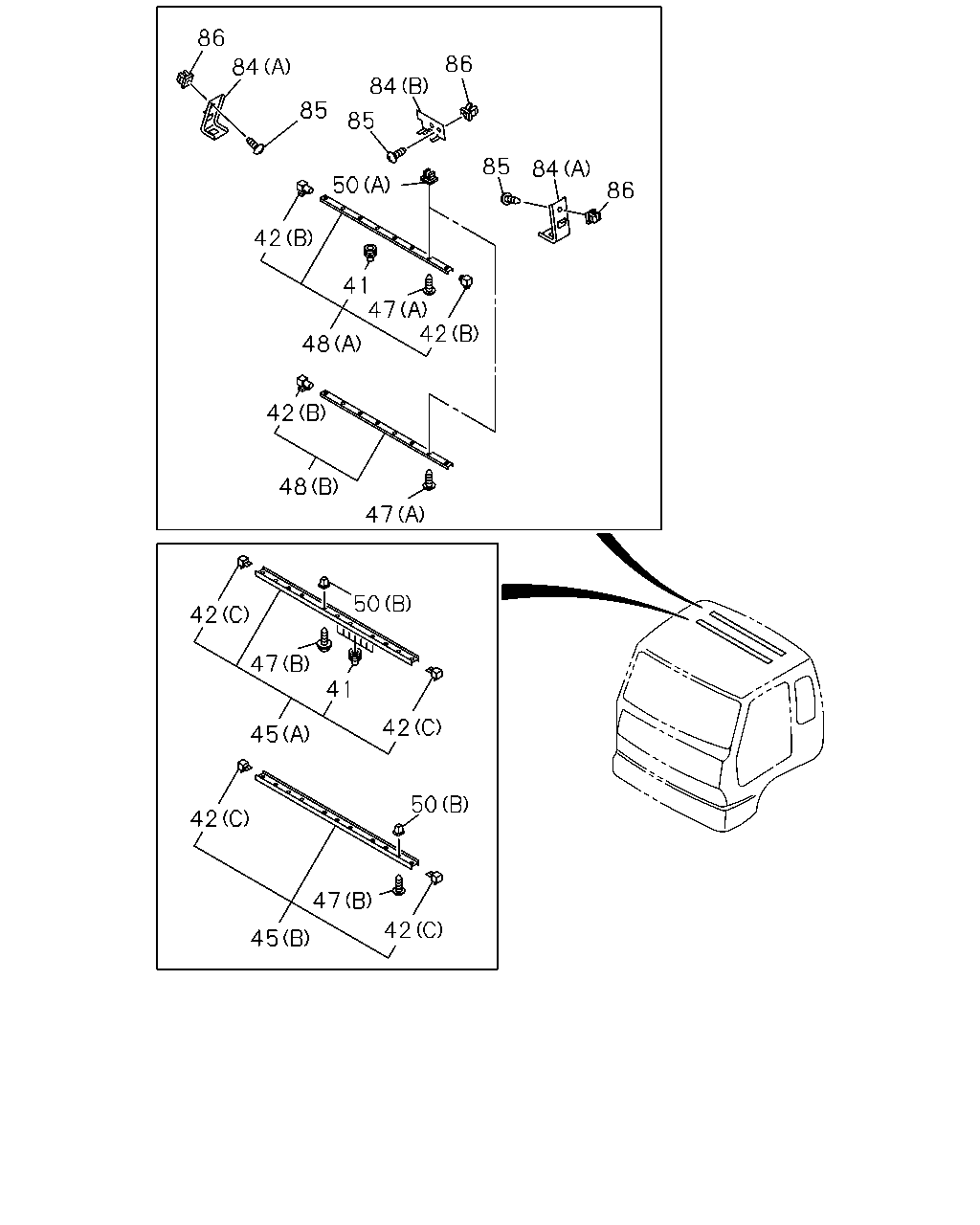

çizim 63910
86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 42 47 41 42 45 50 42 47 42 45
BalonParca AdiParca NoAdetTipApplied Date
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-9603
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-0004
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0210
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-9603
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-9603
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-9603
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005-0210
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-150-0 01 1 9604-0004
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-374-1 01 1 0005-0210
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9510-9603
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9604-0004
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-0 01 1 0005-0210
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-3 01 1 9510-9603
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9603
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9603
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510-9603
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0210
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9510-9603
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-0210
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9510-9603
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9510-9603
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9604-0004
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-0 01 1 0005-0210
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-0210
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0210
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9510-0210
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9510-9603
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9510-9603
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9604-0210
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9803-0004
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0005-0210
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9510-9603
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9510-9603
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9604-9802
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9803-0004
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9803-0004
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0005-0210
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9510-9603
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9510-9603
86 GROMMET; SCREW,BRKT
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9802
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9803-0004

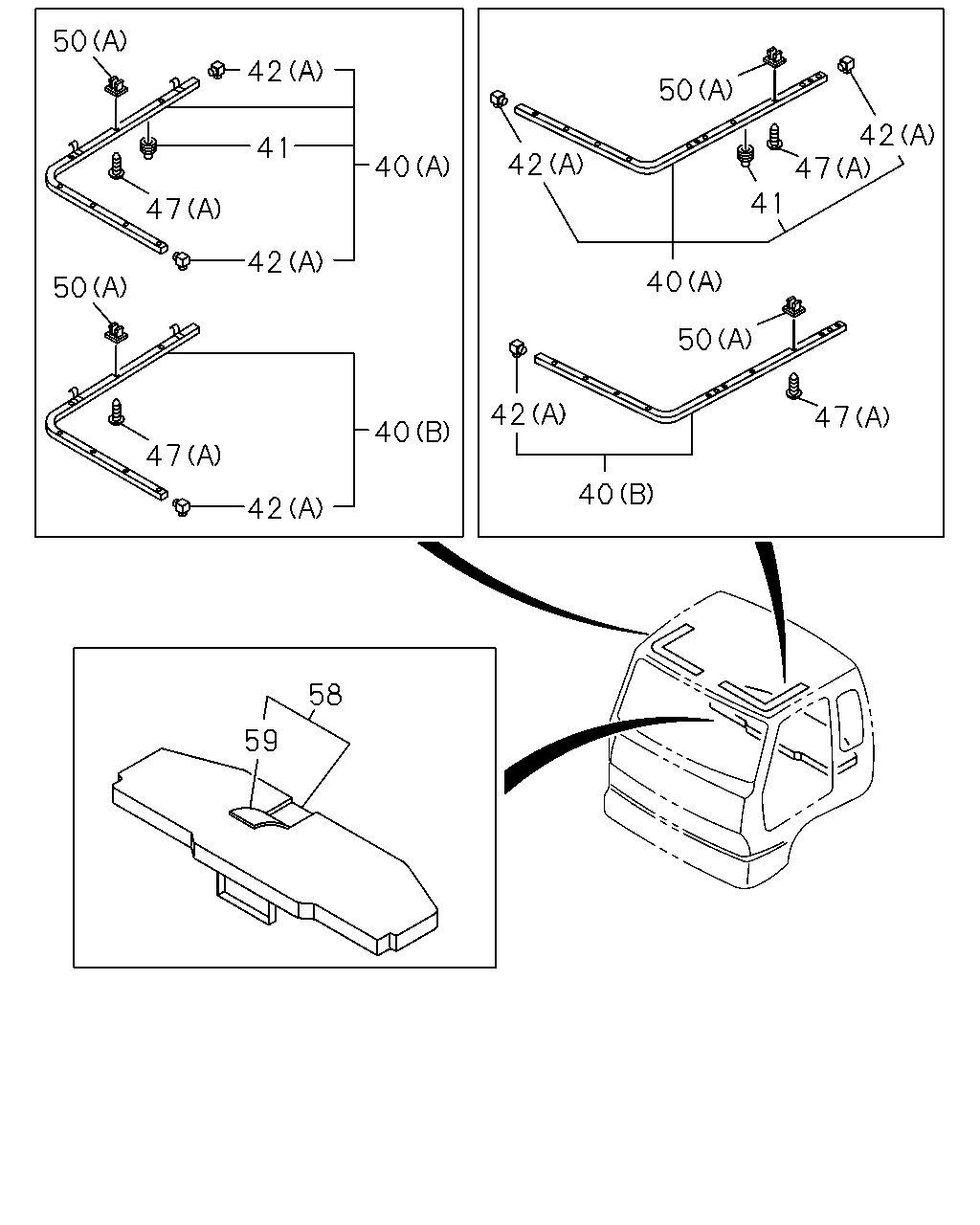

çizim 64536
50 42 50 42 41 42 40 47 41 47 42 40 50 50 42 47 40 47 40 42 58 59
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-204-0 02 1 9510-9512
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-219-0 01 1 9601-9603
40 RAIL; CURTAIN,SIDE
(C) 		1-73908-219-0 01 1 9604-0004
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-379-0 01 1 0005-0210
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (C) 		1-73908-220-0 01 1 9601-9603
40 RAIL; CURTAIN,SIDE
(C) 		1-73908-220-0 01 1 9604-0004
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-380-0 01 1 0005-0210
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9510-9603
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9510-9603
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-9603
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-0004
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0210
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-9603
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-9603
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-9603
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-9603
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0005-0210
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-9603
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005-0210
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9603
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9603
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510-9603
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0210
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9510-9603
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-0210
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-0210
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9603
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0210
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-226-1 01 1 9510-0003
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-521-0 01 1 0004-0004
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-0 01 1 0005-0210
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-231-0 01 1 9510-0003
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-668-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-0 01 1 0005-0210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
