◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-16 - FREE WHEEL HUB ▶
4-16 — FREE WHEEL HUB (#1929) — 21 parça

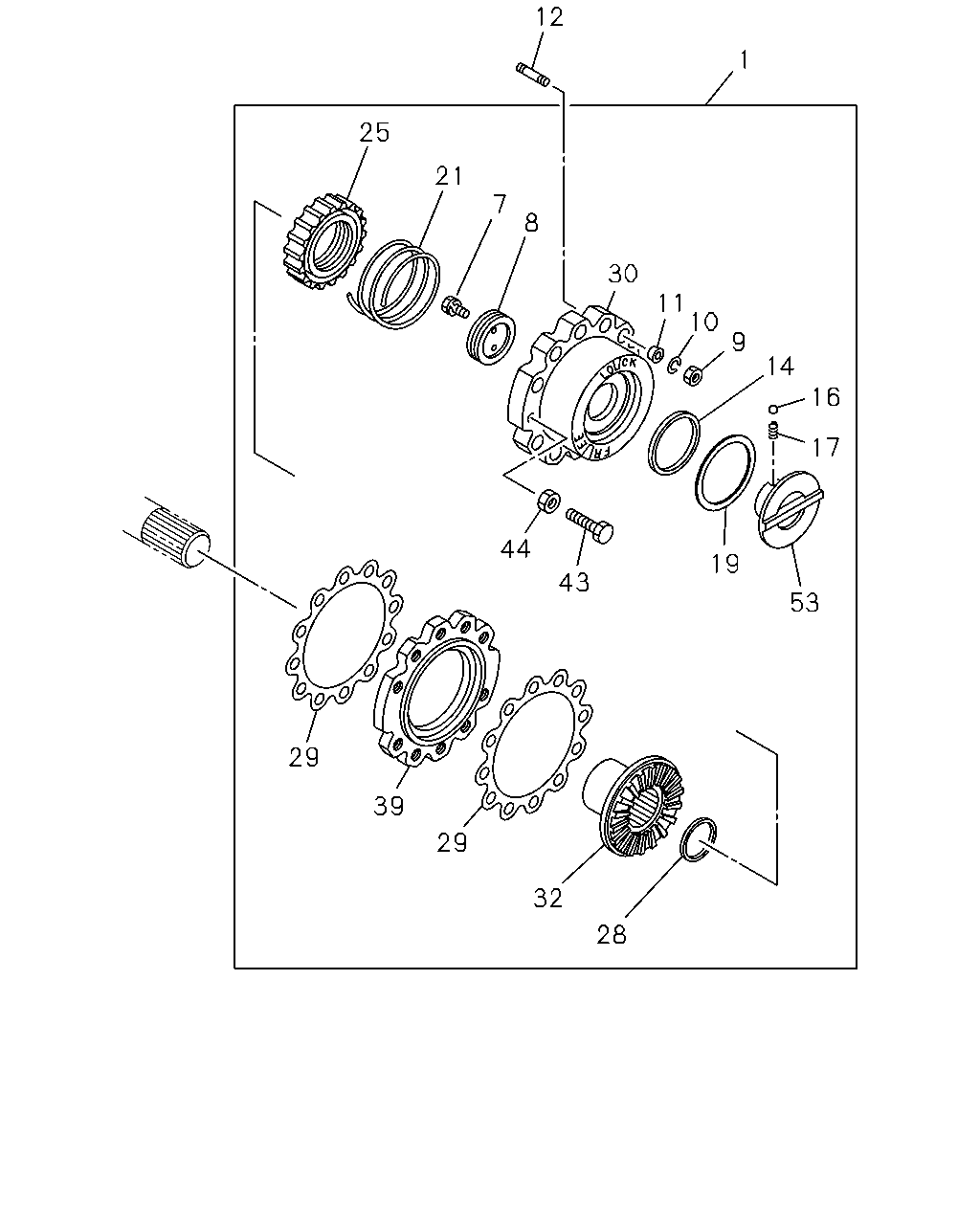

çizim 95758
12 1 25 21 7 8 30 11 10 9 14 16 17 44 19 43 53 29 39 29 32 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HUB ASM; FREE WHEEL
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42310-166-0 02 1 9207- ● ● ● ●
7 BOLT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9207- ● ● ● ●
8 HUB; SCREW,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-011-0 02 1 9207- ● ● ● ●
9 NUT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12 		9-99110-512-0 20 1 9207- ● ● ● ●
10 WASHER; LK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) ID=12.2 		9-09150-612-0 20 1 9207- ● ● ● ●
11 COLLAR; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-42179-016-0 20 1 9207- ● ● ● ●
12 STUD; FRT HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12X63 L=85 		1-09302-008-0 20 1 9207- ● ● ● ●
14 SEAL; OIL,KNOB,HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-09924-555-0 02 1 9207- ● ● ● ●
16 BALL; LOCK,HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-00097-509-0 02 1 9207- ● ● ● ●
17 SPRING; HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-09941-249-0 02 1 9207- ● ● ● ●
19 WASHER; THRUST,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-012-0 02 1 9207- ● ● ● ●
21 SPRING; CLU GEAR
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-013-0 02 1 9207- ● ● ● ●
25 GEAR; CLU,OUTER,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-009-0 02 1 9207- ● ● ● ●
28 PIECE; DIST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-014-0 02 1 9207- ● ● ● ●
29 GASKET; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-42175-011-0 04 1 9207- ● ● ● ●
30 HOUSING; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-019-0 02 1 9207- ● ● ● ●
32 FLANGE; FACE CLU
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-018-0 02 1 9207- ● ● ● ●
39 PLATE; GUIDE,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-017-0 02 1 9207- ● ● ● ●
43 BOLT; HSG PULLER
LOCKING HUB FRT WHEEL DRIVE(W12) M12X30 		0-20801-230-0 04 1 9207- ● ● ● ●
44 NUT; LK,HSG
LOCKING HUB FRT WHEEL DRIVE(W12) M12 		9-99111-412-0 04 1 9207- ● ● ● ●
53 KNOB; HUB LOCK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-015-0 02 1 9207- ● ● ● ●
