Sayfa 7-60 - Isuzu EPC

7-60 — SEAT BELT (#19289) — 37 parça

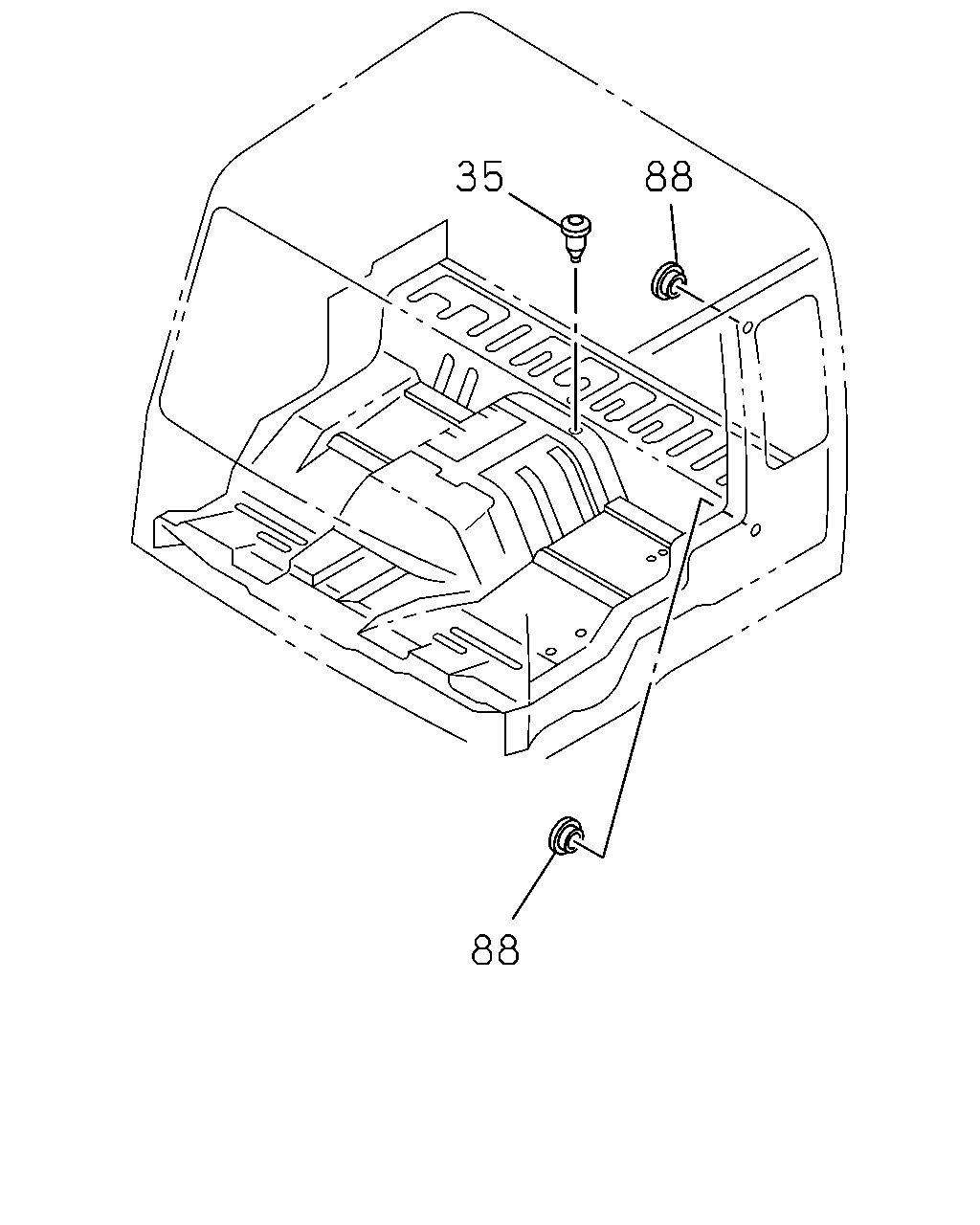

35 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	GROMMET; SEAT BELT ANCHOR EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR2 POINT<W25> OD=22	9-61168-535-0	03	1	9510-0210
35	GROMMET; SEAT BELT ANCHOR FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=22	9-61168-535-0	01	1	9510-0210
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=31.6	8-94198-177-0	01	1	9510-9602
88	PLUG; HOLE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=31.6	8-94198-177-0	02	1	9510-9709
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=31.6	8-94198-177-0	02	1	9710-0210

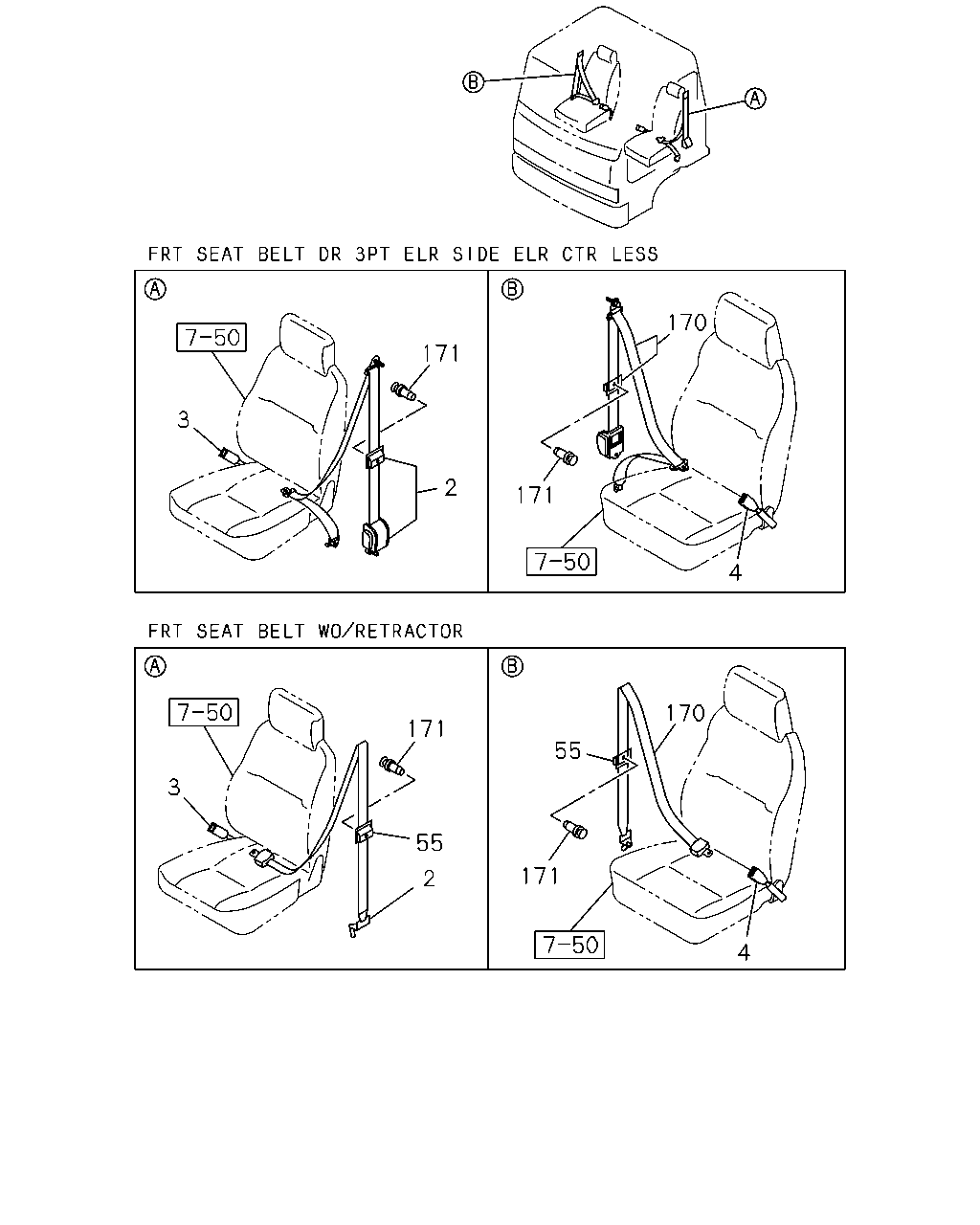

170 171 3 2 171 4 170 171 55 3 55 171 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-514-2	01	1	9510-0004
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-1	01	1	0005-0210
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-2	01	1	9510-0004
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-1	01	1	0005-0210
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-735-2	01	1	9510-0004
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0005-0210
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-797-0	01	1	9510-0004
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-911-0	01	1	0005-0210
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-513-0	02	1	9510-0004
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0005-0210
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-509-2	01	1	9510-0004
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-1	01	1	0005-0210
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-2	01	1	9510-0004
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-1	01	1	0005-0210
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	9510-0210

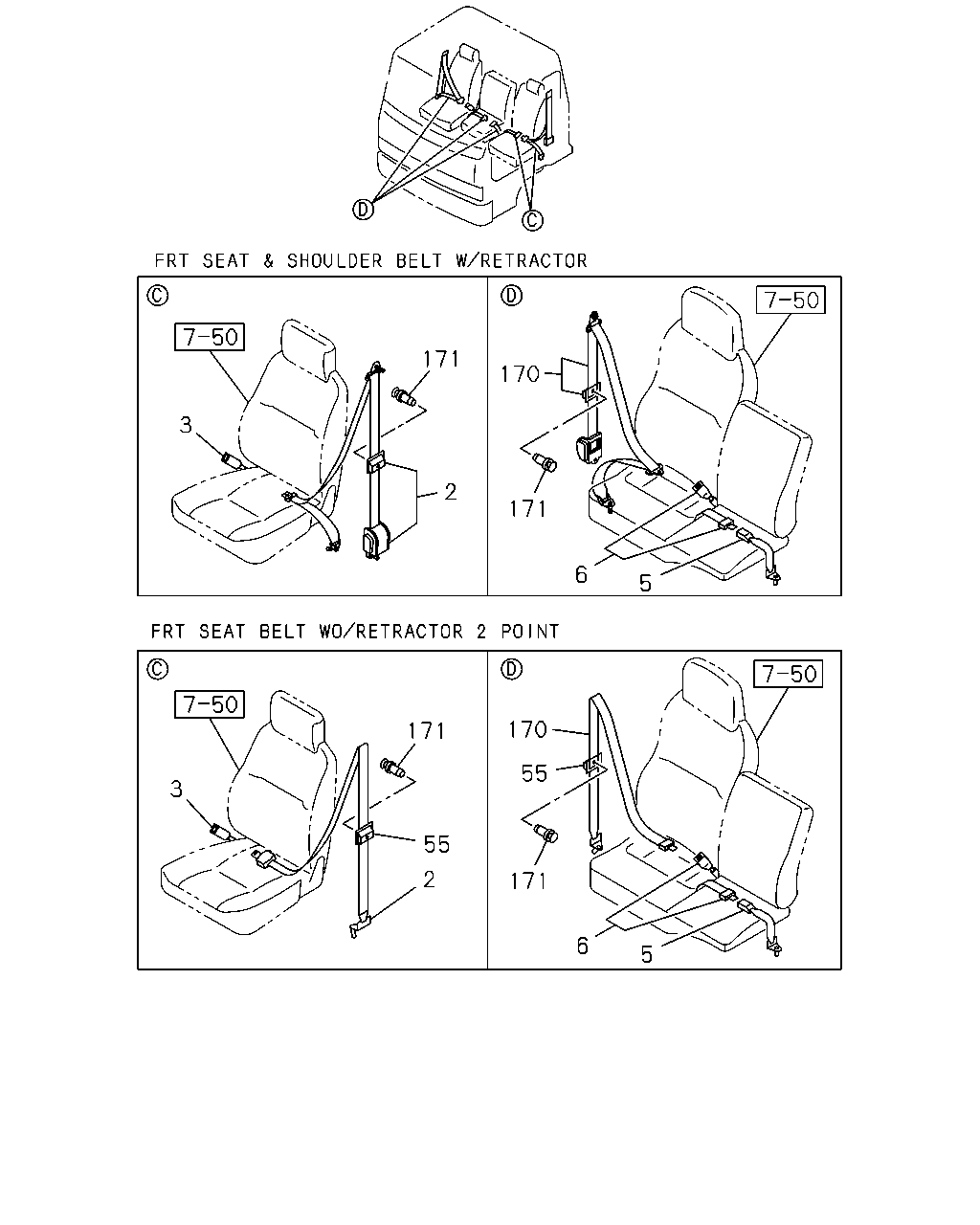

171 170 3 2 171 6 5 170 171 55 3 55 2 171 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-514-2	01	1	9510-0004
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-1	01	1	0005-0210
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-2	01	1	9510-0004
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-1	01	1	0005-0210
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-735-2	01	1	9510-0004
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0005-0210
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-739-0	01	1	9510-0004
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-553-1	01	1	0005-0210
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-511-2	01	1	9510-0004
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-915-1	01	1	0005-0210
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-513-0	02	1	9510-0004
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0005-0210
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75617-509-2	01	1	9510-0004
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-1	01	1	0005-0210
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-2	01	1	9510-0004
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-1	01	1	0005-0210
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	9510-0210
