Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#19288) — 468 parça

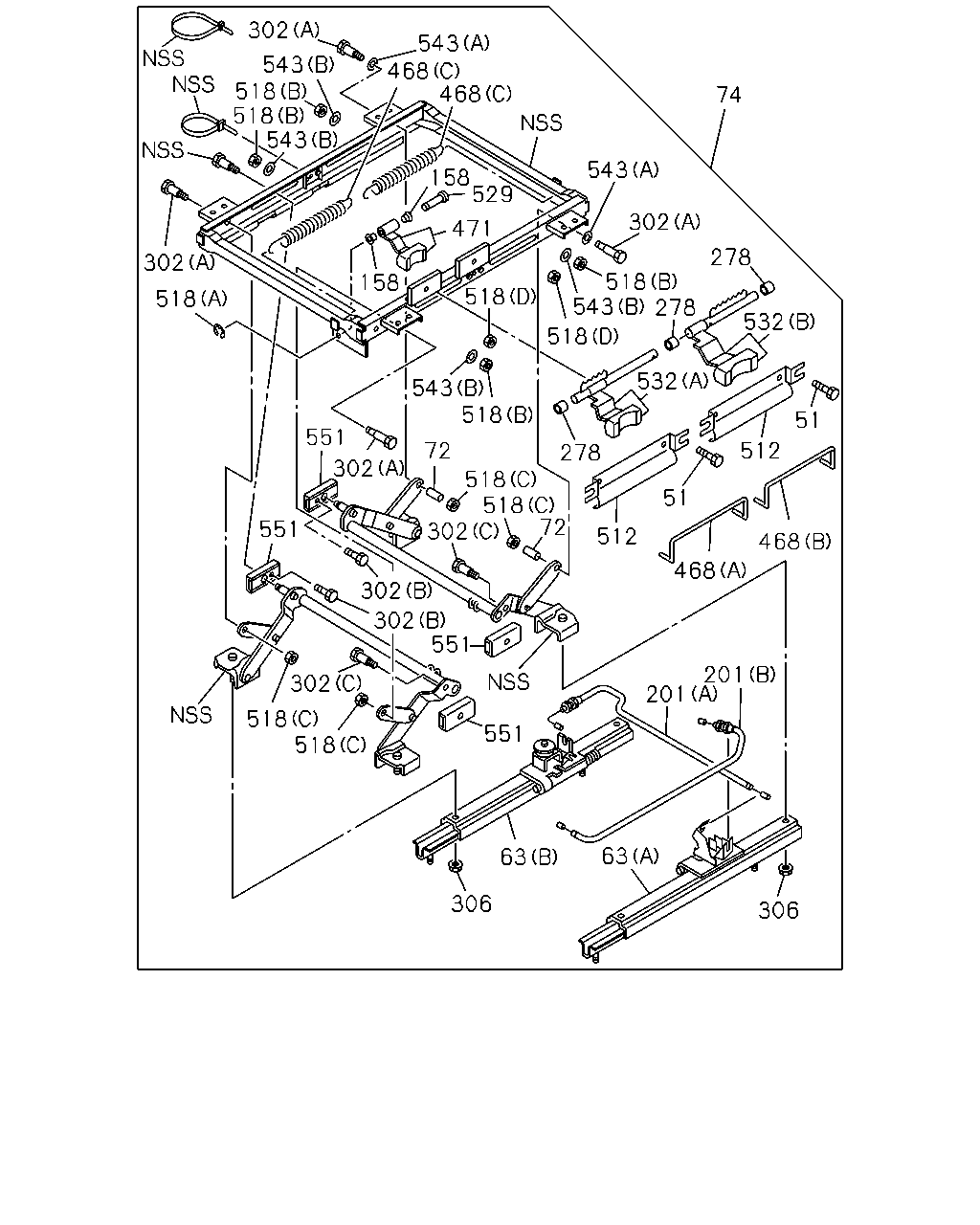

302 543 468 468 543 518 518 543 74 158 529 543 302 471 278 302 518 158 518 518 532 518 543 518 532 51 278 551 72 512 302 518 518 72 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306 543 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	9510-9603
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9510-9705
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-0210
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9510-0210
72	SPACER; SEAT ADJ DELUXE CAB(W14)	1-75518-269-0	02	1	9603-9603
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9510-9602
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-0	01	1	9603-9603
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9510-0210
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9510-9705
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-0210
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9510-9705
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-0210
278	COLLAR; FRT SEAT DELUXE CAB(W14)	1-75518-244-0	03	1	9510-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-236-0	04	1	9510-9602
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-270-0	04	1	9603-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (C)	1-75518-266-0	02	1	9603-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (B)	1-75518-271-0	02	1	9603-9603
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9510-0003
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0210
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (D)	1-75538-132-0	01	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (D)	1-75538-132-0	01	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9604-0210
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9510-9705
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0210
512	COVER; LEVER DELUXE CAB(W14)	1-75518-245-0	02	1	9510-9603
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-0210
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (B)	1-75518-264-0	04	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8 FLANGE	8-94152-886-0	04	1	9603-9603
529	PIN; LINK	1-75518-262-0	01	1	9706-0210
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9603
532	LEVER ASM; TILT DELUXE CAB(W14) (A)	1-75518-221-0	01	1	9510-9603
532	LEVER ASM; TILT DELUXE CAB(W14) (B)	1-75518-222-1	01	1	9510-9603
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (A) ID=10.5	9-09164-510-0	02	1	9510-9603
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (B) ID=6.4	9-09160-506-0	04	1	9603-9603
551	SLIDER; HEIGHT ADJ DELUXE CAB(W14)	1-75518-265-0	04	1	9603-9603

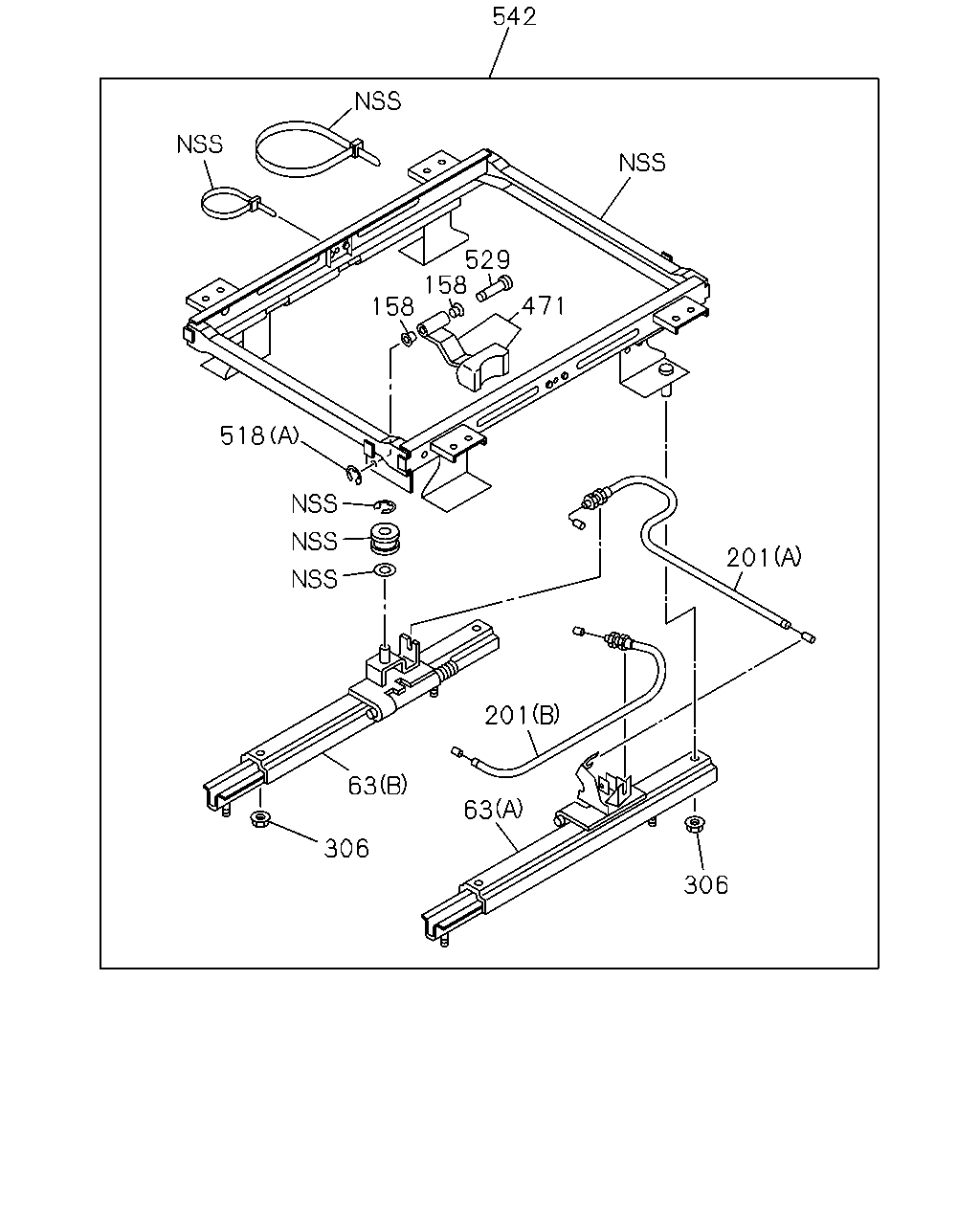

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9510-9705
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-0210
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9510-0210
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9510-0210
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9510-9705
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-0210
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9510-9705
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-0210
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9510-0003
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0210
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9510-9705
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0210
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-0210
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (B)	1-75518-264-0	04	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8 FLANGE	8-94152-886-0	04	1	9603-9603
529	PIN; LINK	1-75518-262-0	01	1	9706-0210
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9603
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE	1-75518-189-2	01	1	9604-9705
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-1	01	1	9706-0004
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-1	01	1	0005-0210

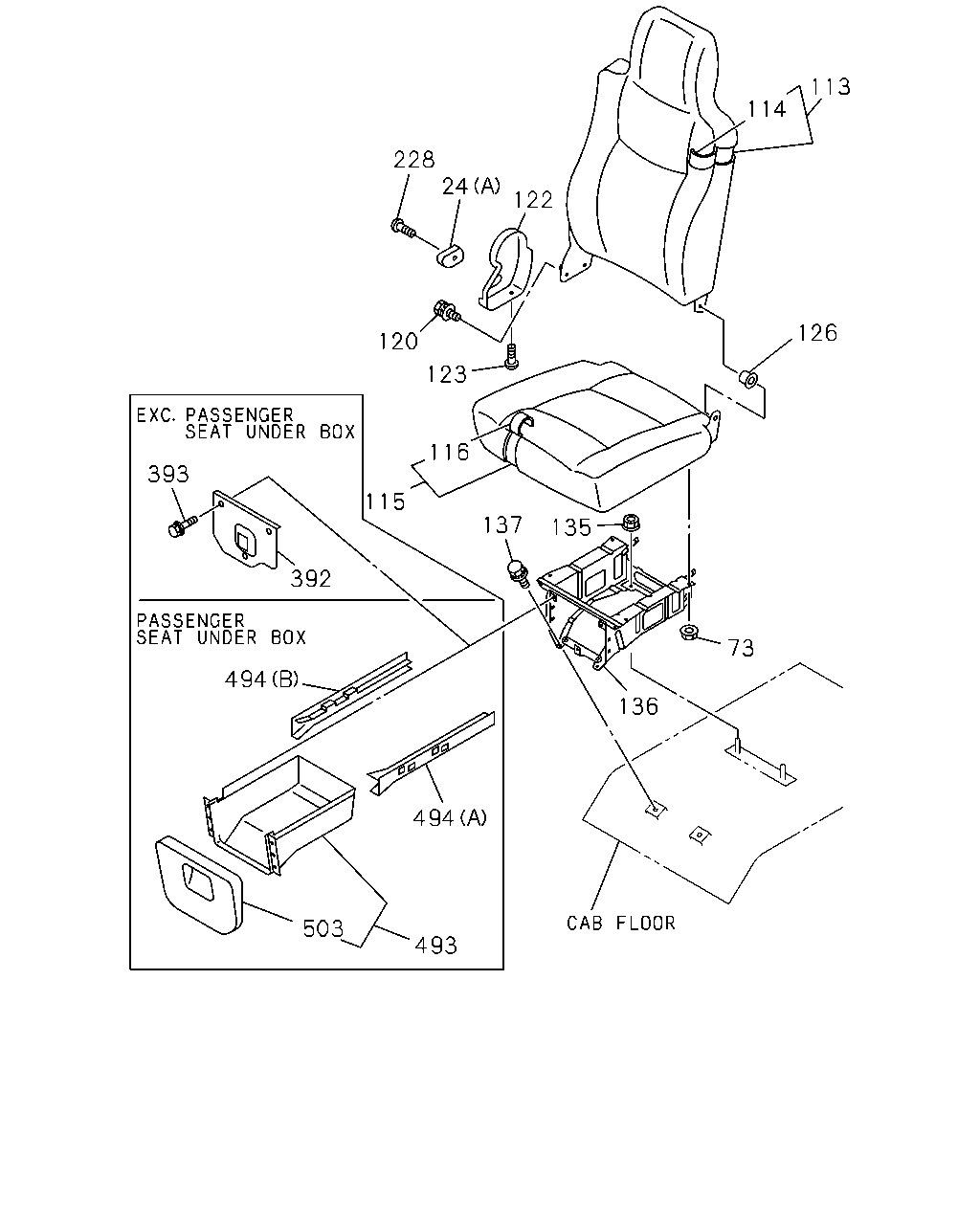

113 114 228 24 122 126 120 123 116 393 115 137 135 392 73 494 136 494 503 493

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0210
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0005-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0210
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-586-1	01	1	9510-9802
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-998-0	01	1	9803-0003
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-712-0	01	1	0004-0004
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-723-0	01	1	0005-0105
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-1	01	1	0106-0210
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-618-1	01	1	9510-9610
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-590-2	01	1	9611-0003
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-721-0	01	1	0004-0004
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0005-0105
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-1	01	1	0106-0210
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-256-0	01	1	9510-9802
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-373-0	01	1	9803-0003
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-587-0	01	1	0004-0004
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-0	01	1	0005-0210
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-274-1	01	1	9510-9610
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-277-2	01	1	9611-0003
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-600-0	01	1	0004-0004
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-0	01	1	0005-0210
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-583-2	01	1	9510-9802
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-024-0	01	1	9803-0003
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-682-0	01	1	0004-0004
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-0	01	1	0005-0210
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-620-2	01	1	9510-9610
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-531-2	01	1	9611-0003
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-771-0	01	1	0004-0004
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-0	01	1	0005-0210
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75117-841-1	01	1	9510-9802
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-378-0	01	1	9803-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-550-0	01	1	0004-0004
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-0	01	1	0005-0210
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-275-2	01	1	9510-9610
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-225-1	01	1	9611-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-575-0	01	1	0004-0004
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-0	01	1	0005-0210
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9510-0003
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-0210
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9510-0004
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0005-0210
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-0210
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9510-0210
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9510-0210
136	STAND; PASSENGER SEAT	1-75558-547-1	01	1	9510-9610
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	9611-0004
136	STAND; PASSENGER SEAT	1-75558-582-1	01	1	0005-0005
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0006-0105
136	STAND; PASSENGER SEAT	1-75558-587-0	01	1	0106-0210
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0210
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	9611-0210
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9611-0210
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN>	1-72537-130-1	01	1	9510-9603
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A)	1-72537-149-0	01	1	9510-9603
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B)	1-72537-150-0	01	1	9510-9603
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN>	1-72537-136-0	01	1	9510-9603

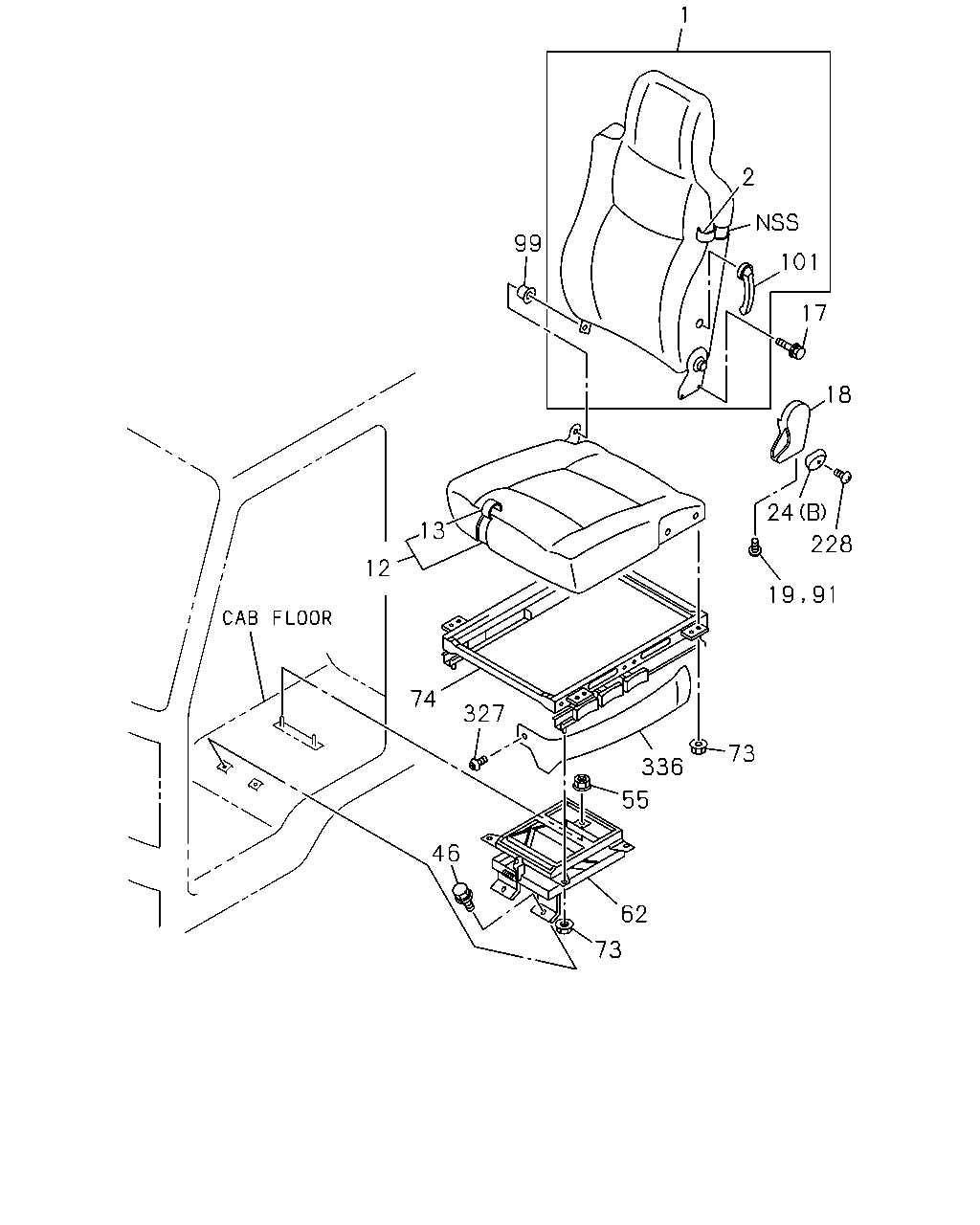

1 2 99 101 17 18 24 13 228 12 74 327 73 336 55 46 62 73 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-625-1	01	1	9510-9603
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-625-1	01	1	9604-9802
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9803-0003
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-1	01	1	0106-0210
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-0	01	1	9510-9603
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-1	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9604-0003
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-1	01	1	0106-0210
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75116-279-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-279-0	01	1	9604-9611
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9802
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9803-0003
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-0	01	1	0005-0210
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9604-0003
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-0	01	1	0005-0210
12	CUSHION; SEAT,FRT DELUXE CAB(W14)	1-75028-600-0	01	1	9510-9603
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-600-0	01	1	9510-9603
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9604-9802
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9803-0003
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-0	01	1	0005-0210
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-1	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9604-0003
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-0	01	1	0005-0210
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE CAB(W14)	1-75117-842-0	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75117-842-0	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9604-9802
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9803-0003
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-0	01	1	0005-0210
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-272-2	01	1	9604-9705
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9706-0003
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-0	01	1	0005-0210
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9510-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0210
18	COVER; RECLINING	1-75418-052-0	01	1	9510-0004
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0210
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-0210
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0210
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0005-0210
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0210
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9510-0210
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9604-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-3	01	1	9812-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0210
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9510-9602
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-0	01	1	9603-9603
91	SCREW; SEAT ADJ COVER DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9510-9603
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9510-0210
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	5-75190-138-0	01	1	9510-9603
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	0005-0201
327	CLIP; COVER DELUXE CAB(W14)	1-09987-249-0	01	1	9510-9603
336	COVER; DRIVER SEAT DELUXE CAB(W14)	1-75518-194-2	01	1	9510-9603

1 2 99 17 18 24 228 13 19 12 73 542 55 55 46 46 42 62 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-625-1	01	1	9510-9603
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-625-1	01	1	9604-9802
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9803-0003
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-1	01	1	0106-0210
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-0	01	1	9510-9603
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-1	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9604-0003
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-1	01	1	0106-0210
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75116-279-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-279-0	01	1	9604-9611
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9802
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9803-0003
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-0	01	1	0005-0210
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9604-0003
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-0	01	1	0005-0210
12	CUSHION; SEAT,FRT DELUXE CAB(W14)	1-75028-600-0	01	1	9510-9603
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-600-0	01	1	9510-9603
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9604-9802
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9803-0003
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-0	01	1	0005-0210
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-1	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9604-0003
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-0	01	1	0005-0210
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE CAB(W14)	1-75117-842-0	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75117-842-0	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9604-9802
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9803-0003
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-0	01	1	0005-0210
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-272-2	01	1	9604-9705
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9706-0003
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-0	01	1	0005-0210
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9510-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0210
18	COVER; RECLINING	1-75418-052-0	01	1	9510-0004
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0210
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-0210
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0210
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0005-0210
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-491-4	01	1	9510-0003
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-0	01	1	0004-0210
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0210
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9510-0210
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9604-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-3	01	1	9812-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0210
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0210
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9510-0210
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9510-0210
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE	1-75518-189-2	01	1	9604-9705
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-1	01	1	9706-0004
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-1	01	1	0005-0210

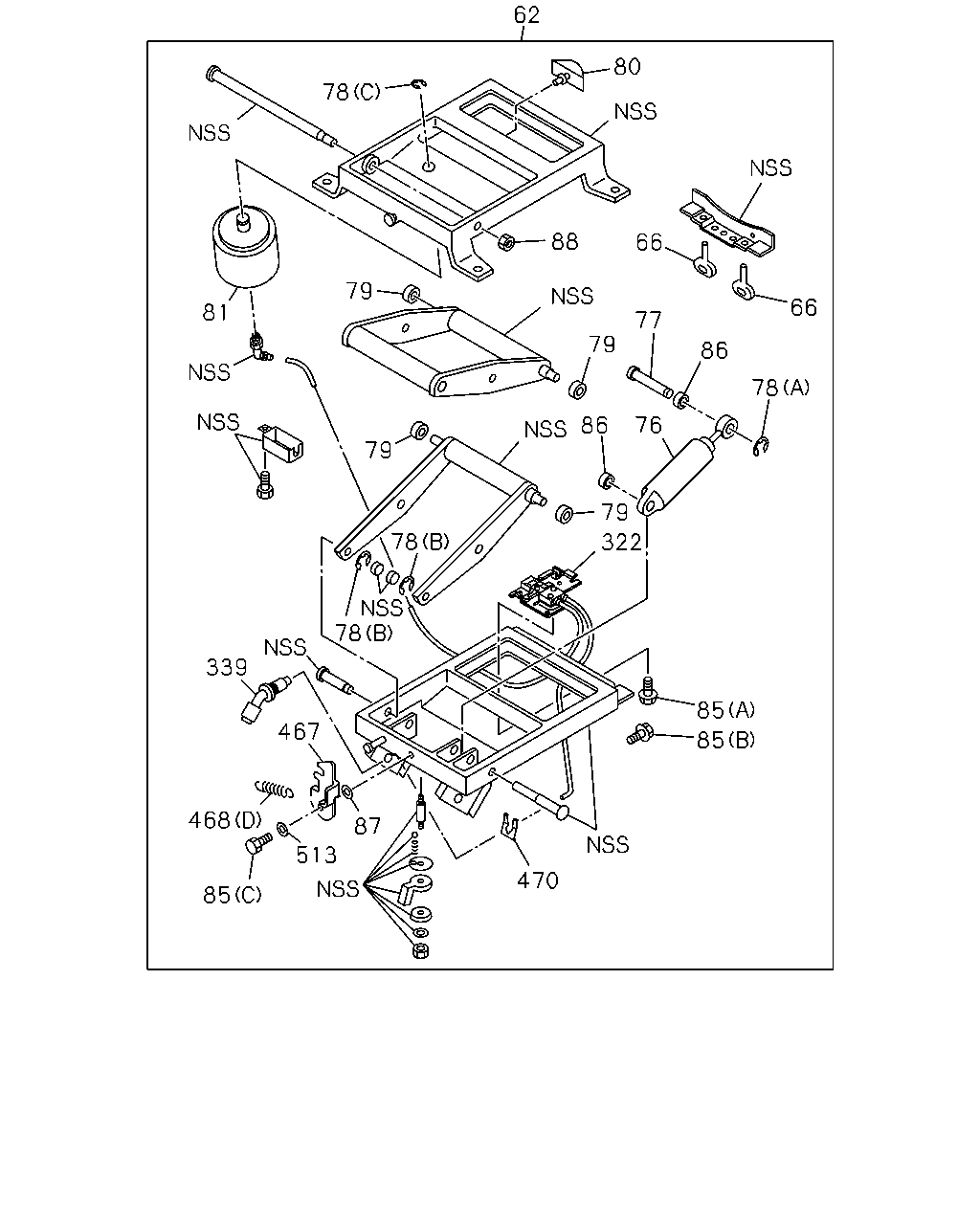

62 80 78 88 66 79 66 81 77 79 86 78 86 76 79 79 78 322 78 339 85 467 85 468 87 513 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-158-0	01	1	9603-9603
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9604-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-3	01	1	9812-0210
66	RUBBER; LWR STOPPER DELUXE CAB(W14)	1-75538-145-0	02	1	9510-9603
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-145-0	02	1	9510-9603
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	9604-0210
76	DAMPER; AIR SUSP DELUXE CAB(W14)	1-75538-139-0	01	1	9510-9603
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-139-0	01	1	9510-9603
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	9604-0210
77	PIN; DAMPER DELUXE CAB(W14)	1-75538-138-2	01	1	9510-9603
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-138-2	01	1	9510-9603
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	9604-0210
78	RING; SNAP DELUXE CAB(W14) (A) ID=8	9-09185-408-0	01	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A) ID=8	9-09185-408-0	01	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	9604-0210
78	RING; SNAP DELUXE CAB(W14) (B) ID=10	9-09185-410-0	02	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B) ID=10	9-09185-410-0	02	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	9604-0210
78	RING; SNAP DELUXE CAB(W14) (C) ID=15	9-09185-415-0	01	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (C) ID=15	9-09185-415-0	01	1	9510-9603
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	9604-0210
79	ROLLER ASM; AIR SUSP DELUXE CAB(W14)	1-75538-155-0	04	1	9510-9602
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-155-0	04	1	9510-9602
79	ROLLER ASM; AIR SUSP DELUXE CAB(W14)	1-75538-159-0	04	1	9603-9603
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-159-0	04	1	9603-9603
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	9604-0210
80	RUBBER; STOPPER DELUXE CAB(W14)	1-09987-123-0	01	1	9510-9603
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-09987-123-0	01	1	9510-9603
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	9604-0210
81	SPRING; AIR DELUXE CAB(W14)	1-75538-151-1	01	1	9510-9603
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-151-1	01	1	9510-9603
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-1	01	1	9604-0210
85	BOLT; AIR SUSP DELUXE CAB(W14) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9604-0102
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A)	1-75538-208-0	02	1	0103-0210
85	BOLT; AIR SUSP DELUXE CAB(W14) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9604-0003
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-0210
85	BOLT; AIR SUSP DELUXE CAB(W14) (C)	1-09980-577-0	01	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (C)	1-09980-577-0	01	1	9510-9603
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-0	01	1	9604-0210
86	BUSHING; GUIDE DELUXE CAB(W14) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9510-9603
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9510-9603
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9604-0210
87	WASHER; AIR SUSP DELUXE CAB(W14) ID=8.2	9-09150-508-0	01	1	9510-9603
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) ID=8.2	9-09150-508-0	01	1	9510-9603
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	9604-0210
88	NUT; AIR SUSP DELUXE CAB(W14) M10	8-94279-519-0	01	1	9510-9603
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M10	8-94279-519-0	01	1	9510-9603
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	8-94279-519-0	01	1	9604-0003
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75537-273-1	01	1	0004-0210
322	VALVE; AIR SPRING DELUXE CAB(W14)	1-75538-148-1	01	1	9510-9603
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-148-1	01	1	9510-9603
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-148-1	01	1	9604-9804
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-2	01	1	9805-0210
339	UNION; DRIVER SEAT DELUXE CAB(W14)	1-75538-131-0	01	1	9510-9603
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-131-0	01	1	9510-9603
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-1	01	1	9604-0210
467	LEVER; LOCK DELUXE CAB(W14)	1-75538-134-0	01	1	9510-9603
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-134-0	01	1	9510-9603
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	9604-0210
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (D)	1-75538-132-0	01	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (D)	1-75538-132-0	01	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9604-0210
470	CLIP; HOSE DELUXE CAB(W14)	1-75538-137-0	01	1	9510-9603
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-137-0	01	1	9510-9603
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	9604-0210
513	SPACER; LEVER DELUXE CAB(W14)	1-75538-133-0	01	1	9510-9603
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75538-133-0	01	1	9510-9603
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	9604-0210

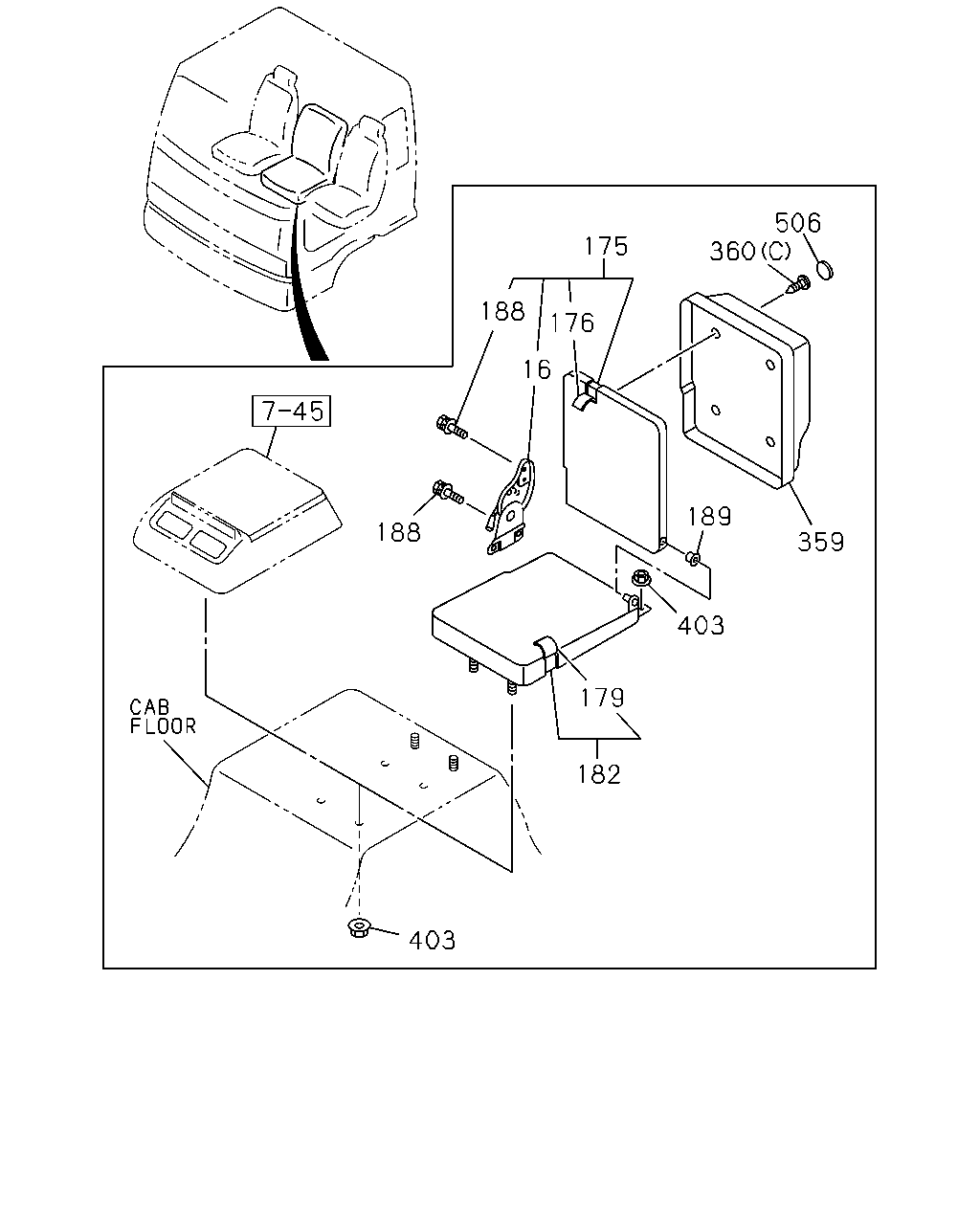

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-057-1	01	1	9510-9802
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1>	1-75418-057-1	01	1	9803-9806
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75418-057-1	01	1	9807-0003
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1>	1-75418-062-0	01	1	0004-0004
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-062-0	01	1	0005-0210
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-061-0	01	1	9807-0003
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75418-061-0	01	1	0005-0210
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-592-1	01	1	9510-9605
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-924-0	01	1	9606-9802
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-924-0	01	1	9803-9806
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-861-0	01	1	9807-0003
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-850-0	01	1	0004-0004
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-0	01	1	0005-0210
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-587-1	01	1	9510-9605
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-925-0	01	1	9606-9802
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75028-925-0	01	1	9803-0003
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75207-253-0	01	1	0004-0004
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-856-0	01	1	0005-0210
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-257-0	01	1	9510-9802
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-257-0	01	1	9803-9806
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-423-0	01	1	9807-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-646-0	01	1	0004-0004
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-0	01	1	0005-0210
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-258-1	01	1	9510-9802
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-258-1	01	1	9803-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-641-0	01	1	0004-0004
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-710-0	01	1	0005-0210
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-250-1	01	1	9510-9802
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-250-1	01	1	9803-9806
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-450-0	01	1	9807-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-635-0	01	1	0004-0004
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-0	01	1	0005-0210
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-223-1	01	1	9510-9802
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-223-1	01	1	9803-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-629-0	01	1	0004-0004
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-692-0	01	1	0005-0210
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-589-1	01	1	9510-9802
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-589-1	01	1	9803-9806
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-186-0	01	1	9807-0003
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-837-0	01	1	0004-0004
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-0	01	1	0005-0210
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-533-2	01	1	9510-9802
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75028-533-2	01	1	9803-0003
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-831-0	01	1	0004-0004
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-841-0	01	1	0005-0210
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE	1-75198-053-0	04	1	9510-9802
188	BOLT; BACK TO CUSHION CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE	1-75198-053-0	04	1	9803-0210
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-97854-900-0	01	1	9510-9802
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT 3 CREWS<SA1>	8-97854-900-0	01	1	9803-0210
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	9510-9802
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	9803-0004
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	0005-0210
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0005-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9803-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	9803-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9803-0004
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0210
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0005-0210
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-504-1	04	1	9510-9806
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-518-0	04	1	9807-0210
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-163-0	04	1	9510-9510
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-164-0	04	1	9511-9802
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-164-0	04	1	9803-0004
506	CAP; PARCEL BOX VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-09983-164-0	04	1	0005-0210
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-09983-180-0	04	1	0005-0210

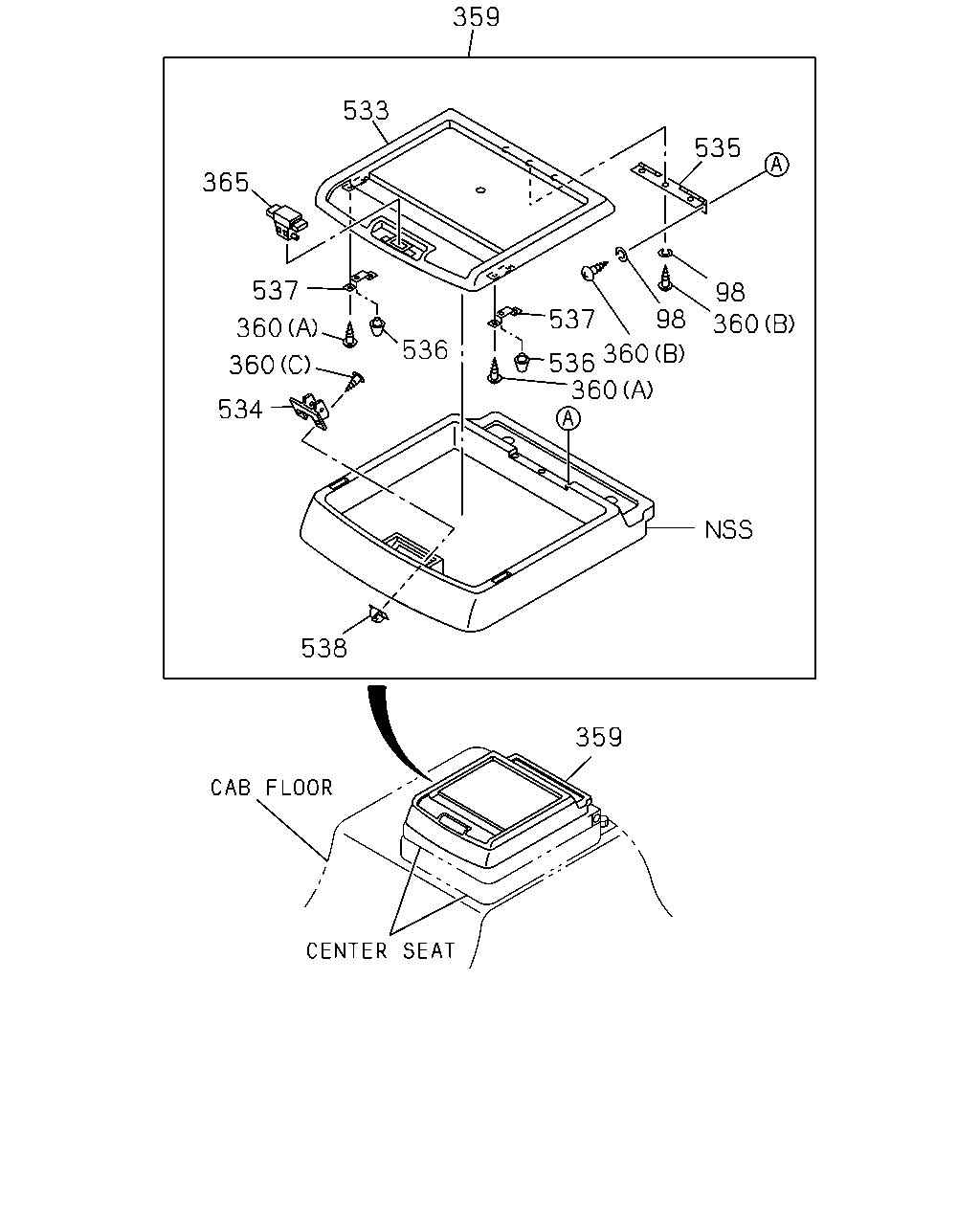

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9510-9802
98	WASHER; HINGE CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9803-0004
98	WASHER; HINGE VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0210
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	9510-9802
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	9803-0004
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	0005-0210
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0005-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9803-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	9803-0210
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9510-9802
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9803-0004
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0210
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0005-0210
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-180-0	01	1	9510-9802
365	LOCK ASM; SEAT CENTER SEAT 3 CREWS<SA1>	1-72538-180-0	01	1	9803-0210
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-194-2	01	1	9510-9802
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72538-194-2	01	1	9803-0210
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-181-0	01	1	9510-9802
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72538-181-0	01	1	9803-0210
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72447-391-1	01	1	9510-9802
535	HINGE; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72447-391-1	01	1	9803-0210
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9>	5-09983-002-1	02	1	9510-9802
536	RUBBER; CUSHION CENTER SEAT 3 CREWS<SA1>	5-09983-002-1	02	1	9803-0210
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72548-057-1	02	1	9510-9802
537	BRACKET; RUBBER CENTER SEAT 3 CREWS<SA1>	1-72548-057-1	02	1	9803-0210
538	GROMMET; SCREW EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-165-0	02	1	9510-9802
538	GROMMET; SCREW CENTER SEAT 3 CREWS<SA1>	1-09983-165-0	02	1	9803-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
