Sayfa 7-45 - Isuzu EPC

7-45 — CONSOLE BOX (#19287) — 36 parça

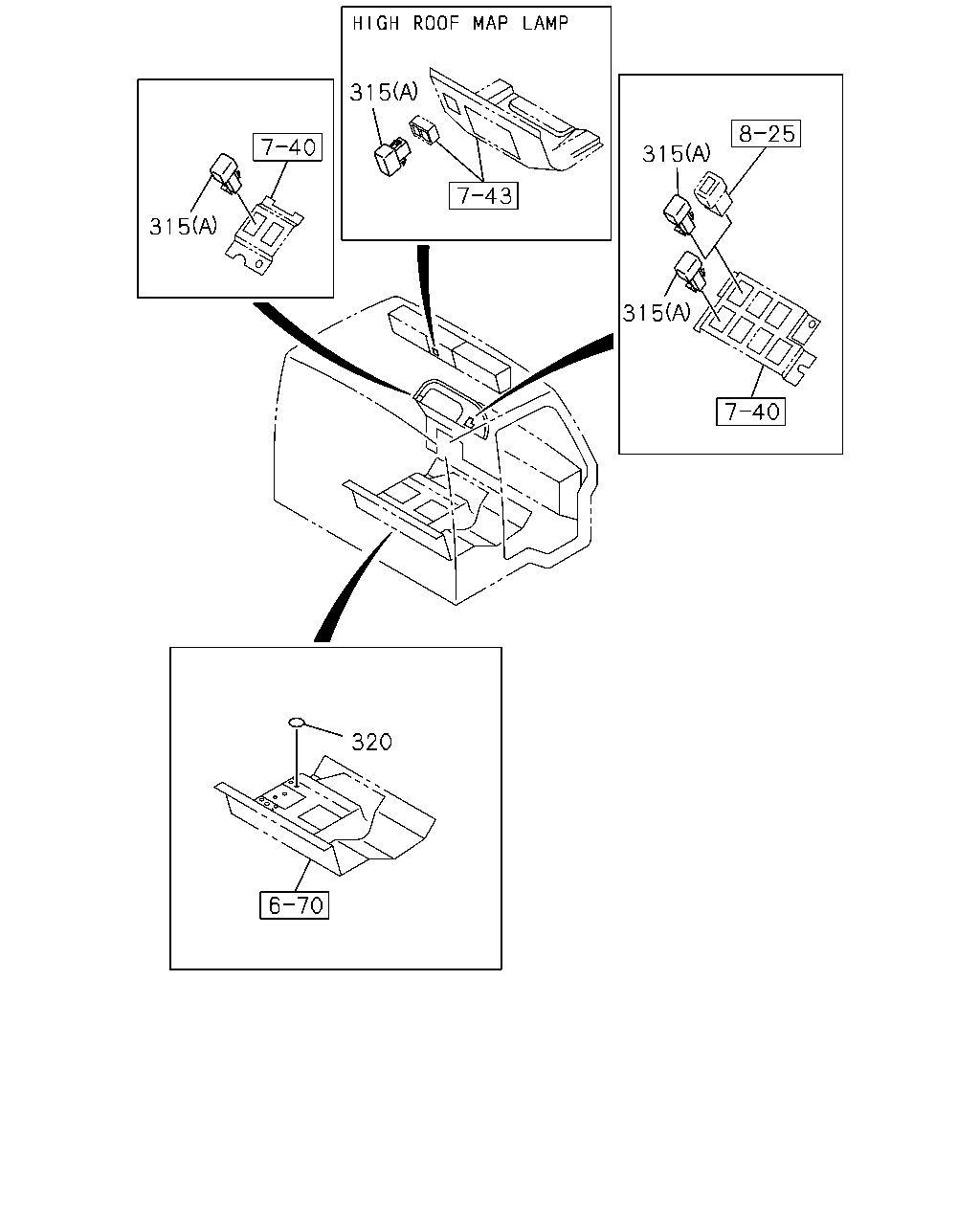

315 315 315 315 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	9510-0210
315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	9510-0210
320	SEAL; HOLE,TRAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	03	1	9510-0210
320	SEAL; HOLE,TRAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	04	1	9510-0210

307 315 306 242 100 317 316 315 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	RUBBER; CONSOLE,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-161-3	01	1	9510-0004
100	RUBBER; CONSOLE,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97535-034-0	01	1	0005-0210
242	TRAY ASM; CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-198-2	01	1	9510-0004
242	TRAY ASM; CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97535-131-0	01	1	0005-0210
306	SCREW; TRAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER	8-94279-404-0	03	1	9510-0202
306	SCREW; TRAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	0203-0210
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	02	1	9510-9603
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-166-0	02	1	9510-9603
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	02	1	9604-0004
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	02	1	0005-0210
315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	9510-0210
315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	9510-0210
316	BOX; COIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94482-280-2	02	1	9803-0210
317	CONSENT	1-82523-020-2	01	1	9510-0210

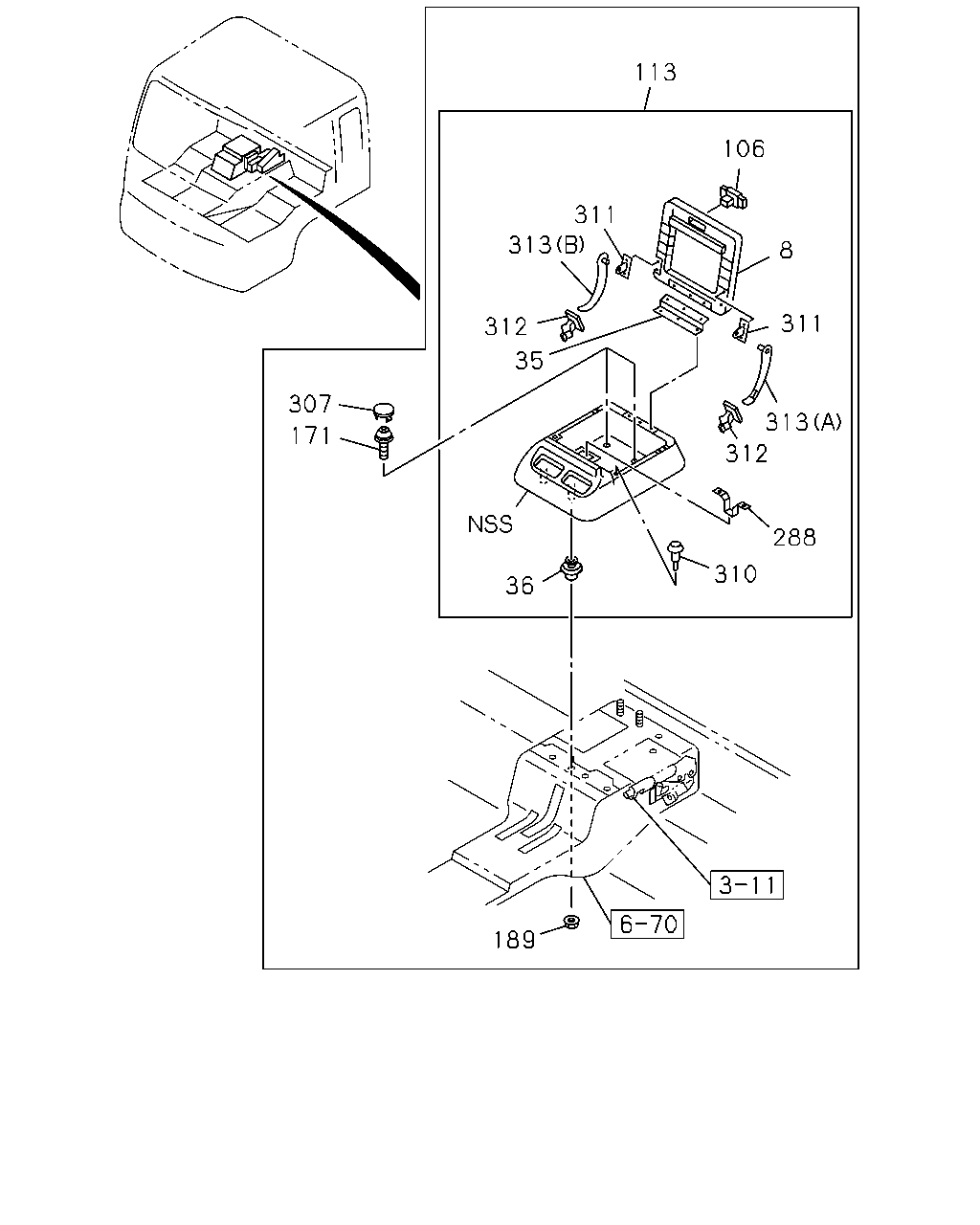

113 106 311 313 8 311 312 35 307 313 171 312 288 310 36 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-179-3	01	1	9510-9603
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-182-1	02	1	9510-9603
36	FASTENER; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-09984-190-0	02	1	9602-9603
106	LOCK; CONSOLE LID CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-180-0	01	1	9510-9603
113	BOX; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-175-5	01	1	9510-9601
113	BOX; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-225-0	01	1	9602-9603
171	SCREW; CONSOLE BOX CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-9603
189	NUT; CONSOLE BOX CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE	0-91150-108-0	02	1	9510-9601
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-190-0	01	1	9510-9603
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	02	1	9510-9603
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-166-0	02	1	9510-9603
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-166-0	02	1	9604-0004
307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	02	1	0005-0210
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-187-0	02	1	9510-9603
311	HOLDER; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-188-2	02	1	9510-9603
312	STOPPER; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>	1-72538-186-1	02	1	9510-9603
313	ARM; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A)	1-72538-184-3	01	1	9510-9603
313	ARM; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B)	1-72538-185-3	01	1	9510-9603

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
