7-43 — SUN VISOR AND ASSIST GRIP (#19286) — 96 parça

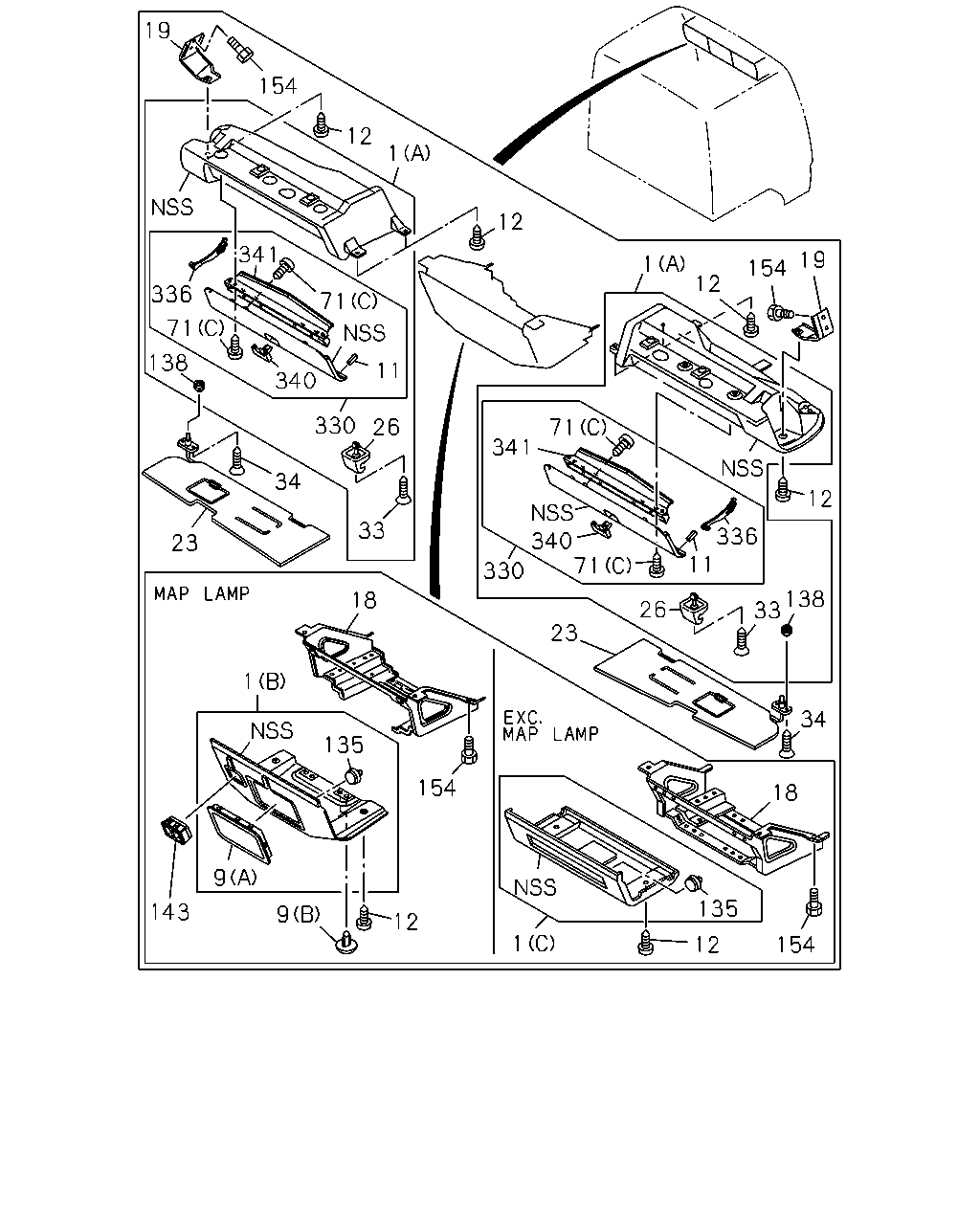

çizim 16286
19 154 12 1 12 341 19 1 154 12 336 71 71 138 11 340 330 26 71 341 34 12 340 71 33 336 11 23 330 138 33 18 26 23 1 34 135 154 18 9 135 143 9 12 1 12 154
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9511-9603
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9511-9603
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) 		1-72448-568-0 01 1 9510-9603
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (B) 		1-72448-573-0 01 1 9510-9603
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-72448-547-2 01 1 9510-9603
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-9603
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510-9603
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-9603
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		1-72448-552-4 01 1 9510-9603
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-574-2 01 1 9510-9603
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510-9603
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510-9603
23 SUN VISOR 1-73138-150-1 01 1 9510-9802
23 SUN VISOR 1-73138-150-1 01 1 9803-0004
23 SUN VISOR 1-73138-157-0 01 1 0005-0210
23 SUN VISOR
HIGH ROOF<S2F> 		1-73138-148-0 01 1 9510-9603
23 SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> 		1-73138-148-0 01 1 9510-9603
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9604-0004
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-0 01 1 0005-0210
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-9603
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005-0210
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-9603
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0101
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0210
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9511-9603
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9604-0210
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9604-0210
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0210
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9603
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-9603
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> OD=7.9 BLACK 		8-94279-974-1 03 1 9510-9603
138 NUT; BRKT,HEADER SHELF
HIGH ROOF<S2F> 		1-09984-166-0 04 1 9510-9603
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9510-9603
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-9603
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510-9603
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510-9603
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510-9603

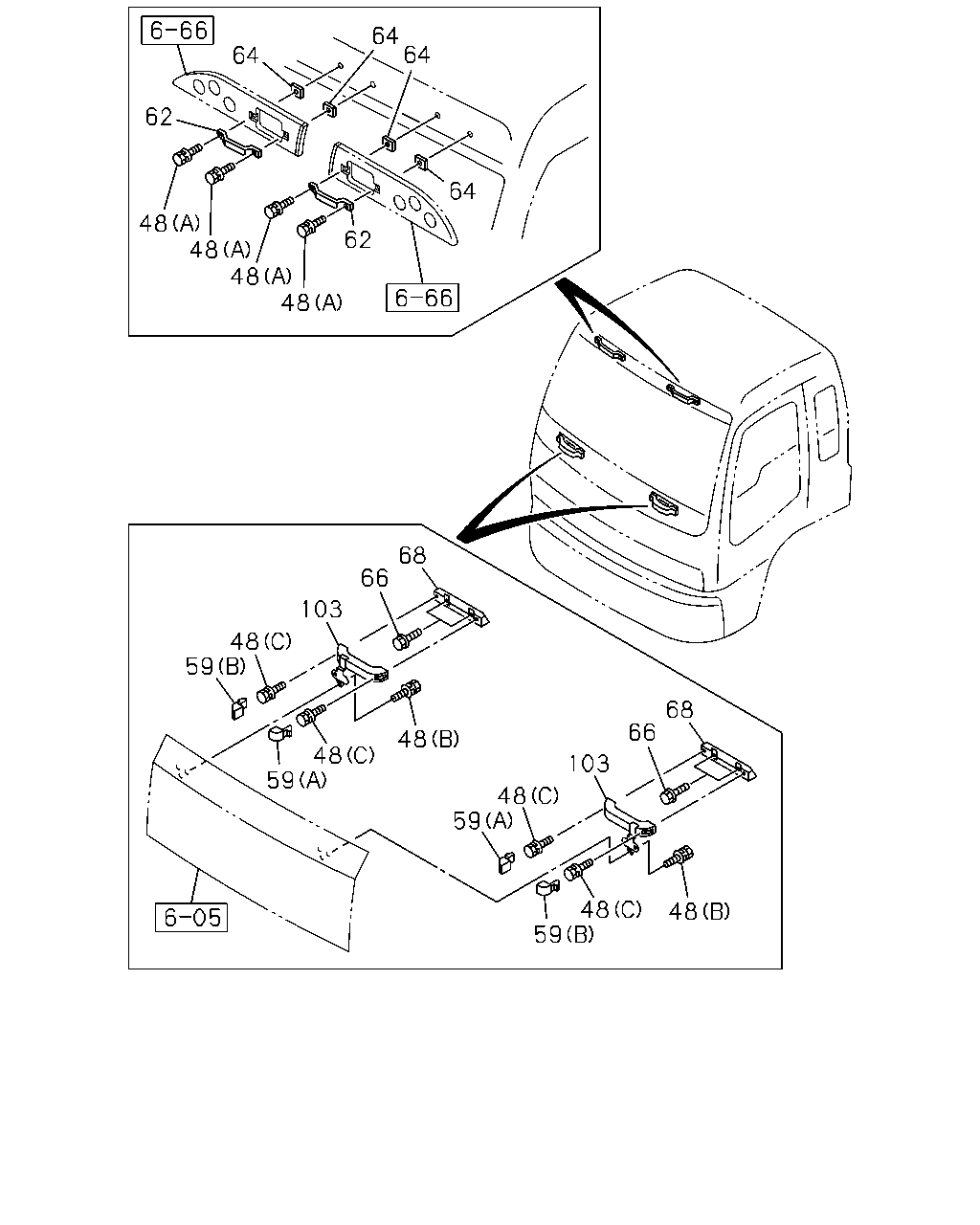

çizim 63575
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603-0210
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510-0210
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9510-0210
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9510-0210
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71997-895-1 02 1 9510-9603
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 9510-9603
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-0210
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 9510-0210
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 9510-0210
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 9510-0210
çizim 63729
24 24 24 26 14 121 26 33 14 24 33 34 121 23 23 34
BalonParca AdiParca NoAdetTipApplied Date
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-9603
14 SCREW; BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0210
23 SUN VISOR 1-73138-150-1 01 1 9510-9802
23 SUN VISOR 1-73138-150-1 01 1 9803-0004
23 SUN VISOR 1-73138-157-0 01 1 0005-0210
23 SUN VISOR
HIGH ROOF<S2F> 		1-73138-148-0 01 1 9510-9603
23 SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> 		1-73138-148-0 01 1 9510-9603
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9604-0004
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-0 01 1 0005-0210
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 9510-9603
24 BRACKET; SUN VISOR
(B) 		1-73138-145-0 02 1 9604-0210
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 9510-9603
24 BRACKET; SUN VISOR
(A) 		1-73138-144-1 01 1 9604-0210
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 9510-9603
24 BRACKET; SUN VISOR
(A) 		1-73138-143-1 01 1 9604-0210
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-9603
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005-0210
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-9603
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0101
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0210
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9511-9603
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9604-0210
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9604-0210
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-9603
121 SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0210
çizim 65567
71 142 149 54 150 150 71 150 149 87
BalonParca AdiParca NoAdetTipApplied Date
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 9510-0210
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0210
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9603
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-9603
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9510-9603
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 03 1 0005-0210
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 9510-0210
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9510-9510
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-9603
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9510-9603
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0210
