7-40 — INSTRUMENT PANEL AND BOX (#19285) — 142 parça

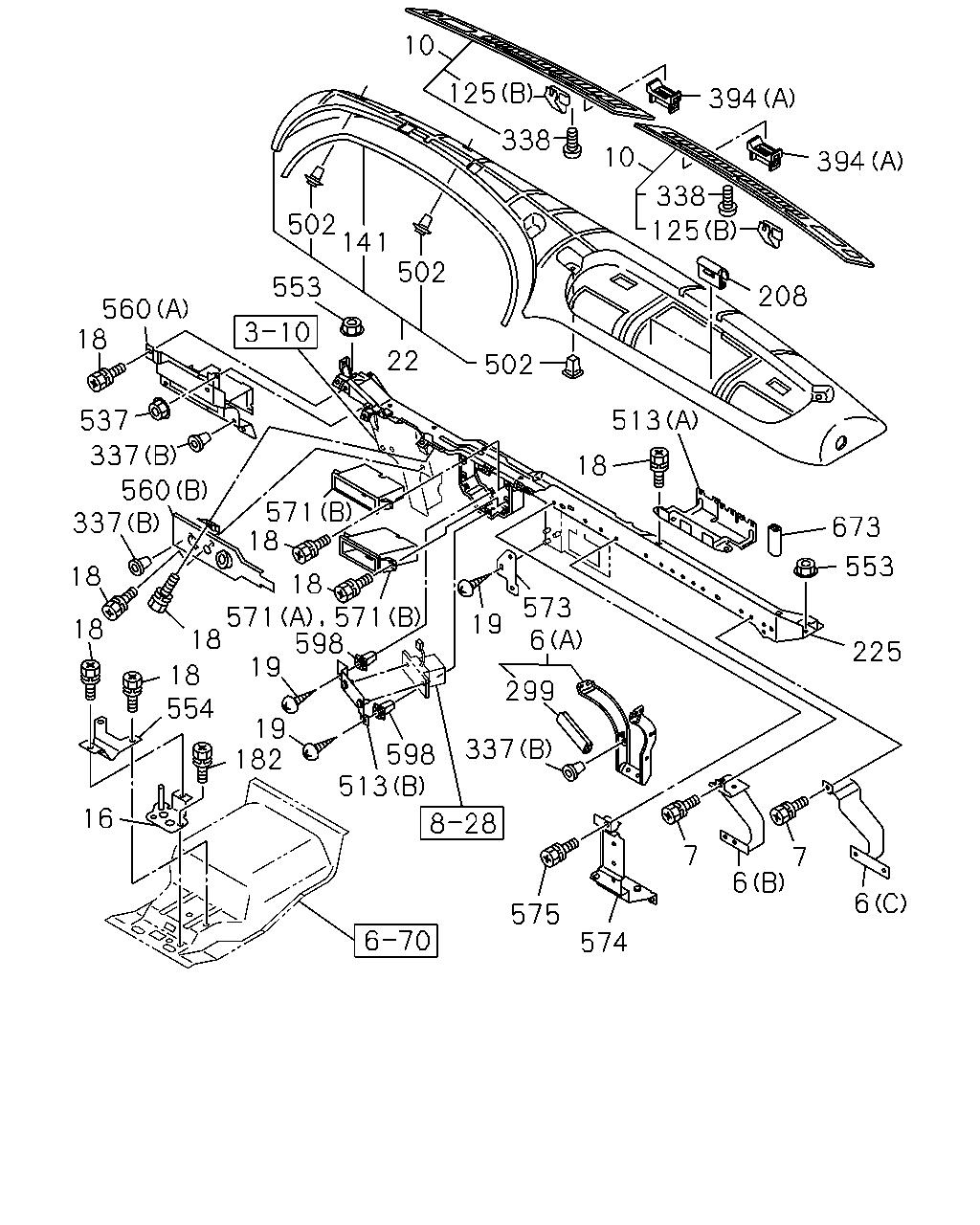

çizim 15912
10 125 394 338 10 394 338 502 141 125 502 553 208 560 18 22 502 513 537 337 18 560 337 571 18 673 18 18 598 573 6 553 18 18 19 225 19 18 554 299 19 182 337 598 513 16 7 7 6 6 575 574 571 571
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9510-0210
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9510-9603
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9604-0010
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 0011-0210
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9510-9603
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9604-0010
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 0011-0210
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9510-0210
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-9603
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9604-0010
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0011-0210
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72437-089-8 01 1 9510-9601
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-1 01 1 9602-9603
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-4 01 1 9604-0010
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-4 01 1 0011-0210
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-150-2 01 1 9510-9601
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-1 01 1 9602-9603
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-4 01 1 9604-0010
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-4 01 1 0011-0210
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-142-0 01 1 9510-9601
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-0 01 1 9602-9603
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-158-1 01 1 9604-0010
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0011-0210
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-141-0 01 1 9510-9601
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-0 01 1 9602-9603
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-157-1 01 1 9604-0010
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0011-0210
16 BRACKET; INST PNL 1-79738-802-1 01 1 9510-0210
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0210
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-0210
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510-0210
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9603
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9604-0010
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0011-0210
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-9603
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-9603
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9604-0010
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9604-0010
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0011-0210
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0011-0210
22 PAD; INST 1-72318-415-2 01 1 9510-0004
22 PAD; INST 1-72318-435-0 01 1 0005-0210
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 0005-0210
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-0210
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		8-97217-066-0 08 1 9910-0004
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9510-0210
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0210
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9510-0210
225 FRAME; FACIA 1-65681-028-7 01 1 9510-0210
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=190 		1-71998-300-0 01 1 0006-0210
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0210
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9510-0210
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-0210
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9510-9603
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9604-9909
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0005-0010
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0011-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0209-0210
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-0210
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0210
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9510-0210
513 BRACKET; RELAY
(A) 		1-73908-056-3 01 1 9510-9604
513 BRACKET; RELAY
(A) 		8-97865-168-2 01 1 9605-0210
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9510-0210
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9510-0210
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9510-0210
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9510-0210
560 BRACKET
(A) 		1-65681-045-5 01 1 9510-0210
560 BRACKET
(B) 		1-65681-043-2 01 1 9510-0210
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9510-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9510-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901-0210
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-0210
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9510-9603
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9604-0010
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0011-0210
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 9510-9603
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-73908-200-0 01 1 9604-0010
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 0011-0210
574 PANEL; RELAY BOX 1-73908-058-6 01 1 9510-0210
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0210
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9510-0210
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-0210
çizim 15913
259 260 597
BalonParca AdiParca NoAdetTipApplied Date
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9510-9603
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9604-0004
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005-0210
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9510-9603
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9604-0210
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104-0210

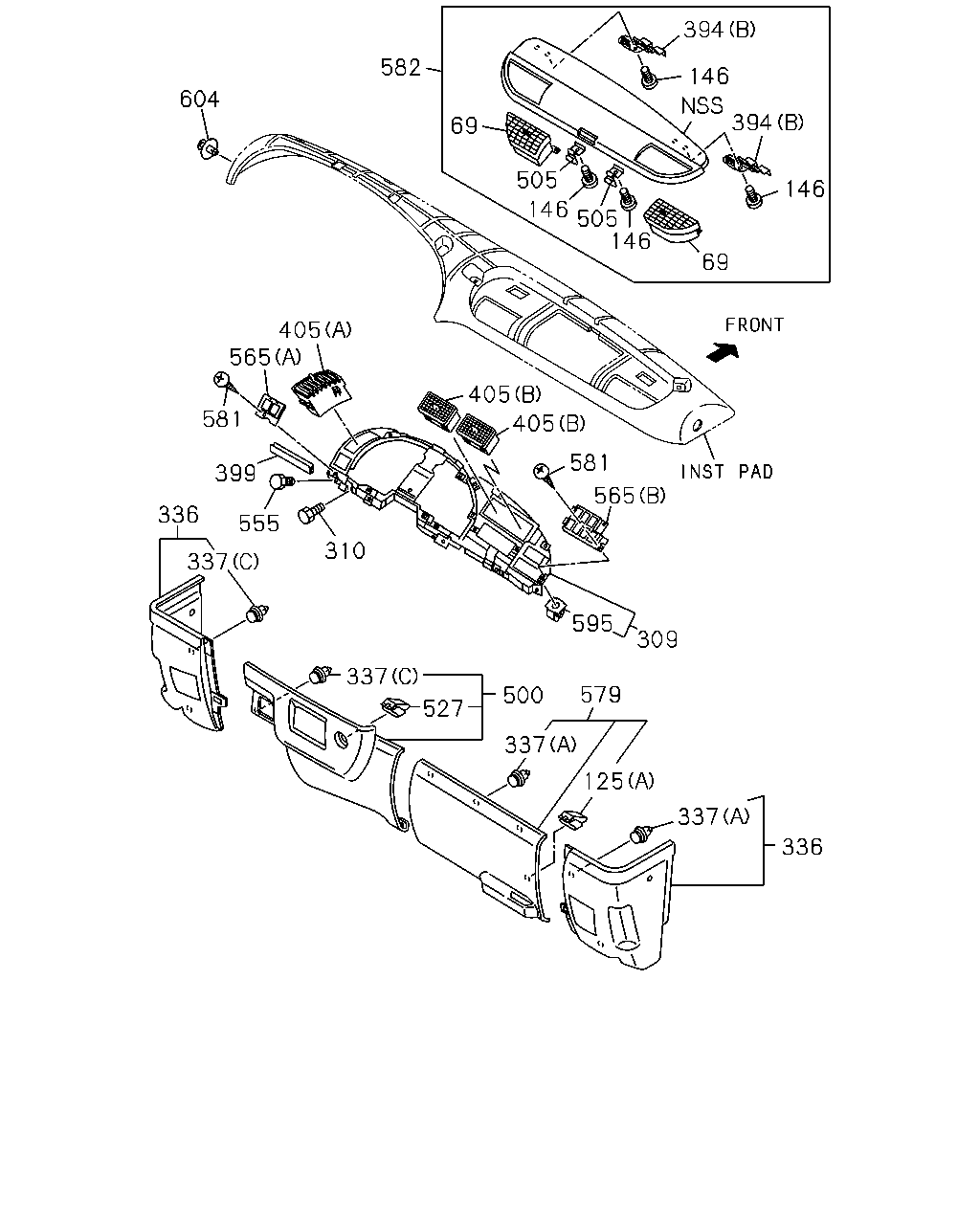

çizim 16285
394 582 146 604 394 69 505 146 146 505 146 69 405 565 405 581 405 581 565 399 336 555 310 337 595 309 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9510-0210
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9510-0210
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 0005-0210
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-0210
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		8-97217-066-0 08 1 9910-0004
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9510-0210
309 PANEL; SW,INST 1-72418-018-3 01 1 9510-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-0210
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9510-0004
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0005-0210
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9510-0004
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0005-0210
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-0210
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9510-0210
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-0210
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-0210
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0210
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-0010
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0011-0210
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9510-0210
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9510-0210
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9510-0004
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0005-0210
505 LOCK; LID 1-72558-024-2 02 1 9510-0210
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9510-9812
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-0210
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9510-0210
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9510-0210
565 BEZEL; SW PANEL
(A) 		1-72418-021-0 01 1 9510-0210
565 BEZEL; SW PANEL
(B) 		1-72418-020-0 01 1 9510-0210
579 COVER; INST PNL 1-72438-128-1 01 1 9510-0004
579 COVER; INST PNL 1-72438-195-1 01 1 0005-0210
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9510-9510
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0210
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9510-0004
582 LID; FUSE & RELAY 1-72548-146-0 01 1 0005-0210
595 NUT; HOOK 1-72418-013-0 13 1 9510-9510
595 NUT; HOOK 1-72418-013-0 10 1 9510-0210
604 CLIP; INST PAD 1-09983-123-0 01 1 9510-0210
