Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

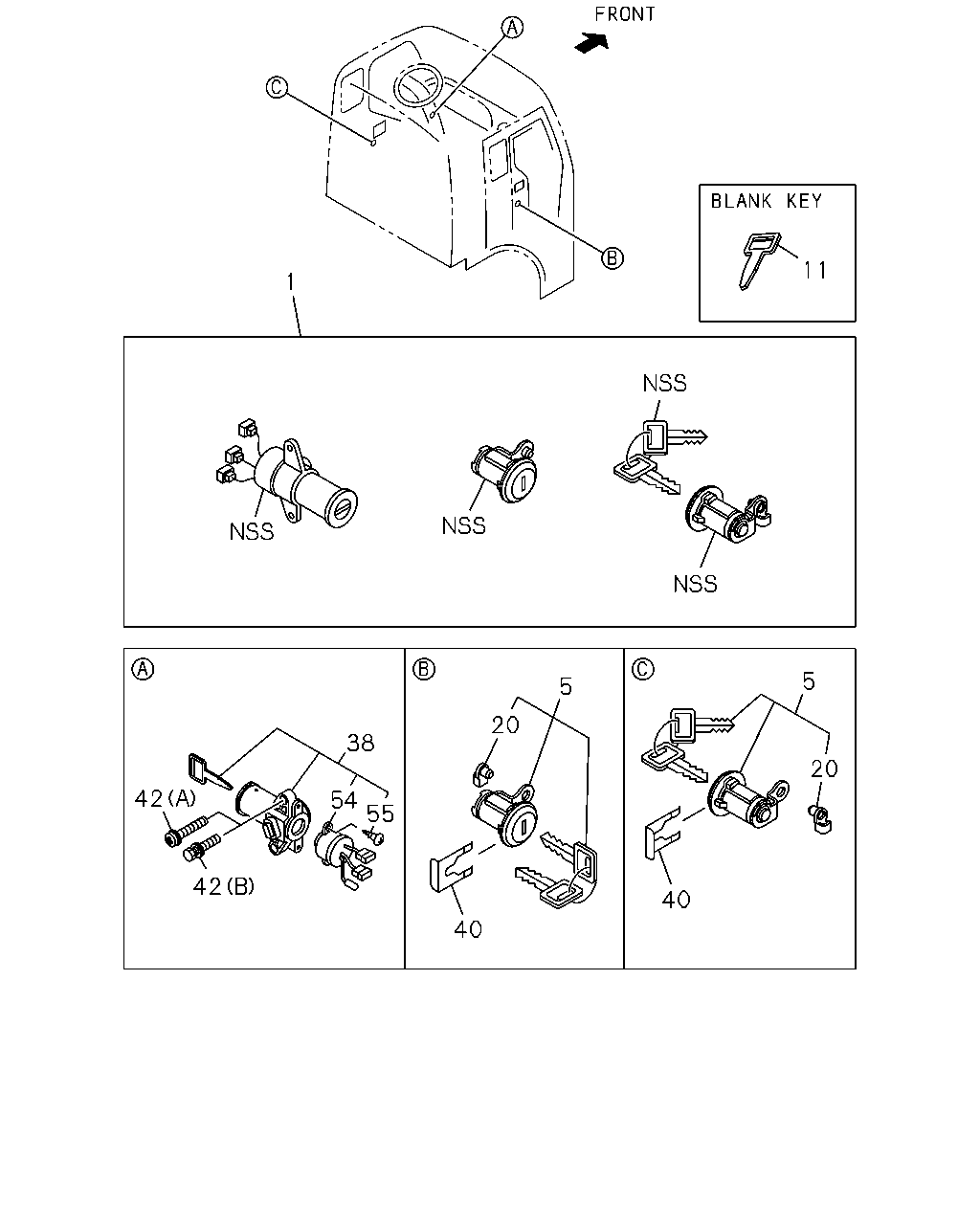

7-30 — LOCK CYLINDER SET
(#19284) — 13 parça
11
1
5
5
20
38
20
42
54
55
42
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
1-79138-199-2
01
1
9510-0210
5
CYLINDER ASM; DOOR LOCK
1-79138-202-1
01
1
9510-0210
5
CYLINDER ASM; DOOR LOCK
1-79138-203-1
01
1
9510-0210
11
KEY; BLANK
W0/PROTECTOR
1-79137-129-1
AR
1
9510-0210
11
KEY; BLANK
W/PROTECTOR
1-79137-130-1
AR
1
9510-0210
20
SNAP; DOOR LOCK CYL
PINK
1-79138-192-0
01
1
9510-0210
20
SNAP; DOOR LOCK CYL
GREEN
1-79138-193-0
01
1
9510-0210
38
LOCK ASM; STRG
1-79138-201-1
01
1
9510-0210
40
CLIP; CYL LK
1-79137-033-1
02
1
9510-0210
42
BOLT; STRG LOCK
(A) M8X30 W/PL WASHER
1-09981-482-2
02
1
9510-0106
42
BOLT; STRG LOCK
(B) M8X30 W/PL WASHER
1-09980-621-1
02
1
0107-0210
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-0
01
1
9510-0210
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
9510-0210
