7-20 — MIRROR AND MIRROR STAY
(#19283) — 47 parça
◀
[720A] ROOM MIRROR (5 parça)

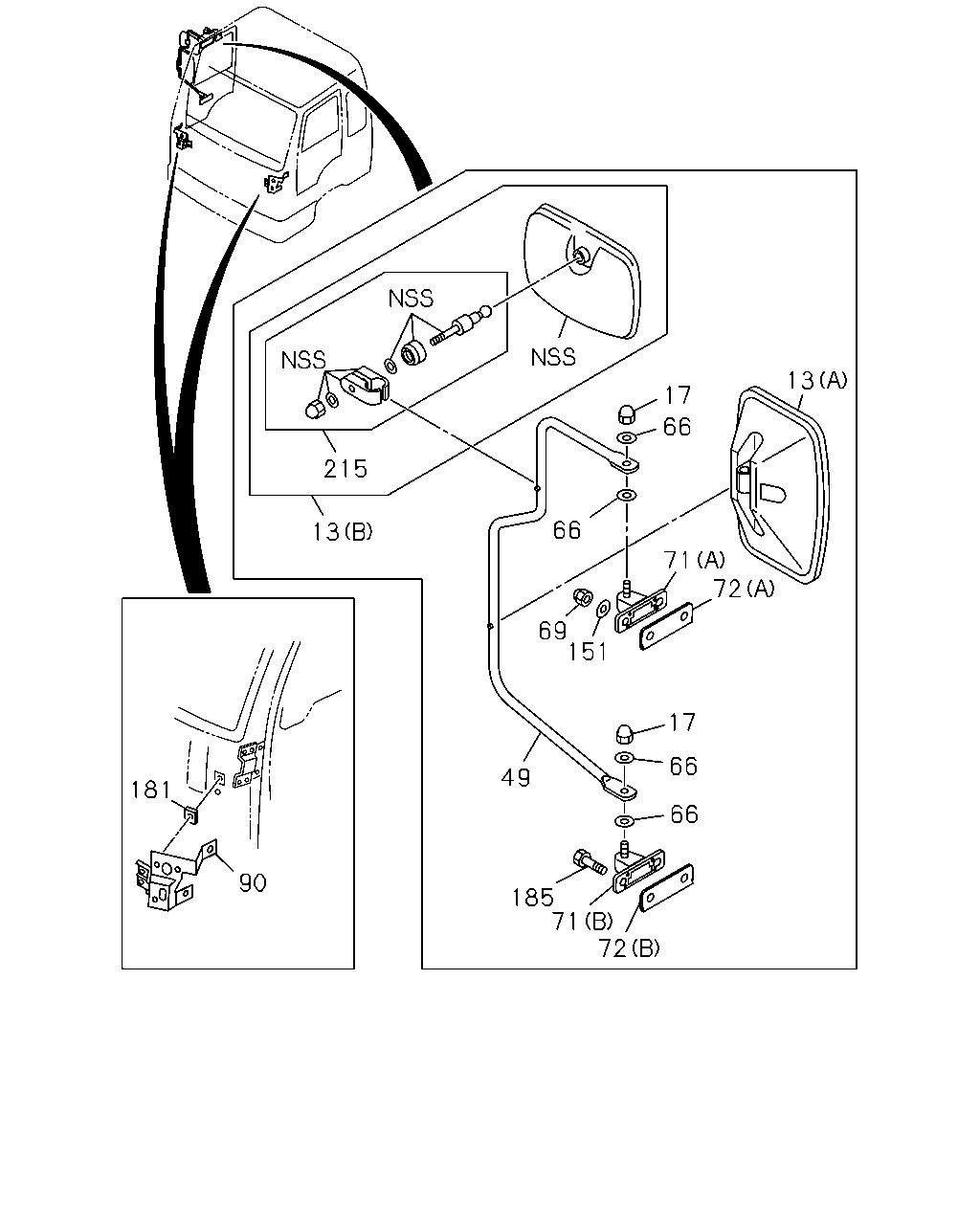

[720A] OUTSIDE RR VIEW MIRROR RH (26 parça)
[720A] OUTSIDE RR VIEW MIRROR LH (16 parça)
▶
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73118-026-0
01
1
9510-0004
1
MIRROR; ROOM
1-73117-033-0
01
1
0005-0210
2
SCREW; MIRROR TO BODY
M6X25
1-09981-441-0
02
1
9510-9906
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
9907-0004
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0005-0210
13
17
66
215
66
13
71
72
69
151
17
66
49
181
66
90
185
71
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71798-587-2
02
1
9510-0210
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71798-651-2
01
1
9510-0210
17
NUT; CAP,MIRROR STAY
M10
1-09984-183-0
04
1
9510-0208
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
0209-0210
49
STAY; MIRROR SIDE
1-71798-584-2
01
1
9510-0210
49
STAY; MIRROR SIDE
1-71798-583-2
01
1
9510-0210
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9510-9710
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-0210
69
NUT; CAP
M8
1-09984-187-0
04
1
9510-0210
71
BRACKET; OUTSIDE MIRROR
(A) UPPER
1-71798-484-1
02
1
9510-0210
71
BRACKET; OUTSIDE MIRROR
(B) LOWER
1-71798-486-2
02
1
9510-0210
72
SHEET
(A) UPPER
1-71798-487-3
02
1
9510-0210
72
SHEET
(B) LOWER
1-71798-488-1
02
1
9510-0210
90
BRACKET; MIRROR STAY
1-71798-229-4
01
1
9510-9903
90
BRACKET; MIRROR STAY
1-71798-829-0
01
1
9904-0004
90
BRACKET; MIRROR STAY
1-71798-829-0
01
1
0005-0210
90
BRACKET; MIRROR STAY
1-71798-228-4
01
1
9510-9903
90
BRACKET; MIRROR STAY
1-71798-828-0
01
1
9904-0004
90
BRACKET; MIRROR STAY
1-71798-828-0
01
1
0005-0210
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
9510-0210
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
9510-9707
181
SEAL; BRKT
25X25
8-94272-533-0
04
1
9902-0004
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0005-0210
185
BOLT; BRKT
M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9510-9511
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
04
1
9512-0210
215
FIXING KIT; MIRROR
1-71707-040-0
01
1
9510-0210
17
66
72
66
13
71
151
69
17
66
49
66
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71798-587-2
02
1
9510-0210
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71798-651-2
01
1
9510-0210
17
NUT; CAP,MIRROR STAY
M10
1-09984-183-0
04
1
9510-0208
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
0209-0210
49
STAY; MIRROR SIDE
1-71798-584-2
01
1
9510-0210
49
STAY; MIRROR SIDE
1-71798-583-2
01
1
9510-0210
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9510-9710
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-0210
69
NUT; CAP
M8
1-09984-187-0
04
1
9510-0210
71
BRACKET; OUTSIDE MIRROR
(A) UPPER
1-71798-484-1
02
1
9510-0210
71
BRACKET; OUTSIDE MIRROR
(B) LOWER
1-71798-486-2
02
1
9510-0210
72
SHEET
(A) UPPER
1-71798-487-3
02
1
9510-0210
72
SHEET
(B) LOWER
1-71798-488-1
02
1
9510-0210
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
9510-0210
185
BOLT; BRKT
M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9510-9511
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
04
1
9512-0210
