Sayfa 7-10 - Isuzu EPC

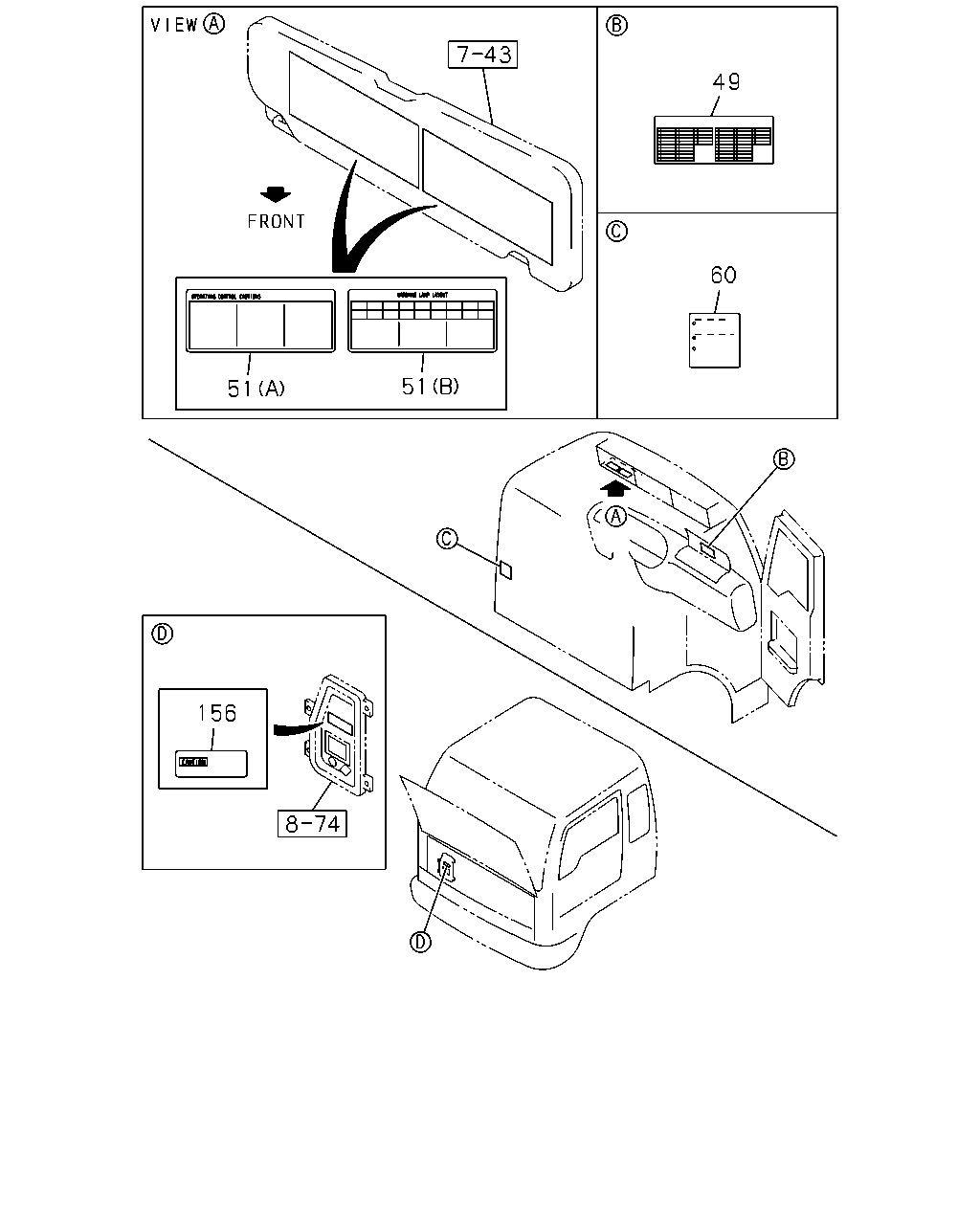

7-10 — CAUTION PLATE AND LABEL (#19282) — 38 parça

49 60 51 51 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9510-0109
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-0210
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85888-554-2	01	1	9510-9802
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85877-623-0	01	1	9803-0004
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-278-0	01	1	0005-0210
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9510-0210
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	9510-0210
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-710-0	01	1	9510-9601
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9602-0210
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9510-0210
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-0210
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	9510-0210
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-709-0	01	1	9510-9601
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9602-0210
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-173-0	01	1	9510-9601
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	9602-0210
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-169-0	01	1	9510-0210
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-172-0	01	1	9510-9601
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	9602-0210
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-170-0	01	1	9510-0210
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9510-9603
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	0011-0210

228 69 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	9510-0210
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	9510-0210
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	9510-0210
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1>	1-53639-005-0	01	1	9510-0210
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7>	1-85887-537-0	01	1	9510-0210
69	PLATE; CAUTION,STARTER SW EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	9510-0210
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8>	1-85887-535-0	01	1	9510-0210
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1>	9-83999-419-0	01	1	9510-0210
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	0110-0210
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	0110-0210

119 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE	8-94395-931-0	01	1	9510-0102
4	LABEL; ENG MAINTENANCE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-931-0	01	1	0103-0210
4	LABEL; ENG MAINTENANCE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-593-0	01	1	0103-0210
7	LABEL; EMISSION EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	0103-0210
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-726-0	01	1	9510-9606
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	9607-0210

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
