4-15 — FRONT FINAL DRIVE (#1928) — 178 parça

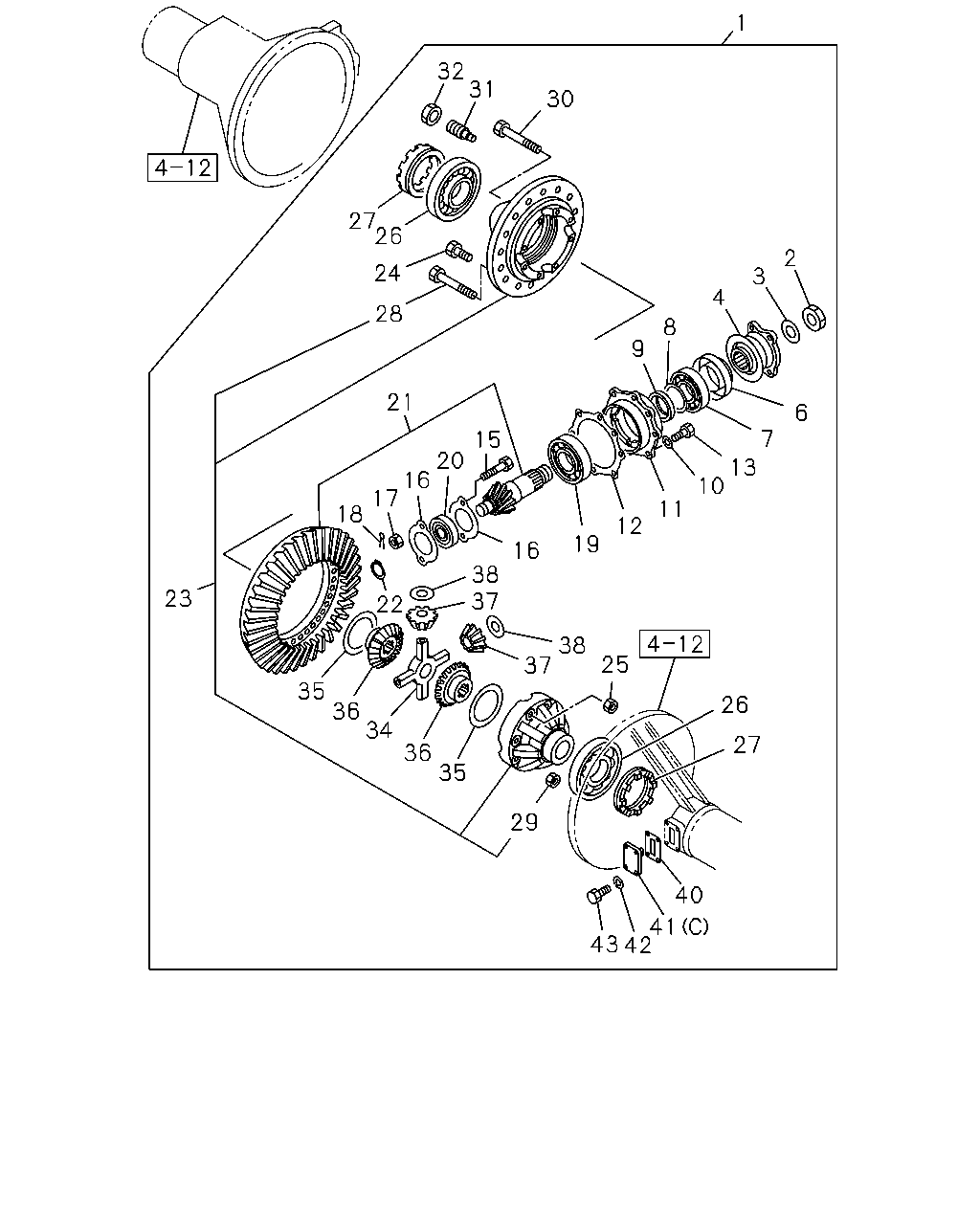

1 32 31 30 27 26 2 24 3 4 28 8 21 6 7 13 10 15 20 16 17 11 18 12 19 16 38 37 23 22 38 37 25 35 36 34 26 27 36 35 29 40 41 43 42 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,FRT FSS ALL(FSS***) 39/7	1-41001-281-0	01	1	9207-	●
1	DRIVE ASM; FINAL,FRT FTS ALL(FTS***) 39/7	1-41001-272-0	01	1	9207-	●
1	DRIVE ASM; FINAL,FRT 39/6	1-41001-271-0	01	1	9207-		●
2	NUT; FINAL DRIVE PINION	1-09449-068-0	01	1	9207-9401	●	●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	9402-	●	●
3	WASHER; LK,FINAL DRIVE PINION	1-09503-025-0	01	1	9207-9401	●	●
4	COUPLING; FINAL DRIVE PINION	1-37245-062-7	01	1	9207-	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●	●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9207-	●	●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	9207-	●	●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●	●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●	●
11	CAGE; FINAL PINION	1-41151-021-0	01	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●	●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●	●
15	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-9407	●	●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9408-	●	●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	9207-	●	●
17	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	9207-	●	●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	9207-	●	●
21	GEAR SET; FINAL DRIVE,FRT 39/7	1-41210-259-2	01	1	9207-	●
21	GEAR SET; FINAL DRIVE,FRT 39/6	1-41210-357-1	01	1	9207-		●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	9207-	●	●
23	CAGE ASM; DIFF,FINAL DRIVE FSS ALL(FSS***)	1-41510-121-0	01	1	9207-	●
23	CAGE ASM; DIFF,FINAL DRIVE FTS ALL(FTS***)	1-41510-123-0	01	1	9207-	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-123-0	01	1	9207-		●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●	●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9207-	●	●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	9207-	●	●
26	BEARING; DIFF CAGE ID=70 OD=125 T=26.3 NACHI	1-09812-024-0	02	1	9207-	●	●
26	BEARING; DIFF CAGE KOYO ID=70 OD=125 T=26.3	1-09812-071-0	02	1	9207-	●	●
27	NUT; ADJ,DIFF CAGE FSS ALL(FSS***) M120	9-41121-007-0	02	1	9207-	●
27	NUT; ADJ,DIFF CAGE FTS ALL(FTS***) M128 H=22	1-41121-013-0	02	1	9207-	●
27	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	02	1	9207-		●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	9207-	●	●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9207-	●	●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●	●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	9207-	●	●
32	NUT; ADJ,BOLT M24	9-09842-014-0	01	1	9207-9408	●	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	9409-	●	●
34	PIN; CROSS,DIFF PINION	1-41521-018-1	01	1	9207-9311	●	●
34	PIN; CROSS,DIFF PINION	1-41521-050-0	01	1	9312-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9207-	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-022-0	02	1	9207-9312	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-105-0	02	1	9401-	●	●
37	GEAR; PINION DIFF Z=10	1-41551-016-0	04	1	9207-9312	●	●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	9401-	●	●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	9207-	●	●
40	GASKET; LK PLATE,ADJ NUT FSS ALL(FSS***)	9-43213-006-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT FSS ALL(FSS***) (C)	9-41124-004-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT FTS ALL(FTS***) (A)	9-41124-005-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-		●
41	PLATE; LK,ADJ NUT FTS ALL(FTS***) (B) T=2.3	9-41124-015-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-		●
42	WASHER; LK,LOCK PLATE FSS ALL(FSS***) ID=8.2	9-09150-508-0	08	1	9207-	●
43	BOLT; LK PLATE FSS ALL(FSS***) M8X20	0-20800-820-0	08	1	9207-	●
43	BOLT; LK PLATE FTS ALL(FTS***) M8X16	0-20800-816-0	04	1	9207-	●
43	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-		●

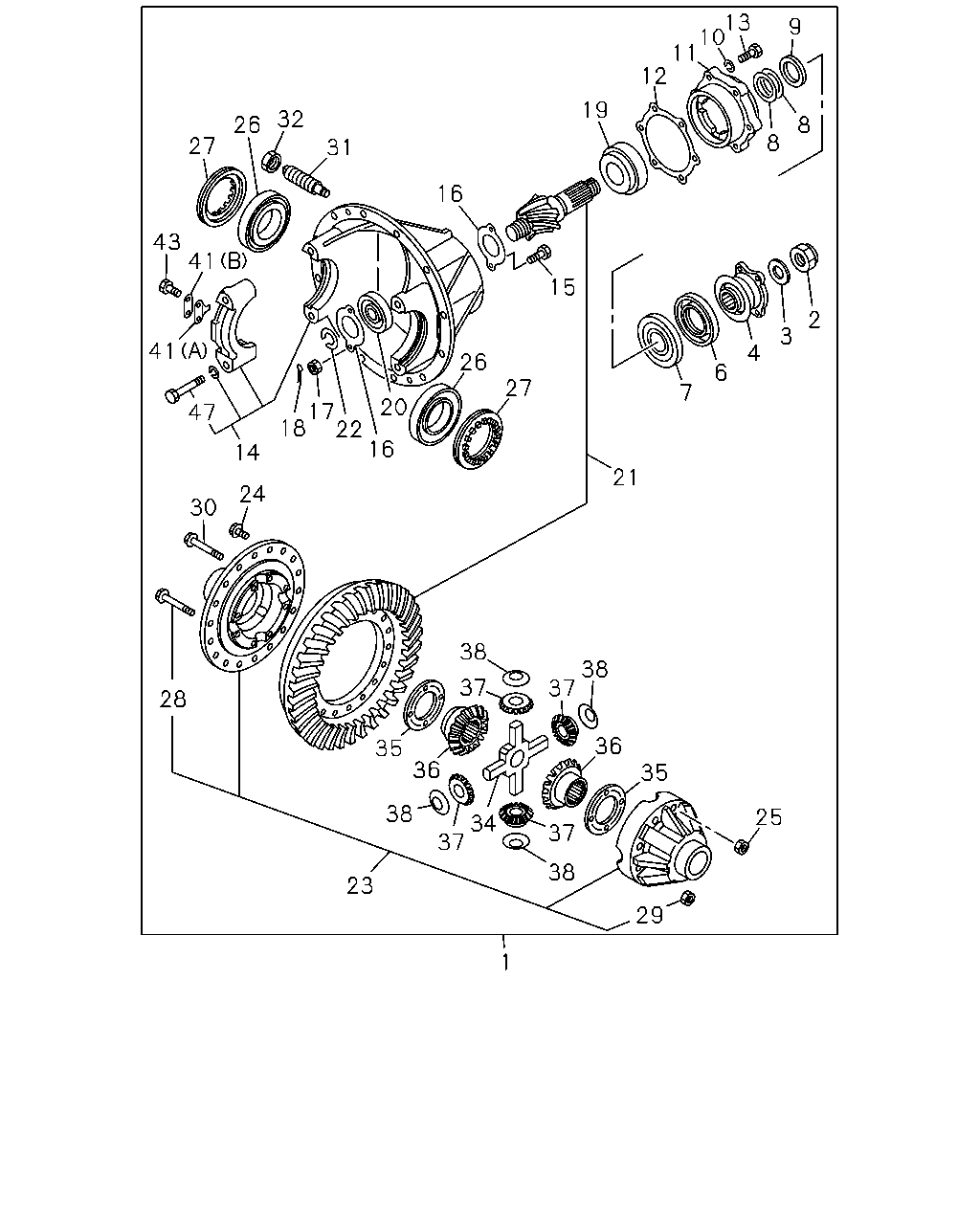

13 10 11 12 9 19 32 26 8 8 27 31 16 43 41 15 2 3 41 4 26 6 27 7 20 17 16 47 14 21 24 30 38 38 37 37 28 36 35 36 35 38 25 34 37 37 38 23 29 1 18 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,FRT FSS ALL(FSS***) 39/7	1-41001-281-0	01	1	9207-	●
1	DRIVE ASM; FINAL,FRT FTS ALL(FTS***) 39/7	1-41001-272-0	01	1	9207-	●
1	DRIVE ASM; FINAL,FRT 39/6	1-41001-271-0	01	1	9207-		●
2	NUT; FINAL DRIVE PINION	1-09449-068-0	01	1	9207-9401	●	●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	9402-	●	●
3	WASHER; LK,FINAL DRIVE PINION	1-09503-025-0	01	1	9207-9401	●	●
4	COUPLING; FINAL DRIVE PINION	1-37245-062-7	01	1	9207-	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●	●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9207-	●	●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	9207-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	9207-	●	●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●	●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●	●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●	●
11	CAGE; FINAL PINION	1-41151-021-0	01	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●	●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●	●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●	●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FTS ALL(FTS***)	1-41110-042-0	01	1	9207-	●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE	1-41110-042-0	01	1	9207-		●
15	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-9407	●	●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9408-	●	●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	9207-	●	●
17	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	9207-	●	●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	9207-	●	●
21	GEAR SET; FINAL DRIVE,FRT 39/7	1-41210-259-2	01	1	9207-	●
21	GEAR SET; FINAL DRIVE,FRT 39/6	1-41210-357-1	01	1	9207-		●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	9207-	●	●
23	CAGE ASM; DIFF,FINAL DRIVE FSS ALL(FSS***)	1-41510-121-0	01	1	9207-	●
23	CAGE ASM; DIFF,FINAL DRIVE FTS ALL(FTS***)	1-41510-123-0	01	1	9207-	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-123-0	01	1	9207-		●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●	●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9207-	●	●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	9207-	●	●
26	BEARING; DIFF CAGE ID=70 OD=125 T=26.3 NACHI	1-09812-024-0	02	1	9207-	●	●
26	BEARING; DIFF CAGE KOYO ID=70 OD=125 T=26.3	1-09812-071-0	02	1	9207-	●	●
27	NUT; ADJ,DIFF CAGE FSS ALL(FSS***) M120	9-41121-007-0	02	1	9207-	●
27	NUT; ADJ,DIFF CAGE FTS ALL(FTS***) M128 H=22	1-41121-013-0	02	1	9207-	●
27	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	02	1	9207-		●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	9207-	●	●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9207-	●	●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●	●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	9207-	●	●
32	NUT; ADJ,BOLT M24	9-09842-014-0	01	1	9207-9408	●	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	9409-	●	●
34	PIN; CROSS,DIFF PINION	1-41521-018-1	01	1	9207-9311	●	●
34	PIN; CROSS,DIFF PINION	1-41521-050-0	01	1	9312-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9207-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9207-	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-022-0	02	1	9207-9312	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-105-0	02	1	9401-	●	●
37	GEAR; PINION DIFF Z=10	1-41551-016-0	04	1	9207-9312	●	●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	9401-	●	●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	9207-	●	●
41	PLATE; LK,ADJ NUT FSS ALL(FSS***) (C)	9-41124-004-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT FTS ALL(FTS***) (A)	9-41124-005-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-		●
41	PLATE; LK,ADJ NUT FTS ALL(FTS***) (B) T=2.3	9-41124-015-0	02	1	9207-	●
41	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-		●
43	BOLT; LK PLATE FSS ALL(FSS***) M8X20	0-20800-820-0	08	1	9207-	●
43	BOLT; LK PLATE FTS ALL(FTS***) M8X16	0-20800-816-0	04	1	9207-	●
43	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-		●
47	BOLT; BRG CAP FTS ALL(FTS***) M16X100	9-91661-600-0	04	1	9207-	●
47	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9207-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
