◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#19276) — 56 parça

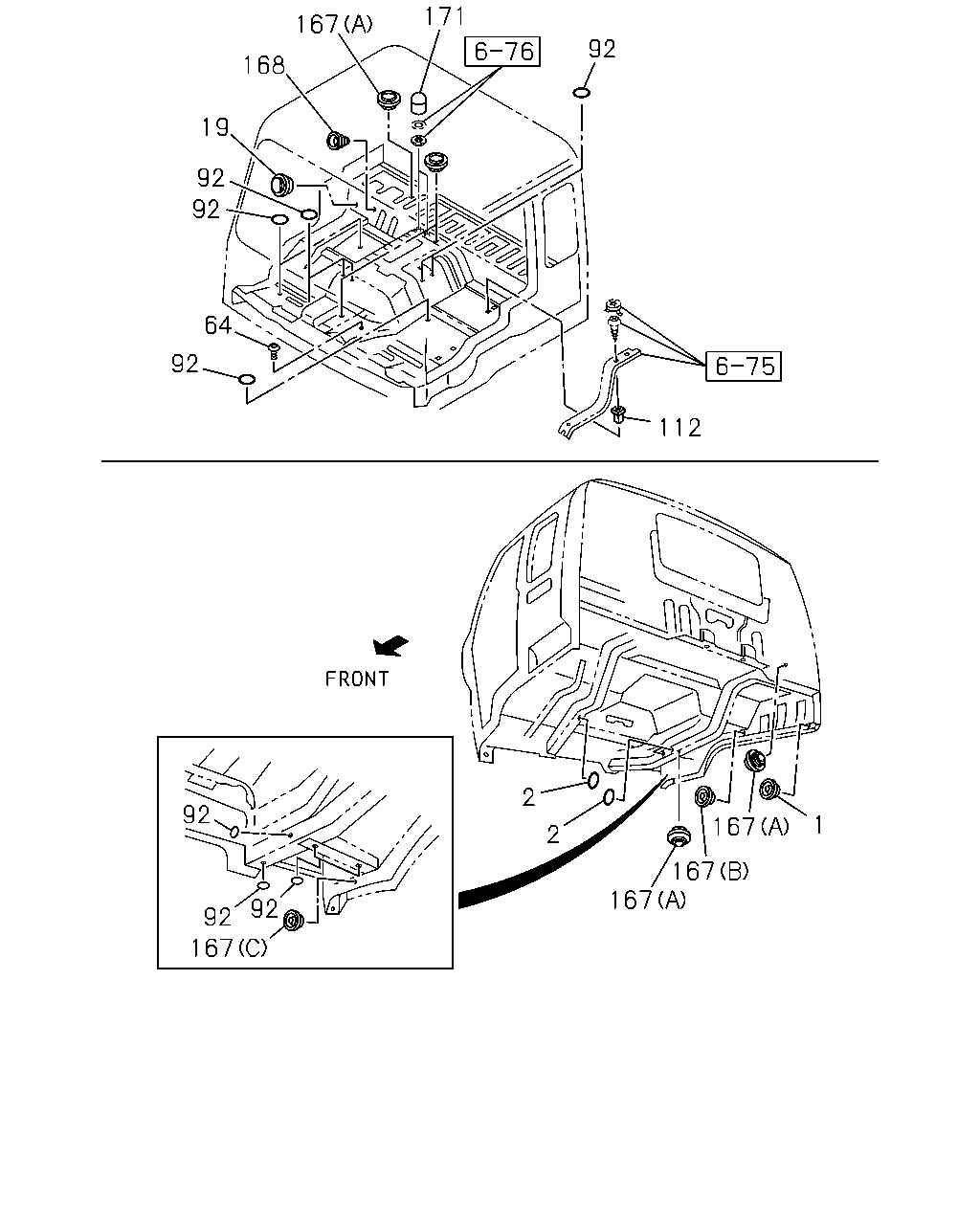

çizim 64680
171 167 92 168 19 92 92 64 92 112 2 92 1 167 2 167 167 92 92 167
BalonParca AdiParca NoAdetTipApplied Date
1 GROMMET
OD=40 		1-09600-083-0 02 1 9510-0210
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 9511-0210
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 9510-0210
64 PLUG; ENG HOOD
D4.7X11 		1-76378-154-0 01 1 9510-9803
64 PLUG; ENG HOOD
D7.8X20 		8-94353-238-0 01 1 9804-0210
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9510-9710
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9806
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9806
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 01 1 9510-9806
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0105
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9510-0004
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 0005-0010
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 04 1 0011-0210
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 19 1 9510-9510
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 10 1 9510-9512
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 12 1 9601-9710
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9711-0004
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0005-0105
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9510-9802
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 9803-0004
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 23 1 0005-0210
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9510-9603
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9510-9603
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9510-9603
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9604-0010
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 9604-0010
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0011-0105
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0011-0105
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0011-0105
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0106-0210
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0106-0210
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0106-0210
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0106-0210
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 04 1 9510-9603
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 9604-9802
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9803-0004
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0005-0203
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0204-0210
92 SEAL; LOCATION HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9510-0210
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9510-0210
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9510-9510
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0005-0210
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 03 1 9510-9709
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 03 1 9710-0210
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 9510-0210
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 9510-0210
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9510-0210
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 9510-9510
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 9601-9603
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> 		1-71736-200-0 02 1 9604-0210
