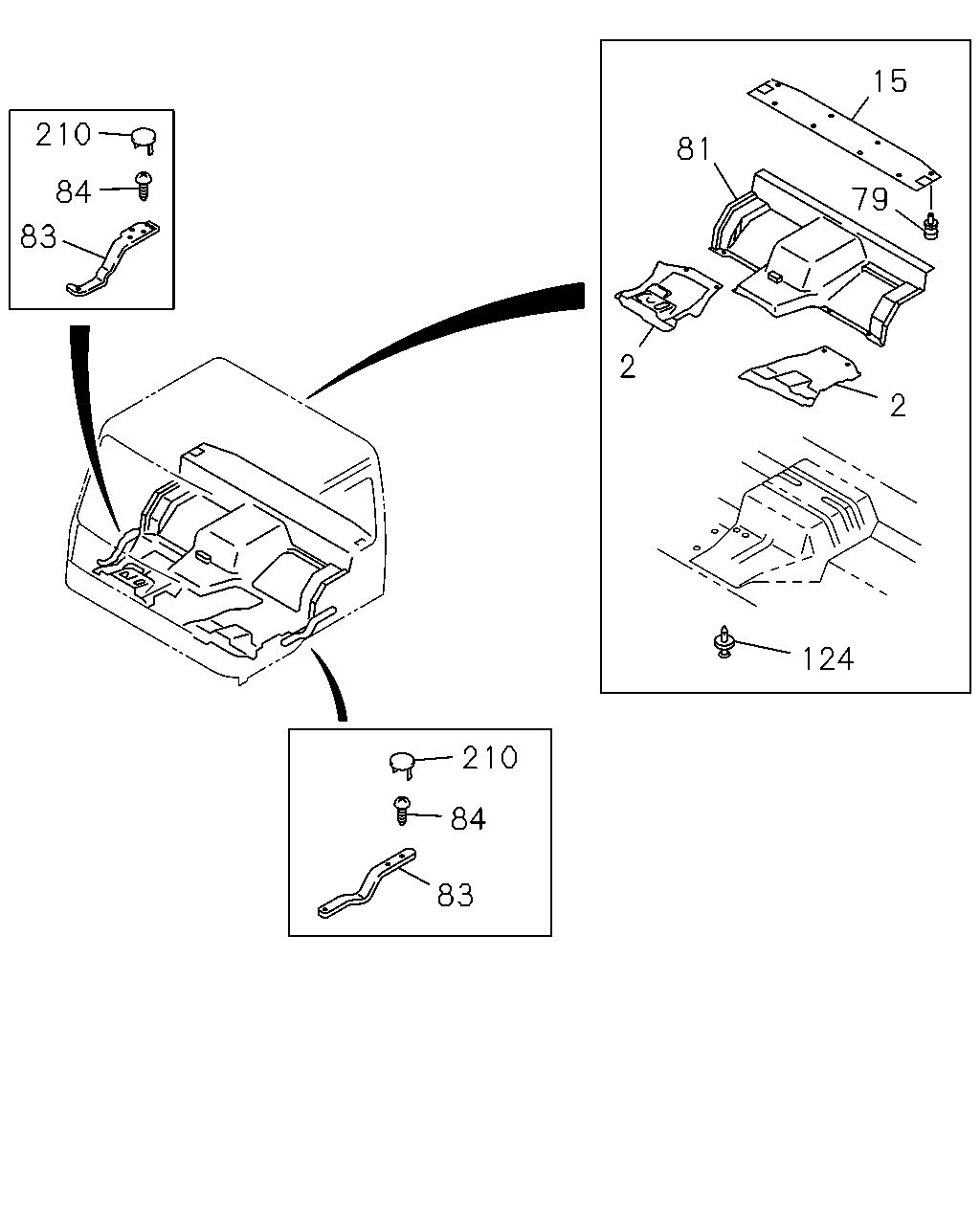

6-75 — MAT AND CARPET (#19274) — 39 parça

15 210 81 79 84 83 2 2 124 210 84 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MAT; FLOOR	1-73238-932-2	01	1	9510-9510
2	MAT; FLOOR	1-73236-010-0	01	1	9510-9805
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-010-0	01	1	9806-0004
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-228-0	01	1	0005-0202
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-466-0	01	1	0203-0210
2	MAT; FLOOR VINYL CARPET<B30>	1-73238-931-1	01	1	9510-9510
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-011-0	01	1	9510-0004
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-230-0	01	1	0005-0202
2	MAT; FLOOR VINYL CARPET<B30>	1-73236-465-0	01	1	0203-0210
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73238-941-0	01	1	9510-9510
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-013-0	01	1	9510-0004
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-295-0	01	1	0005-0202
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-467-0	01	1	0203-0210
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-236-0	01	1	9806-0004
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-296-0	01	1	0005-0202
2	MAT; FLOOR EXC. VINYL CARPET<B30>	1-73236-468-0	01	1	0203-0210
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>	1-73238-945-2	01	1	9510-9802
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>	1-73238-945-2	01	1	9803-0004
15	MAT; FLOOR REAR MATTRESS SLEEPER CAB<E40>	1-73238-945-2	01	1	9803-0004
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>	1-73236-245-0	01	1	0005-0202
15	MAT; FLOOR REAR MATTRESS SLEEPER CAB<E40>	1-73236-245-0	01	1	0005-0202
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>	1-73236-522-0	01	1	0203-0210
15	MAT; FLOOR REAR MATTRESS SLEEPER CAB<E40>	1-73236-522-0	01	1	0203-0210
79	HOOK; MALE BLACK	8-94279-089-0	08	1	9510-0210
81	MAT; FLOOR,CENTER VINYL CARPET<B30>	1-73236-049-4	01	1	9510-9812
81	MAT; FLOOR,CENTER VINYL CARPET<B30>	1-73236-244-2	01	1	9901-0004
81	MAT; FLOOR,CENTER VINYL CARPET<B30>	1-73236-232-3	01	1	0005-0202
81	MAT; FLOOR,CENTER VINYL CARPET<B30>	1-73236-507-0	01	1	0203-0210
81	MAT; FLOOR,CENTER EXC. VINYL CARPET<B30>	1-73236-051-4	01	1	9510-0004
81	MAT; FLOOR,CENTER EXC. VINYL CARPET<B30>	1-73236-298-2	01	1	0005-0202
81	MAT; FLOOR,CENTER EXC. VINYL CARPET<B30>	1-73236-511-0	01	1	0203-0210
83	PLATE; KICKING,FLOOR MAT	1-76798-027-2	01	1	9510-0004
83	PLATE; KICKING,FLOOR MAT	1-76798-046-0	01	1	0005-0210
83	PLATE; KICKING,FLOOR MAT	1-76798-026-3	01	1	9510-0004
83	PLATE; KICKING,FLOOR MAT	1-76798-045-0	01	1	0005-0210
84	SCREW; PLATE TO FLOOR M5X16	8-94279-312-0	08	1	9510-0210
124	FASTENER	1-09470-007-0	04	1	9510-0210
210	COVER; KICKING PLATE	1-72538-166-0	09	1	9510-0004
210	COVER; KICKING PLATE	1-76337-461-0	09	1	0005-0210
