◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#19273) — 26 parça

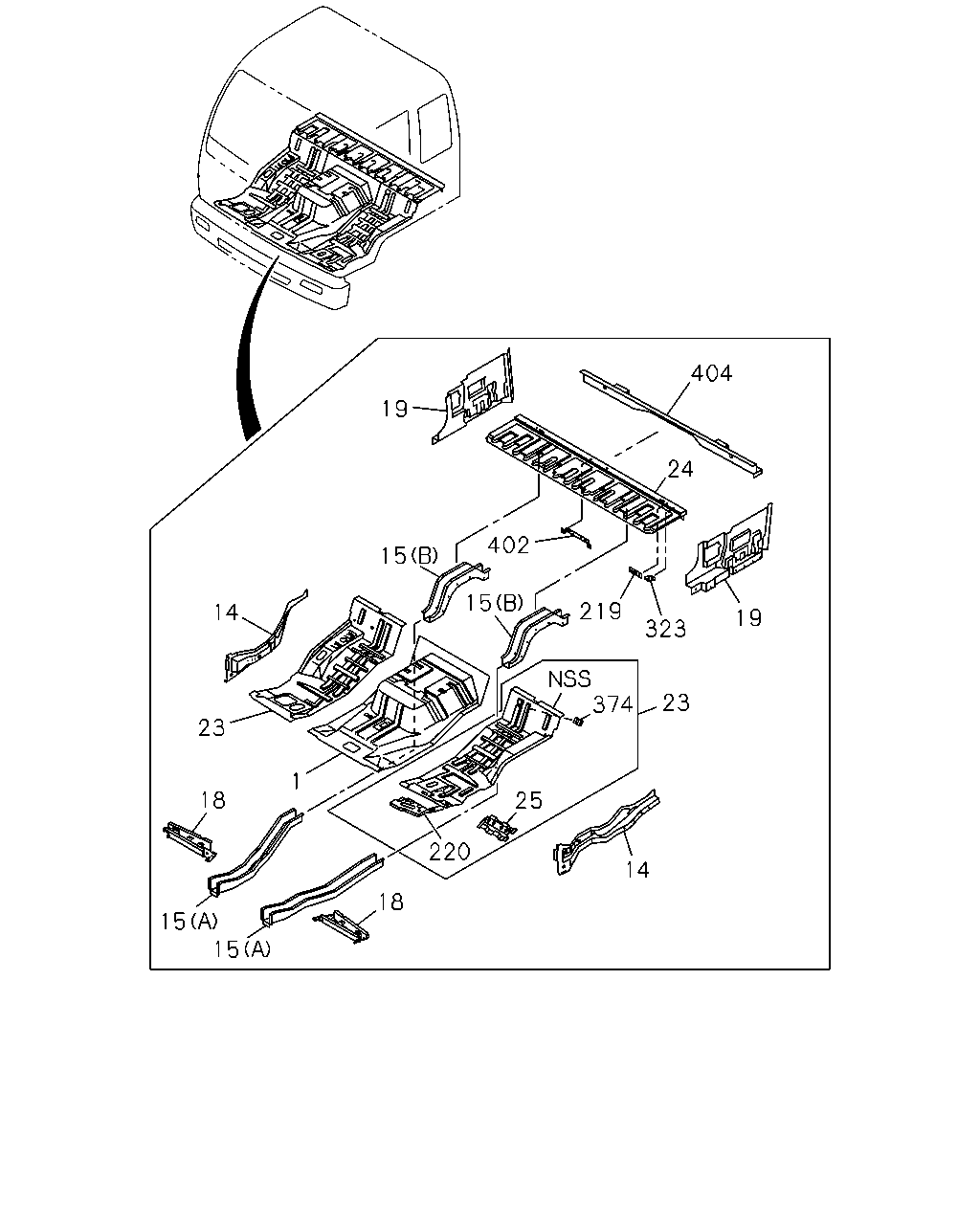

çizim 64662
404 19 24 402 15 15 219 14 19 323 374 23 23 1 18 25 220 14 18 15 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62183-139-9 01 1 9510-9904
1 PANEL; FLOOR 1-62183-532-0 01 1 9905-0210
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9510-0210
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9510-0210
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9510-0103
15 FRAME; UNDER
(A) 		1-62483-333-0 01 1 0104-0210
15 FRAME; UNDER
(A) 		1-62483-083-2 01 1 9510-0210
15 FRAME; UNDER
(B) 		1-62483-159-0 01 1 9510-0012
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0101-0210
15 FRAME; UNDER
(B) 		1-62483-160-0 01 1 9510-0012
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0101-0210
18 FRAME; FLOOR,CENTER SIDE 1-62483-096-3 01 1 9510-0210
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-3 01 1 9510-0210
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9510-0210
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9510-0210
23 PANEL; FLOOR,SIDE 1-62183-126-4 01 1 9510-0210
23 PANEL; FLOOR,SIDE 1-62183-127-6 01 1 9510-0210
24 PANEL; BED PAN 1-62182-940-9 01 1 9510-0210
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 9907-0210
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9510-0210
220 PATCH 1-62183-191-2 01 1 9510-0210
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9510-0210
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 9510-0210
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9510-9510
402 PATCH; CAB LOCK 1-62183-327-0 01 1 9510-0210
404 RAIL ASM; MTG,RR 1-62482-955-4 01 1 9510-0210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
