Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

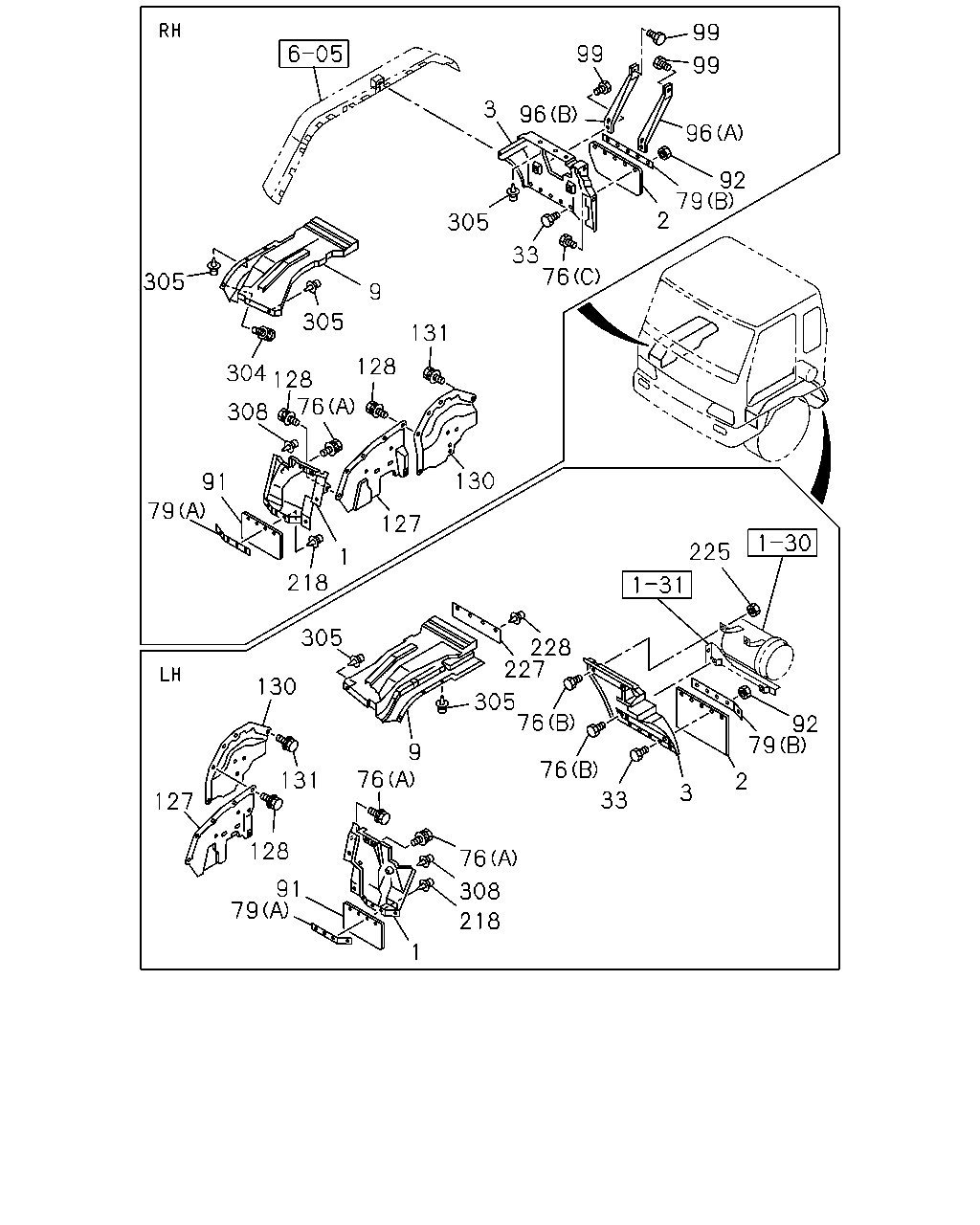

6-47 — MUD GUARD AND INSULATOR
(#19270) — 56 parça
◀
[647A] NO.2 (3 parça)
[647A] NO.1 (53 parça)
▶
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
140
BOLT; SIDE PANEL
PARKING BRAKE DRUM 8.5"(B1S) M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
140
BOLT; SIDE PANEL
PARKING BRAKE DRUM 8.5"(B1S) M8X25 FLANGE
0-28680-825-0
02
1
9607-0004
140
BOLT; SIDE PANEL
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X25 FLANGE
0-28680-825-0
02
1
0005-0210
99
99
99
3
96
96
92
79
2
305
33
76
305
9
305
131
128
304
128
76
308
130
91
79
127
225
1
218
305
228
227
130
305
76
92
79
9
76
76
131
2
3
33
127
128
76
91
79
308
218
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79938-810-8
01
1
9510-0210
1
GUARD; MUD,FRT
1-79938-812-8
01
1
9510-0210
2
COVER; MUD,TIRE RR
1-79930-484-1
01
1
9510-9511
2
COVER; MUD,TIRE RR
1-79931-224-0
01
1
9512-9610
2
COVER; MUD,TIRE RR
1-79930-693-0
01
1
9611-0210
2
COVER; MUD,TIRE RR
1-79930-693-0
01
1
9510-9511
2
COVER; MUD,TIRE RR
1-79931-217-0
01
1
9512-9610
2
COVER; MUD,TIRE RR
1-79930-484-1
01
1
9611-0210
3
GUARD; MUD,RR
1-79938-933-2
01
1
9510-9604
3
GUARD; MUD,RR
1-79938-961-2
01
1
9605-0210
3
GUARD; MUD,RR
1-79938-935-3
01
1
9510-0210
9
GUARD; SPLASH,WHEEL HOUSE
1-79938-822-9
01
1
9510-0210
9
GUARD; SPLASH,WHEEL HOUSE
1-79938-821-9
01
1
9510-0210
33
BOLT; MUD COVER
M6X16 W/LK&PL WASHER
1-09980-492-0
09
1
9510-9702
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
09
1
9703-0210
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
9510-9605
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9606-0210
76
BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
9510-0210
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
9510-0210
79
RETAINER; MUD COVER
(B) L=509
1-79930-695-1
01
1
9510-0210
79
RETAINER; MUD COVER
(B)
1-79930-962-1
01
1
9510-0210
79
RETAINER; MUD COVER
(A)
1-79931-044-0
02
1
9510-0210
91
COVER; MUD,FRT
1-79931-043-0
02
1
9510-9511
91
COVER; MUD,FRT
1-79931-214-1
02
1
9512-0210
92
NUT; MUD COVER
M6
9-09110-406-0
09
1
9510-9612
92
NUT; MUD COVER
M6 FLANGE
0-91150-106-0
09
1
9701-0210
96
STAY; MUD GUARD
(A)
1-79938-737-0
01
1
9510-0210
96
STAY; MUD GUARD
(B)
1-79938-738-0
01
1
9510-0210
99
BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9510-0210
127
APRON; FRT
1-53192-301-3
01
1
9510-0210
127
APRON; FRT
1-53193-222-0
01
1
9510-9611
127
APRON; FRT
1-53193-223-1
01
1
9612-0210
128
BOLT; APRON,FRT
M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
9510-0210
130
PANEL; SHUTTER NOISE
1-53192-307-3
01
1
9510-9611
130
PANEL; SHUTTER NOISE
1-53192-308-3
01
1
9612-0210
130
PANEL; SHUTTER NOISE
1-53192-305-2
01
1
9510-0210
131
BOLT; PANEL
M6X20 W/LK&PL WASHER
8-94279-203-0
08
1
9510-0210
218
FASTENER; RUBBER
1-09470-001-0
08
1
9510-0210
225
NUT; MUD GUARD
M8
9-09110-408-0
02
1
9510-9612
225
NUT; MUD GUARD
M8 FLANGE
0-91150-108-0
02
1
9701-0210
227
SEAL; MUD GUARD
1-79938-820-1
01
1
9510-9601
227
SEAL; MUD GUARD
1-79938-953-1
01
1
9602-0210
228
FASTENER; MUD GUARD SEAL
D8X13.5
1-09987-248-1
04
1
9510-0210
304
BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
9510-0210
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-0
07
1
9510-9510
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
04
1
9510-9710
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
02
1
9711-9802
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
08
1
9803-0210
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
08
1
9510-9802
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
02
1
9803-0004
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
05
1
0005-0210
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
03
1
9510-0004
308
FASTENER; MUD GUARD
1-09470-007-0
04
1
9510-0210
