◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#19267) — 65 parça

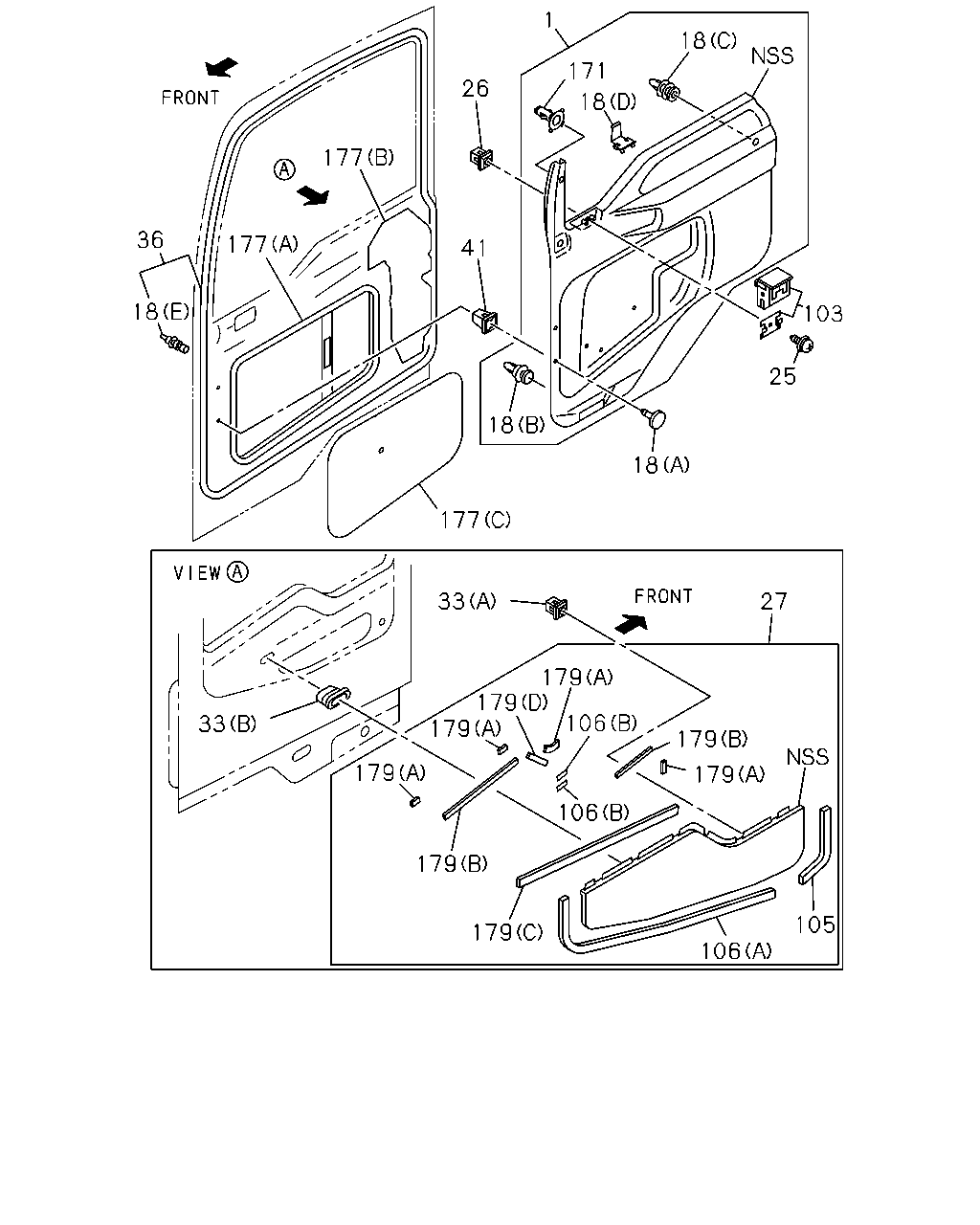

çizim 63479
1 18 171 26 18 177 36 177 41 18 103 25 18 18 177 33 27 179 179 179 106 33 179 179 179 106 179 105 179 106
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9604-0004
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0210
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9604-0004
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101-0210
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-9603
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 0005-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0210
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-0210
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-0210
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005-0210
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-0210
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-0210
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510-0210
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-0210
27 PANEL; ORNAMENT,DOOR 1-76218-096-5 01 1 9510-0210
27 PANEL; ORNAMENT,DOOR 1-76218-095-5 01 1 9510-0210
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0210
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-0210
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9510-0210
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9510-0210
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-0210
103 TRAY ASM; ASH,DOOR 1-76458-070-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-0 01 1 0112-0210
103 TRAY ASM; ASH,DOOR 1-76458-069-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-0 01 1 0112-0210
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-0210
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-0210
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-0210
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-0210
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0210
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0210
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0005-0210
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512-0210
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510-9603
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 9604-0210
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-0 01 1 9510-9603
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-4 01 1 9510-9603
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9510-0210
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9510-0210
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 9510-0210
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 9510-0210
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 9510-0210
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 9510-0210
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 9510-0210
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 9510-0210
