Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

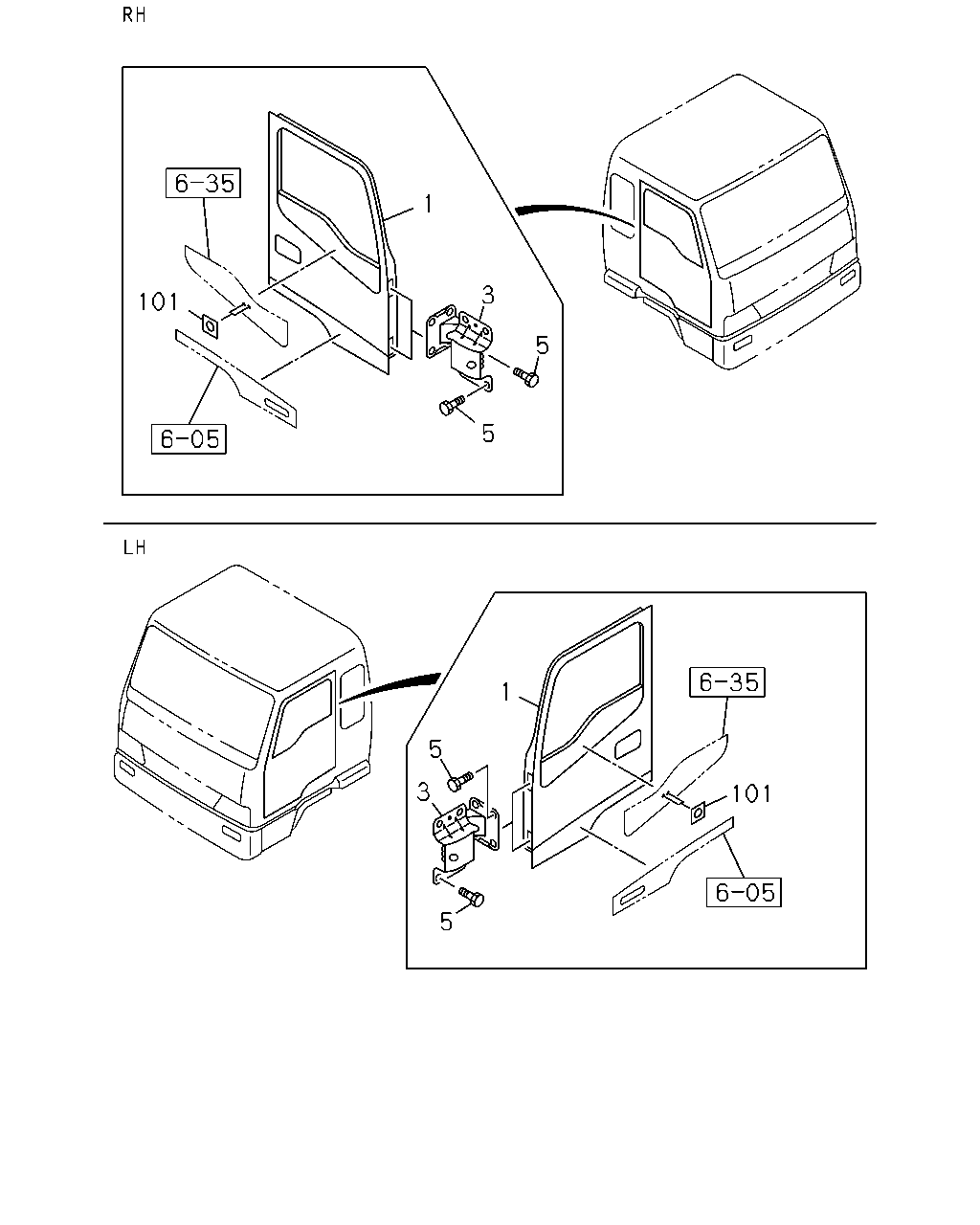

6-30 — FRONT DOOR AND HINGE
(#19264) — 12 parça
1
3
101
5
5
1
5
3
101
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-326-0
01
1
9510-9901
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-0
01
1
9902-0210
1
DOOR ASM; FRT,WO/TRIM
1-64080-325-0
01
1
9510-9901
1
DOOR ASM; FRT,WO/TRIM
1-64080-390-0
01
1
9902-0210
3
HINGE; DOOR FRT
UPPER
1-64780-088-2
01
1
9510-0210
3
HINGE; DOOR FRT
UPPER
1-64780-088-2
01
1
9510-0210
3
HINGE; DOOR FRT
LOWER
1-64780-089-2
01
1
9510-0210
3
HINGE; DOOR FRT
LOWER
1-64780-089-2
01
1
9510-0210
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
9510-0210
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
9510-0210
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
9510-0210
101
SEAL; BODY METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
9510-9809
