6-20 — SIDE PANEL AND STEP (#19263) — 83 parça

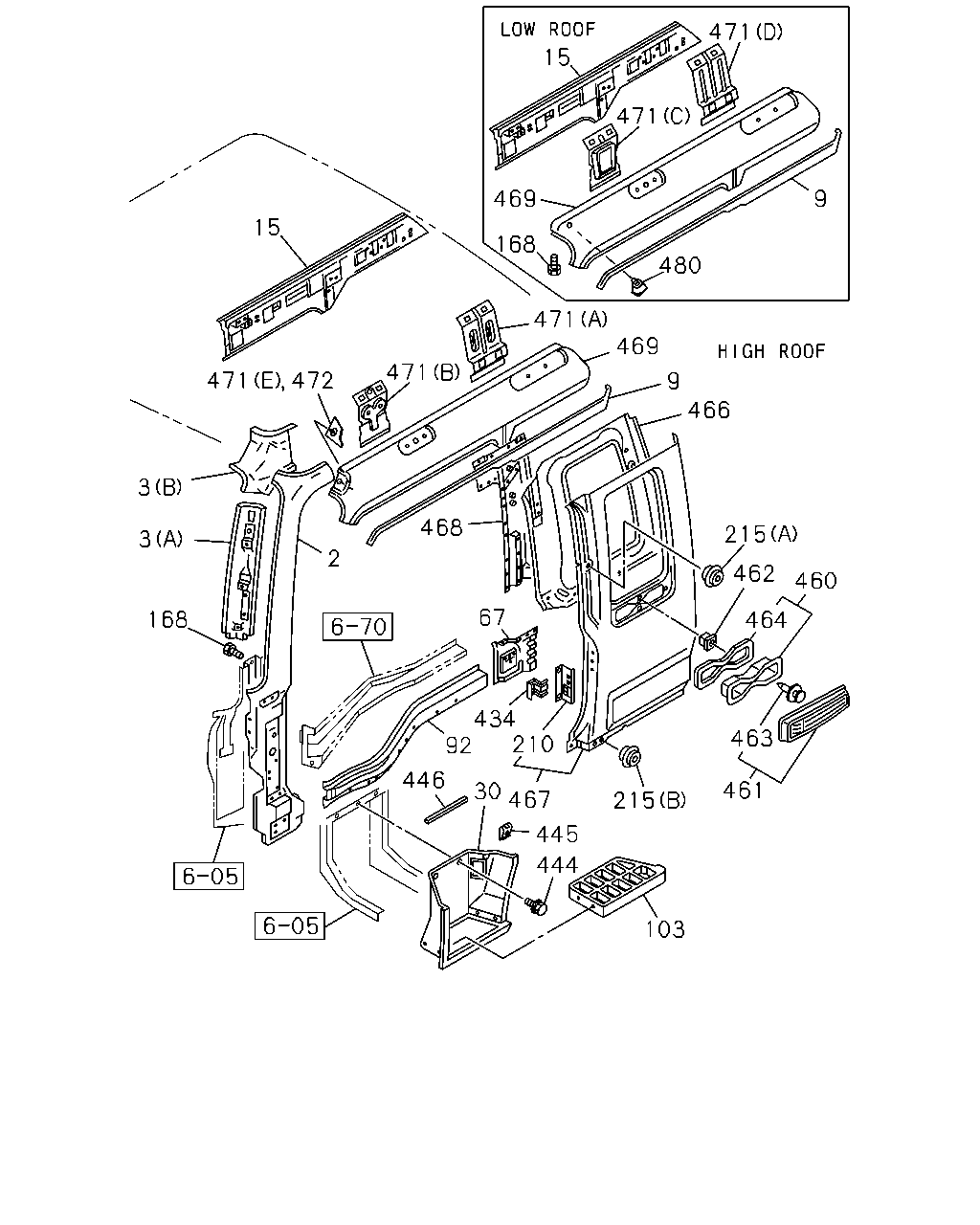

çizim 15933
471 15 471 469 9 15 168 480 471 469 471 9 466 3 468 215 3 2 462 460 67 168 464 434 92 210 463 446 461 30 467 215 445 444 103 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 9510-0210
2 PILLAR; FRT 1-61281-409-2 01 1 9510-0210
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9510-0210
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9510-0210
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9510-9603
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9510-9603
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9510-9603
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 9604-0210
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9510-9603
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 9604-0210
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 9510-0210
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 9510-0210
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9510-9603
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9510-9603
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9510-9603
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 9604-0210
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9510-9603
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 9604-0210
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9510-0210
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9510-0210
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9510-0210
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9510-0210
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9510-0210
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9510-0210
103 PLATE; STEP 1-71998-868-1 01 1 9510-9607
103 PLATE; STEP 1-71996-174-0 01 1 9608-0210
103 PLATE; STEP 1-71998-867-1 01 1 9510-9607
103 PLATE; STEP 1-71996-173-0 01 1 9608-0210
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9603
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9603
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0210
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0210
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 9510-0210
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0210
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9510-0210
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9510-0210
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9510-0210
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9510-0210
445 NUT; CLOSING 8-94279-723-0 02 1 9510-0210
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9510-0210
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9510-0210
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9510-0210
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9510-0210
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9510-0210
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9510-0210
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9510-0210
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9510-0210
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9510-0210
467 PANEL; OUTER,BACK CORNER 1-61281-478-3 01 1 9510-0210
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9510-0210
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-1 01 1 9510-9603
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9510-9603
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9510-9603
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 9604-0210
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9510-9603
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 9604-0210
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-3 01 1 9510-9603
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-3 01 1 9510-9603
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-3 01 1 9510-9603
469 ROOF; SIDE 1-61281-268-4 01 1 9604-0210
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-3 01 1 9510-9603
469 ROOF; SIDE 1-61281-267-4 01 1 9604-0210
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 01 1 9604-0210
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 01 1 9604-0210
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 9604-0210
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9510-9603
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 9604-0210
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9510-9603
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9510-9603
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 9604-0210
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9510-9603
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 9604-0210
