6-05 — FRONT PANEL (#19261) — 221 parça

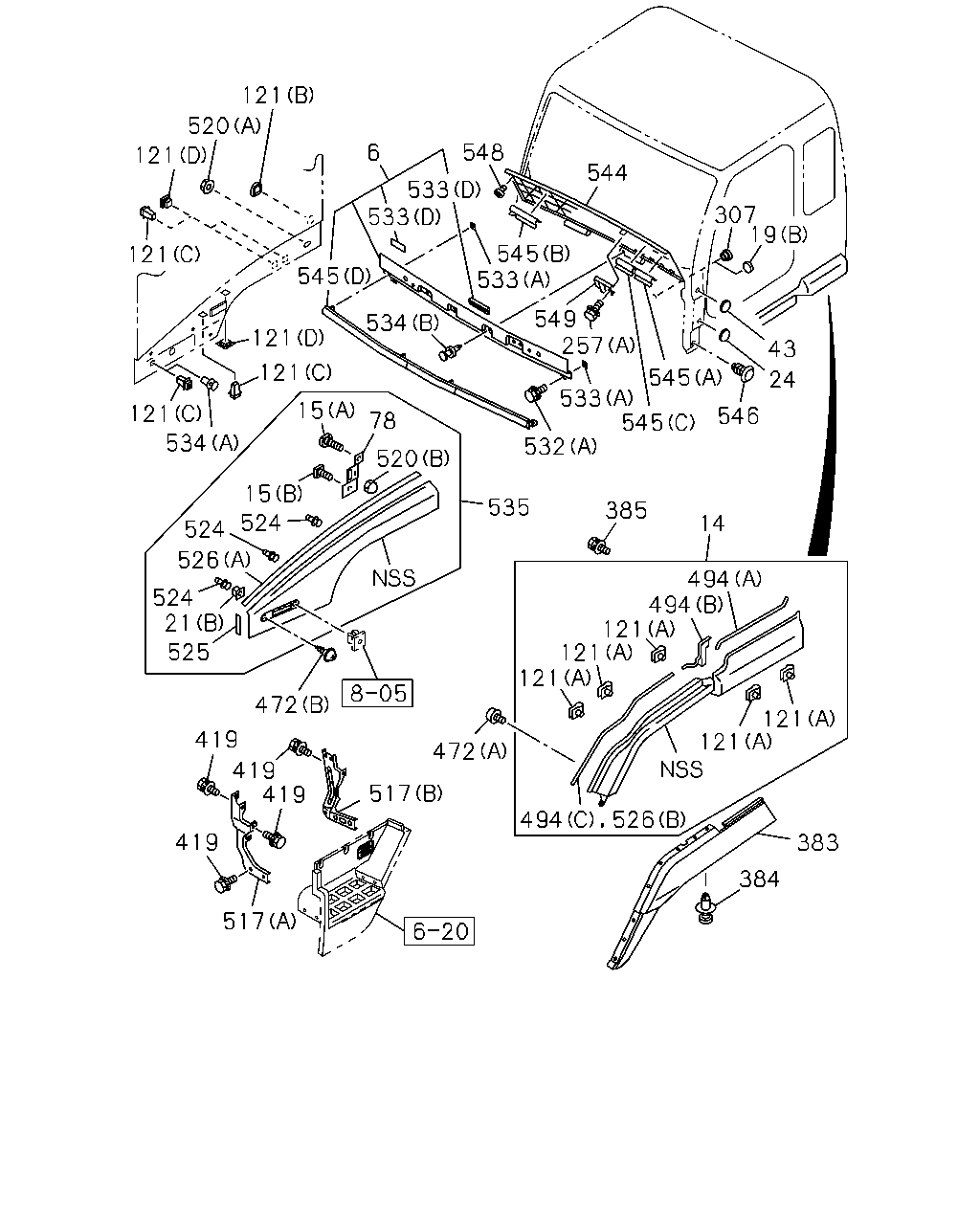

çizim 15398
121 520 548 6 121 544 533 533 545 307 19 545 533 549 257 121 534 121 43 121 533 545 545 24 15 121 546 78 534 532 520 15 535 385 524 14 524 526 494 494 121 121 121 524 21 525 472 121 419 121 472 419 419 517 419 383 384 517 494 526
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807
6 PANEL; FRONT 1-65481-744-1 01 1 9808-0210
14 FENDER; FRT
WHITE 		1-65481-447-1 01 1 9510-0209
14 FENDER; FRT
WHITE 		1-65482-023-0 01 1 0210-0210
14 FENDER; FRT
WHITE 		1-65481-446-1 01 1 9510-0209
14 FENDER; FRT
WHITE 		1-65482-022-0 01 1 0210-0210
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510-0210
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510-0210
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-0210
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-0210
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-0210
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9603
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9603
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9604-9811
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812-0210
43 GROMMET; LOCATION HOLE,A-POST
OD=45 T=0.08 BLACK 		8-94291-688-2 02 1 9510-9510
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510-0210
78 BRACKET; FENDER 1-71268-323-0 01 1 9510-0210
78 BRACKET; FENDER 1-71268-322-0 01 1 9510-0210
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-0210
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-9601
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0210
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9510-9601
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510-0210
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0210
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-0210
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0210
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-9603
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703
383 GUARD; MUD,FENDER LWR 1-71996-061-2 01 1 9510-0210
383 GUARD; MUD,FENDER LWR 1-71996-062-2 01 1 9510-0210
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 9510-0210
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 01 1 9510-0210
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0210
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0210
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 9510-0210
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-0210
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510-0210
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510-0210
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71998-900-3 02 1 9510-0210
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 9510-0210
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9510-0210
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-3 01 1 9601-0210
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510-0210
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-1 01 1 9601-0210
520 NUT; FENDER
(B) M6 CAP 		1-09984-031-0 02 1 9510-9510
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9511-0210
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510-0210
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9510-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-0210
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0210
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9510-0210
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) (B) 		1-71998-900-3 02 1 9510-9712
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (B) 		1-71998-900-3 02 1 9801-9802
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) (B) 		1-71998-900-3 02 1 9803-9803
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (B) 		1-71998-900-3 02 1 9804-0207
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0208-0210
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-0210
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-0210
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9510-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9808-0210
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9510-0210
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9510-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-0210
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-0210
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-0210
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510-0210
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210-0210
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210-0210
544 LID; FRT
BODY COLOR ARC WHITE(729) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> MITRAS 		1-71108-116-0 01 1 0007-0210
544 LID; FRT
BODY COLOR CARDINAL RED(736) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT
BODY COLOR FIRE RED(915) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT
BODY COLOR GOLDEN YELLOW(904) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT
BODY COLOR ARC WHITE(729) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT
BODY COLOR HIGHWAY ORANGE(944) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0207
544 LID; FRT
BODY COLOR MARINE BLUE(890) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT
BODY COLOR PURUTAMINA BLUE(918) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0207
544 LID; FRT
BODY COLOR SAHARA BEIGE(829) FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0210
544 LID; FRT 1-71108-073-3 01 1 9510-9703
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802
544 LID; FRT
CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 9803-0004
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 0005-0210
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-228-3 01 1 0005-0210
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2> 		1-71108-235-3 01 1 0005-0210
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9510-9908
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909-0210
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9510-0210
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-0210
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510-0210
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510-0210
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 9510-0210
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9510-0210

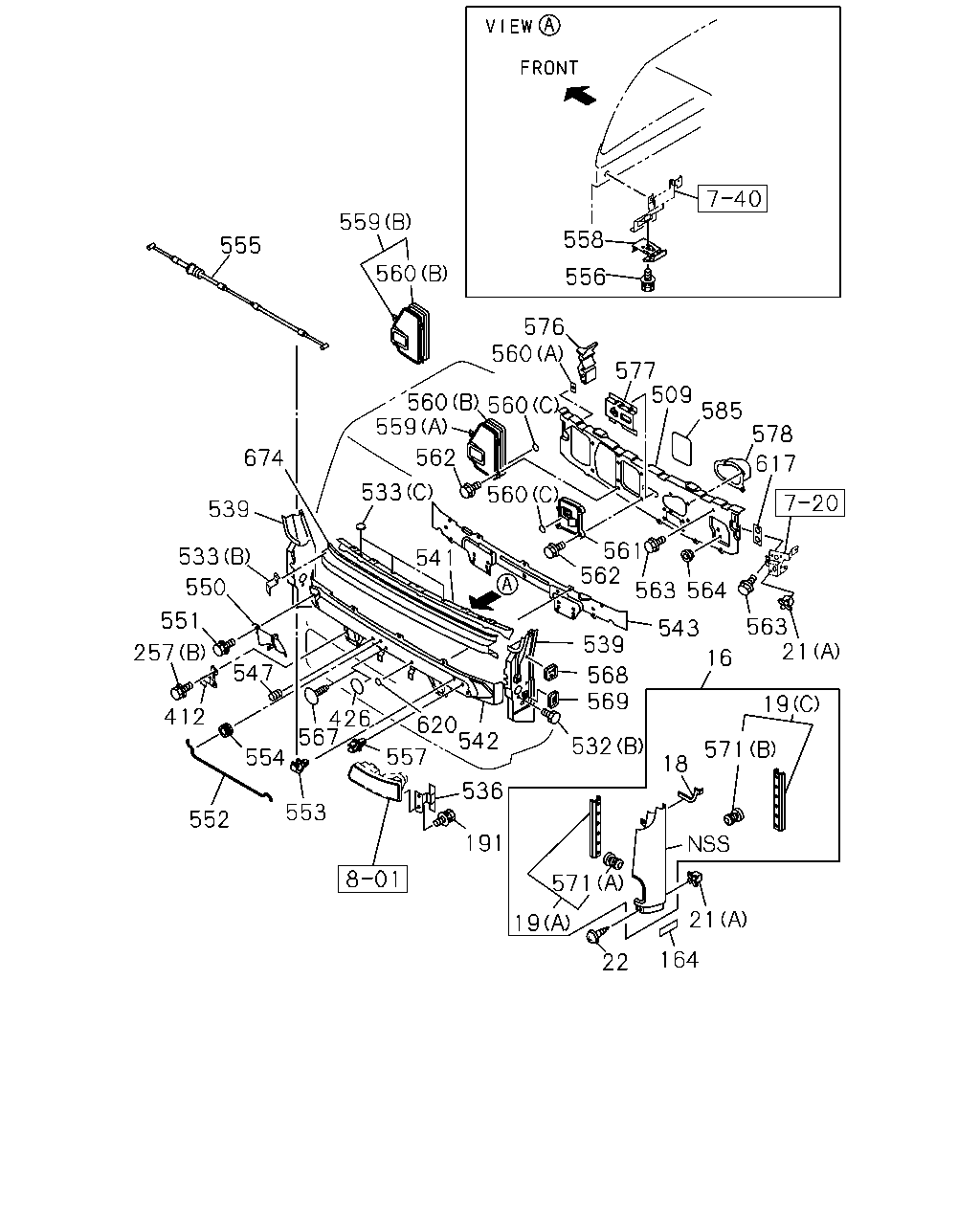

çizim 15709
558 559 555 560 556 576 560 577 509 560 560 559 585 578 562 674 617 560 533 539 541 561 562 533 550 563 564 551 563 21 543 539 257 16 547 568 569 19 412 426 567 620 542 557 532 571 554 18 536 553 552 191 571 21 19 164 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 9510-0210
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9510-0210
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9510-0210
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9510-0210
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-0210
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-0210
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-0210
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9510-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0210
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510-0210
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0210
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-9603
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-0210
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0210
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-9603
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-0210
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-0210
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-2 01 1 9510-9603
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-2 01 1 9510-9603
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0004
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0005-0010
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0011-0112
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0201-0210
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 9805-0004
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0005-0112
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-2 01 1 9510-9603
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-3 01 1 9604-0010
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-3 01 1 0011-0210
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-2 01 1 9510-9603
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-216-3 01 1 9604-0010
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-3 01 1 0011-0210
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-0210
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-0210
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9510-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9808-0210
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9510-0210
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9510-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-0210
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-0210
536 HINGE 1-86830-004-5 01 1 0005-0210
536 HINGE 1-86830-003-5 01 1 0005-0210
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510-9603
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510-9603
539 CLOSING; PILLAR 1-61480-762-1 01 1 9510-0210
539 CLOSING; PILLAR 1-61480-763-1 01 1 9510-0210
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9510-0210
542 RAIL; FRT MOUNTING 1-61480-768-4 01 1 9510-0210
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9510-0210
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9510-0210
550 LOCK ASM; FRT LID 1-79318-007-4 01 1 9510-0210
550 LOCK ASM; FRT LID 1-79318-006-2 01 1 9510-0210
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-0210
552 STAY; FRT LID 1-71996-046-2 01 1 9510-0205
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0210
553 CLIP; STAY 8-97031-428-0 01 1 9510-0210
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9510-0210
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9510-0210
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9510-0210
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9510-0210
558 LEVER; FRT LID 1-79338-003-1 01 1 9510-9601
558 LEVER; FRT LID 8-97865-110-0 01 1 9602-0210
559 COVER; EVAPOLATOR
(A) 		1-71998-994-1 01 1 9510-9608
559 COVER; EVAPOLATOR
(B) 		1-71996-193-0 01 1 9609-0210
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9510-9805
560 SEAL; COVER
(C) OD=25 BLACK 		1-76798-019-0 01 1 9510-0210
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9510-9608
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9609-0210
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9510-9603
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9604-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0004
560 SEAL; COVER
ISUZU M/T<X9A> (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005-0010
560 SEAL; COVER
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0011-0210
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9510-9603
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9604-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0010
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0011-0210
561 COVER; HEATER CORE 1-71998-993-2 01 1 9510-0210
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0210
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9510-9707
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-0210
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9510-9707
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-0210
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9510-0210
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9510-9510
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9510-9803
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9510-0210
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9510-0210
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9510-0210
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-0210
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-0210
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510-0210
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510-0210
576 FRAME; INST SIDE 1-62280-200-2 01 1 9510-0210
576 FRAME; INST SIDE 1-62280-201-2 01 1 9510-0210
577 BRACKET; IDLER 1-62280-202-0 01 1 9510-0210
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9510-0210
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9510-9603
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-71996-084-1 01 1 9604-0010
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 0011-0210
617 SEAL; DASH 1-61281-497-0 02 1 9806-0210
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9511-0210
674 PANEL; UPR 1-61480-677-4 01 1 9510-0210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
