Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

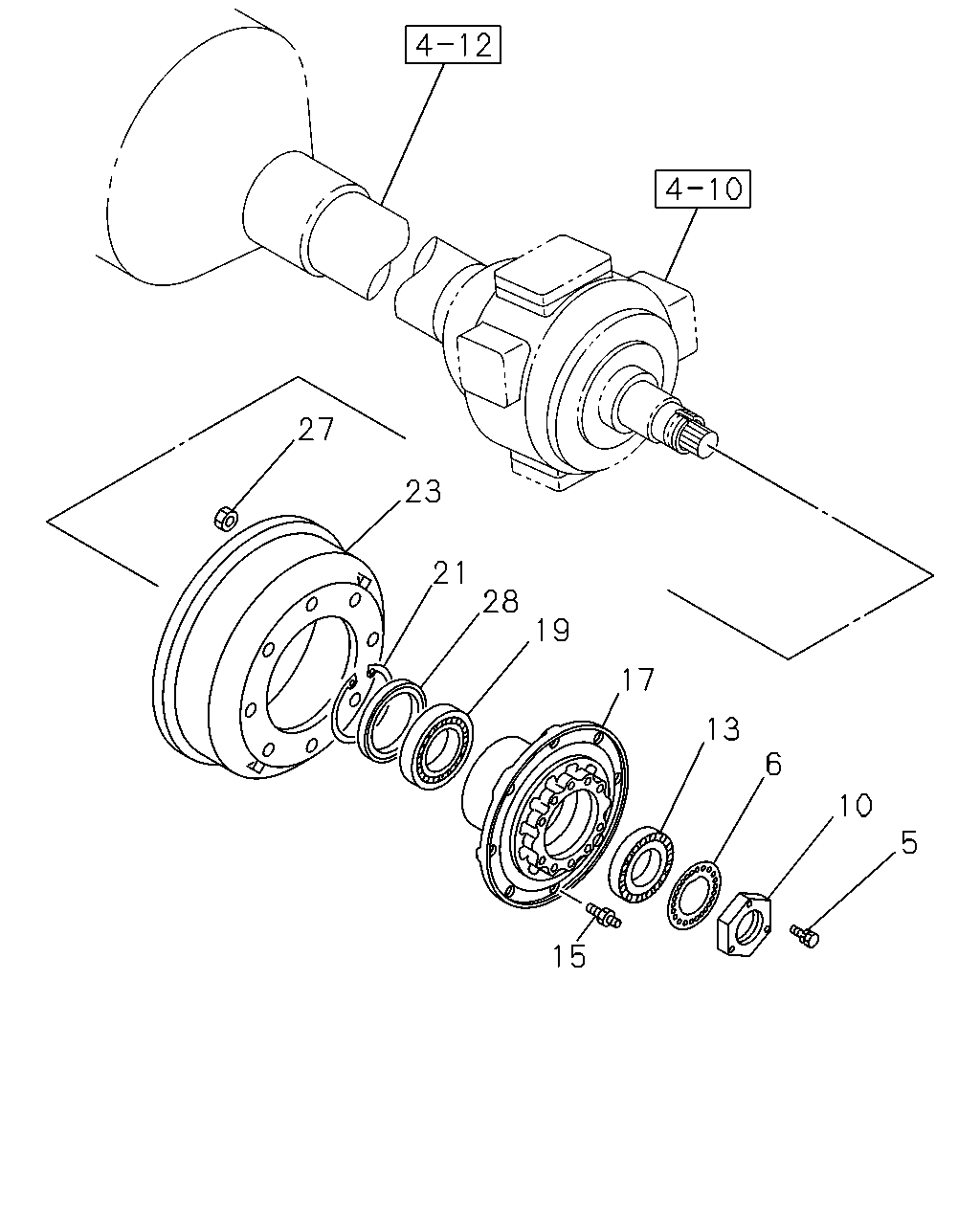

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#1926) — 18 parça
Tümü
A - FSS6MC
B - FSS6MF
C - FTS6MC
D - FTS6MF
27
23
21
28
19
17
13
6
10
5
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
5
BOLT; LK WASHER
M6X16 W/LK WASHER
0-50040-616-0
06
1
9207-
●
●
●
●
6
WASHER; LK,FRT HUB
ID=74.6
1-09533-008-0
02
1
9207-
●
●
●
●
10
NUT; FRT HUB BRG
M74.6
9-09843-064-2
02
1
9207-
●
●
●
●
13
BEARING; HUB OUTER,FRT AXLE
KOYO
1-09812-044-0
02
1
9207-
●
●
●
●
13
BEARING; HUB OUTER,FRT AXLE
NACHI
1-09812-053-0
02
1
9207-
●
●
●
●
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-161-0
02
1
9207-
●
●
●
●
15
PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X45.5 RH THREAD
1-42332-060-0
08
1
9207-
●
●
●
●
15
PIN; WHEEL,FRT AXLE
M20X37.5,M22X45.5 RH THREAD
1-42331-060-0
08
1
9207-
●
●
●
●
17
HUB; FRT AXLE
1-42312-020-3
02
1
9207-
●
●
●
●
19
BEARING; HUB INNER,FRT AXLE
ID=80 OD=140 T=35.3 NACHI
1-09812-144-0
02
1
9207-
●
●
●
●
19
BEARING; HUB INNER,FRT AXLE
KOYO ID=80 OD=140 T=35.3
1-09812-145-0
02
1
9207-
●
●
●
●
19
BEARING; HUB INNER,FRT AXLE
NSK ID=80 OD=140 T=35.3
1-09812-146-0
02
1
9207-
●
●
●
●
21
RING; SNAP,HUB
OD=150
9-09950-147-0
02
1
9207-
●
●
●
●
23
DRUM; BRK,FRT
1-42315-112-1
02
1
9207-
●
●
●
●
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-037-0
16
1
9207-
●
●
●
●
28
SEAL; OIL,FRT HUB
TKK
9-09924-415-0
02
1
9207-
●
●
●
●
28
SEAL; OIL,FRT HUB
NOK
9-09924-416-0
02
1
9207-
●
●
●
●
28
SEAL; OIL,FRT HUB
KOYO
9-09924-417-0
02
1
9207-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
