Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

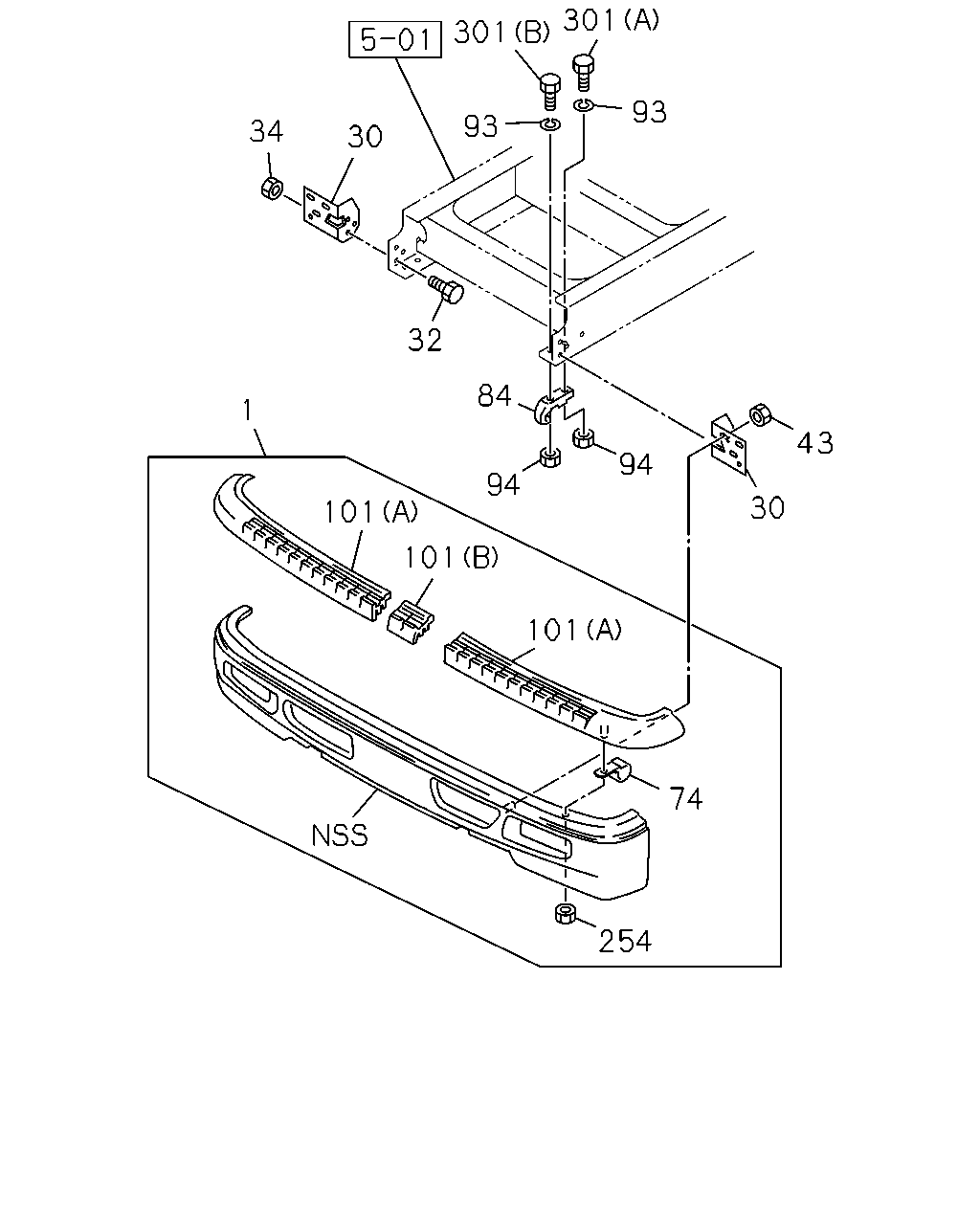

6-01 — FRONT BUMPER
(#19258) — 21 parça
301
301
93
93
34
30
32
84
1
43
94
94
30
101
101
101
74
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
1-71210-583-3
01
1
9510-0210
30
BRACKET; FRT BUMPER
1-71230-207-3
01
1
9510-0111
30
BRACKET; FRT BUMPER
1-71230-568-0
01
1
0112-0210
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
9510-0210
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28081-030-0
06
1
9510-9606
32
BOLT; BRKT,BUMPER
M10X35 FLANGE
0-28681-035-0
06
1
9607-9608
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
9609-0210
34
NUT; BRKT,BUMPER
M10
9-09110-510-0
06
1
9510-9606
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
9607-0210
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-110-0
04
1
9510-9608
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
04
1
9609-0210
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
9510-0210
84
HOOK
1-57181-017-2
01
1
9510-0210
93
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
9510-0210
94
NUT; HOOK
M14
9-99110-414-0
02
1
9510-0210
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
9510-0210
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
9510-0210
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
9510-0210
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
9510-0210
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10811-460-0
01
1
9510-0210
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10811-470-0
01
1
9510-0210
