5-15 — CAB MOUNTING; CAB SIDE (#19255) — 85 parça

310 311 310 301 302 73 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	PAD; TORSION BAR	1-53459-790-1	02	1	9510-0210
76	BOLT; PAD M10X30 W/LK&PL WASHER	8-94279-213-0	06	1	9510-0210
301	BRACKET; RR MTG,CAB CAB SUSPENSION RIGID<W71>	1-62580-236-1	01	1	9510-9603
301	BRACKET; RR MTG,CAB	1-62580-236-1	01	1	9604-0210
301	BRACKET; RR MTG,CAB CAB SUSPENSION RIGID<W71>	1-62580-235-1	01	1	9510-9603
301	BRACKET; RR MTG,CAB	1-62580-235-1	01	1	9604-0210
301	BRACKET; RR MTG,CAB EXC. CAB SUSPENSION RIGID<W71>	1-62580-234-2	02	1	9510-9603
302	BOLT; BRKT,CAB CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9510-9603
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9604-0210
302	BOLT; BRKT,CAB EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER	1-09980-526-0	10	1	9510-9603
310	SEAL; BRKT EXC. CAB SUSPENSION RIGID<W71> OD=30 BLACK	1-76798-035-0	04	1	9510-9603
311	SEAL; CAB LOCK OD=30 BLACK	1-76798-035-0	02	1	9510-0210

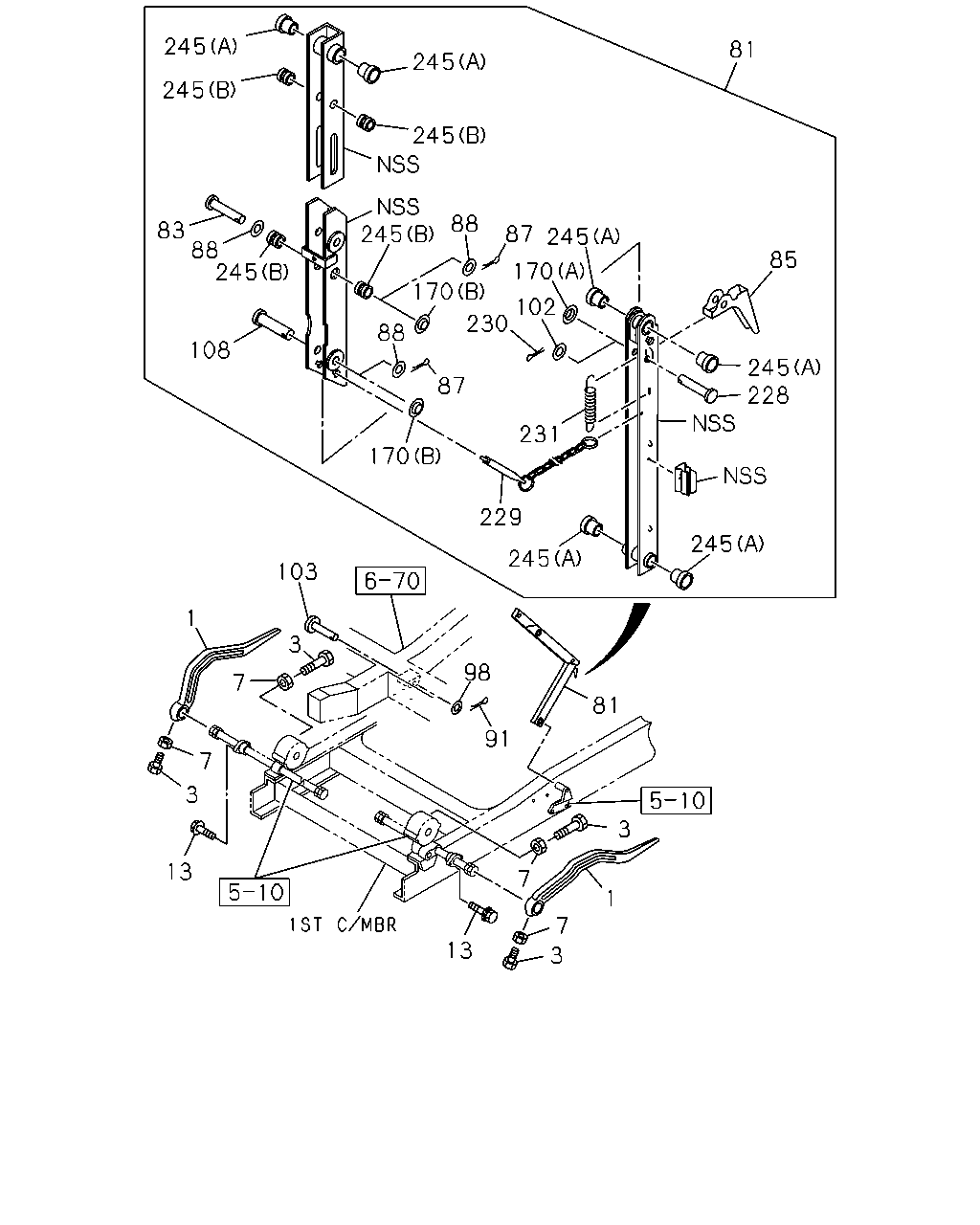

245 81 245 245 245 245 88 83 88 245 87 245 85 170 170 102 230 88 108 245 228 87 231 170 229 245 245 103 1 3 98 7 81 91 7 3 3 13 7 1 7 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR	1-53458-617-0	01	1	9510-0210
1	LEVER; TORSION BAR	1-53458-618-0	01	1	9510-9604
1	LEVER; TORSION BAR	1-53458-750-0	01	1	9605-0210
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	9510-0210
7	NUT; LK,LEVER M10	9-09110-510-0	04	1	9510-0210
13	BOLT; BUSHING,TORSION BAR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9510-9709
13	BOLT; BUSHING,TORSION BAR M6X12 FLANGE	0-28080-612-0	02	1	9710-0210
81	STAY ASM; CAB TILT	1-62500-630-2	01	1	9510-9811
81	STAY ASM; CAB TILT	1-62500-721-1	01	1	9812-0210
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9510-0210
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	9510-0210
87	PIN; SPLIT,CAB STAY PIN	1-09746-021-0	02	1	9510-9708
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	03	1	9510-9708
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	9709-0210
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-0210
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	9510-0210
102	WASHER; PL,CAB STAY ID=8.4 OD=16	1-09985-174-0	01	1	9510-9708
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	9510-0210
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9510-9811
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9812-0210
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9709-0210
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	9709-0210
228	PIN; SAFETY LOCK SPRING,CAB STAY	1-09744-086-2	01	1	9510-0210
229	PIN ASM; SAFETY	1-62500-517-1	01	1	9812-0210
230	PIN; SPLIT CAB STAY	1-09746-019-0	01	1	9510-9708
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	9510-0210
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	9510-0210
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	9510-0210

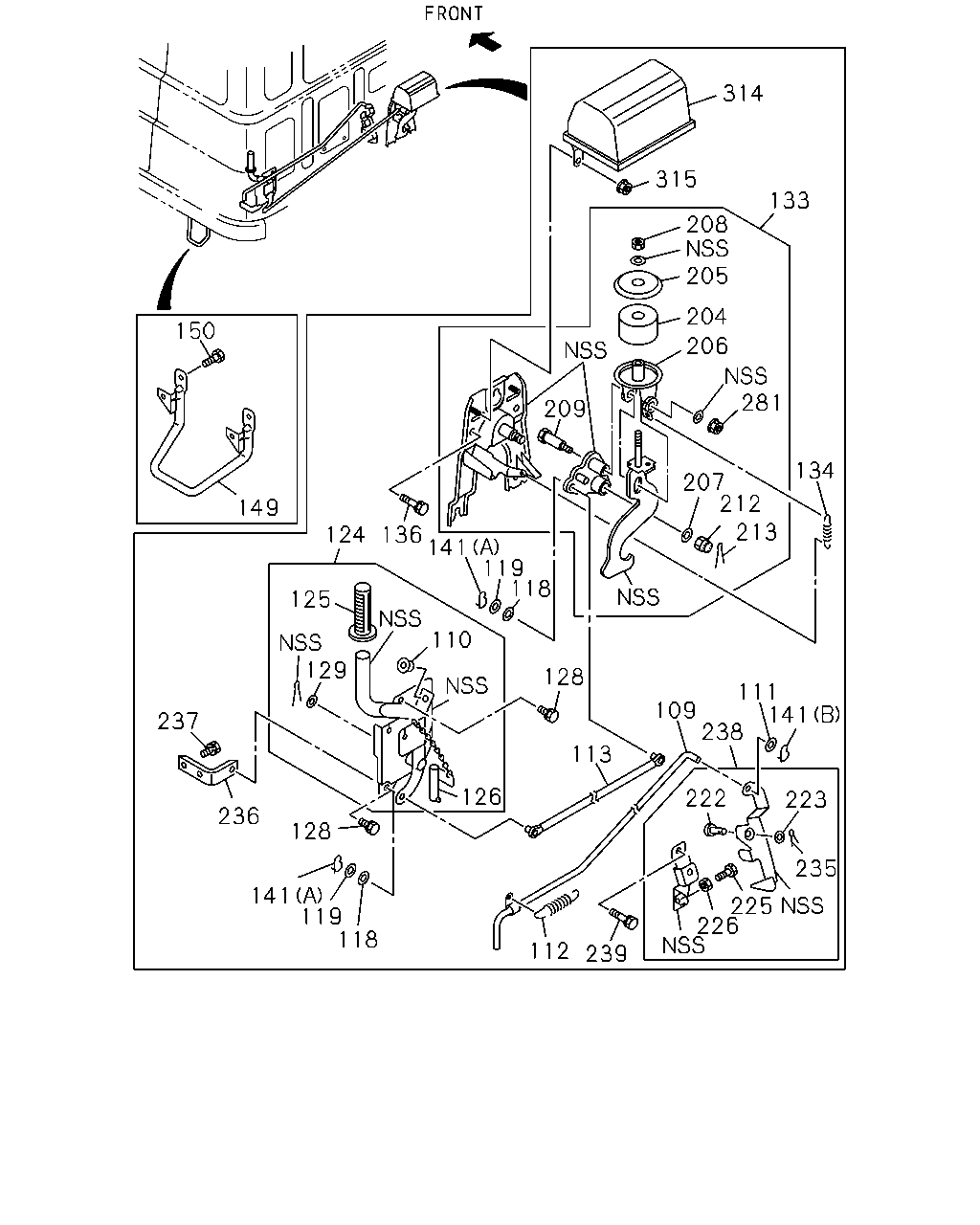

314 315 133 208 205 204 150 206 281 209 134 207 212 213 149 124 136 141 119 118 125 110 129 128 111 141 109 238 237 113 222 126 223 236 128 235 141 119 118 226 112 239 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	ROD; SAFETY,CAB LK	1-79718-496-2	01	1	9510-9512
109	ROD; SAFETY,CAB LK	1-79718-606-0	01	1	9601-9709
109	ROD; SAFETY,CAB LK	1-79718-642-1	01	1	9710-0210
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	01	1	9510-0210
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	9510-0210
112	SPRING; RETURN,SAFETY ROD	1-79718-539-0	01	1	9510-9901
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	9902-0210
113	ROD; CONN,CAB LK	1-79718-583-0	01	1	9510-0210
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	9510-0210
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	9510-0210
124	LEVER ASM; HAND,CAB LK	1-79718-585-3	01	1	9510-0210
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	9510-0210
126	PIN; LK,HAND LEVER	1-79718-594-1	01	1	9510-0210
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0210
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	9510-0210
133	LOCK ASM; CAB	1-79718-553-4	01	1	9510-9905
133	LOCK ASM; CAB	1-79718-656-0	01	1	9906-0210
134	SPRING; CAB LK LEVER	1-79718-538-1	01	1	9510-0210
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	9510-0210
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	9510-0210
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	9510-0210
149	HANDLE; TILT	1-71998-941-0	01	1	9510-0210
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-0210
204	RUBBER; REBOUND,CAB LK	1-79718-429-1	01	1	9510-0210
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	9510-0210
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	9510-0210
207	WASHER; PL,SUPPORT PLATE ID=19 OD=44	1-09985-113-0	01	1	9510-0210
208	NUT; SUPPORT PLATE M14 LOCK NUT W/FLANGE	1-79718-526-0	01	1	9510-0210
209	PIN; JOINT,SUPPORT	1-79718-523-0	01	1	9510-0210
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	9510-0210
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	9510-0210
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	9510-0210
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	9510-0210
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	9510-0210
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	9510-0210
235	PIN; SNAP	1-09987-158-1	01	1	9510-0210
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-493-0	01	1	9510-0210
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9510-0210
238	LOCK ASM; SAFETY,CAB TILT	1-79718-602-0	01	1	9510-9512
238	LOCK ASM; SAFETY,CAB TILT	1-79718-612-1	01	1	9601-0210
239	BOLT; SAFETY LK M8X25 W/PL WASHER	8-94279-166-0	02	1	9510-0210
281	NUT; SUPPORT M12 LOCK NUT W/FLANGE	1-79718-524-1	01	1	9510-0210
314	COVER; CAB LOCK	1-79718-575-1	01	1	9510-0210
315	NUT; COVER M8 FLANGE	8-94279-517-0	02	1	9510-9611
315	NUT; COVER M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0210
