5-10 — CAB MOUNTING; FRAME SIDE (#19254) — 146 parça

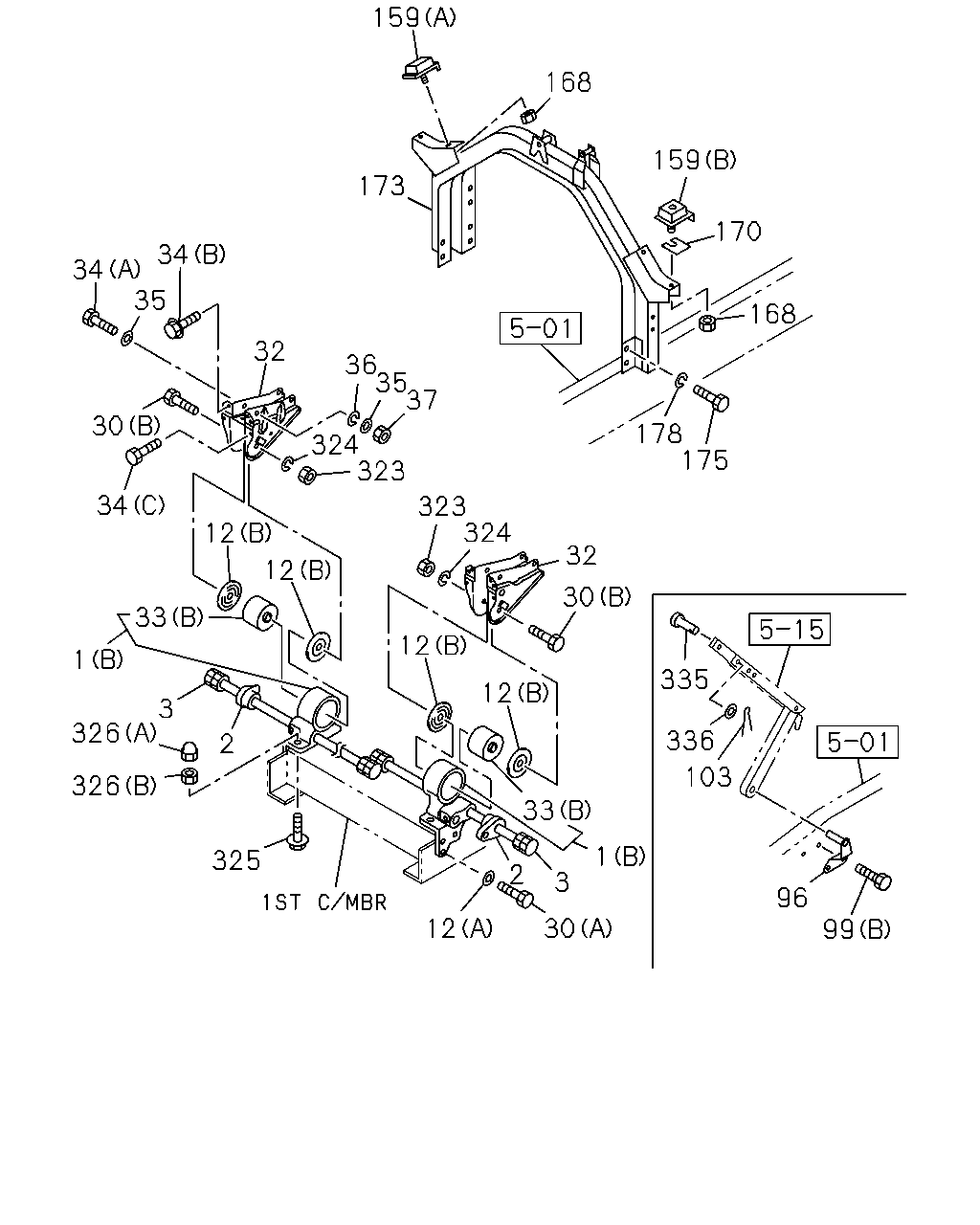

159 168 159 173 170 34 34 35 168 32 36 35 37 30 324 323 178 175 34 323 324 12 32 12 30 33 335 12 1 12 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-248-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-248-0	01	1	9604-0210
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-247-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-247-0	01	1	9604-0210
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-256-0	01	1	9510-9603
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-255-0	01	1	9510-9603
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-0210
3	TORSION BAR	1-09585-129-0	01	1	9510-0210
3	TORSION BAR	1-09585-130-0	01	1	9510-0210
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-0210
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-9603
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9604-0210
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9510-9603
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-0210
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0210
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-233-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	9604-0210
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-232-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-232-4	01	1	9604-0210
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-231-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-230-4	01	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	1-53458-636-1	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-636-1	02	1	9604-0210
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53459-836-0	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53459-836-0	02	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-0	04	1	9510-0210
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-0210
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0010
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0011-0210
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0011-0210
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-9603
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-0210
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-0210
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-0210
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-628-0	01	1	9510-9603
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9604-0210
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9603
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9604-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0210
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09746-021-0	01	1	9510-9603
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9604-0210
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9604-0210
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9604-0210
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-9603
168	NUT; CUSHION RUBBER,BODY MTG CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91150-112-0	04	1	9510-9603
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9604-9606
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-212-0	04	1	9607-0210
170	SHIM; CUSHION RUBBER CAB SUSPENSION RIGID<W71> T=1.6	1-53459-621-0	AR	1	9510-9603
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9604-0210
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71>	1-53454-618-0	01	1	9510-9603
173	MEMBER; CAB MTG RR	1-53454-618-0	01	1	9604-0210
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-597-1	01	1	9510-9603
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0210
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0210
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0210
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0210
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0210
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0210
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=48	1-09744-107-0	01	1	9510-9603
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9604-0210
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	9510-9603
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9604-0210

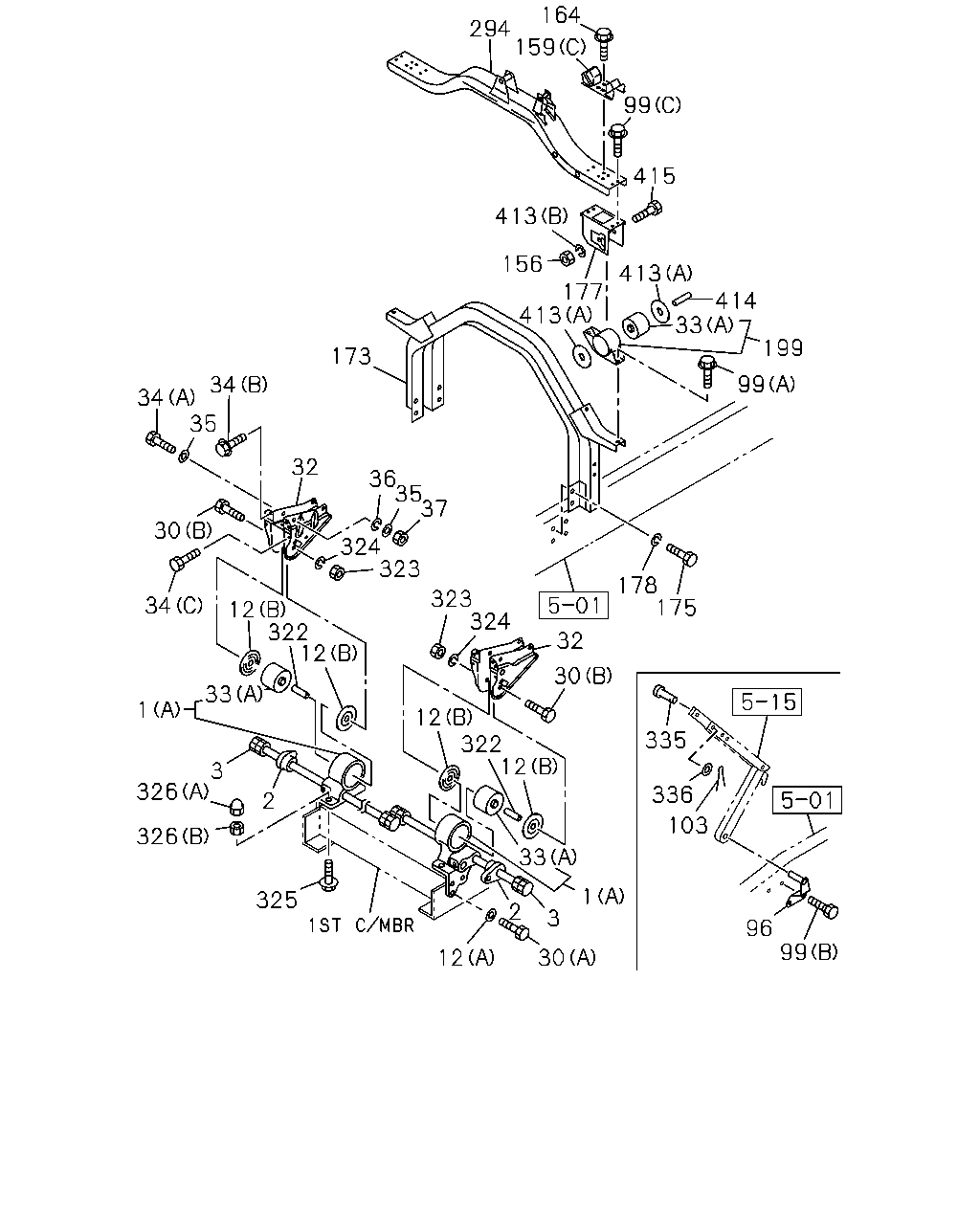

164 294 159 99 415 413 156 413 177 413 414 33 199 173 99 34 34 35 32 36 35 37 30 324 323 178 175 323 324 34 12 322 2 32 30 33 1 335 12 322 12 3 326 336 2 103 326 33 1 325 2 3 96 99 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-248-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-248-0	01	1	9604-0210
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-247-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-247-0	01	1	9604-0210
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-256-0	01	1	9510-9603
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-255-0	01	1	9510-9603
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-0210
3	TORSION BAR	1-09585-129-0	01	1	9510-0210
3	TORSION BAR	1-09585-130-0	01	1	9510-0210
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-0210
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-9603
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9604-0210
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9510-9603
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-0210
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0210
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-233-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	9604-0210
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-232-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-232-4	01	1	9604-0210
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-231-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-230-4	01	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	1-53458-636-1	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-636-1	02	1	9604-0210
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53459-836-0	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53459-836-0	02	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-0	04	1	9510-0210
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-0210
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0010
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0011-0210
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0011-0210
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-9603
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-0210
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-0210
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-0210
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-628-0	01	1	9510-9603
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9604-0210
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9603
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9604-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0210
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09746-021-0	01	1	9510-9603
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9604-0210
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9604-0210
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9604-0210
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-9603
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	04	1	9510-9603
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71>	1-53454-618-0	01	1	9510-9603
173	MEMBER; CAB MTG RR	1-53454-618-0	01	1	9604-0210
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-597-1	01	1	9510-9603
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0210
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-528-1	01	1	9510-9603
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-529-1	01	1	9510-9603
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0210
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-526-1	02	1	9510-9603
294	MEMBER; FLOATING CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-530-1	01	1	9510-9603
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9510-9603
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0210
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0210
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0210
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0210
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=48	1-09744-107-0	01	1	9510-9603
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9604-0210
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	9510-9603
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9604-0210
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53458-693-0	04	1	9510-9603
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	9-09150-816-0	02	1	9510-9603
414	COLLAR; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9510-9603
415	PIN; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9510-9603
