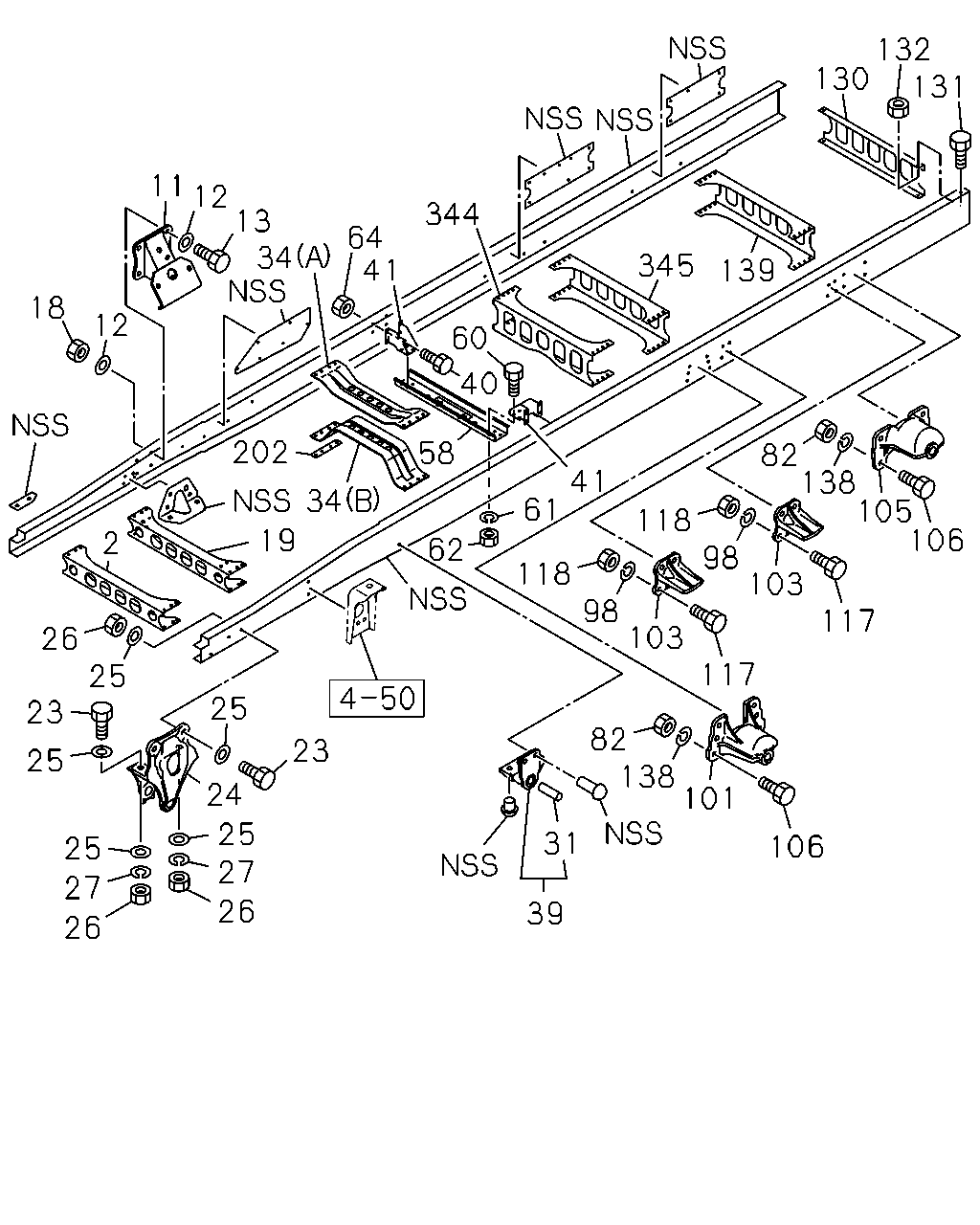

5-01 — FRAME AND OTHER PARTS (#19253) — 88 parça

132 130 131 11 12 13 34 344 64 41 345 139 18 12 60 40 58 82 138 105 106 202 41 2 34 61 118 98 103 19 62 118 98 103 117 26 25 117 25 23 82 138 101 23 25 24 25 27 31 106 25 27 26 39 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-460-8	01	1	9510-9802	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9803-0210	●	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9510-9802	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9803-0210	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9510-9802	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9510-9802	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	9803-0210	●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9510-9802	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	9803-0210	●	●	●
19	MEMBER; CROSS,2ND	1-53181-715-4	01	1	9510-9802	●	●
19	MEMBER; CROSS,2ND	1-53181-715-9	01	1	9803-0210	●	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9510-9802	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9803-0210	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-233-0	01	1	9903-0210	●
24	BRACKET; FRT SPR,FRT EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03)	1-53351-233-0	01	1	9903-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-234-0	01	1	9903-0210	●
24	BRACKET; FRT SPR,FRT EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03)	1-53351-234-0	01	1	9903-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-215-0	01	1	9510-9802	●	●
24	BRACKET; FRT SPR,FRT	1-53351-215-0	01	1	9803-9902	●	●	●
24	BRACKET; FRT SPR,FRT FRAME EQUIPMENT HEAVY DUTY VAR1(F03)	1-53351-215-0	01	1	9903-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-215-0	01	1	9903-0210			●
24	BRACKET; FRT SPR,FRT	1-53351-216-0	01	1	9510-9802	●	●
24	BRACKET; FRT SPR,FRT	1-53351-216-0	01	1	9803-9902	●	●	●
24	BRACKET; FRT SPR,FRT FRAME EQUIPMENT HEAVY DUTY VAR1(F03)	1-53351-216-0	01	1	9903-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-216-0	01	1	9903-0210			●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9510-9802	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9803-0210	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9510-9802	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9803-0210	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	08	1	9510-9802	●	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	9510-9802	●	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	9803-0210	●	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9510-9802	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9803-0210	●	●	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	9510-9802	●	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	9803-9810	●	●	●
34	MEMBER; CROSS,3RD FRAME EQUIPMENT HEAVY DUTY VAR1(F03) (B)	1-53175-360-1	01	1	9811-0210	●	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	9811-0210			●
34	MEMBER; CROSS,3RD EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03) (B)	1-53175-359-1	01	1	9811-0210	●	●
39	BRACKET; FRT SPR,RR	1-53352-154-1	02	1	9510-9802	●	●
39	BRACKET; FRT SPR,RR	1-53352-154-1	02	1	9803-0210	●	●	●
40	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	08	1	9510-9802	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28681-030-0	08	1	9803-0210	●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-086-0	02	1	9510-0210	●
58	MEMBER; CENTER BRG	1-37529-082-0	01	1	9510-0210	●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9510-9802	●
60	BOLT; MBR M10X25 FLANGE	0-28681-025-0	08	1	9803-0210	●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9510-9802	●
62	NUT; MBR M10	9-09110-410-0	08	1	9510-9802	●
62	NUT; MBR M10 FLANGE	0-91150-110-0	08	1	9803-0210	●
64	NUT; BRKT TO FRAME M10	9-09110-410-0	08	1	9510-9802	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	08	1	9803-0210	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9510-9802	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9803-0210	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9510-9802	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9803-0210	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-1	02	1	9510-9802	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	9803-0210	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9510-9802	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9803-0210	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9510-9802	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9803-0210	●	●	●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	9510-9802	●	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	9803-0210	●	●	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9510-9802	●	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9803-0210	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9510-9802	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9803-0210	●	●	●
130	MEMBER; CROSS,END	1-53181-469-2	01	1	9510-0210	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9803-0210			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	9510-9802	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28681-025-0	04	1	9803-0210	●	●	●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	9510-9802	●	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	9803-0210	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9510-9802	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9803-0210	●	●	●
139	MEMBER; CROSS,6TH	1-53181-521-3	01	1	9510-0210		●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	9803-0210			●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	9510-9802	●	●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	9803-9810	●	●	●
202	SPACER; 3RD C/MBR FRAME EQUIPMENT HEAVY DUTY VAR1(F03)	1-53178-015-0	02	1	9811-0210	●	●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	9811-0210			●
344	MEMBER; CROSS,4TH	1-53181-520-7	01	1	9510-0210	●
344	MEMBER; CROSS,4TH	1-53181-463-0	01	1	9510-9802		●
344	MEMBER; CROSS,4TH	1-53181-463-1	01	1	9803-0210		●	●
345	MEMBER; CROSS,5TH	1-53181-521-3	01	1	9510-0210	●
345	MEMBER; CROSS,5TH	1-53181-520-7	01	1	9510-0210		●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	9803-0210			●
