4-10 — FRONT AXLE (#1925) — 63 parça

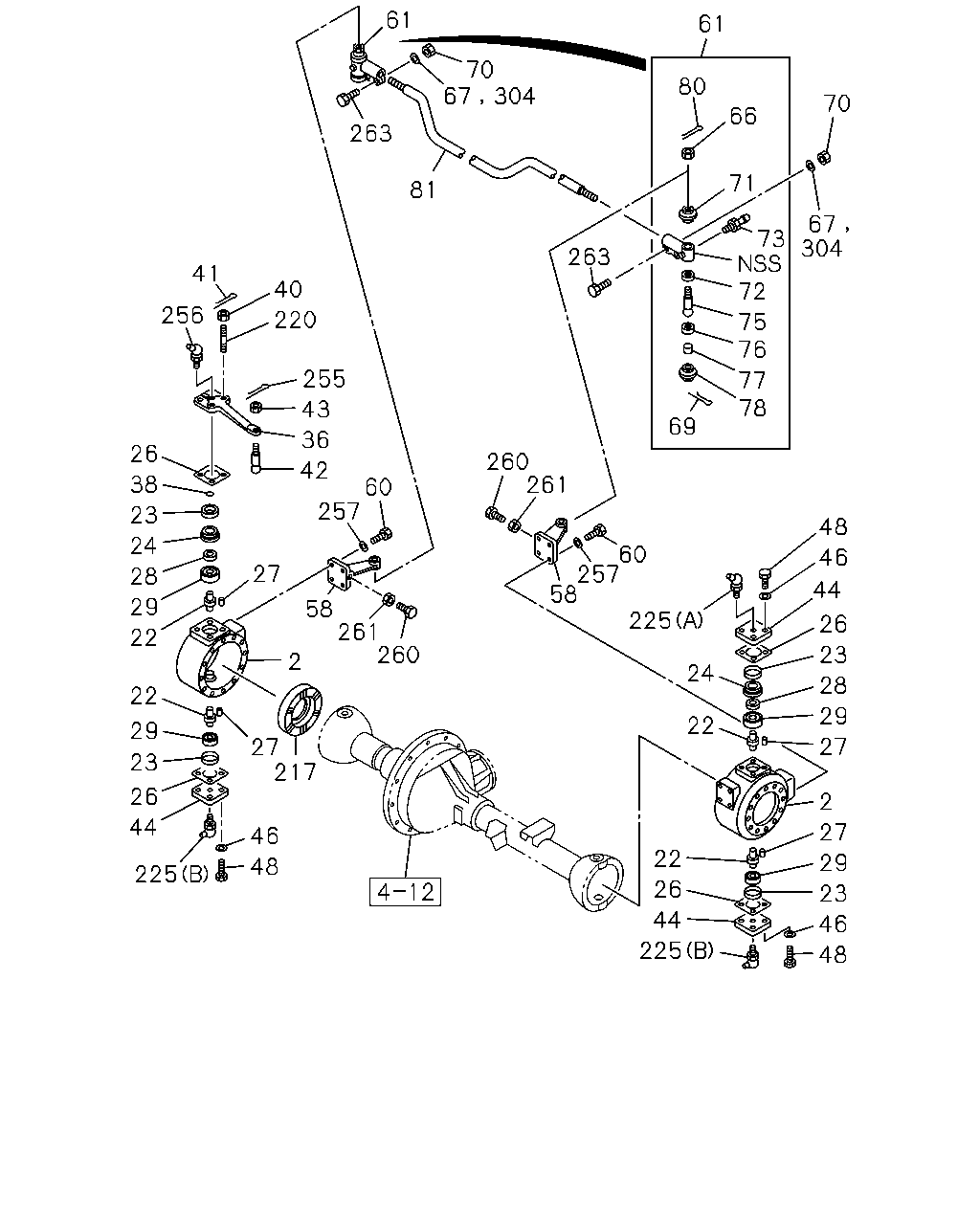

çizim 28057
61 61 70 80 70 66 263 71 81 67 304 73 72 263 41 40 256 220 75 76 255 77 78 43 69 36 26 260 261 42 38 60 257 23 48 24 60 257 58 46 27 28 44 29 58 261 260 225 26 22 23 2 24 28 22 29 22 29 27 27 217 23 26 2 44 27 46 22 29 48 225 26 23 44 46 225 48 67 304
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 KNUCKLE; FRT AXLE 1-43242-006-2 01 1 9207- ● ● ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-0 01 1 9207- ● ● ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 9207- ● ● ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 9207- ● ● ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 9207- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 9207- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 9207- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 9207- ● ● ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 9207- ● ● ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 9207- ● ● ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 9207- ● ● ● ●
36 ARM; KNUCKLE 1-43261-014-0 01 1 9207- ● ●
36 ARM; KNUCKLE 1-43261-001-0 01 1 9207- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 9207- ● ● ● ●
40 NUT; KNUCKLE ARM
M14 		9-99116-414-0 04 1 9207- ● ● ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		9-08113-025-0 04 1 9207- ● ● ● ●
42 JOINT; BALL,KNUCKLE ARM 1-44361-048-4 01 1 9207- ● ●
42 JOINT; BALL,KNUCKLE ARM 1-44361-013-1 01 1 9207- ● ●
43 NUT; JOINT BALL,KNUCKLE ARM
M16 		1-09449-014-0 01 1 9207- ● ●
43 NUT; JOINT BALL,KNUCKLE ARM 9-09841-069-0 01 1 9207- ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 9207- ● ● ● ●
46 WASHER; LK,COVER
ID=14.2 		9-09150-514-0 12 1 9207-9401 ● ● ● ●
46 WASHER; LK,COVER
ID=14.2 		9-09150-814-0 12 1 9402- ● ● ● ●
48 BOLT; COVER
M14X35 		9-92061-435-0 12 1 9207- ● ● ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 9207- ● ● ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 9207- ● ● ● ●
60 BOLT; TIE ROD ARM
M16X40 		9-92061-640-0 08 1 9207- ● ● ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 9207- ● ● ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 9207- ● ● ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 9207- ● ● ● ●
67 WASHER; LK,TIE ROD END
ID=12.2 		9-09150-512-0 04 1 9207-9210 ● ● ● ●
67 WASHER; LK,TIE ROD END
ID=12.2 		9-09150-812-0 04 1 9211-9410 ● ● ● ●
69 PIN; SPLIT,TIE ROD END 9-08114-065-0 02 1 9207- ● ● ● ●
70 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 9207- ● ● ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 9207- ● ● ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 9207- ● ● ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 9207- ● ● ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 9207- ● ● ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 9207- ● ● ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 9207- ● ● ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		9-08114-030-0 02 1 9207- ● ● ● ●
81 ROD; TIE 1-43151-048-0 01 1 9207- ● ●
81 ROD; TIE 1-43151-070-0 01 1 9207- ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=67 		1-43321-007-0 02 1 9207- ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		9-43321-005-0 02 1 9207- ● ●
220 STUD; KNUCKLE ARM
M14X54.5 L=72 		9-09830-131-0 01 1 9207- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X41.5 L=60.5 		9-09830-132-0 01 1 9207- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X46.5 L=72 		9-09830-133-0 01 1 9207- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X33.5 L=60.5 		9-09830-134-0 01 1 9207- ● ● ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9207- ● ● ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ●
255 PIN; SPLIT,JOINT BALL
OD=4.6 L=40 		9-08115-040-0 01 1 9207- ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9207- ● ● ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		9-09150-516-0 08 1 9207- ● ● ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X40 		0-20801-440-0 02 1 9207-9506 ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20801-435-0 02 1 9207-9506 ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20801-435-0 02 1 9507- ● ● ● ●
261 NUT; STOPPER BOLT
M14 		9-99110-414-0 02 1 9207-9506 ● ●
261 NUT; STOPPER BOLT
M14 		9-99111-414-0 02 1 9207-9506 ● ●
261 NUT; STOPPER BOLT
M14 		9-99111-414-0 02 1 9507- ● ● ● ●
263 BOLT; ROD END
M12X45 		9-92061-245-0 04 1 9207- ● ● ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 9411- ● ● ● ●
