Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
0 - Engine, Emission, Engine Electrical
▶
0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#19248) — 17 parça
Tümü
A - 6WG1 TC-R
B - 6WG1 TC-C
C - 6WG1 TC-S
◀

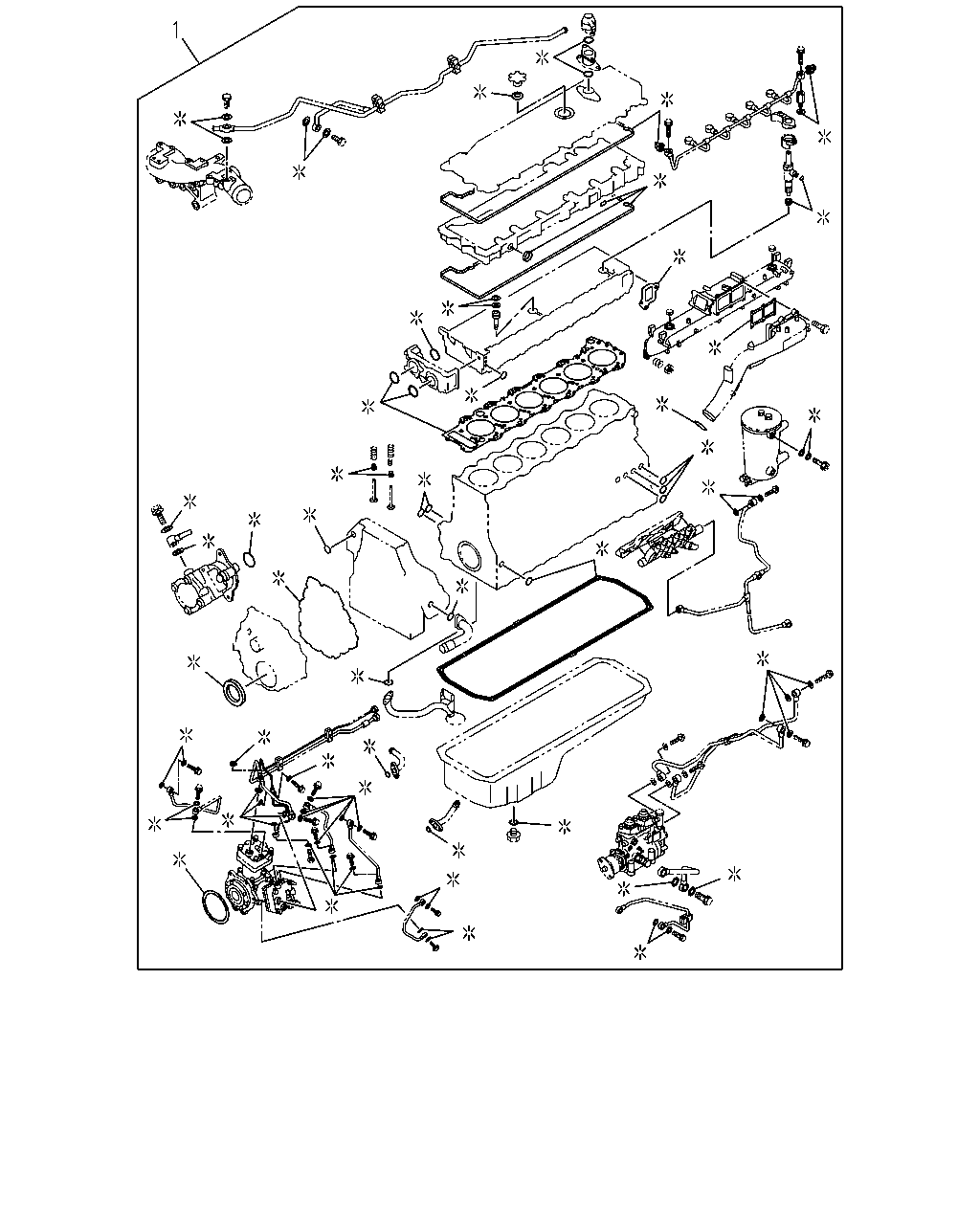

[005A] ENG OVERHAUL NO.1 (6 parça)
[005A] ENG OVERHAUL NO.2 (6 parça)

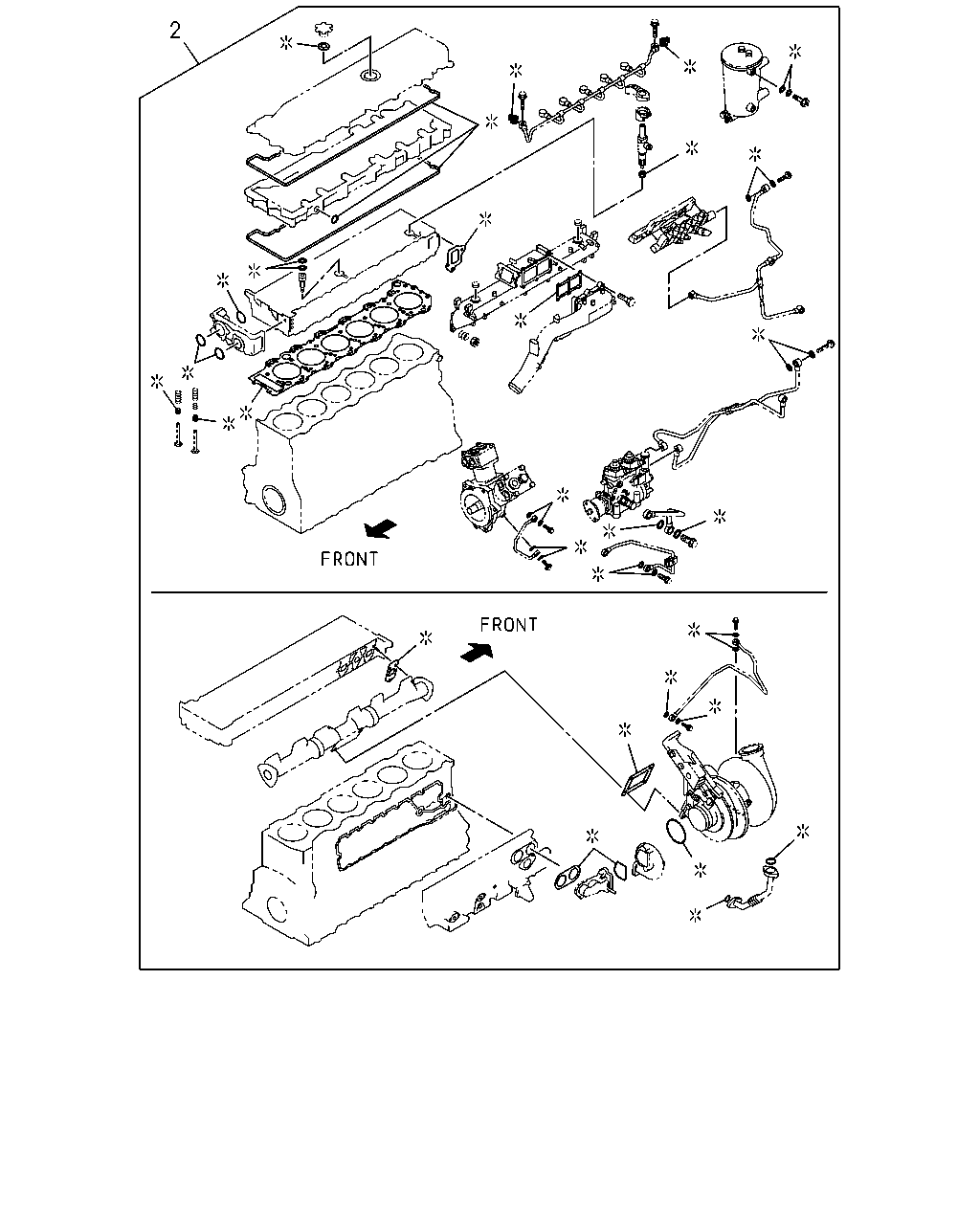

[005A] ENG HD OVERHAUL (5 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
GASKET SET; ENG OVERHAUL
1-87813-367-4
01
1
0904-1001
●
1
GASKET SET; ENG OVERHAUL
1-87813-565-0
01
1
1002-1008
●
1
GASKET SET; ENG OVERHAUL
1-87813-565-2
01
1
1009-1111
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87813-816-0
01
1
1112-1312
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87814-661-0
01
1
1401-1502
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87815-585-0
01
1
1503-
●
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
GASKET SET; ENG OVERHAUL
1-87813-367-4
01
1
0904-1001
●
1
GASKET SET; ENG OVERHAUL
1-87813-565-0
01
1
1002-1008
●
1
GASKET SET; ENG OVERHAUL
1-87813-565-2
01
1
1009-1111
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87813-816-0
01
1
1112-1312
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87814-661-0
01
1
1401-1502
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87815-585-0
01
1
1503-
●
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GASKET SET; ENG HD OVERHAUL
1-87813-368-3
01
1
0904-1001
●
2
GASKET SET; ENG HD OVERHAUL
1-87813-566-0
01
1
1002-1008
●
2
GASKET SET; ENG HD OVERHAUL
1-87813-566-1
01
1
1009-1111
●
●
●
2
GASKET SET; ENG HD OVERHAUL
1-87813-817-0
01
1
1112-1312
●
●
●
2
GASKET SET; ENG HD OVERHAUL
1-87814-662-0
01
1
1401-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
