◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11199 - CYZ NEW ZEALAND EURO4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#19246) — 86 parça
çizim 62158
125 126 108 12 141 124 127 130 128 129 135 145 146 143 151 144 156 158 163 153 154
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0904-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0904-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0904-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0904-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0904-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0904-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0904-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0904-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0904-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0904-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0904-0910
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0904-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0904-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0904-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 0904-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0904-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0904-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0904-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0904-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0904-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0904-0909
163 TOOL; SETTING 9-85221-231-0 01 1 0910-

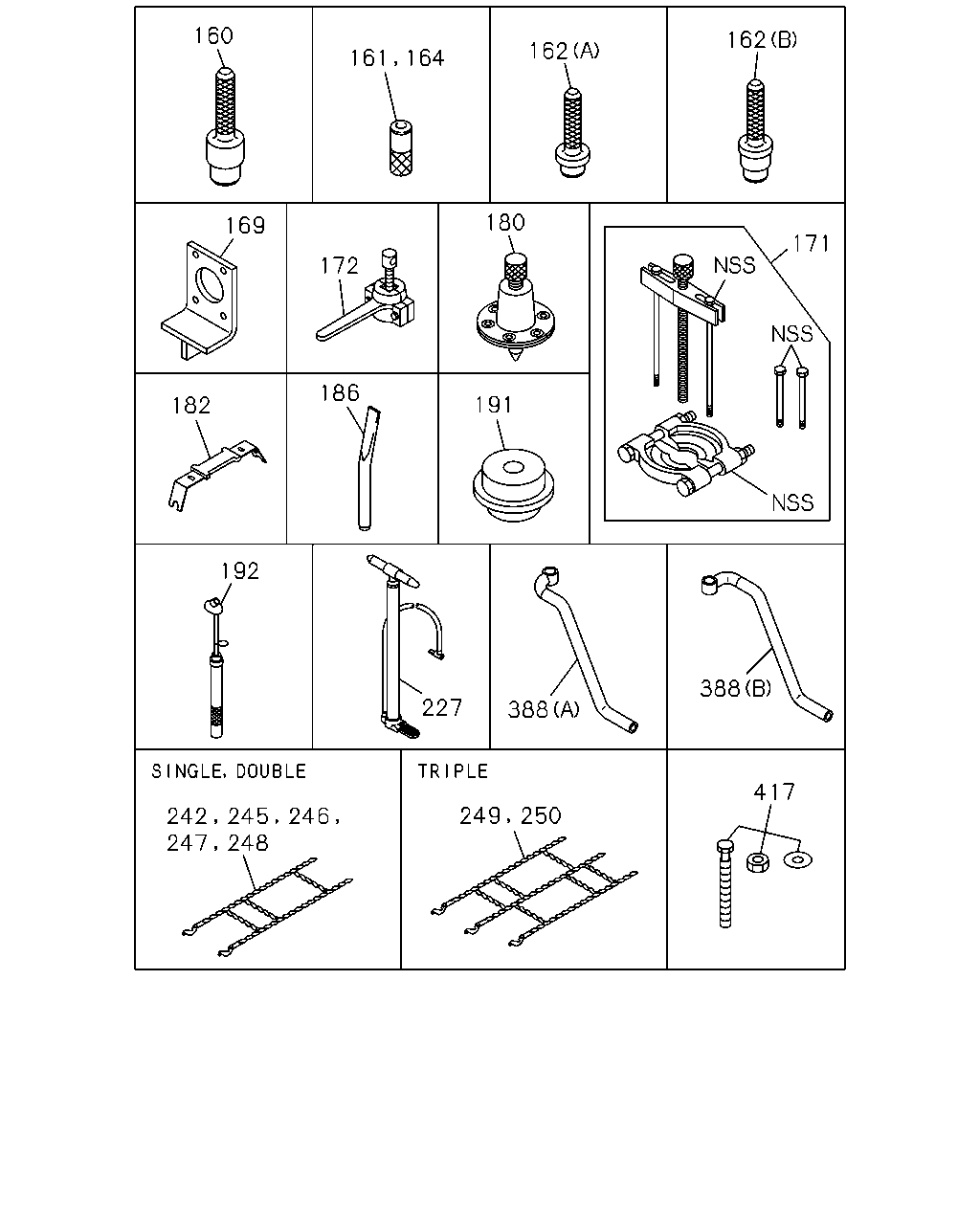

çizim 62228
160 162 162 161 164 180 169 171 172 186 191 182 192 388 227 388 417 242 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0904-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0904-0909
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0904-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0904-
164 GUIDE; SNAP RING PILOT BRG 1-85176-001-0 01 1 0910-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0904-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0904-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0904-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0904-
182 REMOVER ASM 1-85239-008-0 01 1 0904-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0904-
191 ADAPTER 1-85216-009-0 01 1 0904-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0904-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0904-
242 DRAWER ASM; ENG TRANS & DIFF
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0910-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0904-0909
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0904-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0904-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0904-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0904-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0904-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0904-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0904-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0904-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0904-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0904-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0904-

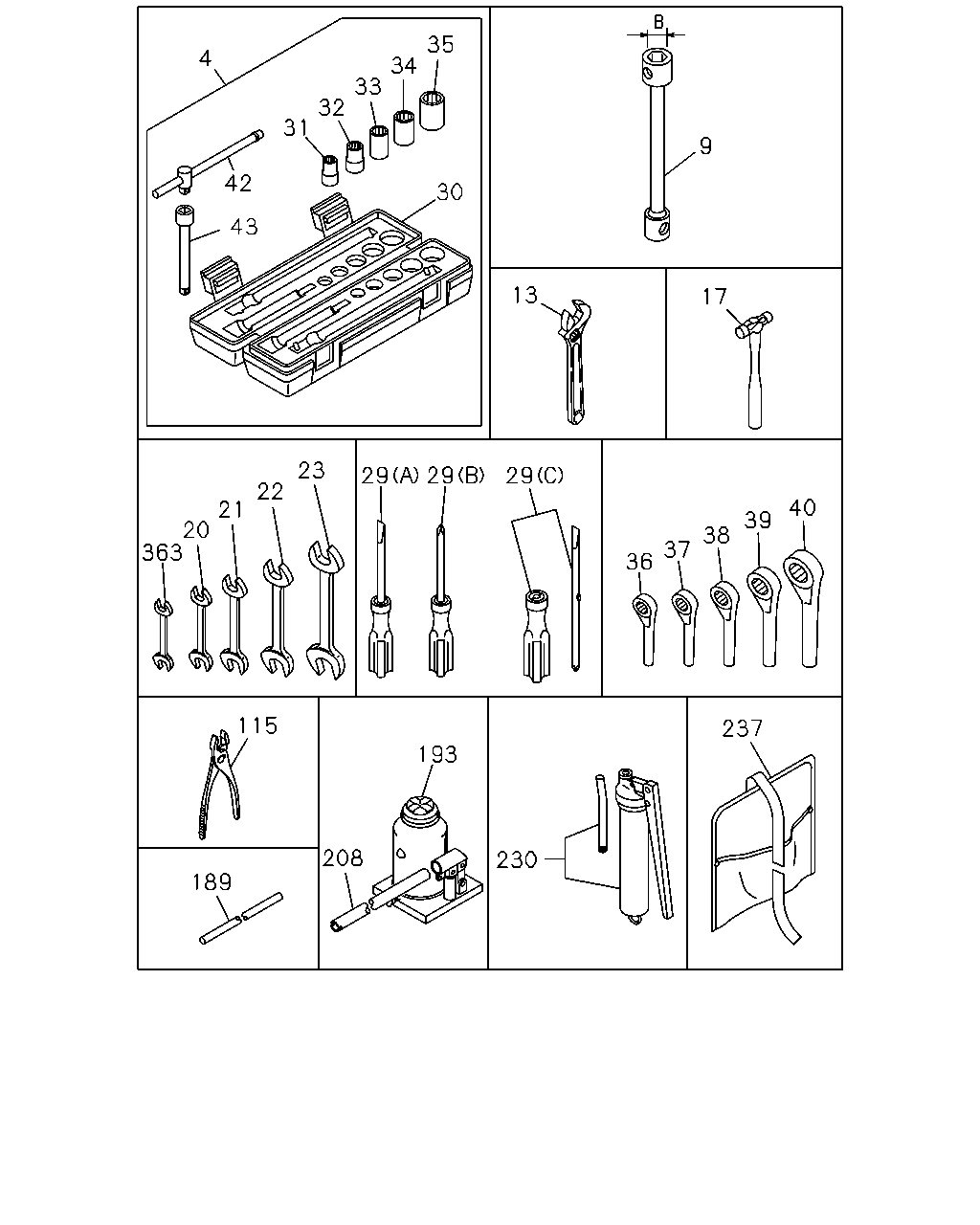

çizim 62263
35 34 33 32 4 31 9 42 30 43 13 17 23 29 29 29 22 40 21 20 363 39 38 37 36 115 237 193 208 230 189
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0904-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0904-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0904-0907
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0904-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0904-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0904-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0904-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0904-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0904-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0904-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0904-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0904-
31 WRENCH; 12 1-85000-495-0 01 1 0904-
32 WRENCH; 14 1-85000-496-0 01 1 0904-
33 WRENCH; 17 1-85000-497-0 01 1 0904-
34 WRENCH; 19 1-85000-498-0 01 1 0904-
35 WRENCH; 22 1-85000-499-0 01 1 0904-
36 WRENCH; 24 9-85111-377-0 01 1 0904-
37 WRENCH; 27 9-85111-375-0 01 1 0904-
38 WRENCH; 32 9-85111-358-0 01 1 0904-
39 WRENCH; 36 9-85111-374-0 01 1 0904-
40 WRENCH; 41 9-85111-356-0 01 1 0904-
42 HANDLE; SLIDING 1-85000-500-0 01 1 0904-
43 BAR; EXTENSION,SOCKET WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0904-
115 PLIER 5-85171-002-0 01 1 0904-1410
115 PLIER 8-98282-845-0 01 1 1411-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0904-
193 JACK ASM
15TON 		1-85510-019-2 01 1 0904-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0904-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0904-
237 BAG; TOOL 8-97130-902-1 01 1 0904-
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0904-
