4-60 — REAR SUSPENSION (#19241) — 35 parça

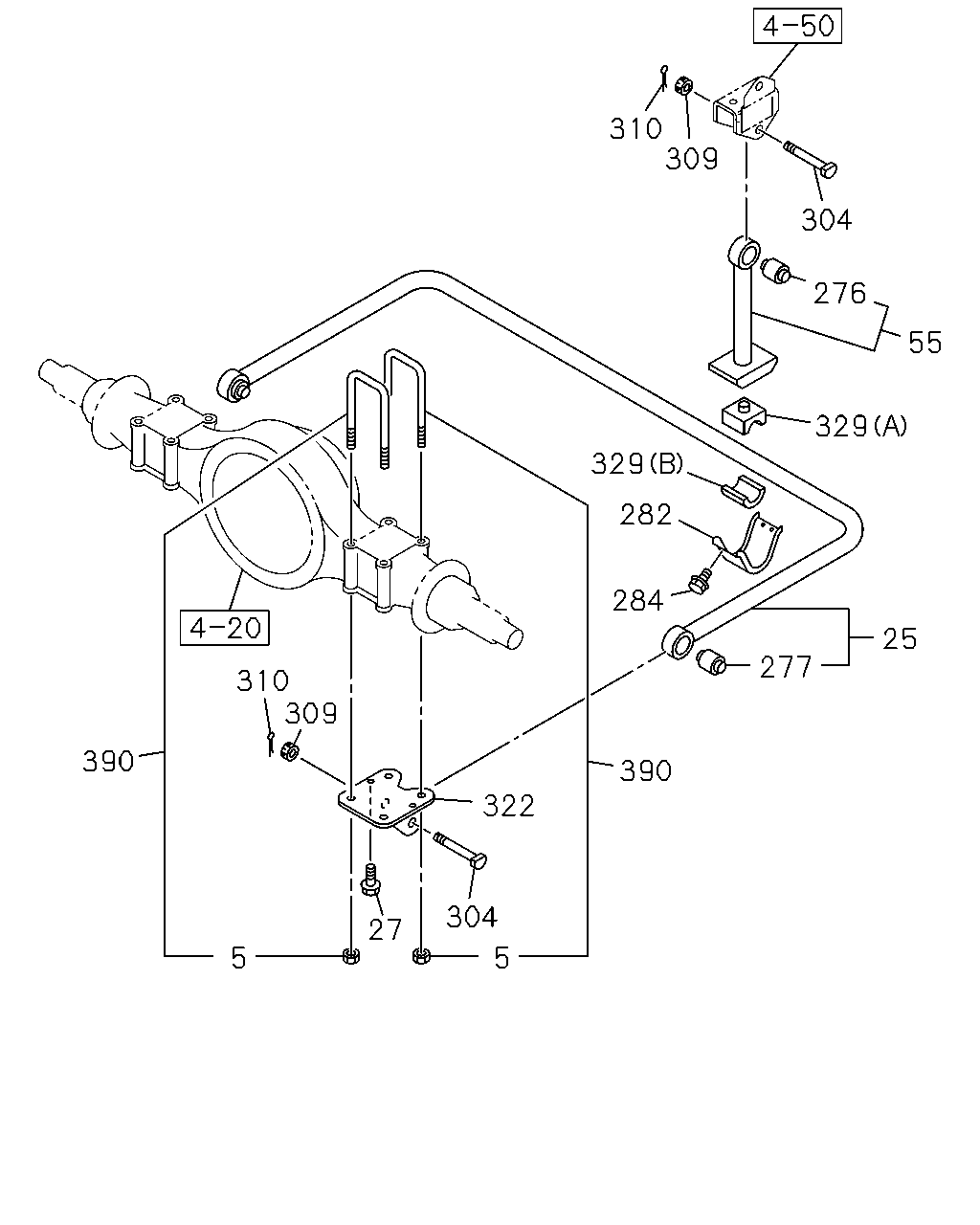

çizim 129201
310 309 304 276 55 329 329 282 284 25 277 310 309 390 390 322 304 27 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1004- ● ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 1004- ● ●
27 BOLT; STAB
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28051-016-0 04 1 1004- ● ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 1004- ● ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 1004- ● ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 1004- ● ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 1004- ● ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 1004- ● ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 1004- ● ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 1004- ● ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		0-81125-045-0 04 1 1004- ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-127-0 01 1 1004- ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-048-4 01 1 1004- ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-051-1 02 1 1004- ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-052-0 02 1 1004- ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1004- ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-017-4 04 1 1004- ●

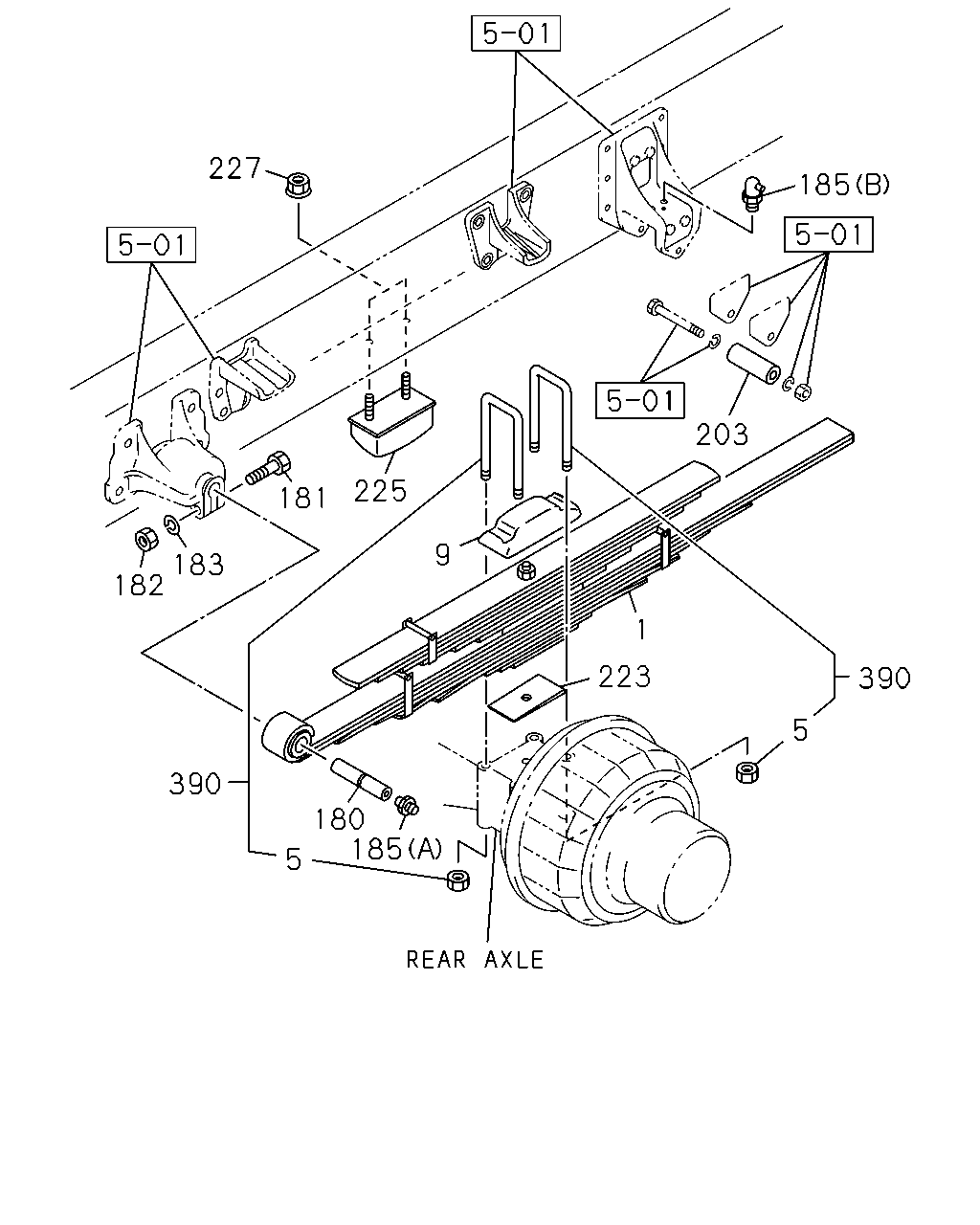

çizim 129219
227 185 203 225 181 9 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-565-0 02 1 1004- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98098-667-0 02 1 1004- ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1004- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1004- ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 1004- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1004- ● ●
182 NUT; PIN,RR SPR
M14 SOU 		0-91110-514-0 02 1 1004- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 SOU 		0-91510-514-0 02 1 1004- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 02 1 1004- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1004- ● ●
203 COLLAR; LEAF SPR STOPPER 1-53359-004-0 02 1 1004- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-367-1 02 1 1004-1407 ●
223 SPACER; U BOLT,RR SPR 8-98220-148-0 02 1 1408- ●
223 SPACER; U BOLT,RR SPR 1-51377-371-1 02 1 1004-1212 ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 1004- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1004- ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-017-4 04 1 1004- ●
