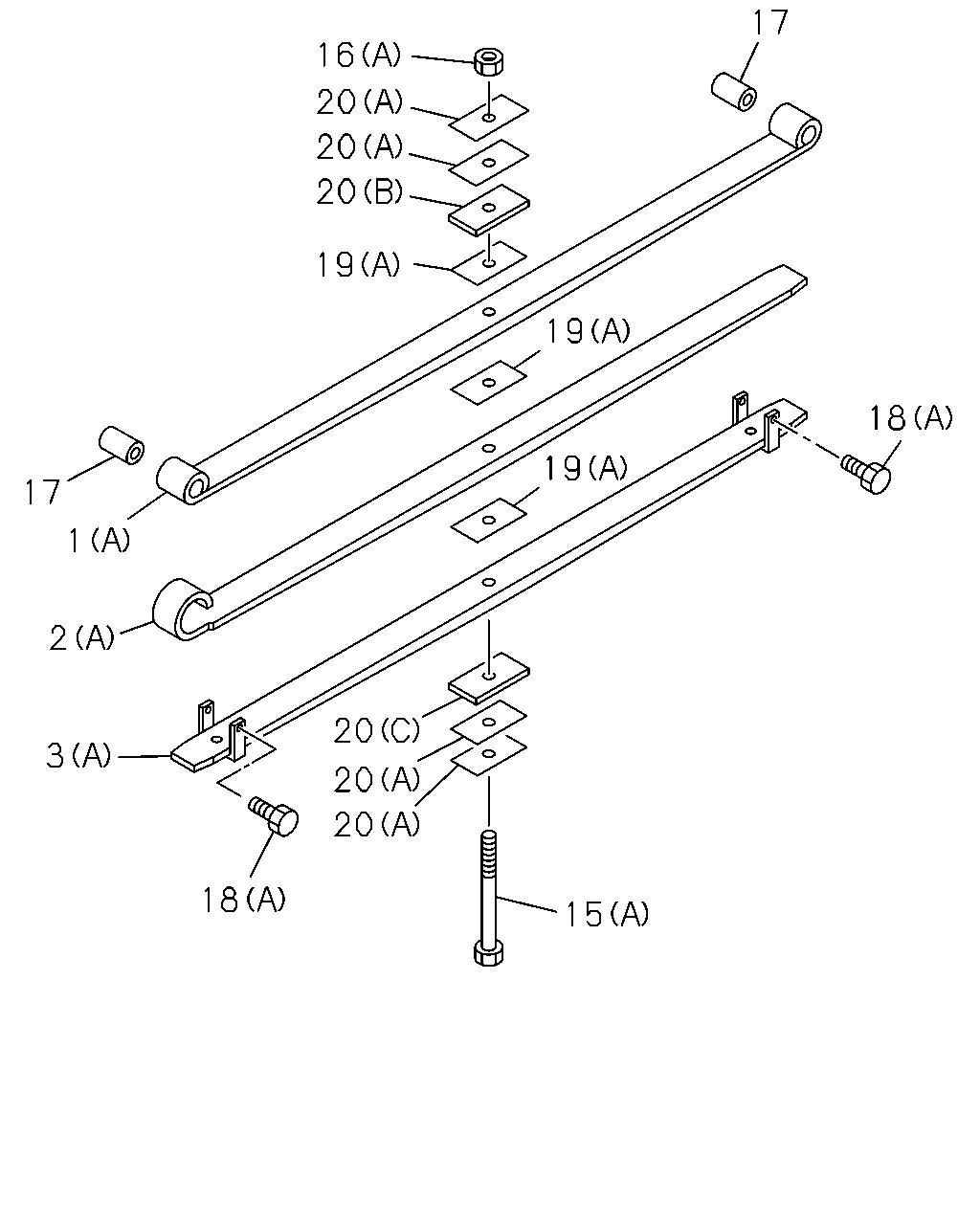

4-55 — FRONT LEAF SPRING (#19240) — 43 parça

17 16 20 20 20 19 19 18 19 17 1 2 20 3 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-140-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-223-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-141-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-224-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-142-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-225-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: B = 8-98107-911-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=155 ASM PART: A = 8-98098-671-0	1-51156-344-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: B = 8-98107-911-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: A = 8-98098-671-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, SOU ASM PART: A = 8-98098-671-0, B = 8-98107-911-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X102 ASM PART: A = 8-98098-671-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: B = 8-98107-911-0	8-97615-331-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: B = 8-98107-911-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: A = 8-98098-671-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (F), T=13 ASM PART: A = 8-98098-671-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 8-98107-911-0	1-51177-346-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: B = 8-98107-911-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: B = 8-98107-911-0	1-51177-353-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: A = 8-98098-671-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=9 ASM PART: A = 8-98098-671-0	1-51377-401-0	02	1	-

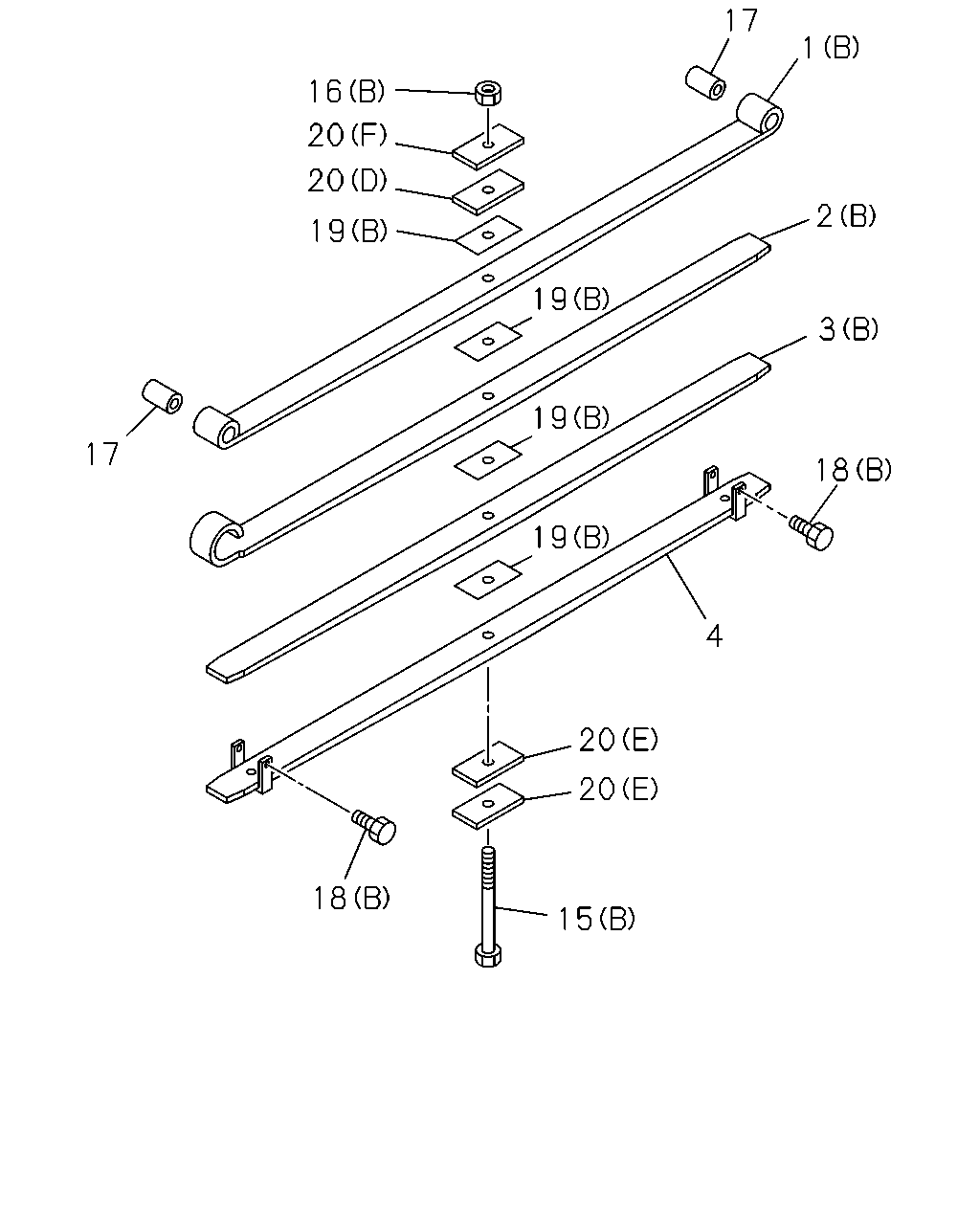

17 1 16 20 20 2 19 19 3 19 17 18 19 4 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-140-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-223-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-141-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-224-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98107-911-0	8-98063-142-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 8-98098-671-0	8-98118-225-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98098-671-0	8-98118-226-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: B = 8-98107-911-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=155 ASM PART: A = 8-98098-671-0	1-51156-344-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: B = 8-98107-911-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: A = 8-98098-671-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, SOU ASM PART: A = 8-98098-671-0, B = 8-98107-911-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X102 ASM PART: A = 8-98098-671-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: B = 8-98107-911-0	8-97615-331-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: B = 8-98107-911-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: A = 8-98098-671-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (F), T=13 ASM PART: A = 8-98098-671-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 8-98107-911-0	1-51177-346-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: B = 8-98107-911-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: B = 8-98107-911-0	1-51177-353-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: A = 8-98098-671-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=9 ASM PART: A = 8-98098-671-0	1-51377-401-0	02	1	-
