4-01 — PROPELLER SHAFT (#1924) — 56 parça

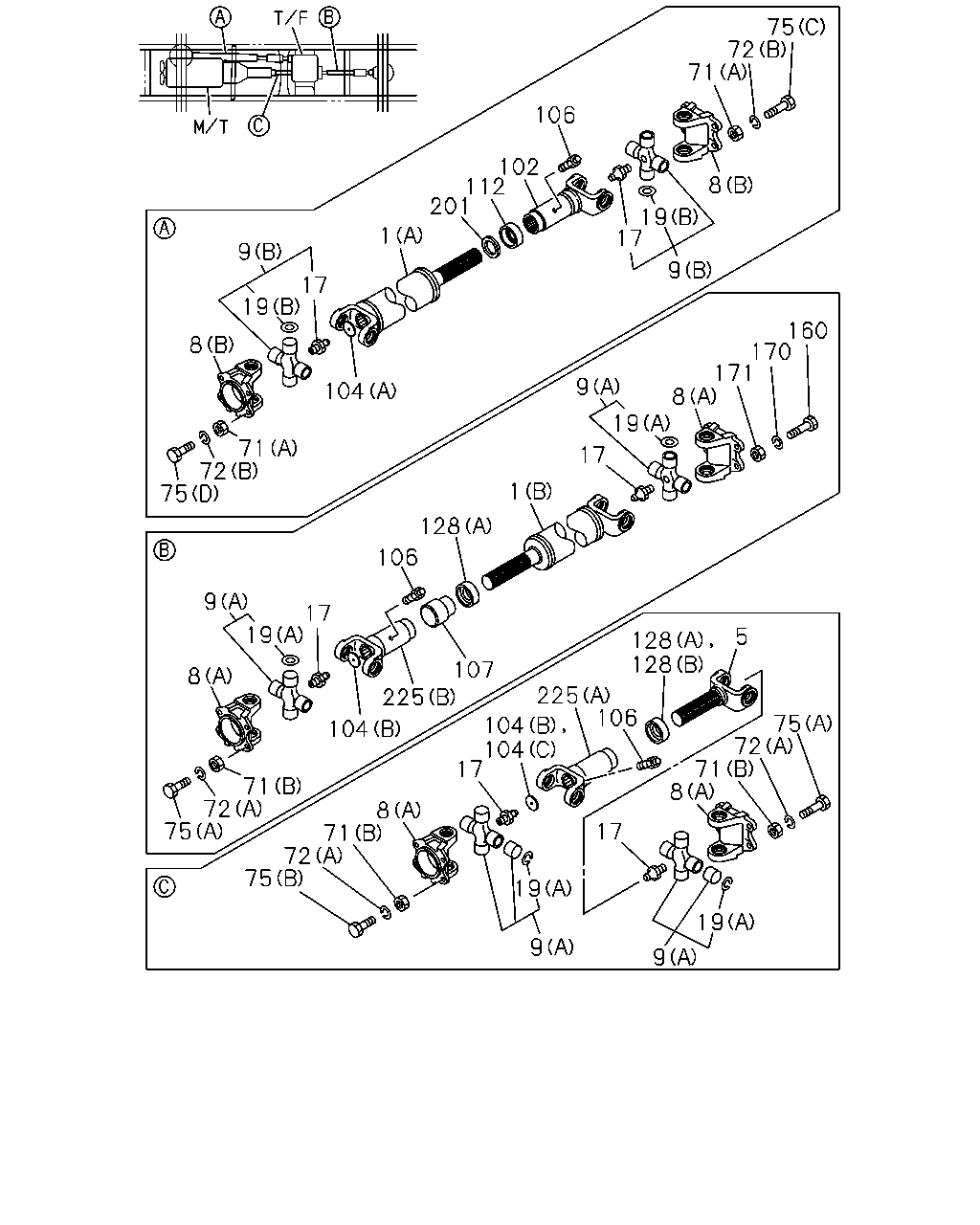

çizim 28125
75 72 71 106 102 112 201 8 19 17 1 9 9 17 19 160 170 171 8 9 104 8 19 71 72 75 17 1 128 106 9 17 19 5 128 128 107 225 8 225 106 75 72 71 8 104 104 17 104 71 72 75 8 71 72 75 17 19 19 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(B) L=486 		1-37117-187-0 01 1 9207- ●
1 SHAFT; PROP
(A) L=1355 		1-37141-040-0 01 1 9207- ● ●
1 SHAFT; PROP
(A) L=1365 		1-37122-005-0 01 1 9207- ●
1 SHAFT; PROP
EXC. FIRE TRUCK(RA9) (A) L=1365 		1-37122-005-0 01 1 9207- ●
1 SHAFT; PROP
(B) L=656 		1-37123-510-0 01 1 9207- ●
1 SHAFT; PROP
(B) L=911 		1-37123-509-0 01 1 9207- ●
1 SHAFT; PROP
FIRE TRUCK(RA9) (B) L=1216 		1-37123-465-0 01 1 9207- ●
1 SHAFT; PROP
FIRE TRUCK(RA9) (A) L=1412 		1-37141-045-0 01 1 9207- ●
1 SHAFT; PROP
EXC. FIRE TRUCK(RA9) (B) L=1266 		1-37123-424-2 01 1 9207- ●
5 YOKE; STUB,PROP SHAFT
L=302 		1-37171-092-1 01 1 9207- ● ● ●
5 YOKE; STUB,PROP SHAFT
EXC. FIRE TRUCK(RA9) L=302 		1-37171-092-1 01 1 9207- ●
5 YOKE; STUB,PROP SHAFT
FIRE TRUCK(RA9) L=237 		1-37171-087-1 01 1 9207- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-015-1 02 1 9207- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9207- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-058-0 AR 1 9207- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9207- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 06 1 9207- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. FIRE TRUCK(RA9) PT1/8 ELBOW 		9-09031-210-0 06 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
FIRE TRUCK(RA9) PT1/8 ELBOW 		9-09031-210-0 06 1 9207- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 9207- ● ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9207- ● ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 9207- ● ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 9207- ● ● ● ●
72 WASHER; LK,YOKE
(B) ID=12.2 		9-09150-612-0 08 1 9207- ● ● ● ●
72 WASHER; LK,YOKE
(A) ID=14.2 		9-09150-614-0 04 1 9207- ● ● ● ●
72 WASHER; LK,YOKE
(A) ID=14.2 		9-09150-614-0 08 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(C) M12X35 		1-09000-069-0 04 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 08 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X40 		1-09000-187-0 04 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(D) M12X40 		9-09801-095-0 04 1 9207- ● ● ● ●
102 YOKE; TRANSFER TO AXLE 1-37245-061-0 01 1 9207- ● ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-014-0 01 1 9207- ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 01 1 9207- ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 01 1 9207- ● ● ●
104 PLUG; SLEEVE YOKE
EXC. FIRE TRUCK(RA9) (B) 		1-09600-064-0 01 1 9207- ●
104 PLUG; SLEEVE YOKE
FIRE TRUCK(RA9) (C) 		1-09600-033-0 01 1 9207- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 03 1 9207- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9207- ● ● ● ●
112 RETAINER; FELT RING 9-37248-007-0 01 1 9207- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9207- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9207- ● ● ●
128 SEAL; SLEEVE
EXC. FIRE TRUCK(RA9) (A) 		1-37247-015-0 01 1 9207- ●
128 SEAL; SLEEVE
FIRE TRUCK(RA9) (B) 		1-37247-002-1 01 1 9207- ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 9207- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 9207- ● ● ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 9207- ● ● ● ●
201 RING; FELT,SLEEVE 9-09922-100-0 01 1 9207- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=229 		1-37241-086-2 01 1 9207- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. FIRE TRUCK(RA9) (A) L=229 		1-37241-086-2 01 1 9207- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) 		1-37241-079-1 01 1 9207- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FIRE TRUCK(RA9) (A) L=154 		1-37241-081-2 01 1 9207- ●
